Load cells are essential devices in various industries, converting mechanical force into measurable electrical signals. They are primarily categorized into two types: compression load cells, which measure forces pushing down on them, and tension load cells, which measure pulling forces. Understanding the applications of these load cells can help in selecting the right type for specific needs.

Understanding Load Cells

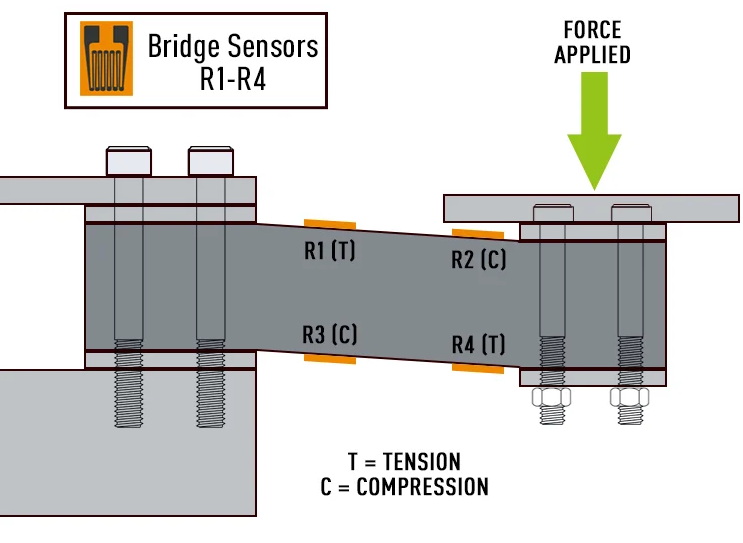

Load cells operate on the principle of strain gauges, which change their electrical resistance when deformed under load. This deformation is translated into an electrical signal that can be measured and analyzed. The most common types of load cells include:

- Compression Load Cells: Measure downward forces.

- Tension Load Cells: Measure upward forces.

- Universal Load Cells: Can measure both tension and compression.

Applications of Compression Load Cells

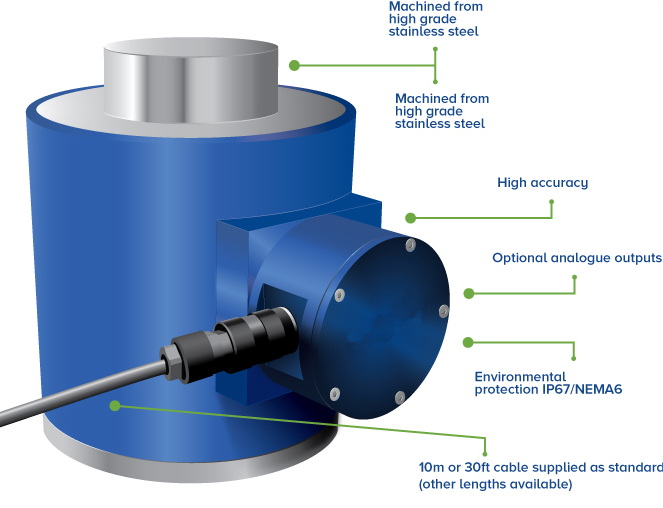

Compression load cells are widely used in scenarios where weight measurement is critical. Their applications include:

- Industrial Weighing: Used in platform scales, truck scales, and weighbridges to measure heavy materials accurately.

- Material Testing: Employed in laboratories to test the compressive strength of materials such as concrete and metals.

- Silo Weighing: Essential for monitoring the weight of bulk materials stored in silos, ensuring that inventory levels are accurately tracked.

- Automotive Testing: Used in crash tests and other automotive applications to measure forces applied during testing scenarios.

- Medical Equipment: Integrated into devices like hospital beds and scales to monitor patient weight safely and accurately.

Applications of Tension Load Cells

Tension load cells are crucial in measuring pulling forces. Their applications include:

- Crane Scales: Used to weigh loads being lifted by cranes, ensuring that they do not exceed safe limits.

- Material Testing: Employed to determine the tensile strength of materials, including cables and fabrics.

- Construction Monitoring: Used to measure tension in cables and supports within bridges and buildings, ensuring structural integrity.

- Textile Industry: Essential for measuring the tension in threads during manufacturing processes.

- Research and Development: Utilized in laboratories for experiments requiring precise tension measurements.

Comparison of Compression and Tension Load Cells

Feature	Compression Load Cells	Tension Load Cells
Measurement Direction	Measures pushing (downward) forces	Measures pulling (upward) forces
Design Orientation	Installed beneath the load	Installed above or at the point of pull
Common Applications	Weighbridges, silo weighing	Crane scales, material testing
Bidirectionality	Unidirectional	Often bidirectional

Advantages of Using Compression and Tension Load Cells

Both types of load cells offer distinct advantages based on their designs:

- Compression Load Cells:

- High accuracy for static measurements.

- Robust design suitable for harsh environments.

- Long-term stability with minimal maintenance.

- Tension Load Cells:

- Versatile applications across various industries.

- Can often be calibrated to measure both tension and compression.

- Compact designs suitable for limited spaces.

Innovations in Load Cell Technology

Recent advancements have led to the development of universal load cells capable of measuring both tension and compression. These innovative devices enhance versatility, making them suitable for a broader range of applications. For instance, S-type load cells can be used effectively in hanging scales or applications requiring both pulling and pushing measurements.

Conclusion

Compression and tension load cells play a vital role in ensuring accurate measurements across multiple industries. Their unique capabilities allow them to be employed in various applications ranging from industrial weighing to material testing. As technology advances, these devices continue to evolve, providing even greater accuracy and reliability.

FAQ

1. What is a compression load cell?

A compression load cell measures downward forces applied to it, converting this force into an electrical signal using strain gauges.

2. How do tension load cells work?

Tension load cells measure pulling forces by detecting the deformation caused by a load applied in a pulling direction, converting this deformation into an electrical signal.

3. Can a single load cell measure both tension and compression?

Yes, universal or dual-range load cells can be calibrated to accurately measure both tension and compression forces effectively.

4. What are common applications for tension load cells?

Common applications include crane scales, material testing, construction monitoring, textile manufacturing, and research laboratories.

5. How often should load cells be calibrated?

Calibration frequency depends on usage but generally should be performed at least once a year or whenever discrepancies in measurements occur.
