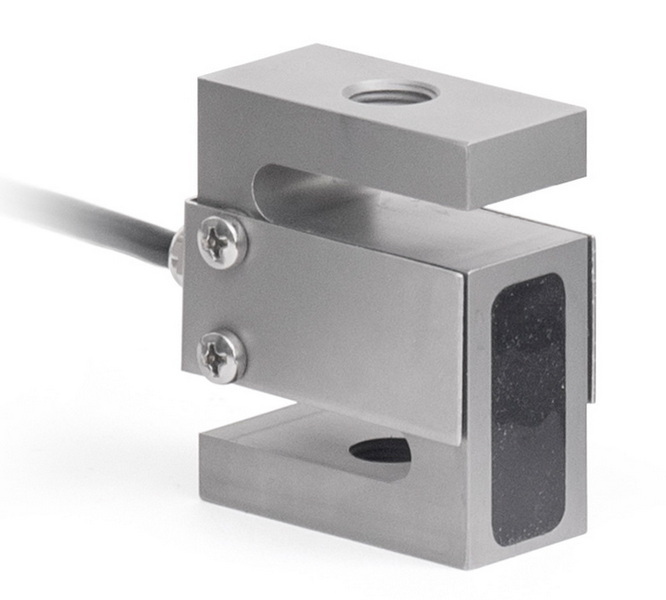

Tension force sensors, also known as tension load cells or force transducers, are pivotal in contemporary industrial processes. They facilitate the precise monitoring and control of material tension across diverse applications[6][9]. These sensors are indispensable for ensuring seamless and efficient manufacturing, spanning web handling, packaging, material processing, and assembly lines[6]. This article explores the fundamental principles, diverse types, and widespread applications of tension force sensors, providing insights into how they enhance productivity, minimize waste, and ensure product quality.

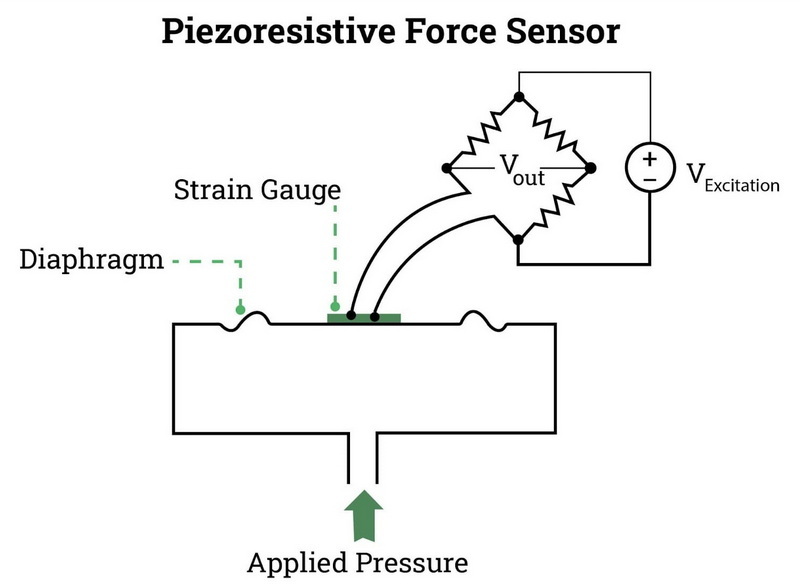

Tension force sensors are designed to measure the pulling force exerted on a material, such as a wire, cable, or sheet[9]. At their core, these sensors typically employ strain gauges, which are small electrical devices that exhibit changes in resistance when subjected to stretching or compression[9]. These gauges are affixed to a metal element within the sensor. When tension is applied to the material under measurement, the metal element undergoes slight deformation, causing the strain gauges to alter their electrical resistance. This alteration is subsequently converted into an electrical signal, which corresponds to the magnitude of tension being applied[9].
Tension sensors operate by detecting changes in strain through strain gauges and converting these changes into measurable electrical signals, providing real-time data for enhanced process control[9].
Force Detection Mechanisms: Tension sensors employ various methods to measure tension. Strain gauge sensors monitor material deformation, piezoelectric sensors generate an electrical signal when stressed, and capacitive sensors detect changes in electrical fields due to tension[6].
Signal Processing and Output Generation: After detecting tension, sensors process the signals and convert them into usable data. This involves converting analog signals to digital, amplifying, and employing digital processing for accurate measurements[6].
Various types of tension sensors are available, each designed for specific applications and environments[3].
1. Strain Gauge Tension Sensors: These are the most common type, utilizing strain gauges to measure the deformation of a material under tension[2][9]. They are known for their accuracy and reliability[2].
2. Piezoelectric Tension Sensors: These sensors generate an electrical charge proportional to the applied tension[6]. They are suitable for dynamic tension measurement[6].
3. Capacitive Tension Sensors: These sensors measure changes in capacitance due to tension[6]. They are often used in high-precision applications[6].
4. Load Cells: Functioning as force transducers, load cells convert physical force into electrical signals, facilitating precise tension monitoring in industrial applications[6].
1. Sensing Element: The core component that detects tension, typically a strain gauge, piezoelectric crystal, or capacitive element[6][9].
2. Signal Conditioning Circuitry: Amplifies and converts the signal from the sensing element into a usable output[6].
3. Housing and Mounting: Provides mechanical support and protection for the sensor[7].
1. Accuracy: Provide precise and reliable tension measurements[9].
2. Real-Time Feedback: Offer real-time data for immediate process adjustments[6].
3. Durability: Designed to withstand harsh industrial environments[7].
4. Versatility: Suitable for a wide range of applications and materials[1].
5. Automation: Enable automated tension control, reducing manual intervention[3].
Tension force sensors find applications across a wide array of industries, ensuring precision, quality, and efficiency[1].
1. Web Tension Control in Printing and Packaging: Maintaining precise web tension is crucial in printing and packaging processes to ensure consistent print quality and prevent material breakage[3]. Tension sensors monitor and control the tension of the web material, optimizing printing press operations and enhancing textile manufacturing productivity[3].
2. Wire Winding: Tension sensors are used to control the tension of wires during the winding process, ensuring uniform winding and preventing wire breakage[9].
3. Conveyor Belts: Monitoring tension in conveyor belts is essential for preventing slippage and ensuring smooth material flow. Tension sensors provide real-time feedback to maintain optimal tension levels[9].
4. Aerospace Process Monitoring: Tension load cells are applied in aerospace for process monitoring, ensuring safety and reliability in aircraft manufacturing and maintenance[4].
5. Material Testing: Tension load cells are used for material testing, assessing tensile strength and elasticity of materials such as ship mooring ropes[4].
6. Lifting and Load Monitoring: In lifting and hoisting operations, tension sensors monitor and control loads, enhancing safety and preventing accidents[4].
7. Construction and Civil Engineering: Tension sensors measure tensile forces in structures like bridges, ensuring structural integrity and safety[4].
8. Robotics: In robotics, force sensors, including tension sensors, provide robots with a sense of touch and grip, enabling them to perform delicate tasks with precision[1][8].
9. Automotive Industry: The automotive industry uses force sensors for quality control in touch-sensitive applications[1]. They are also vital in safety devices like airbags, where immediate response is critical[1].
10. Electronics Industry: In electronics, tension sensors test the quality of switches, buttons, and touchscreens, ensuring product reliability[1].
Integrating tension force sensors into industrial systems requires careful consideration of several factors to ensure optimal performance and reliability[3].
1. Sensor Placement: Correct placement is crucial for accurate tension measurement. Sensors should be positioned to directly measure the tension force without interference[3].
2. Calibration: Regular calibration ensures the sensor provides accurate readings. Calibration should be performed using traceable standards[4].
3. Environmental Considerations: Sensors should be selected based on the environmental conditions, such as temperature, humidity, and exposure to chemicals[7].
4. Signal Processing: Proper signal conditioning and processing are essential for converting the sensor signal into a usable format[6].
5. Data Logging and Analysis: Implementing data logging and analysis systems allows for continuous monitoring and optimization of tension control[6].
1. Optimizing Printing Press Operations: A leading printing press manufacturer improved print quality and reduced waste by implementing tension sensors to monitor and control web tension[3].
2. Enhancing Textile Manufacturing Productivity: A textile mill increased production efficiency by 12% by using tension sensors to maintain precise tension in fabric processing[3].
The future of tension force sensors is geared towards enhanced sensitivity, durability, and integration capabilities[9].
1. Advancements in Materials: New materials are being developed to improve the performance and longevity of tension sensors[7].
2. Wireless Technology: Wireless tension sensors are gaining popularity, offering greater flexibility and ease of installation[4].
3. Smart Sensors: Integration of microprocessors and communication interfaces enables smart sensors with advanced data processing and connectivity[8].
4. Miniaturization: Smaller, more compact tension sensors are being developed for applications with limited space[7].
1. Regular Maintenance: Routine inspection and maintenance ensure long-term reliability[7].
2. Proper Installation: Correct installation is critical for accurate measurements[3].
3. Avoid Overloading: Exceeding the sensor's capacity can cause damage and inaccurate readings[7].
4. Shielding: Protect sensors from electromagnetic interference[7].
5. Training: Ensure personnel are properly trained in the operation and maintenance of tension sensors[3].
1. Incorrect Sensor Selection: Choosing the wrong sensor for the application can lead to inaccurate measurements and premature failure[3].
2. Ignoring Environmental Factors: Failing to consider environmental conditions can affect sensor performance and lifespan[7].
3. Neglecting Calibration: Infrequent calibration can result in drift and inaccurate readings[4].
4. Improper Wiring: Incorrect wiring can damage the sensor and signal processing equipment[7].
5. Over-Tightening Mounting Hardware: Over-tightening can cause stress on the sensor and affect its accuracy[7].
Include a video demonstrating the use of tension sensors in a real-world application, such as web tension control in a printing press.
Tension force sensors are indispensable tools in modern industrial automation, providing accurate, real-time feedback for precise tension control[6][9]. Their applications span diverse industries, including printing, packaging, aerospace, and construction[1][4]. By understanding the principles, types, and integration techniques of tension sensors, professionals can optimize their manufacturing processes, reduce waste, and enhance product quality[3][6]. As technology advances, tension sensors will continue to evolve, offering greater sensitivity, durability, and integration capabilities, ensuring their continued importance in the pursuit of efficiency and precision[9].
A tension force sensor, also known as a tension load cell or force transducer, is a device used to measure tensile or pulling forces exerted on a material[4][6]. It converts this force into an electrical signal, which can be used for monitoring and control purposes[6].
A tension sensor typically uses strain gauges that change resistance when stretched or compressed[9]. These gauges are mounted on a metal element inside the sensor. When tension is applied, the metal element deforms, causing the strain gauges to alter their electrical resistance, which is then converted into an electrical signal[9].
Tension force sensors are used in various applications, including web tension control in printing and packaging, wire winding, conveyor belt monitoring, aerospace process monitoring, material testing, and lifting and load monitoring[1][3][4][9].
When selecting a tension sensor, consider the measurement range, accuracy, response time, environmental conditions, and specific application requirements[3]. It's also important to ensure proper sensor placement and regular calibration[3][4].
To maintain a tension force sensor, perform routine inspections, ensure proper installation, avoid overloading, protect sensors from electromagnetic interference, and provide proper training to personnel[7]. Regular calibration is also essential for maintaining accuracy[4].
