The C13A8 trouble code is associated with the electronic parking brake (EPB) system, specifically indicating a tension sensor malfunction. This issue can lead to various symptoms, including warning lights on the dashboard and failure of the parking brake to engage or disengage properly. Understanding the common causes of this malfunction is crucial for vehicle owners and technicians alike.
The C13A8 code arises when there is an abnormal output from the tension sensor within the EPB system. Typically, this sensor measures the tension applied by the parking brake. If the output value deviates significantly from expected parameters, it triggers the malfunction code.
1. Faulty Tension Sensors
- The most direct cause of a C13A8 code is a malfunctioning tension sensor itself. If the sensor is damaged or worn out, it may provide incorrect readings, leading to system errors. Sensors can fail due to age, environmental conditions, or manufacturing defects.
2. Wiring Issues
- Damaged or corroded wiring can disrupt communication between the tension sensors and the Electronic Control Unit (ECU). This can result in erroneous readings and trigger the C13A8 code. Wiring issues can stem from physical damage, such as cuts or abrasions, or from corrosion due to moisture exposure.

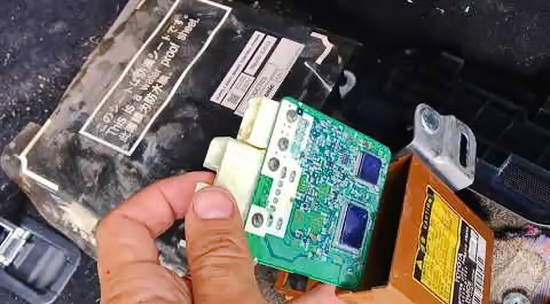

3. Electronic Control Unit (ECU) Failure
- The ECU plays a vital role in interpreting signals from various sensors, including those related to the parking brake. A malfunctioning ECU may misinterpret sensor data, leading to false codes. ECU failure can be caused by software glitches, hardware issues, or electrical surges.
4. Mechanical Problems with Parking Brake Components
- Issues such as seized cables or improperly adjusted brake components can affect how tension is applied and sensed within the system, potentially causing malfunctions. Mechanical wear over time can lead to misalignment or binding in the brake components.
5. Environmental Factors
- Exposure to moisture or extreme temperatures can affect electronic components and wiring, leading to malfunctions. For instance, water ingress into the ECU or connectors can cause short circuits or corrosion. Seasonal changes can also impact how components function, particularly in areas with harsh winters or humid summers.
6. Battery Voltage Issues
- A weak or failing battery may not provide sufficient voltage for proper operation of electronic systems, including the EPB. Insufficient voltage can lead to erratic behavior of sensors and actuators. Regular battery maintenance is essential to ensure reliable performance.
7. Software Glitches
- Occasionally, software issues within the ECU can lead to false readings from sensors. Updates may be required to resolve these glitches. Manufacturers often release software updates that improve functionality and address known issues.
Diagnosing a C13A8 tension sensor malfunction typically involves several steps:
- Scan Tool Diagnosis: Using an OBD-II scanner to read trouble codes and freeze frame data.
- Visual Inspection: Checking wiring and connectors for signs of damage or corrosion.
- Testing Sensors: Measuring output from tension sensors to ensure they are functioning correctly.
- Battery Check: Ensuring that the vehicle's battery is fully charged and functioning properly.
- Mechanical Inspection: Examining parking brake components for wear or damage.
Once diagnosed, repairs may include:
- Replacing faulty tension sensors.
- Repairing or replacing damaged wiring.
- Updating or reprogramming the ECU.
- Adjusting or replacing mechanical components of the parking brake system.
- Ensuring proper battery health and voltage levels.
To prevent future occurrences of C13A8 malfunctions, consider these preventive measures:
- Regularly inspect and maintain your vehicle's electrical systems.
- Keep connectors clean and free from moisture.
- Ensure that parking brake components are properly adjusted and lubricated.
- Update vehicle software as recommended by manufacturers.
Regular maintenance is key in preventing issues related to tension sensor malfunctions. Here are some maintenance tips:
1. Routine Inspections: Schedule regular inspections for your vehicle's braking system, including checking all electronic components associated with it.
2. Electrical System Maintenance: Ensure that all electrical connections are clean and secure. Look for signs of wear on wires and connectors.
3. Brake System Servicing: Have your brake system serviced according to manufacturer recommendations which often includes checking tension sensors.
4. Battery Health Checks: Regularly test your battery's health and replace it if it shows signs of weakness.
5. Software Updates: Keep an eye out for any recalls or software updates that might affect your vehicle's electronic systems.
The tension sensor in an EPB system serves a critical role by monitoring how much force is applied when engaging the parking brake. Here's how it works:
- Signal Transmission: The sensor sends real-time data regarding the applied force back to the ECU.
- Feedback Loop: The ECU uses this information to determine whether additional force needs to be applied or if adjustments are necessary for optimal braking performance.
- Safety Mechanism: If a significant discrepancy in expected versus actual readings occurs, it triggers safety protocols that may include activating warning lights on your dashboard.
Experiencing a C13A8 malfunction can have serious implications for drivers:
1. Safety Risks: A malfunctioning parking brake increases risks during parking situations where slopes are involved, potentially leading to accidents if the vehicle rolls away.
2. Increased Repair Costs: Ignoring warning signs associated with a C13A8 code could lead to more extensive damage over time, resulting in higher repair costs.
3. Inconvenience: Drivers may find themselves unable to park securely if their electronic parking brake fails unexpectedly.
The C13A8 tension sensor malfunction can significantly impact vehicle safety and functionality. By understanding its common causes—ranging from faulty sensors to wiring issues—vehicle owners can take proactive steps toward diagnosis and repair. Regular maintenance and inspections are key to preventing such malfunctions in electronic parking brake systems.
The C13A8 code indicates a malfunction in the tension sensor of the electronic parking brake system, which affects its ability to engage or disengage properly.
You can diagnose a C13A8 malfunction using an OBD-II scanner, performing visual inspections of wiring and connectors, testing sensors, checking battery voltage, and inspecting mechanical components.
Common symptoms include warning lights on the dashboard related to the electronic parking brake, inability to engage or disengage the parking brake, and unusual noises during operation.
Yes, exposure to moisture or extreme temperatures can affect electronic components and wiring, potentially leading to malfunctions in the tension sensor system.
Preventive measures include regular inspections of electrical systems, keeping connectors clean, ensuring proper adjustment of parking brake components, and updating vehicle software as necessary.
