Tension compression load cells with gland heads are essential instruments in various industrial applications, providing accurate measurements of both tensile and compressive forces. These devices convert mechanical force into an electrical signal, making them invaluable for precise weight and force measurement. This article explores the key benefits of using tension compression load cells with gland heads, their applications, installation procedures, and maintenance tips.
Tension compression load cells are designed to measure both pulling (tension) and pushing (compression) forces. They are widely utilized in industries such as automotive, aerospace, medical device manufacturing, and robotics. The inclusion of a gland head allows for easy integration into existing systems while ensuring robust performance.
1. Dual Functionality
- Tension compression load cells can measure both tension and compression forces, making them versatile for various applications. This dual functionality eliminates the need for separate load cells for different measurement types.
2. High Accuracy
- These load cells offer exceptional accuracy, which is critical in applications requiring precise measurements. The strain gauge technology used in these devices ensures that even minor changes in force are detected accurately.
3. Robust Design
- Constructed from durable materials like stainless steel or alloy steel, tension compression load cells can withstand harsh environments. Their robust design allows them to perform reliably under extreme conditions.
4. Easy Installation
- The gland head feature facilitates straightforward installation into existing systems without extensive modifications. This ease of integration helps reduce downtime during setup.
5. Low Maintenance Requirements
- Tension compression load cells require minimal maintenance, which translates to lower operational costs over time. Regular calibration is recommended but does not demand frequent intervention.
6. Compact Size
- Many models are designed to be compact, allowing them to fit into tight spaces where traditional load cells may not be suitable. This feature is particularly beneficial in applications with limited installation space.
7. Wide Range of Applications
- These load cells are suitable for various applications, including:
- Weighing systems
- Structural testing
- Material testing
- Industrial machinery
Tension compression load cells with gland heads are utilized across multiple sectors:
- Industrial Weighing Systems: Used in hoppers, tanks, and batch weighing applications.
- Material Testing: Essential for testing the strength and elasticity of materials in laboratories.
- Automotive Industry: Employed in crash testing and component testing to ensure safety standards.
- Medical Devices: Integral to patient lifting systems and physical therapy equipment where precise weight measurements are necessary.
- Construction: Utilized in crane scales to measure loads safely and monitor tension in cables.

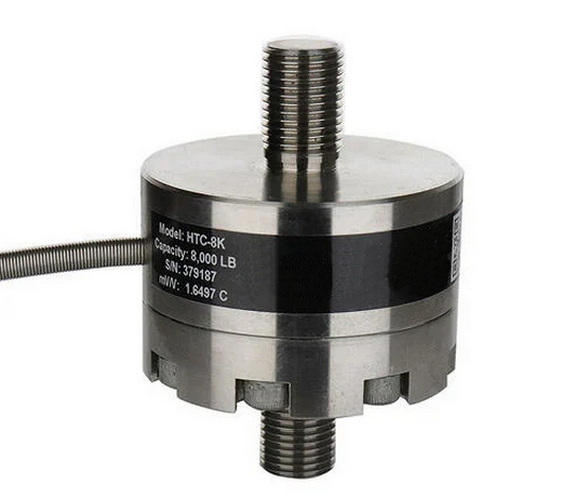

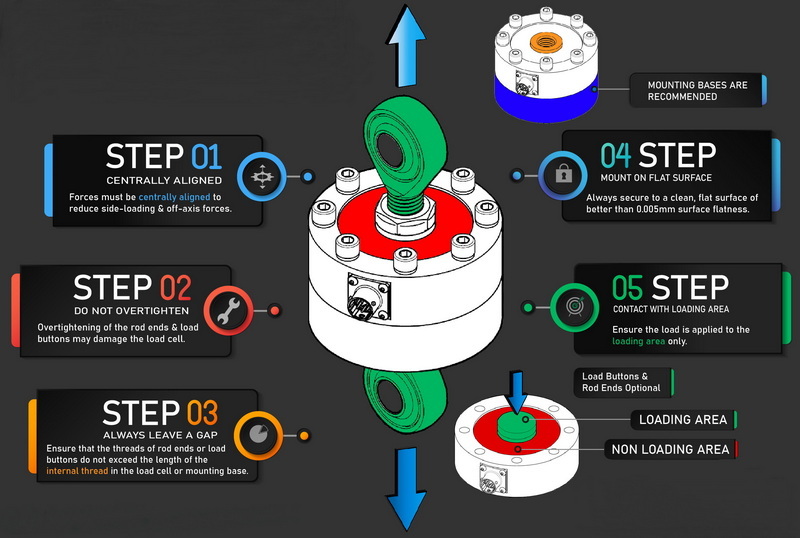

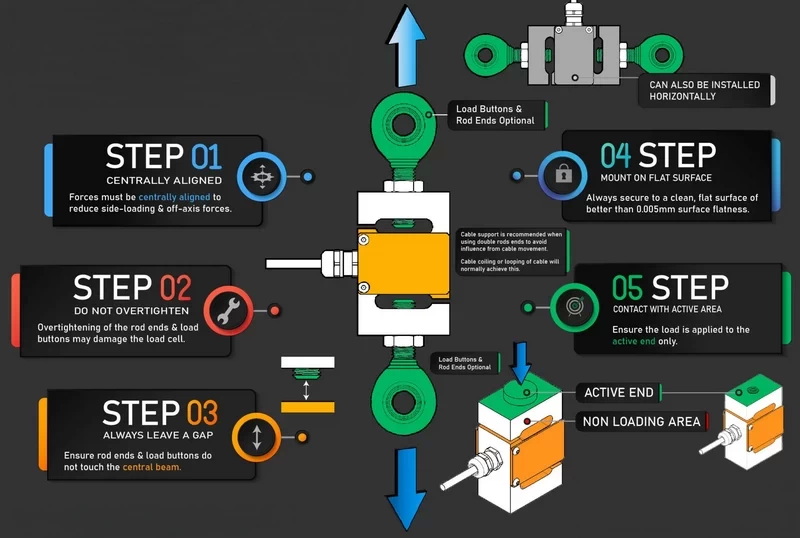

Proper installation is crucial for accurate measurements. Here are the steps involved:
1. Preparation: Ensure that the mounting surface is flat and rigid enough to support the load cell without deformation.
2. Positioning: Align the load cell with the anticipated load path to avoid side loads that can affect accuracy.
3. Securing: Use appropriate bolts or fasteners to secure the load cell in place, following the manufacturer's torque specifications to prevent over-tightening.
4. Wiring: Connect the load cell to signal conditioning equipment or display units according to the manufacturer's instructions.
5. Calibration: After installation, calibrate the load cell by applying known weights and adjusting the output accordingly.
6. Testing: Conduct tests by applying known loads to verify readings and make necessary adjustments.
To maintain accuracy over time, consider the following maintenance tips:
- Schedule regular calibration checks at least once a year or whenever significant environmental changes occur.
- Inspect connections regularly for looseness or damage that could affect performance.
- Monitor environmental conditions such as temperature and humidity that may impact readings.
- Perform visual inspections of the load cell for any signs of wear or damage.
When compared to other types of load cells, such as shear beam or bending beam load cells, tension compression load cells with gland heads offer several advantages:
| Feature | Tension Compression Load Cell | Shear Beam Load Cell | Bending Beam Load Cell |
|---|---|---|---|
| Measurement Type | Tension & Compression | Primarily Shear | Primarily Bending |
| Installation Flexibility | High | Moderate | Moderate |
| Accuracy | High | Moderate | Moderate |
| Environmental Resistance | Excellent | Good | Fair |
| Cost | Moderate | Low | Low |
The ability to measure both tension and compression makes these load cells particularly advantageous in applications where both types of forces may be present simultaneously.
1. Automotive Crash Testing
In automotive crash testing scenarios, tension compression load cells have been used extensively to monitor forces exerted on vehicle structures during impact tests. Their ability to provide real-time data on both tensile and compressive forces allows engineers to assess vehicle safety features accurately.
2. Bridge Monitoring Systems
In civil engineering projects such as bridge construction, these load cells are employed within structural health monitoring systems. They measure stress and strain on bridge components under various loads (e.g., vehicles crossing), providing critical data that informs maintenance schedules and safety assessments.
3. Manufacturing Quality Control
In manufacturing environments where material strength is crucial (e.g., aerospace components), tension compression load cells help ensure that products meet stringent quality standards by providing precise measurements during material testing processes.
As technology advances, several trends are emerging within the field of tension compression load cells:
- Smart Load Cells: Integration with IoT (Internet of Things) technology allows for real-time data monitoring and analysis remotely, enhancing operational efficiency.
- Wireless Technology: Wireless tension compression load cells eliminate the need for cumbersome wiring while maintaining accurate data transmission.
- Advanced Materials: Research into new materials could lead to even more robust designs that withstand extreme environments while maintaining high accuracy levels.
Tension compression load cells with gland heads provide numerous benefits across various industries due to their dual functionality, high accuracy, robust design, and ease of installation. They play a crucial role in ensuring safety and efficiency in numerous applications ranging from industrial weighing systems to medical devices. By following proper installation and maintenance procedures, users can maximize the performance and longevity of these essential instruments.
A tension compression load cell is a device designed to measure both tensile (pulling) and compressive (pushing) forces by converting mechanical energy into an electrical signal.
It is recommended to calibrate your tension compression load cell at least once a year or whenever significant changes in environmental conditions occur.
Yes, many tension compression load cells are designed to measure both types of forces effectively.
Check all connections for looseness or damage, ensure proper alignment with the loading path, and recalibrate if necessary.
Yes, factors such as temperature fluctuations, humidity levels, and potential vibrations can affect performance; thus, it is essential to install them in controlled environments when possible.
