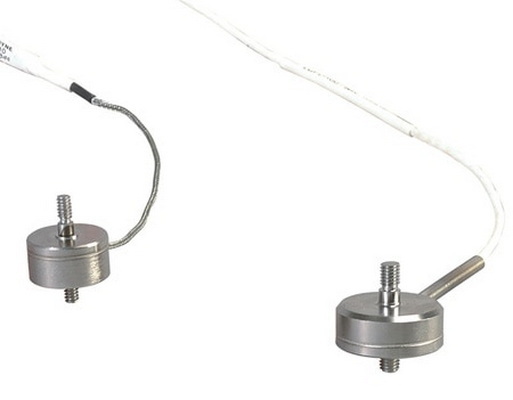

The Omega LC105 series load cells are renowned for their precision and reliability in measuring tension and compression forces. These load cells are widely used in various industrial applications, including weighing systems, material testing, and force measurement. This article delves into the key features, specifications, applications, and advantages of the Omega LC105 tension compression load cells.

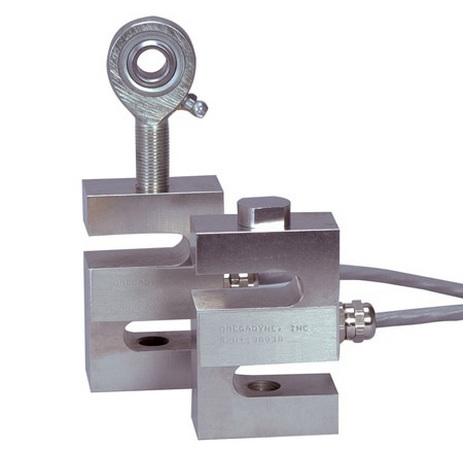

The Omega LC105 series consists of aluminum S-beam load cells designed to provide high accuracy in both tension and compression measurements. They are particularly valued for their lightweight construction and robust performance across a range of applications.
- Load Capacity: The LC105 series offers various capacities ranging from 25 lb to 500 lb, accommodating different measurement needs.
- Excitation Voltage: The load cells operate on a supply voltage of 10 VDC, with a maximum of 15 VDC.
- Output: The output signal is 3 mV/V ±0.0075 mV/V, ensuring precise readings.
- Linearity: The linearity is rated at ±0.03% Full Scale Output (FSO), which indicates minimal deviation from the ideal response.
- Hysteresis: Hysteresis is maintained at ±0.05% FSO, ensuring consistent performance under varying loads.
- Operating Temperature Range: These load cells can function effectively in temperatures ranging from -40°C to +93°C (-40°F to +200°F), making them suitable for harsh environments.
- Construction Material: Made from aluminum, the LC105 series is both lightweight and durable, enhancing its usability in various settings.
1. S-Beam Configuration: The S-beam design allows for easy integration into existing setups while providing accurate measurements in both tension and compression scenarios.
2. Compact Size: The compact dimensions make it easy to install in tight spaces without compromising on performance.
3. Temperature Compensation: Built-in temperature compensation ensures that the measurements remain accurate even when environmental conditions fluctuate.
4. Overload Protection: The load cells are designed to handle safe overloads up to 150% of their rated capacity, with ultimate overload protection reaching up to 300%. This feature enhances durability and longevity.
5. NIST Calibration: Each unit is calibrated using a five-point NIST traceable procedure, ensuring compliance with industry standards for accuracy.
The Omega LC105 tension compression load cells are versatile and can be employed in various applications:
- Industrial Weighing Systems: Used in scales and weighbridges for accurate weight measurement.
- Material Testing: Ideal for testing the tensile strength of materials in laboratories.
- Force Measurement: Employed in machinery to monitor force exerted during operations.
- Load Monitoring: Utilized in structural engineering to monitor loads on beams and supports.
- High Accuracy: With a linearity of ±0.03% FSO, these load cells provide reliable data for critical applications.
- Durability: The aluminum construction and overload protection features ensure long-lasting performance even in demanding environments.
- Easy Integration: The S-beam design allows for straightforward installation into existing systems without extensive modifications.
- Wide Temperature Range: Their ability to operate in extreme temperatures makes them suitable for various industrial settings.
Proper installation is crucial for achieving optimal performance from the Omega LC105 load cells. Here are some key points to consider:
- Mounting Orientation: Ensure that the load cell is mounted vertically or horizontally as specified by the manufacturer to avoid measurement errors due to misalignment.
- Surface Preparation: The mounting surfaces should be flat and clean to ensure proper contact with the load cell. Any debris or unevenness can lead to inaccurate readings.
- Cable Management: Avoid placing excessive strain on the load cell cables during installation. Use cable ties or conduits to secure them away from moving parts or potential pinch points.
- Calibration After Installation: Always perform a calibration check after installation to ensure that the load cell is functioning correctly within its specified parameters.
To maintain the accuracy and longevity of the Omega LC105 load cells, regular maintenance is recommended:
- Visual Inspections: Periodically check for any signs of physical damage or corrosion on the load cell body and connections.
- Functional Testing: Conduct routine functional tests to verify that the output readings are consistent with known weights or forces applied to the load cell.
- Cleaning Procedures: Use appropriate cleaning agents that do not corrode aluminum when cleaning the load cell. Avoid using abrasive materials that could scratch the surface.
The versatility of Omega's LC105 tension compression load cells extends beyond basic industrial uses; they find application across numerous sectors including:
- Aerospace Industry: In aerospace engineering, these load cells are utilized for testing components under stress conditions simulating flight scenarios. They help ensure safety standards are met by accurately measuring forces acting on aircraft structures during testing phases.
- Automotive Testing: Automotive manufacturers employ these sensors during crash tests and component durability testing where precise force measurements are critical for ensuring vehicle safety and compliance with regulations.
- Construction Monitoring: In civil engineering projects such as bridges or tall buildings, these load cells monitor structural integrity by measuring loads applied during construction phases or ongoing service life assessments.
- Robotics Applications: In robotics, they serve as feedback devices that provide real-time data about forces exerted by robotic arms during assembly tasks or material handling processes.
1. Material Testing Laboratory
A material testing laboratory implemented Omega's LC105 series in their tensile strength testing machines. By integrating these load cells into their systems, they achieved enhanced accuracy in measuring material deformation under stress conditions which improved their overall quality assurance processes.
2. Weighing Systems Integration
A logistics company integrated multiple LC105 load cells into their automated weighing systems on conveyor belts. This setup allowed them to streamline their operations by ensuring accurate weight measurements which directly impacted inventory management efficiency.
3. Research & Development
An R&D department within a university used these load cells for experiments involving new materials under development. The precise measurements obtained helped researchers draw significant conclusions about material properties under varying loads.
When considering alternatives in the market such as stainless steel S-beam models or other aluminum designs from competitors like Flintec or Vishay Precision Group (VPG), it's essential to evaluate:
| Feature | Omega LC105 | Competitor A (Stainless Steel) | Competitor B (Aluminum) |
|---|---|---|---|
| Load Capacity | Up to 500 lb | Up to 1000 lb | Up to 300 lb |
| Linearity | ±0.03% FSO | ±0.02% FSO | ±0.04% FSO |
| Operating Temp Range | -40°C to +93°C | -20°C to +80°C | -30°C to +90°C |
| Overload Protection | Safe overload at 150% | Safe overload at 200% | Safe overload at 120% |
| Material | Aluminum | Stainless Steel | Aluminum |
This table illustrates how while some competitors may offer higher capacities or different material advantages (like corrosion resistance), the Omega LC105 maintains competitive linearity specifications and temperature ranges suitable for most industrial applications without compromising on performance or reliability.
Feedback from users highlights several strengths:
- Users appreciate how easy it is to integrate these sensors into existing systems due to their compact size.
- Many have noted improvements in measurement accuracy compared with older models they previously used.
- Customers have reported satisfaction with customer service support provided by Omega Engineering when addressing technical queries related to installation or calibration processes.
Understanding how these sensors work can further enhance user experience:
1. Working Principle

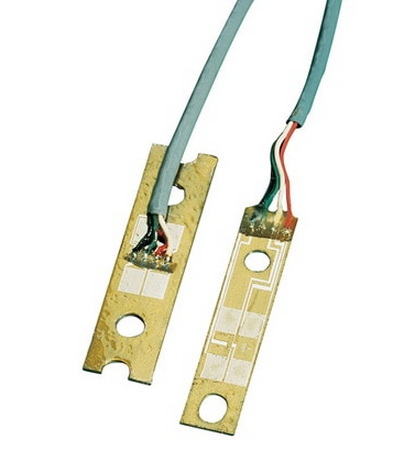

The operation relies on strain gauges that convert mechanical strain into electrical signals proportional to applied force—this principle ensures high accuracy across varying loads.
2. Signal Conditioning
Proper signal conditioning techniques must be employed post-measurement; this includes filtering out noise which can significantly affect data integrity especially in dynamic applications.
3. Environmental Considerations
Users must consider environmental factors such as humidity or dust exposure which could affect sensor performance; using protective enclosures can mitigate these risks effectively.
The Omega LC105 tension compression load cells represent a blend of advanced technology with practical design tailored towards meeting rigorous industrial demands while ensuring user-friendly operation across diverse applications—from manufacturing lines through research laboratories—demonstrating their indispensable role within modern engineering practices today.
The Omega LC105 tension compression load cells stand out due to their precision, durability, and versatility across multiple applications. With their advanced specifications and robust design features, they are an excellent choice for industries requiring reliable force measurement solutions. Their lightweight construction combined with high accuracy makes them ideal for various industrial settings where space and precision are critical factors.
The Omega LC105 series offers capacities ranging from 25 lb to 500 lb, depending on the specific model selected.
Yes, the LC105 load cell can operate effectively within a temperature range of -40°C to +93°C (-40°F to +200°F), making it suitable for outdoor use provided it is protected from moisture and extreme weather conditions.
Calibration is typically performed using a five-point NIST traceable method to ensure accuracy across its measurement range. It is recommended to follow manufacturer guidelines or consult with a professional for precise calibration procedures.
The Omega LC105 produces an output signal of 3 mV/V ±0.0075 mV/V when supplied with an excitation voltage of 10 VDC.
While primarily designed for static measurements, the LC105 can be used for dynamic applications as long as the loading conditions are within its specified limits; however, care should be taken regarding response time and stability during rapid loading changes.
