The manifold pressure sensor, commonly referred to as the Manifold Absolute Pressure (MAP) sensor, is a crucial component in modern vehicle engines. It plays a pivotal role in ensuring efficient engine performance by providing vital data to the engine control unit (ECU). This article will delve into the working principles, functions, and types of MAP sensors, along with their importance in engine management systems.

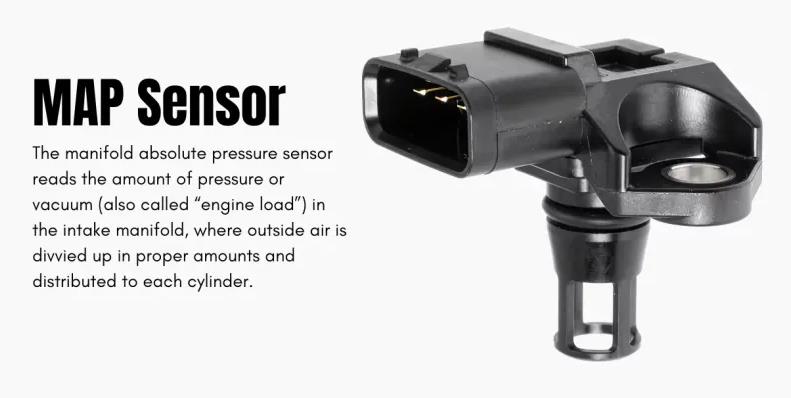

A MAP sensor is an electronic device that measures the absolute pressure inside the intake manifold of an internal combustion engine. This pressure information is essential for calculating the air density and determining the engine's air mass flow rate, which in turn affects the fuel metering for optimal combustion and ignition timing. The MAP sensor is typically connected to the intake manifold via a vacuum hose or port, allowing it to sense changes in pressure as the engine operates.
A typical MAP sensor consists of a sensing element, an amplifier circuit, and a signal output. The sensing element is usually a thin diaphragm made of silicon, which is exposed to the intake manifold pressure through a small port. As the pressure in the intake manifold changes, the diaphragm deflects, causing a change in resistance or capacitance that is proportional to the pressure. This change is then converted into an electrical signal by the amplifier circuit.
The MAP sensor works by detecting the difference between atmospheric pressure and the pressure inside the intake manifold. This difference causes the silicon diaphragm to deform, which alters the resistance within a Wheatstone bridge circuit. The resulting electrical signal is amplified and sent to the ECU, enabling precise adjustments to fuel injection and ignition timing. The ECU uses this data to calculate the air mass entering the engine, ensuring that the correct amount of fuel is injected for efficient combustion.
The signal output from the MAP sensor is typically a voltage that corresponds to the pressure measured. For example, a MAP sensor might output a voltage range from 0 to 5 volts, where 0 volts corresponds to a vacuum (low pressure) and 5 volts corresponds to atmospheric pressure (high pressure). This voltage signal is interpreted by the ECU to determine the engine load and adjust engine parameters accordingly.
MAP sensors perform several critical functions in engine management systems:
1. Fuel Injection Control: By providing real-time manifold pressure data, the ECU can adjust the fuel-air ratio for efficient combustion.
2. Ignition Timing Adjustment: The sensor helps optimize spark timing based on engine load, ensuring optimal engine performance.
3. Turbocharger/Supercharger Regulation: It monitors boost pressure to prevent over-boosting in forced induction engines.
4. EGR Valve Control: Assists in emission reduction by regulating exhaust gas recirculation.
5. Transmission Shift Control: Provides intake pressure data to help adjust automatic transmission shift points.
6. Altitude Compensation: Adjusts engine parameters to maintain performance at different elevations.
A diagram showing the typical installation of a MAP sensor on the intake manifold can help visualize its strategic placement. The sensor is usually mounted in a location that allows it to accurately measure manifold pressure without interference from other engine components.
There are several types of MAP sensors, including:
- Varistor Type: Known for fast response times and high accuracy, these sensors are widely used in speed-density injection systems.
- Capacitive Type: Offers precise measurements but may be less common due to the prevalence of varistor-based models.
- Piezoresistive Type: Uses piezoresistive materials to measure pressure changes, providing high sensitivity and reliability.
A properly functioning MAP sensor is essential for maintaining engine efficiency and preventing issues such as poor acceleration, increased fuel consumption, and rough idling. Faults in the MAP sensor can lead to a check engine light and affect engine performance significantly. Regular maintenance and inspection of the MAP sensor are crucial to ensure optimal engine operation.
Symptoms of a malfunctioning MAP sensor include:
- Poor Engine Performance: Difficulty starting the engine, rough idling, or stalling.
- Increased Fuel Consumption: Inaccurate fuel metering can lead to increased fuel usage.
- Check Engine Light: A faulty MAP sensor often triggers the check engine light on the dashboard.
- Poor Acceleration: The engine may struggle to accelerate smoothly due to incorrect fuel-air mixtures.
Diagnosing MAP sensor issues typically involves using a scan tool to monitor the sensor's output voltage and comparing it to expected values under different engine conditions. A faulty sensor may show erratic or out-of-range readings. Additionally, inspecting the vacuum hose and connections for leaks or blockages is important, as these can affect sensor accuracy.
Replacing a MAP sensor is generally straightforward and involves disconnecting the electrical connector and vacuum hose, then removing the sensor from its mounting bracket. When installing a new sensor, ensure all connections are secure and free from leaks to prevent future issues.
In conclusion, the manifold pressure sensor is a vital component in modern vehicle engines, providing critical data for efficient engine operation. Understanding its working principles, functions, and types can help in diagnosing and maintaining engine performance.
The primary function of a MAP sensor is to measure the absolute pressure inside the intake manifold and provide this data to the engine control unit (ECU) for adjusting fuel injection and ignition timing.
A MAP sensor works by detecting changes in manifold pressure, which causes a silicon diaphragm to deform. This deformation alters the resistance in a Wheatstone bridge circuit, generating an electrical signal that is sent to the ECU.
Common types of MAP sensors include varistor-based, capacitive, and piezoresistive models. Varistor types are widely used due to their fast response times and high accuracy.
A faulty MAP sensor can cause poor engine performance, including poor acceleration, increased fuel consumption, and rough idling. It may also trigger a check engine light.
A MAP sensor is typically located on the intake manifold, often near the throttle body or cylinder head in naturally aspirated engines. In forced induction engines, it may be located on the intake tract before the turbocharger.
