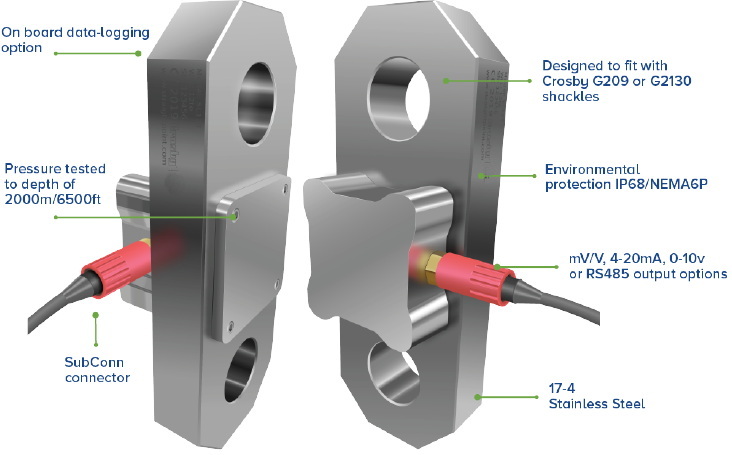

Submersible tension link load cells are specialized devices designed to measure tension forces in harsh underwater environments. These load cells play a crucial role in various applications, including marine research, offshore engineering, and underwater construction. Understanding the factors that affect their performance is essential for ensuring accurate measurements and prolonging their lifespan. This article will explore the key factors influencing the performance of submersible tension link load cells, providing insights into their design, operation, and maintenance.
The materials used in the construction of submersible tension link load cells significantly impact their performance and durability.
- Corrosion Resistance: Since these load cells often operate in saltwater environments, selecting corrosion-resistant materials such as stainless steel or titanium is crucial. These materials help prevent degradation over time, ensuring reliable performance.
- Strength and Flexibility: The load cell must be robust enough to withstand the mechanical stresses of underwater applications while maintaining flexibility to accurately measure tension forces.
- Environmental Sealing: Effective sealing is necessary to protect internal components from water ingress. Load cells should be designed with features such as double O-ring seals and rated to IP68 or higher for continuous submersion.
- Weight Considerations: The weight of the materials used can also affect deployment and handling. Lightweight materials can facilitate easier installation and mobility during operations.
Submersible tension link load cells are subjected to varying hydrostatic pressures depending on their operational depth.
- Understanding Pressure Limits: Each load cell has a specified pressure rating that indicates the maximum depth it can operate without compromising its integrity. Exceeding this limit can lead to mechanical failure or inaccurate readings.
- Design Considerations: Manufacturers often design these load cells with reinforced structures to withstand high-pressure environments, ensuring they maintain accuracy even at significant depths.
- Testing Under Pressure: It is essential for manufacturers to conduct thorough testing under simulated pressure conditions to validate the performance of the load cell before deployment.

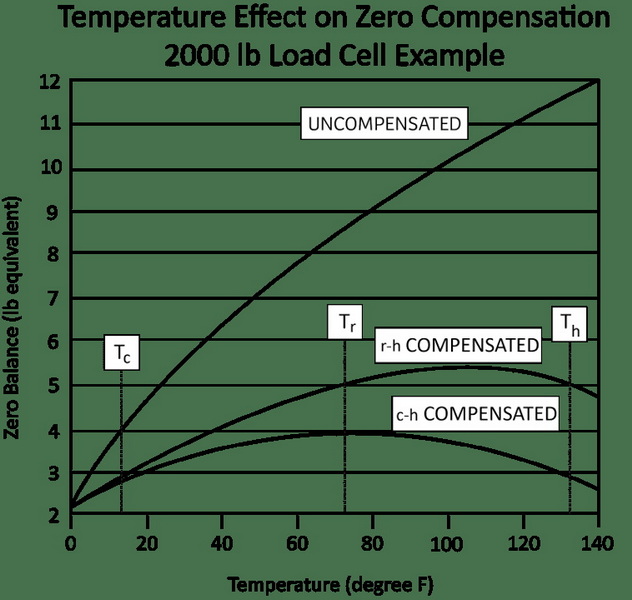

Temperature fluctuations can affect the accuracy of load cell readings.
- Thermal Expansion: As temperatures change, materials expand or contract, which can lead to measurement errors. Incorporating temperature compensation mechanisms into the design helps mitigate these effects.
- Calibration Practices: Regular calibration is essential to ensure that the load cell maintains accuracy across a range of temperatures. This process involves adjusting the output signal based on known weight standards at various temperatures.
- Impact of Extreme Temperatures: In extreme conditions, such as deep-sea environments where temperatures can drop significantly, it is vital for load cells to be designed with materials that retain their properties under such conditions.
Creep refers to the gradual change in a load cell's output over time under a constant load.
- Impact on Accuracy: Sustained loads can cause slow deformation in the materials used in the load cell, leading to drift in measurements. This phenomenon is particularly critical in applications requiring long-term monitoring.
- Material Selection and Design: Choosing materials with low creep characteristics and designing load cells with features that minimize creep effects are essential for maintaining measurement accuracy over time.
- Monitoring Creep Behavior: Implementing regular checks on the performance of the load cell can help identify any creep-related issues early on, allowing for timely recalibration or replacement if necessary.
The operational environment plays a significant role in the performance of submersible tension link load cells.
- Moisture and Chemical Exposure: Load cells must be designed to withstand exposure to moisture and chemicals commonly found in marine environments. Corrosion-resistant coatings and sealed electronics help protect against these factors.
- Vibration and Shock Resistance: Underwater applications often involve vibrations from machinery or environmental forces. Load cells should be designed to minimize sensitivity to these vibrations, ensuring stable readings.
- Biological Factors: In some underwater settings, biological growth such as algae or barnacles can accumulate on equipment. This growth can affect sensor readings by adding weight or altering hydrodynamics around the sensor.
Proper installation and alignment of submersible tension link load cells are critical for accurate measurements.
- Alignment Issues: Misalignment can lead to erroneous readings due to off-axis loads or unintended forces acting on the sensor. Ensuring proper mechanical alignment during installation is vital for optimal performance.
- Mounting Techniques: Utilizing appropriate mounting hardware and techniques can help maintain alignment and prevent mechanical stress on the load cell during operation.
- Regular Inspection: Periodic inspections should be conducted to check for any signs of misalignment due to environmental factors or wear over time, allowing for corrective measures when necessary.
The output signal from a submersible tension link load cell can be affected by various factors related to signal processing.
- Noise Interference: Electrical noise from nearby equipment or environmental sources can disrupt the accuracy of readings. Implementing high-quality signal processing circuits helps reduce noise levels and improve measurement reliability.
- Calibration of Signal Processors: Regular calibration of signal processors ensures that they accurately interpret signals from the load cell, further enhancing measurement precision.
- Digital vs. Analog Signals: The choice between digital and analog signal processing can also influence performance; digital systems often provide better noise immunity and more straightforward integration with modern data acquisition systems.
Understanding the characteristics of loads being measured is essential for selecting an appropriate submersible tension link load cell.
- Static vs. Dynamic Loads: Static loads require different characteristics than dynamic loads (which involve rapid changes). Selecting a load cell designed for specific loading conditions ensures optimal performance.
- Capacity Requirements: The chosen load cell must have a capacity that exceeds the maximum expected load while providing reliable readings at lower loads. It is often advisable to select a model with a capacity slightly above the anticipated maximum to avoid overload conditions.
- Load Rate Sensitivity: Some applications may involve varying rates of loading; understanding how quickly loads are applied (dynamic loading) will help in selecting a suitable model that responds accurately under those conditions.
Regular calibration is critical for maintaining the accuracy of submersible tension link load cells over time.
- Frequency of Calibration: Depending on usage conditions, regular calibration may be necessary—especially for applications involving heavy loads or extreme environmental conditions—to maintain accurate measurements over time.
- Calibration Procedures: Calibration should follow established protocols that include applying known weights and adjusting output signals accordingly to ensure continued accuracy throughout its operational life.
- Documentation and Traceability: Keeping detailed records of calibration procedures helps maintain traceability and ensures compliance with industry standards or regulations relevant to specific applications.
Proper training for users operating submersible tension link load cells is vital for optimal performance and longevity.
- Understanding Specifications: Users should be familiar with the specifications and limitations of the equipment they are using, including pressure ratings, temperature ranges, and proper handling techniques during installation and operation.
- Handling Procedures: Training should include best practices for handling equipment in underwater environments, such as avoiding sudden impacts or excessive twisting during installation which could compromise alignment or integrity.
In conclusion, several factors affect the performance of submersible tension link load cells, including material selection, pressure ratings, temperature compensation, creep management, environmental conditions, mechanical alignment, signal processing accuracy, load characteristics, calibration practices, and user training. By understanding these factors and implementing best practices during selection, installation, operation, and maintenance, users can ensure optimal performance and longevity of their submersible tension link load cells in challenging underwater environments.
Investing time in training personnel on proper usage techniques further enhances reliability while reducing errors associated with human factors during operation—ultimately leading to more accurate data collection critical for decision-making processes in marine applications.
A submersible tension link load cell is a specialized device designed to measure tension forces in underwater environments while maintaining accuracy despite harsh conditions like moisture and pressure variations.
Temperature fluctuations can cause materials within the load cell to expand or contract, potentially leading to measurement errors if not properly compensated through design features or regular calibration practices.
Material selection is crucial because it determines corrosion resistance, strength under pressure, flexibility for accurate measurements, overall durability in harsh underwater conditions as well as weight considerations impacting deployment ease.
Common applications include marine research, offshore engineering projects like drilling operations, mooring line monitoring for ships, aquaculture operations, underwater construction tasks where precise force measurements are required among others requiring reliable data collection methods under challenging circumstances.
Calibration frequency depends on usage conditions; however it is generally recommended to calibrate regularly—especially after heavy use or exposure extreme environmental conditions—to maintain accurate measurements over time.
