Mini tension load cells are essential components in various applications, including industrial automation, robotics, and medical devices. These devices measure tensile forces and convert them into electrical signals, enabling precise weight and force measurements. However, several factors can influence their performance, accuracy, and longevity. This article explores these factors in detail, providing insights into material selection, environmental conditions, calibration practices, and more.

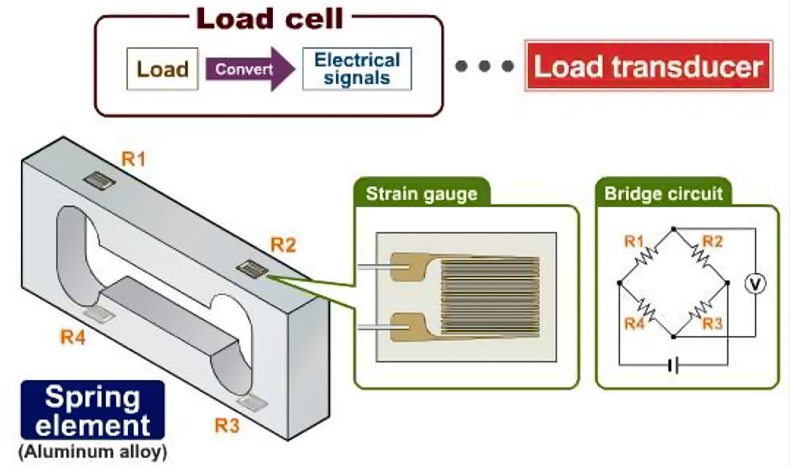

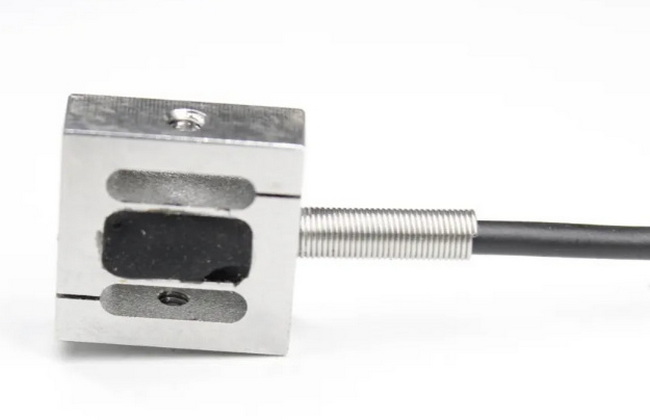

A mini tension load cell is a compact sensor designed to measure tension or pulling forces. It typically consists of strain gauges arranged in a Wheatstone bridge configuration. When a load is applied, the deformation of the load cell alters the resistance of the strain gauges, generating a voltage signal proportional to the applied force. This design allows for high precision in measuring small loads in limited spaces.
- Compact Size: Designed for tight spaces, these load cells have a low profile.
- High Accuracy: Many models offer non-linearity as low as ±0.1%.
- Versatility: Suitable for both tension and compression measurements.
- Material Options: Typically made from stainless steel or aluminum, enhancing durability.
1. Material Selection
The materials used in constructing mini tension load cells significantly impact their durability and accuracy. Common materials include stainless steel and aluminum. Stainless steel is preferred for its corrosion resistance and strength in harsh environments, while aluminum is lighter and often used in applications where weight is a concern.
2. Sensitivity and Accuracy
Sensitivity refers to the load cell's ability to detect small changes in weight. High sensitivity is crucial for applications requiring precise measurements. Accuracy ensures that the readings are close to the actual force applied. Factors like hysteresis, non-linearity, and repeatability play essential roles in determining a load cell's overall accuracy.
3. Temperature Compensation
Temperature variations can affect the performance of mini tension load cells by causing material expansion or contraction. Implementing temperature compensation mechanisms helps maintain accuracy across varying operational conditions.
4. Creep Management
Creep refers to the gradual change in output over time under a constant load. This phenomenon can significantly affect long-term measurement accuracy. Selecting materials that minimize creep and implementing proper calibration procedures can help manage this issue.
5. Environmental Conditions
Mini tension load cells are often exposed to various environmental factors such as humidity, dust, and temperature extremes. These conditions can alter the material properties or electronic components of the load cell, skewing data readings. Load cells designed for specific environments (e.g., IP-rated for moisture resistance) can mitigate these effects.
6. Mechanical Alignment
Proper installation and alignment of mini tension load cells are critical for accurate measurements. Misalignment can lead to erroneous readings due to off-axis loads or unintended forces acting on the sensor.
7. Signal Processing Errors
The output signal from load cells can be affected by noise levels that are too high or too low. Poor quality signal processing circuits can lead to inaccurate readings, emphasizing the need for high-quality components in load cell design.
8. Calibration Practices
Regular calibration is essential for maintaining accuracy over time. Calibration ensures that the load cell's output corresponds accurately to known weights or forces applied during testing.
9. Load Characteristics
Understanding whether the loads will be static or dynamic is crucial when selecting a mini tension load cell. Static loads require different characteristics than dynamic loads (which involve rapid changes), influencing the design and selection process.
10. Physical Size and Mounting Options
The physical dimensions of mini tension load cells must fit within designated spaces while ensuring compatibility with mounting structures to ensure accurate force measurement.
Mini tension load cells find applications across various industries due to their compact size and high precision:
- Industrial Automation: Monitoring forces in assembly lines.
- Robotics: Measuring forces exerted by robotic arms during tasks.
- Medical Devices: Ensuring safe limits of force applied in devices like infusion pumps.
- Automotive Testing: Measuring tension in cables and components during stress tests.
- Material Testing: Assessing tensile strength in materials like metals and plastics.
- Aerospace Applications: Used for structural testing under various loads.
- Smart Agriculture: Implemented in IoT systems for real-time monitoring of equipment.
The use of miniature tension load cells offers several advantages:
- Space Efficiency: Their compact design allows for installation in restricted areas.
- Cost-Effective: Generally less expensive than larger models while providing high accuracy.
- Ease of Integration: Can be easily integrated into existing systems with minimal modifications.
When selecting a miniature tension load cell, consider the following specifications:
| Specification | Details |
|---|---|
| Maximum Load Capacity | Up to 20 kN (4,500 lbs) |
| Accuracy | ±0.1% to ±0.5% |
| Operating Temperature | -40°C to +200°C |
| Material | Stainless Steel or Aluminum |
| Protection Class | IP65 or higher |
| Output Signal | Analog (mV/V), Digital options available |
Proper installation is crucial for accurate measurements. Here are some guidelines:
1. Ensure that the load cell is mounted securely.
2. Align the load cell properly to avoid misalignment errors.
3. Use appropriate connectors and cables to prevent signal loss.
4. Prepare the mounting surface by ensuring it is clean and flat.
5. Regularly check alignment and calibration after installation.
As technology advances, miniature tension load cells are expected to evolve further:
- Integration with IoT: Future models may incorporate Internet of Things (IoT) capabilities for real-time monitoring and data analysis.
- Enhanced Materials: The use of advanced materials may improve durability and performance under extreme conditions.
- Smart Calibration Features: New designs may include automated calibration processes that simplify setup and enhance accuracy over time.
The performance of mini tension load cells is influenced by various factors ranging from material selection to environmental conditions and calibration practices. Understanding these factors is crucial for selecting the right load cell for specific applications, ensuring accuracy and reliability over time.
A mini tension load cell is a compact sensor designed to measure tensile forces by converting mechanical stress into an electrical signal using strain gauges.
Temperature variations can cause material expansion or contraction, affecting measurement accuracy unless temperature compensation mechanisms are implemented.
Common materials include stainless steel for its durability and corrosion resistance, and aluminum for its lightweight properties.
Calibration ensures that the output of the load cell corresponds accurately to known weights or forces, maintaining measurement accuracy over time.
Environmental factors such as humidity, dust, and extreme temperatures can alter material properties or electronic components of the load cell, leading to skewed data readings.
