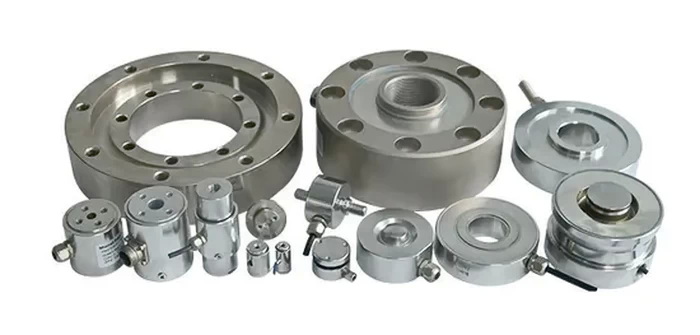

China flange mounted tension compression force sensors are versatile devices used across various industries for precise force measurement. These sensors are designed to measure both tension and compression forces, making them highly valuable in applications requiring accurate and reliable force data. In this article, we will explore the industries that utilize these sensors and discuss their applications, benefits, and technical specifications.

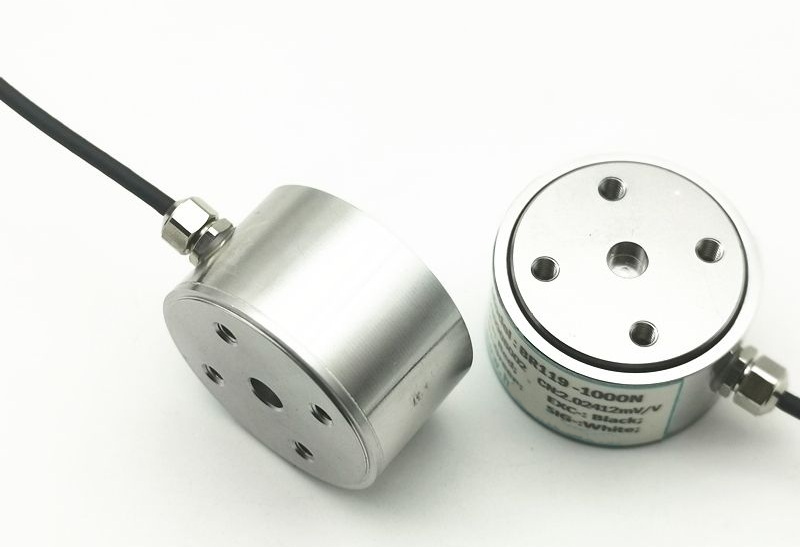

China flange mounted tension compression force sensors, such as those produced by Kunwei, are engineered with advanced technology to provide high accuracy and reliability. These sensors typically feature a column cylinder type structure and utilize resistance strain gauge technology for precise measurements[1][7]. They are designed to withstand various environmental conditions and external loads, including torque and bending moments[1][7].
Key Features:
- High Precision: Nonlinearity, hysteresis, and repeatability are all less than 0.1%, 0.1%, and 0.05%, respectively[1][7].
- Structural Integrity: The sensors can handle external loads like torque and side loads, ensuring robust performance in demanding environments[1][7].
- Temperature Range: Operates effectively between -10°C and 80°C[1][7].
In material testing, precise force measurement is crucial for understanding material properties under different loads. China flange mounted tension compression force sensors are ideal for this purpose due to their high accuracy and ability to measure both tension and compression forces. These sensors help researchers analyze material strength, elasticity, and durability.
Example Application:
Material testing machines use these sensors to apply controlled forces to test specimens, providing valuable data on material behavior under stress.
In the automotive and aerospace sectors, these sensors are used for quality control and assembly processes. They ensure that components are assembled with the correct force, preventing damage or malfunction. Additionally, they are used in testing and validation processes to simulate real-world conditions.
Example Application:
In automotive manufacturing, these sensors can monitor the force applied during the assembly of critical components like engine blocks or gearboxes.
In construction, these sensors are integrated into cranes and other heavy machinery to monitor and control forces during lifting operations. This ensures safety by preventing overloads and maintaining structural integrity.
Example Application:
Torque limiters in cranes use tension sensors to monitor and control forces, ensuring safe operation and preventing accidents[2].
In medical research and biomechanics, these sensors are used to study human movement and forces exerted by the body. They help in understanding how forces affect joints and muscles, aiding in the development of prosthetics and rehabilitation equipment.
Example Application:
Force plates in sports science use similar technology to analyze athlete performance and optimize training regimens.
In manufacturing, these sensors are used to monitor and control assembly forces, ensuring that products are assembled correctly and efficiently. They are also used in quality control processes to test product durability and performance.
Example Application:
In electronics manufacturing, these sensors can verify the correct application of force during the assembly of delicate components.

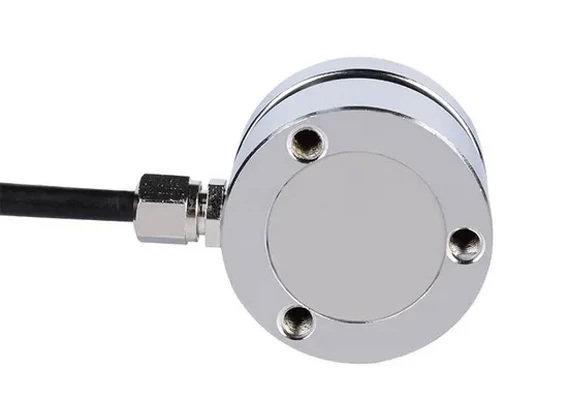

China flange mounted tension compression force sensors are available in various capacities and can be customized to meet specific application requirements. They typically offer analog outputs and can be connected to amplifiers for signal processing[3][5].
Customization Options:
- Capacity: Available in multiple force ranges to suit different applications.
- Material: Often made from stainless steel for durability and resistance to corrosion.
- Output: Can be configured for different output signals (e.g., 0-10V, 4-20mA) to integrate with various control systems.
These sensors offer several benefits, including high precision, compact design, and ease of installation. Their ability to measure both tension and compression forces makes them versatile for a wide range of applications.
Benefits Summary:
- High Accuracy: Provides precise measurements essential for critical applications.
- Compact Design: Easy to integrate into existing systems without significant modifications.
- Versatility: Can measure both tension and compression forces, making them suitable for diverse applications.
China flange mounted tension compression force sensors are indispensable tools across various industries, offering precise force measurement and reliability. Their versatility and customization options make them ideal for applications ranging from material testing to heavy machinery operation. As technology continues to evolve, these sensors will remain crucial for ensuring safety, efficiency, and quality in manufacturing and operational processes.
These sensors are primarily used in material testing, automotive and aerospace manufacturing, construction, medical research, and manufacturing assembly lines for precise force measurement.
They utilize advanced strain gauge technology and are designed with low nonlinearity, hysteresis, and repeatability, ensuring precise measurements under various conditions.
Yes, they can be customized in terms of capacity, material, and output signals to meet the requirements of different applications.
They can operate effectively between -10°C and 80°C and withstand external loads such as torque and bending moments.
They typically provide analog outputs, which can be amplified to match various control systems (e.g., 0-10V, 4-20mA).
