Tension load cells are vital instruments used in various industries for measuring tensile forces. They convert mechanical force into an electrical signal, providing precise data essential for applications ranging from industrial weighing to material testing. In India, the price of tension load cells varies based on their type, capacity, and manufacturer. This article explores the prices of tension load cells in India, their applications, features, and factors influencing their cost.
A tension load cell is specifically designed to measure pulling forces or tension. These devices are crucial in applications such as:
- Crane and hoist weighing
- Overload protection for scales
- Tensile strength measurement
- Monitoring towing loads and cable forces
- Weighing systems in food processing and pharmaceuticals
The ability to accurately measure tension is critical in many sectors, as it ensures safety and efficiency in operations.
Different types of tension load cells are available in the market, each suited for specific applications:

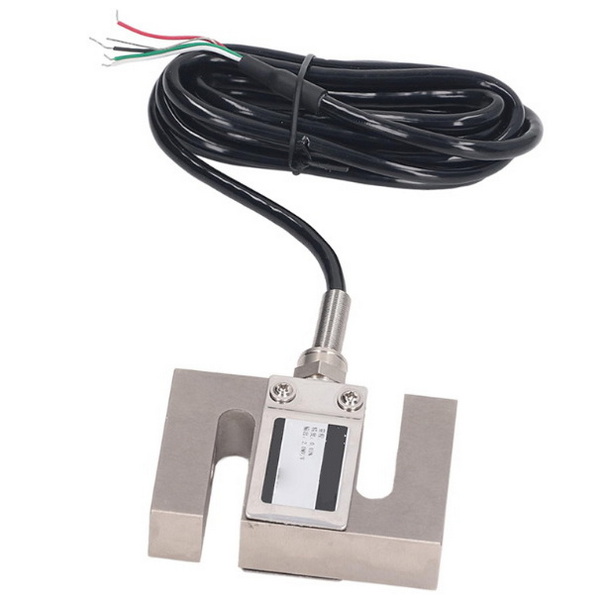

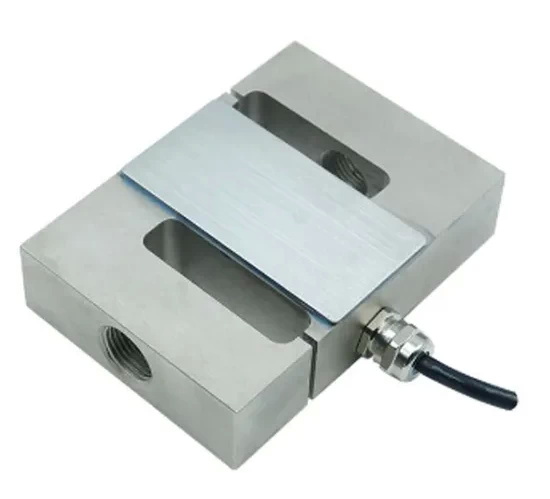

1. S-Type Load Cells: Commonly used for both tension and compression measurements. These versatile load cells are popular due to their compact design and high accuracy.
2. Tension Link Load Cells: Designed for in-line tension force measurements. They are often used in overhead cranes and other lifting equipment.
3. Miniature Load Cells: Ideal for applications with limited space. These load cells are typically used in medical devices and small-scale industrial applications.
4. Shear Beam Load Cells: Although primarily used for compression, some shear beam load cells can also measure tension when configured correctly.
5. Custom Load Cells: Tailored to meet specific requirements of unique applications, these can vary widely in design and price.
The price of tension load cells in India can vary significantly based on specifications such as capacity, material, and manufacturer. Below is a summary of various models and their prices:
| Type | Capacity | Price (INR) | Manufacturer |
|---|---|---|---|
| S-Type Load Cell | 50 Kg | ₹3,000 | Various |
| Tension Load Cell | 1000 Kg | ₹98,319 | K M Trivedi Engineering Pvt. Ltd. |
| S-Type Load Cell | 200 Kg | ₹4,500 | Sunrise Technology |
| Tension Link Load Cell | 2N-20 kN | ₹25,000 | Shraddha Impex |
| Miniature Load Cell | 10 Kg | ₹880 | Magic Pack Industries |
Several factors contribute to the pricing of tension load cells in India:
- Material: Load cells made from high-quality materials like stainless steel tend to be more expensive due to their durability and resistance to environmental factors. For instance, stainless steel load cells offer enhanced protection against corrosion, making them suitable for outdoor or harsh environments.
- Capacity: Higher capacity load cells generally cost more because they require more robust construction and precision engineering. A load cell designed to handle 10 tons will naturally be more complex and expensive than one rated at 100 kg.
- Accuracy: Load cells with higher accuracy ratings are typically priced higher due to their advanced technology. High-precision load cells are essential in industries where even minor discrepancies can lead to significant issues—such as pharmaceuticals or aerospace.
- Manufacturer Reputation: Established manufacturers may charge a premium for their products based on brand trust and reliability. Companies with a long-standing history of quality assurance often justify higher prices due to their proven track record.
- Technology Features: Advanced features such as wireless connectivity, built-in data logging capabilities, or integration with IoT systems can also influence the price significantly.
Tension load cells find applications across various sectors:
1. Industrial Weighing Systems: Used extensively in hopper weighing, tank weighing, and batch weighing to ensure accurate measurements during production processes.
2. Material Testing: Essential for testing the strength and elasticity of materials in laboratories, including metals, plastics, and composites.
3. Automotive Industry: Employed for component testing and crash testing to ensure safety standards are met before vehicles hit the market.
4. Medical Devices: Integral in patient lifting systems and physical therapy equipment where precise weight measurements are critical for patient safety.
5. Construction: Used in crane scales to monitor loads safely during lifting operations to prevent accidents caused by overloads.
6. Marine Applications: In shipbuilding and maintenance, tension load cells monitor cable tensions on ships' mooring lines or during heavy lifting operations at docks.
7. Agriculture: Used in weighing systems for fertilizers or feed where accurate measurements directly impact productivity.
8. Packaging Industries: Ensures that products meet weight specifications before packaging, reducing waste from overfilling or underfilling packages.
Tension load cells come with several features that enhance their functionality:
- High Accuracy: Achieves accuracies as low as ±0.02% of full scale output (FSO), which is crucial for precision-dependent applications.
- Durability: Designed to withstand harsh environments; many models come with IP67 ratings or higher for dust and water resistance.
- Versatility: Suitable for a wide range of applications across different industries; many models can be customized based on specific requirements.
- Easy Integration: Most modern tension load cells can easily integrate with existing systems through standard communication protocols like RS232 or RS485.
- Real-Time Monitoring: Some advanced models offer real-time monitoring capabilities through wireless technologies that allow operators to track loads remotely.
Proper installation is crucial for accurate readings from tension load cells:
1. Ensure the load cell is securely mounted to prevent movement during operation.
2. Align the load cell correctly to avoid misreadings; improper alignment can lead to significant errors.
3. Calibration involves applying known weights to adjust the output signal accurately; this process should be performed regularly to maintain accuracy.
To ensure longevity and accuracy of tension load cells:
- Regularly inspect connections and wiring for signs of wear or damage.
- Keep the load cell clean from dust and contaminants that could affect performance.
- Perform periodic calibrations according to manufacturer recommendations or industry standards.
The price of tension load cells in India varies widely based on type, capacity, material, technology features, and manufacturer reputation. Understanding these factors can help businesses make informed purchasing decisions that align with their operational needs. As industries continue to evolve towards automation and precision engineering, investing in high-quality tension load cells will become increasingly important for maintaining safety standards and operational efficiency.
A tension load cell is a device designed specifically to measure tensile forces by converting mechanical force into an electrical signal.
Tension load cells are used in industrial weighing systems, material testing laboratories, automotive testing facilities, medical devices like patient lifts, agriculture for fertilizer weighing, construction sites with cranes, marine applications for mooring lines monitoring, and packaging industries ensuring product weight compliance.
Prices range from ₹350 for small models to over ₹98,000 for high-capacity models depending on specifications such as capacity and accuracy ratings.
Factors include material quality (e.g., stainless steel vs plastic), capacity (higher capacities cost more), accuracy ratings (high precision comes at a premium), manufacturer reputation (established brands may charge more), and technology features (advanced models with IoT capabilities).
Ensure it is securely mounted without movement during operation; align it correctly to avoid misreadings; calibrate it by applying known weights regularly to maintain accuracy.
