Tension load cells are indispensable tools in industries requiring precise measurement of tensile forces, from construction and manufacturing to logistics and marine operations. In New Zealand, these devices vary widely in price depending on capacity, design, and additional features. This article explores the cost landscape, key factors influencing pricing, practical guidance for selecting and maintaining tension load cells in NZ, and a deeper dive into their applications across various sectors.
A tension load cell is a transducer that converts tensile (pulling) forces into measurable electrical signals. These devices utilize strain gauges bonded to a metal structure, which deform under load, altering resistance to produce voltage changes proportional to the applied force. Common applications include:
- Crane and hoist load monitoring
- Marine mooring force measurement
- Structural integrity testing in bridges and buildings
- Weighing systems in agriculture and logistics
The technology behind tension load cells has evolved significantly over the years, leading to advancements in accuracy and reliability. Modern load cells often feature digital outputs, allowing for easier integration with computer systems for data logging and analysis.
The cost of tension load cells in New Zealand varies significantly based on capacity, accuracy, and environmental resilience:
| Capacity Range | Price Range (NZD) | Example Models |
|---|---|---|
| 100 kg – 1 ton | $500 – $1,200 | Meltrons S-Type LC-1205 |
| 1 ton – 10 ton | $1,500 – $5,000 | Fibos TR Series |
| 10 ton – 200 ton | $6,000 – $25,000+ | Transducer Techniques TLL-30K |
Factors Affecting Pricing:
1. Load Capacity: Higher-capacity cells require robust materials, increasing costs. For example, a 200-ton load cell may use specialized alloys to withstand extreme stress.
2. Accuracy: Precision cells (e.g., ±0.02% F.S.) cost 20–50% more than standard models (±0.1% F.S.). Higher accuracy is crucial in applications where safety is paramount.
3. Environmental Resistance: IP67/IP68-rated or submersible cells (e.g., Eilersen TM Series) cost 30–70% more due to additional protective features against moisture and dust.
4. Accessories: Wireless connectivity, calibration certificates, and mounting kits can add $200–$2,000 to the total cost depending on the complexity of the system.
Match the cell's capacity to your maximum operational load. Overloading can damage sensors, while undersized cells reduce accuracy. It's advisable to select a load cell with a capacity that exceeds your maximum expected load by at least 25%.
For outdoor or marine use, prioritize stainless steel construction and IP68 sealing. These features ensure durability against corrosion and environmental wear.
Ensure compatibility with data loggers, displays, or control systems. Popular NZ suppliers like Scaletec and Meltrons offer integrated solutions that simplify installation and operation.
Look for NZS/ISO 17025 calibration certificates for regulatory compliance. This certification ensures that the load cell meets international standards for accuracy and reliability.
Consider suppliers that offer robust technical support and warranty options. A good warranty can provide peace of mind regarding potential defects or failures.
| Supplier | Featured Products | Price Range (NZD) |
|---|---|---|
| Meltrons | S-Type Tension Load Cells | $695 – $12,000 |
| Scaletec | LC-1205 Compression/Tension Cells | $565 – $5,000 |

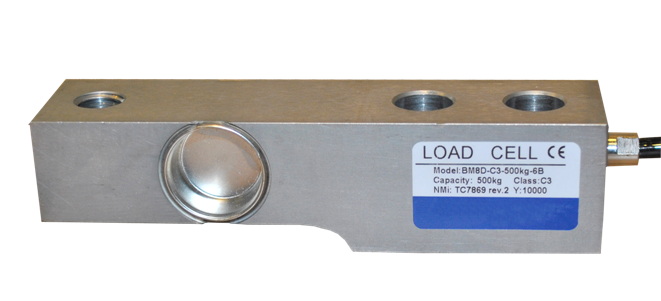

| Sensortronic Weighing | Zemic BM8D Stainless Steel Cells | $1,200 – $8,000 |
| GDS NZ | Custom Tension Links for Heavy Loads | $3,000 – $25,000 |
These suppliers not only provide a range of products but also offer valuable insights into selecting the right tension load cell for specific applications.
Regular maintenance is crucial to ensure the longevity and accuracy of tension load cells.
- Inconsistent Readings: Check for loose connections or electrical interference from nearby equipment.
- Overload Damage: Avoid exceeding 150% of rated capacity; consider using overload protection modules.
- Environmental Wear: Clean corrosion-prone areas regularly and recalibrate biannually to maintain accuracy.
- Use accredited NZ laboratories for traceable certifications.
- Frequency: Annually for critical applications; every 2–3 years for general use.
- Ensure that calibration is performed under controlled conditions to guarantee accurate results.
In construction projects across New Zealand, tension load cells are essential for monitoring cable tension in suspension bridges such as the Auckland Harbour Bridge. Accurate measurements help prevent structural failure by ensuring that cables are maintained at optimal tension levels.
In marine environments, tension load cells are used to measure mooring forces for docked vessels. This application is critical for ensuring safety during loading operations and preventing accidents caused by excessive strain on mooring lines.
Tension load cells also find applications in agriculture by weighing silos and hoppers during grain storage operations. Accurate weight measurements are vital for inventory management and ensuring compliance with regulatory standards.
In logistics operations like those at ports or distribution centers, tension load cells help monitor the weight of shipping containers during loading and unloading processes. This ensures compliance with weight regulations while optimizing cargo handling efficiency.
In R&D settings within universities or private research institutions across New Zealand, tension load cells are used in experiments requiring precise force measurements. This data is crucial for developing new materials or testing structural designs under simulated conditions.
Tension load cells in NZ range from $500 for basic 100 kg models to over $25,000 for heavy-duty 200-ton systems. Key cost drivers include capacity, precision, environmental durability, and additional accessories required for specific applications. By partnering with reputable suppliers like Meltrons and Scaletec, businesses can optimize performance while adhering to NZ safety and calibration standards.
Understanding the price range and factors influencing costs can help organizations make informed purchasing decisions that align with their operational needs.
Tension cells measure pulling forces while compression cells measure pushing forces. Some dual-purpose models handle both types of loads effectively.
Annual calibration is recommended for high-precision applications where safety is critical. For general use cases where precision is less critical, every 2–3 years suffices.
Yes, if they are rated IP67/IP68 and constructed from stainless steel to resist humidity and saltwater corrosion commonly found in outdoor environments.
Erratic readings can indicate potential failure; physical damage or failure to return to zero when unloaded also suggests issues that need addressing immediately.
GDS NZ and Load Cell Central provide tailored solutions designed specifically for unique capacity or form-factor requirements across various industries.
