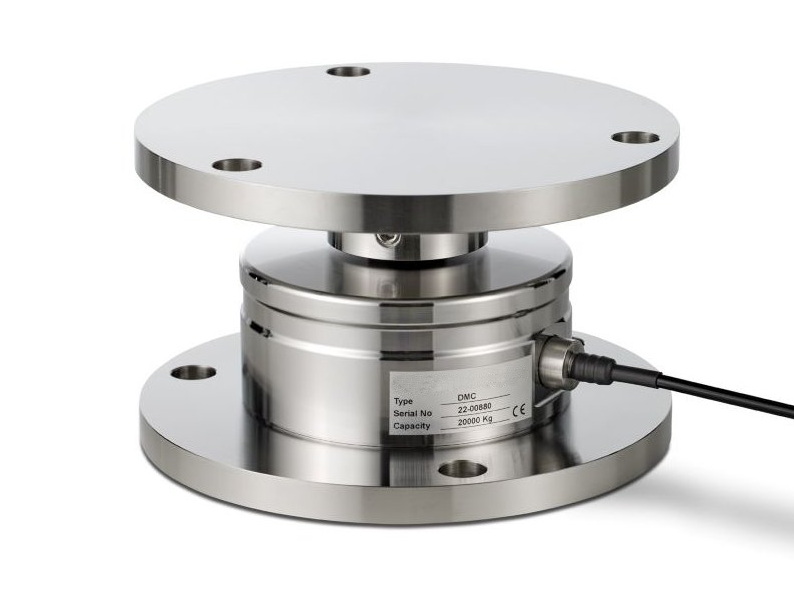

High capacity tension load cells are critical components in various industries, especially when it comes to measuring heavy loads accurately and reliably. These devices convert mechanical force into an electrical signal, allowing for precise measurements in applications such as crane operations, material testing, and industrial weighing systems. This article explores the essential features that contribute to the reliability of high capacity tension load cells for heavy loads.
A tension load cell is designed specifically to measure tensile forces. Unlike compression load cells, which measure forces pushing down on them, tension load cells measure forces pulling away from them. This makes them ideal for applications where loads are suspended or where pulling forces need to be quantified.
- High Overload Tolerance: Many high capacity tension load cells can tolerate overloads of up to 1000% of their rated capacity. This feature ensures that the load cell can withstand unexpected spikes in load without damage.

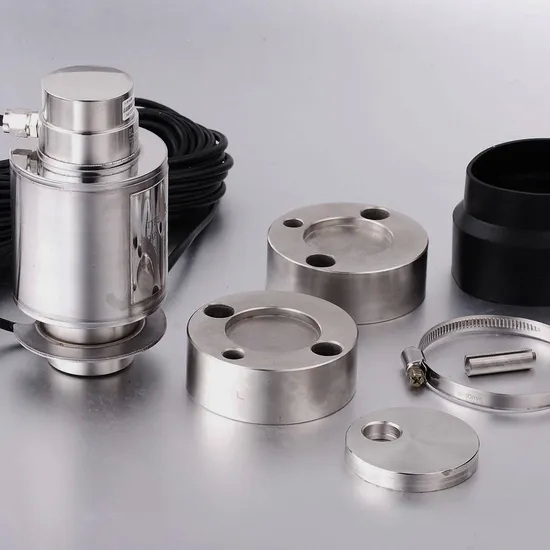

- Durable Construction: Typically made from stainless steel or high-strength alloys, these load cells are built to endure harsh environments and resist corrosion, making them suitable for outdoor or industrial applications.
- Environmental Sealing: High capacity tension load cells often come with IP67 or higher ratings, indicating they are dust-tight and can withstand immersion in water. This is crucial for operations in wet or dusty environments.
- Temperature Compensation: These load cells are designed to operate accurately across a wide temperature range, which helps maintain measurement precision even under fluctuating environmental conditions.
High capacity tension load cells are used across various sectors, including:
- Construction: For measuring loads in cranes and lifting equipment.
- Manufacturing: In processes that require precise control of material tension during production.
- Transportation: For monitoring loads in shipping and logistics operations.
- Research and Development: In laboratories where accurate force measurements are critical for material testing.
The accuracy of a high capacity tension load cell is paramount. Most high-quality models offer an accuracy rating of ±0.1% of full scale output (FSO). This level of precision ensures that measurements reflect true values, which is essential for safety and compliance in industrial applications.
High capacity tension load cells often incorporate advanced signal conditioning technology. This feature enhances the quality of the output signal by filtering out noise and compensating for temperature variations, thus providing more reliable readings.
Regular calibration is vital for maintaining the accuracy of tension load cells. Many manufacturers provide guidelines and tools for easy calibration, ensuring that the devices remain reliable over time.

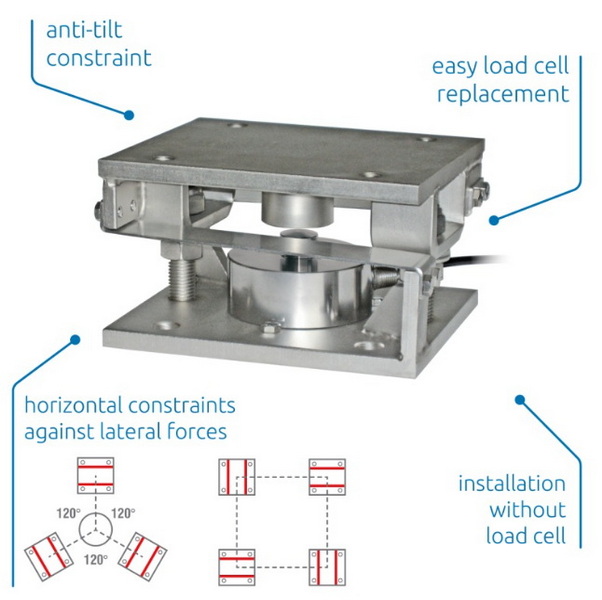

Proper installation plays a significant role in the reliability of tension load cells. Ensuring that the load cell is aligned correctly and that the loading conditions are optimal can prevent errors caused by off-axis loading or misalignment.
High capacity tension load cells are indispensable tools in industries requiring accurate measurement of heavy loads. Their reliability stems from robust construction, high overload tolerance, environmental sealing, and advanced signal conditioning technologies. By understanding their features and proper usage, industries can ensure safe and efficient operations involving heavy lifting and material handling.
A high capacity tension load cell is a device designed to measure tensile forces accurately, typically used in applications involving heavy loads such as cranes and industrial machinery.
A tension load cell works by converting mechanical stress (tension) into an electrical signal through strain gauges that detect deformation when force is applied.
They are commonly constructed from durable materials like stainless steel or high-strength alloys to withstand harsh environments and resist corrosion.
Calibration frequency depends on usage but is generally recommended at least once a year or whenever there is a significant change in operating conditions or after any incident involving overloads.
Yes, many high capacity tension load cells are designed with environmental sealing (e.g., IP67 rating) to protect against dust and moisture, making them suitable for outdoor use.
