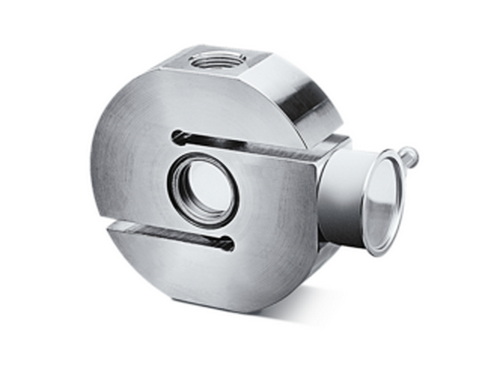

The MK STE 402 tension load cell represents a pinnacle of engineering for force measurement in industrial and research applications. Designed to deliver precision, durability, and adaptability, this sensor excels in environments requiring reliable tensile force monitoring. Below, we explore its design, technical specifications, unique advantages, and practical applications to provide a comprehensive overview of why the MK STE 402 is a standout choice in the market.
The MK STE 402 features a stainless steel body with IP67-rated environmental protection, making it resistant to moisture, dust, and corrosive substances. Its compact, low-profile design allows integration into tight spaces without sacrificing performance.
Key structural highlights:
- Double bending beam mechanism for enhanced sensitivity. This design minimizes the effects of lateral forces, ensuring that only the intended tensile force is measured accurately.
- Threaded mounting holes for secure axial force alignment, which simplifies installation and ensures that the load cell remains stable during operation.
- Strain gauge configuration optimized for minimal off-axis loading interference, enhancing measurement accuracy even under non-ideal conditions.
The MK STE 402 outperforms standard tension load cells with its 0.10% industrial-grade accuracy and overload tolerance up to 1,000% of rated capacity.
| Parameter | MK STE 402 Specification | Industry Standard |
|---|---|---|
| Capacity Range | 200–10,000 kg | 100–5,000 kg |
| Output Sensitivity | 2 mV/V | 1.5–3 mV/V |
| Operating Temp | -30°C to +90°C | -20°C to +70°C |
| Protection Class | IP67 | IP65 |
This load cell's temperature compensation ensures stability across extreme conditions, critical for outdoor rigging or renewable energy installations. The ability to operate effectively in such a wide temperature range makes it suitable for various applications where environmental conditions can fluctuate dramatically.
The MK STE 402 is versatile across industries:
In the renewable energy sector, the MK STE 402 is invaluable for monitoring cable tension during blade installation and maintenance. Proper tension monitoring prevents overloads that could damage composite structures or lead to catastrophic failures. The ability to accurately measure forces in real-time allows technicians to make informed decisions during maintenance operations.
Used in mooring systems, the MK STE 402 measures anchor chain tension to ensure stability in dynamic sea conditions. This capability is crucial for preventing accidents caused by anchor failure or excessive movement of vessels during adverse weather conditions.
In manufacturing environments, the MK STE 402 integrates seamlessly into conveyor systems to detect belt slippage or excessive tension. By providing real-time feedback on tension levels, it helps prevent equipment damage and reduces downtime due to maintenance issues.
In laboratories focused on material science and engineering, this load cell is employed for tensile testing of materials. Its high precision allows researchers to gather accurate data on material strength and elasticity.
Proper setup maximizes accuracy:
1. Mounting: Use spherical rod ends or universal joints to avoid side-loading, which can skew measurements.
2. Wiring: Employ shielded cables to minimize electrical noise that could affect signal integrity.
3. Calibration:
- Apply known weights (e.g., 50%, 100% of capacity) during calibration.
- Adjust gain using HX711 or ADS1256 amplifiers for optimal performance.
Calibration is essential not only during installation but also periodically throughout the load cell's operational life to ensure continued accuracy.
The MK STE 402 has several competitive advantages that set it apart from other tension load cells in the market:
- Fatigue-rated design: Supports up to 10 million load cycles at 50% capacity without significant degradation in performance.
- ATEX/IECEx certification: This certification ensures safety in explosive atmospheres, making it suitable for use in oil and gas industries or chemical processing plants.
- Plug-and-play compatibility: Works seamlessly with PLCs (Programmable Logic Controllers), SCADA (Supervisory Control and Data Acquisition) systems, and IoT platforms for enhanced data analysis capabilities.
These features contribute not only to its reliability but also to its versatility across different sectors.
A construction firm replaced analog sensors with the MK STE 402 on a 50-ton crane used for heavy lifting operations. The results included:
- A 30% reduction in calibration checks, thanks to improved signal stability.
- A record of zero overload incidents over a period of 12 months, significantly enhancing safety protocols on-site.
By integrating the MK STE 402 into their operations, the firm was able to improve both safety and efficiency while reducing operational costs associated with equipment failure.
The MK STE 402 comes equipped with user-friendly software that simplifies data collection and analysis. Users can easily visualize real-time data through graphical interfaces that display force measurements dynamically.
- Data Logging Capabilities: The software allows users to log data over time for historical analysis.
- Alerts and Notifications: Users can set thresholds that trigger alerts when loads exceed predefined limits, enhancing safety measures.
This integration makes it easier for operators and engineers to monitor performance continuously without needing extensive training.
To maximize the lifespan of the MK STE 402 tension load cell:
- Regularly inspect connections and wiring for signs of wear or damage.
- Clean the load cell surface periodically to prevent buildup of contaminants that could affect performance.
- Perform routine calibrations as specified by manufacturer guidelines or based on operational demands.
These maintenance practices ensure that the load cell continues to perform at peak efficiency throughout its operational life.
The MK STE 402 tension load cell stands out for its ruggedness, precision, and adaptability across various applications in industries ranging from construction to renewable energy. Its robust design combined with advanced technology makes it an industry benchmark for force measurement solutions. With compliance to international standards such as ISO 376 and OIML R60, it assures users of its reliability and accuracy under diverse operating conditions.
As industries continue evolving towards automation and digitalization, tools like the MK STE 402 will play a critical role in enhancing safety protocols while improving operational efficiency.
Its strain gauges and damping system absorb shock loads up to 1,000% of capacity, ensuring stable readings during rapid force changes.
No—the MK STE 402 is calibrated for *tension-only* applications. For compression measurements, consider using models specifically designed for that purpose.
With proper maintenance practices in place, it operates reliably for *8–10 years*, even in demanding industrial settings where continuous operation is required.
Built-in temperature compensation negates drift across -30°C to +90°C ranges, making it ideal for environments like solar farms where temperature variations are common.
Yes—options include custom cable lengths, thread sizes tailored for specific installations, and ATEX/IECEx certifications suitable for hazardous environments.
