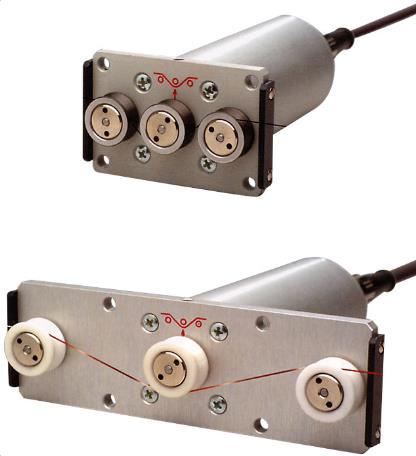

Tension sensors are critical instruments used across various industries to measure the tension or pulling force exerted on materials like wires, cables, and sheets. This article delves into the different types of tension sensors, their working principles, applications, and the technology behind them.
Tension sensors are designed to provide accurate measurements of tensile forces in materials. They are essential in applications where maintaining specific tension levels is crucial, such as in manufacturing processes, quality control, and automation systems.
At the heart of most tension sensors lies the strain gauge technology. Strain gauges are small devices that change their electrical resistance when stretched or compressed. When a material experiences tension, it deforms slightly, causing the strain gauges to alter their resistance. This change is converted into an electrical signal that corresponds to the applied force.
Key Components of Tension Sensors:
- Strain Gauges: Measure resistance changes due to deformation.
- Load Cells: Specialized sensors that convert force into measurable electrical signals.
- Signal Processing Units: Convert raw data into usable information for monitoring and control.
There are several types of tension sensors available, each suited for specific applications and environments:
- Most common type.
- Operates on the principle of resistance change due to mechanical strain.
- Used in load cells and material testing machines.
- Designed specifically for measuring force or weight.
- Often used in industrial scales and weighing systems.
- Utilize changes in capacitance to measure tension.
- Ideal for non-contact applications requiring high resolution.
- Use light transmission properties to measure tension.
- Suitable for applications in harsh environments.
- Employ magnetic fields to measure tension indirectly.
- Effective in environments with dust or moisture.
- Generate an electrical charge in response to mechanical stress.
- Useful for dynamic measurements where rapid changes occur.
Strain gauge sensors are widely used due to their simplicity and effectiveness. They can be bonded directly onto the surface of the material being tested or embedded within it. When tension is applied, the strain gauge deforms, leading to a measurable change in resistance. This type of sensor is highly sensitive and can detect minute changes in tension, making it ideal for precision applications.
Load cells are a specific type of sensor that converts force into an electrical signal. They come in various designs, including compression load cells and shear beam load cells. Load cells are commonly used in weighing scales and industrial applications where accurate weight measurement is crucial. They can handle large loads while providing consistent accuracy.
Capacitive sensors measure changes in capacitance caused by variations in distance between two conductive plates as tension changes. These sensors are non-contact devices, which means they can be used without physically touching the material being measured. This feature makes them suitable for delicate materials that could be damaged by contact sensors.
Optical tension sensors utilize fiber optics to measure changes in light transmission caused by variations in tension. These sensors are particularly advantageous in harsh environments where electronic sensors might fail due to moisture or temperature extremes. Optical sensors offer high sensitivity and can be used for real-time monitoring.
Magnetic sensors use magnetic fields to determine the amount of tension indirectly. They are robust and can operate effectively in environments filled with dust or other contaminants that might interfere with other types of sensors. These sensors are often used in heavy machinery where reliability is paramount.
Piezoelectric sensors produce an electrical charge when subjected to mechanical stress. They are particularly useful for measuring dynamic forces because they can respond quickly to changes in tension. These sensors are often found in applications such as vibration analysis and impact testing.
Tension sensors find extensive use across various industries:

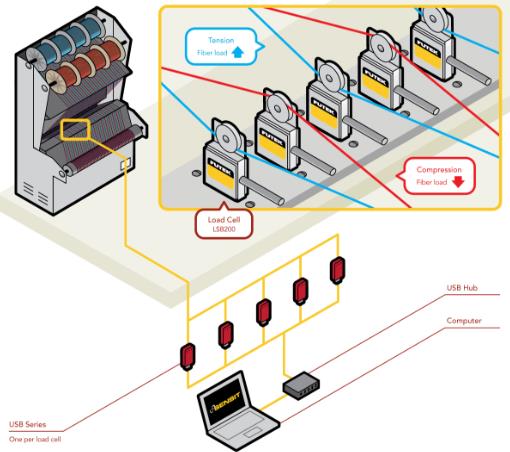

- Textile Manufacturing: In textile production, maintaining consistent yarn tension is vital for quality control. Tension sensors help monitor this process, ensuring that yarn does not break or become unevenly distributed during weaving or knitting.
- Printing and Packaging: In printing processes, web tension must be carefully controlled to prevent material breakage or misalignment during printing runs. Tension sensors ensure that the correct amount of tension is applied throughout the process.
- Automotive Industry: In automotive assembly lines, cables must maintain specific tensions during installation to ensure proper function and safety. Tension sensors provide real-time feedback on cable tensions, allowing adjustments as needed.
- Construction: In construction projects, especially those involving suspension bridges or cable-stayed structures, monitoring cable tensions is crucial for structural integrity. Tension sensors provide critical data that engineers use to assess and adjust cable tensions as needed.
- Aerospace: The aerospace industry uses tension sensors during aircraft assembly and maintenance processes to ensure that all components meet strict safety standards regarding tensile strength and performance under load.
- High Precision: Provide accurate measurements essential for quality control across various industries.
- Real-Time Monitoring: Allow for immediate adjustments to maintain desired tension levels, reducing the risk of material failure.
- Durability: Designed to withstand harsh operating conditions such as extreme temperatures, moisture, and dust.
- Versatility: Applicable across multiple industries including textiles, automotive, aerospace, and construction.
Despite their advantages, measuring tension can present challenges:
- Calibration Needs: Regular calibration is necessary to maintain accuracy over time.
- Environmental Factors: Temperature fluctuations can affect sensor readings; thus, temperature compensation mechanisms may be needed.
- Installation Complexity: Proper installation is crucial; misalignment can lead to inaccurate readings or sensor damage.
Selecting the appropriate tension sensor depends on several factors:
- Measurement Range: Ensure the sensor can handle the expected tension levels without exceeding its limits.
- Environmental Conditions: Consider factors like temperature extremes, humidity levels, exposure to chemicals, and physical space constraints.
- Installation Space: Some sensors are compact and designed for limited spaces; others may require more room for installation.
- Response Time: Depending on the application (static vs dynamic), choose a sensor with an appropriate response time.
As technology advances, so do tension sensing solutions:
1. Wireless Technology: The integration of wireless communication allows for remote monitoring and data collection without cumbersome wiring systems.
2. Smart Sensors: Incorporating IoT capabilities enables real-time data analysis and predictive maintenance alerts based on sensor readings.
3. Enhanced Materials: Development of new materials for strain gauges promises improved sensitivity and durability under extreme conditions.
4. AI Integration: Artificial intelligence algorithms can analyze data from multiple sensors simultaneously, providing deeper insights into operational efficiency and potential issues before they arise.
Tension sensors play a vital role in ensuring precision and efficiency across various industrial applications. Their ability to provide real-time feedback allows manufacturers to optimize processes and maintain quality standards while preventing costly failures or downtime. With advancements in technology, these sensors continue to evolve, offering greater sensitivity and robustness for challenging environments.
A tension sensor is an instrument used to measure the pulling force exerted on a material during various processes, ensuring optimal performance and quality control.
Strain gauge sensors operate by detecting changes in electrical resistance caused by mechanical strain when subjected to tension or compression.
Common applications include textile manufacturing, printing and packaging, automotive assembly lines, construction monitoring, and aerospace component testing.
Factors include measurement range, environmental conditions (temperature and humidity), available installation space, response time requirements, and calibration needs.
Yes, there are several types including strain gauge sensors, load cells, capacitive sensors, optical sensors, magnetic sensors, and piezoelectric sensors.
