Tension load cells are critical components for measuring tensile forces in industrial weighing systems, crane scales, and structural monitoring. Proper installation requires specialized tools and meticulous attention to alignment, calibration, and safety. This guide details the essential tools, steps, and best practices for tension load cell installation while emphasizing accuracy and durability.
1. Precision Alignment Tools
- Torque Wrench: Ensures bolts are tightened to manufacturer specifications (typically 75–100 ft-lbs).
- Spirit Level: Verifies the mounting surface is flat within ±0.1 mm tolerance.
- Laser Alignment System: Optional for large-scale installations to ensure load path alignment.
2. Mounting Hardware
- High-Strength Bolts/Nuts: M12 or M20 grade 8.8/10.9 bolts for securing load cells.
- Spacers/Shims: Compensate for height variations in multi-load-cell systems.
- Threaded Rods: For suspending tension load cells in hopper or tank weighing setups.
3. Electrical Tools
- Multimeter: Tests wiring continuity and signal integrity.
- Crimping Tool: Ensures secure cable connections.
- Waterproof Junction Box: Protects connections from moisture and debris.
4. Safety Equipment
- Safety Chains/Rods: Secondary support to prevent catastrophic failure.
- Anti-Seize Lubricant: Reduces corrosion on threaded components.
5. Calibration Tools
- Calibration Weights: Known weights matching the load cell's rated capacity (e.g., 1,000 lbs).
- Signal Conditioner: Converts millivolt signals to readable outputs.
1. Clean the surface to remove debris, oil, or rust.
2. Use a spirit level to ensure flatness (≤0.1 mm deviation).

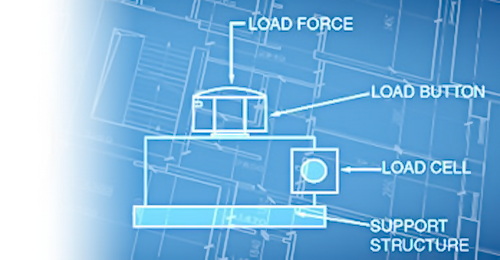

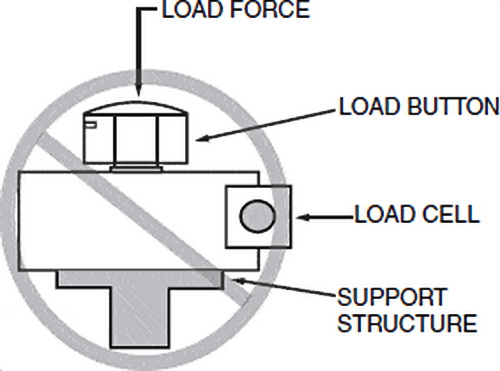

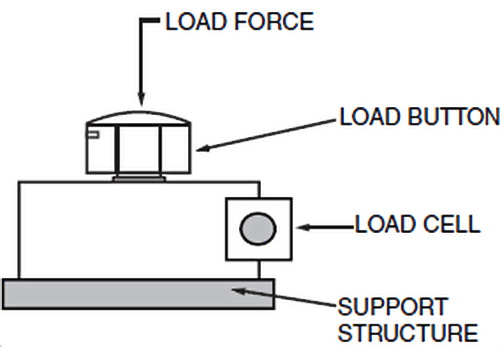

3. For suspended systems, install rigid support structures (e.g., steel beams).
1. Orient the load cell's arrow to match the load direction.
2. Align the primary loading axis with the force vector using a laser alignment tool.
3. Secure the load cell with spacers to compensate for uneven surfaces.
1. Drill holes using manufacturer-provided templates.
2. Fasten bolts with a torque wrench to prevent over-tightening.
3. Attach safety chains to limit lateral movement.
1. Connect wires per color codes:
- Red/Black: Excitation (±)
- Green/White: Signal (±).
2. Use shielded cables to minimize electromagnetic interference.
3. Test connections with a multimeter to verify signal stability.
1. Apply known weights incrementally (20%, 50%, 100% of capacity).
2. Adjust the signal conditioner to match expected outputs.
3. Perform a zero-balance test to ensure no load drift.
- Alignment Checks: Re-verify alignment after 24–48 hours of operation.
- Environmental Protection: Use IP67-rated enclosures for outdoor/harsh environments.
- Regular Calibration: Perform bi-annual calibrations or after mechanical shocks.
- Load Limits: Avoid exceeding 150% of the rated capacity to prevent damage.
| Application | Key Requirements |
|---|---|
| Crane Scales | High EMC resistance, redundant safety chains |
| Suspended Hoppers | Temperature compensation (-40°C to +80°C) |
| Structural Monitoring | Fatigue-rated design, ±0.03% accuracy |
When installing tension load cells, it is crucial to consider environmental factors that may impact their performance:
- Moisture Exposure: Load cells in humid environments should have moisture ingress ratings (e.g., IP67) to prevent corrosion and electrical failures.
- Temperature Fluctuations: Choose temperature-compensated load cells if operating in extreme conditions; shielding may be necessary for protection against radiant heat or cold.
- Vibration and Mechanical Shock: Ensure that mounting structures are stable and can withstand vibrations from surrounding machinery or environmental conditions.
Even with proper installation, issues can arise that affect the accuracy of tension load cells:
1. Loose Connections: Regularly check all wiring connections as vibrations can cause them to loosen over time.
2. Calibration Drift: If readings become inconsistent, recalibrate using known weights.
3. Environmental Damage: Inspect for signs of moisture damage or corrosion regularly.
4. Mechanical Interference: Ensure that no external forces are impacting the load cell's operation; this includes checking for misalignment or obstruction.
5. Overloading Risks: Always monitor loads applied to ensure they do not exceed rated capacities, which can lead to permanent damage.
Several industries have successfully implemented tension load cells in various applications:
- In textile manufacturing, low-profile load cells were used in yarn winding processes, allowing operators to adjust settings on-the-fly based on real-time tension data, significantly reducing defects and waste materials.
- A cable manufacturer utilized low-profile load cells during wire drawing processes; this real-time feedback enabled maintenance of optimal tension levels throughout production, leading to improved product quality and reduced breakage rates.
- Engineers constructing high-rise buildings monitored tension in suspension cables with low-profile load cells, ensuring tensions remained within safe limits throughout construction phases.
Proper tension load cell installation demands precision tools, alignment, and adherence to safety protocols. From torque wrenches to calibration weights, each tool plays a vital role in ensuring accuracy and longevity in various applications ranging from industrial weighing systems to structural monitoring.
Regular maintenance and environmental protection further enhance performance in industrial applications while preventing common issues associated with improper installation or environmental exposure.
By following best practices outlined in this guide, users can achieve reliable measurements and extend the lifespan of their tension load cell systems significantly.
Use a laser alignment tool to ensure the load path matches the cell's primary axis while checking for uneven wear or signal drift during calibration.
No, over-tightening or under-tightening bolts alters stress distribution leading to inaccurate readings or hardware failure.
Calibrate every six months or after exposure to extreme temperatures or shocks.
Loose connections, side-loading, or moisture ingress can lead to inaccurate readings; inspect wiring and mounting hardware regularly.
Yes, but use models with high natural frequency (>1 kHz) and damping accessories for optimal performance under dynamic conditions.
