In the realm of industrial automation and precision measurement, sensors play a pivotal role. These devices act as the eyes and ears of automated systems, providing critical data that drives decision-making and ensures optimal performance. The effectiveness of a sensor, however, is not solely dependent on its internal technology. The way it is mounted and secured significantly impacts its accuracy, stability, and longevity. Among the various mounting solutions available, 18mm cylindrical clamp sensor mounts have emerged as a popular choice for a wide range of applications.
This comprehensive article delves into the world of 18mm cylindrical clamp sensor mounts, exploring the types of sensors that are compatible with them, the benefits they offer, and the factors to consider when selecting the right mount for your specific needs. We will also discuss different styles, including the tension style hose clamp, and provide practical guidance on installation and maintenance.

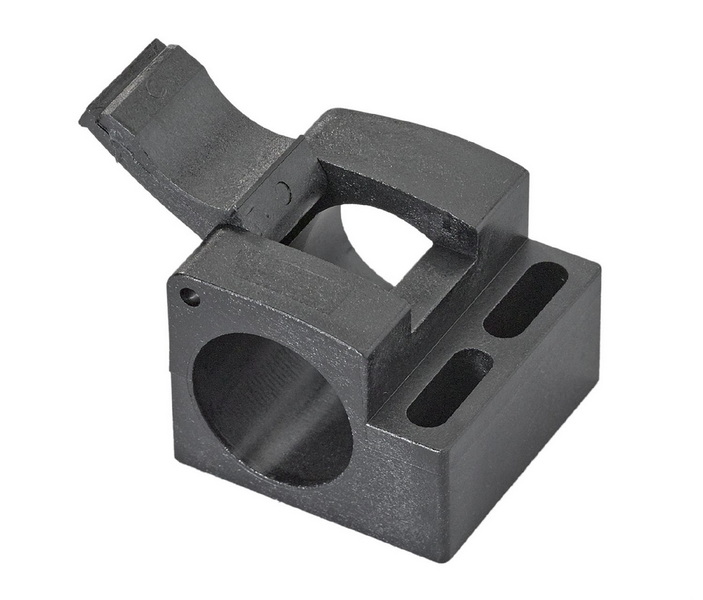

18mm cylindrical clamp sensor mounts are specialized mounting brackets designed to securely hold sensors with an 18mm diameter cylindrical housing. These mounts provide a stable and reliable platform for sensors, ensuring accurate and consistent readings. They are commonly used in industrial settings, automation systems, and robotics applications where precise sensor positioning is crucial.
- Precise Fit: Designed specifically for 18mm diameter sensors, ensuring a snug and secure fit.
- Vibration Resistance: Constructed to withstand vibrations and shocks, maintaining sensor stability in demanding environments.
- Adjustability: Many mounts offer adjustability features, allowing for fine-tuning of sensor position and orientation.
- Durability: Typically made from robust materials like stainless steel, aluminum, or high-quality plastics for long-lasting performance[4].
- Ease of Installation: Designed for quick and easy installation, minimizing downtime and setup costs.
The versatility of 18mm cylindrical clamp sensor mounts lies in their compatibility with a broad spectrum of sensor types. Here are some of the most common sensors that can be effectively mounted using these clamps:
Inductive proximity sensors are non-contact devices that detect the presence of metallic objects. They are widely used in manufacturing, automation, and robotics for applications such as:
- Position Detection: Monitoring the position of moving parts on a machine.
- Object Counting: Counting the number of items passing along a conveyor belt.
- Speed Measurement: Measuring the rotational speed of a shaft.
18mm cylindrical clamp sensor mounts provide a stable and secure mounting solution for inductive proximity sensors, ensuring accurate and reliable detection[1]. The robust design of the clamps helps to minimize the effects of vibration and mechanical shock, which can negatively impact sensor performance.
Photoelectric sensors use light to detect the presence or absence of an object. They are available in various configurations, including:
- Through-beam: The emitter and receiver are positioned opposite each other, and the sensor detects when an object breaks the light beam.
- Retro-reflective: The emitter and receiver are housed in the same unit, and the sensor detects when the light beam is reflected back from a reflector.
- Diffuse: The sensor detects light reflected directly off the object.
These sensors are employed across various industries for tasks like:
- Product Inspection: Ensuring products meet quality standards.
- Level Control: Monitoring the level of liquids or solids in a tank.
- Door Control: Activating automatic doors.
Using 18mm cylindrical clamp sensor mounts ensures that photoelectric sensors are accurately positioned and remain stable, which is crucial for reliable object detection[10].
Ultrasonic sensors use sound waves to measure the distance to an object. They are ideal for applications where non-contact measurement is required, such as:
- Distance Measurement: Measuring the distance to an object without physical contact.
- Level Monitoring: Monitoring the level of liquids or solids in a tank.
- Obstacle Detection: Detecting obstacles in the path of a robot or vehicle.
18mm cylindrical clamp sensor mounts offer a secure and vibration-resistant mounting solution for ultrasonic sensors, enabling accurate and consistent distance measurements.
Capacitive proximity sensors detect the presence of any material, including metals, plastics, liquids, and powders. They are often used in applications such as:
- Level Detection: Detecting the level of liquids or powders in a container.
- Material Handling: Detecting the presence of objects on a conveyor belt.
- Quality Control: Detecting variations in material density or thickness.
These sensors benefit from stable mounting provided by 18mm cylindrical clamp sensor mounts, ensuring reliable detection regardless of the material being sensed[7].
Magnetic sensors detect the presence of a magnetic field. They are commonly used in:
- Position Sensing: Detecting the position of a piston in a cylinder.
- Speed Sensing: Measuring the speed of a rotating shaft.
- Security Systems: Detecting the opening or closing of doors and windows.
The use of 18mm cylindrical clamp sensor mounts ensures that magnetic sensors are correctly aligned and securely held in place, which is vital for accurate and consistent magnetic field detection.
Choosing 18mm cylindrical clamp sensor mounts for your sensor installation offers numerous advantages:
1. Enhanced Stability: Provides a stable and secure platform, minimizing vibration and movement that can affect sensor accuracy[2].
2. Improved Accuracy: Ensures precise sensor positioning for consistent and reliable readings.
3. Increased Durability: Protects sensors from physical damage and environmental factors, extending their lifespan[4].
4. Simplified Installation: Facilitates quick and easy sensor installation, reducing setup time and costs.
5. Versatile Application: Suitable for a wide range of sensor types and industrial applications[5].
6. Cost-Effective: Offers a durable and reliable mounting solution at a reasonable price point.
While the basic function remains the same, 18mm cylindrical clamp sensor mounts come in various designs to suit different application requirements:

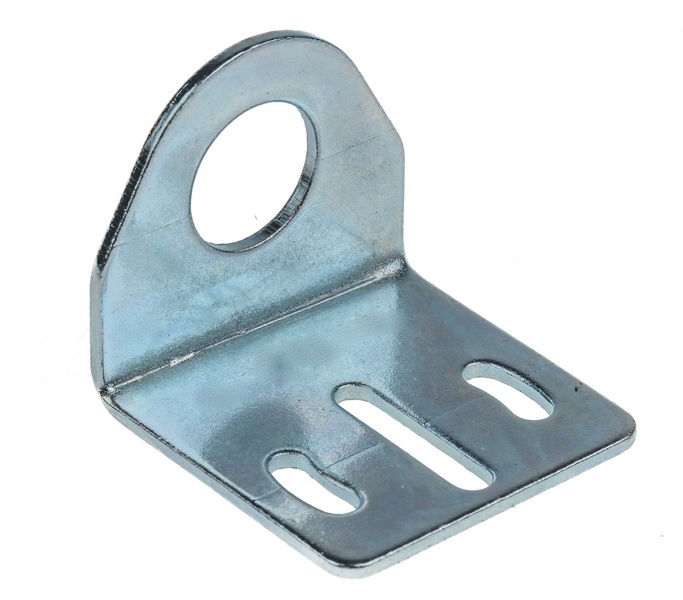

These are the most basic type of mount, providing a simple and secure way to hold the sensor in place. They typically consist of two halves that clamp around the sensor housing and are tightened with screws[1].
Adjustable mounts offer greater flexibility in sensor positioning. They often feature swivel joints or adjustable arms that allow for fine-tuning of the sensor's angle and orientation[8].
These mounts are designed to minimize the effects of vibration on sensor performance. They incorporate vibration-damping materials or mechanisms to isolate the sensor from external vibrations.
For applications in harsh environments, stainless steel clamp mounts provide excellent corrosion resistance and durability[4].
Plastic clamp mounts offer a lightweight and cost-effective alternative to metal mounts. They are suitable for applications where corrosion resistance is not a primary concern[1].

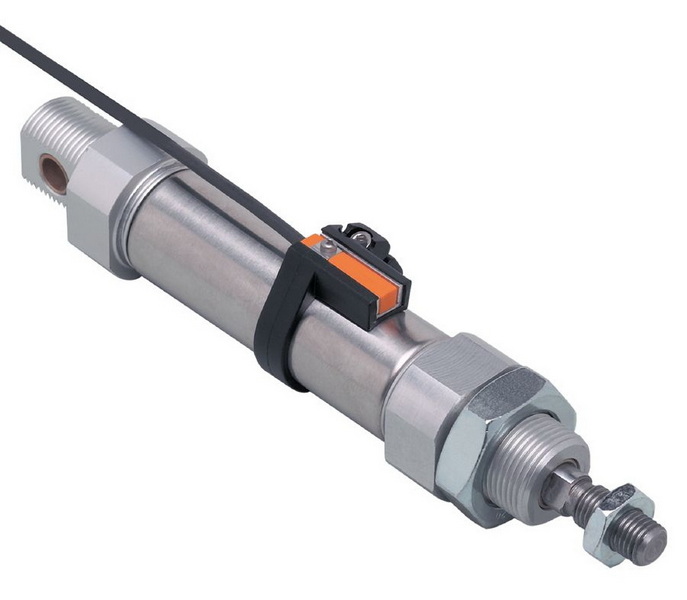

The tension style hose clamp, while traditionally used for securing hoses, can be adapted in some situations to mount cylindrical sensors. This involves using the clamp to secure the sensor to a suitable mounting point. However, it's essential to ensure that the clamp provides a stable and secure hold without damaging the sensor[3][9].
To measure hose clamp size, you'll need to know the outside diameter (O.D.) of your hose. For an accurate measurement, assemble the hose on the fitting you'll be using[3].
- Measure the O.D. of the hose and fitting with a caliper. If you don't have a caliper, then use this formula: Outside Diameter (O.D.) = Circumference (C) ÷ 3.1416 (Pi)[3]
Choose a clamp that sits in the middle of the clamp's adjustment range[3].
Choosing the right 18mm cylindrical clamp sensor mount is crucial for optimal sensor performance and longevity. Here are some key factors to consider:
1. Sensor Type: Ensure the mount is compatible with the specific type of sensor you are using (e.g., inductive, photoelectric, ultrasonic).
2. Environmental Conditions: Consider the environmental conditions in which the sensor will be operating. Choose a mount made from a material that can withstand the temperature, humidity, and chemical exposure.
3. Vibration Levels: If the sensor will be subjected to high levels of vibration, select a vibration-damping mount.
4. Adjustability Requirements: Determine whether you need an adjustable mount to fine-tune the sensor's position.
5. Mounting Location: Consider the available space and mounting options at the installation location.
6. Load Requirements: Ensure that the mounting can support the weight of the sensor and withstand any external forces.
7. Material Compatibility: Verify that the material of the clamp is compatible with the sensor housing material to prevent corrosion or damage.
8. Ease of Installation: Choose a mount that is easy to install and adjust, minimizing downtime and setup costs.
9. Cost: Balance the cost of the mount with its features and benefits to ensure you are getting the best value for your money.
10. Brand Reputation: Consider purchasing from a reputable brand known for producing high-quality and reliable sensor mounts.
Proper installation and maintenance are essential for ensuring the long-term performance of your 18mm cylindrical clamp sensor mounts:
- Read the Instructions: Always read and follow the manufacturer's installation instructions.
- Use the Right Tools: Use the correct tools for tightening the clamp screws to avoid damaging the mount or sensor.
- Proper Alignment: Ensure the sensor is properly aligned before tightening the clamp screws.
- Secure Fastening: Tighten the clamp screws securely, but do not overtighten them, as this can damage the sensor housing.
- Check for Vibration: After installation, check for any excessive vibration or movement of the sensor. If necessary, use a vibration-damping mount or add additional support.
- Regular Inspection: Inspect the mounts regularly for signs of wear, corrosion, or damage.
- Cleanliness: Keep the mounts clean and free from dirt, dust, and debris.
- Tighten Screws: Periodically tighten the clamp screws to ensure a secure hold.
- Lubrication: Lubricate moving parts, such as swivel joints, to ensure smooth operation.
- Replacement: Replace any damaged or worn mounts immediately to prevent sensor failure.
In an automotive manufacturing plant, inductive proximity sensors are used to detect the position of robotic arms during the assembly process. 18mm cylindrical clamp sensor mounts are used to securely mount the sensors on the robotic arms. The vibration-damping properties of the mounts help to minimize the effects of vibration from the robotic arms, ensuring accurate and reliable position detection.
In a food processing plant, photoelectric sensors are used to detect the presence of products on a conveyor belt. Stainless steel 18mm cylindrical clamp sensor mounts are used to mount the sensors, providing excellent corrosion resistance in the harsh, washdown environment.
In a pharmaceutical manufacturing facility, ultrasonic sensors are used to monitor the level of liquids in storage tanks. Adjustable 18mm cylindrical clamp sensor mounts are used to precisely position the sensors for accurate and consistent level measurements.
The field of sensor mounting technology is constantly evolving, with new materials, designs, and features being developed to meet the ever-increasing demands of industrial automation and precision measurement. Some of the emerging trends in sensor mounting technology include:
- Smart Mounts: Sensor mounts with integrated sensors that monitor vibration, temperature, and other parameters, providing valuable data for predictive maintenance.
- Wireless Mounts: Sensor mounts that transmit sensor data wirelessly, eliminating the need for cables and reducing installation costs.
- 3D-Printed Mounts: Custom-designed sensor mounts that are 3D-printed to meet specific application requirements.
- Self-Adjusting Mounts: Sensor mounts that automatically adjust to compensate for changes in temperature, vibration, or other environmental factors.
These advancements promise to further enhance the performance, reliability, and versatility of sensors in a wide range of applications.
18mm cylindrical clamp sensor mounts are an essential component for ensuring the accurate, stable, and reliable operation of various sensors in industrial and automation applications. By understanding the different types of sensors compatible with these mounts, the benefits they offer, and the factors to consider when selecting the right mount, you can optimize your sensor installations for maximum performance and longevity. Whether you're using inductive proximity sensors, photoelectric sensors, ultrasonic sensors, or other types of sensors, choosing the right 18mm cylindrical clamp sensor mount is a critical step in achieving your automation goals. Remember to consider the environmental conditions, vibration levels, adjustability requirements, and other factors to make an informed decision. Proper installation and maintenance will further extend the lifespan of your sensor mounts and ensure consistent performance over time.
Common materials include stainless steel, aluminum, and plastic compounds. Stainless steel and aluminum offer excellent durability and corrosion resistance, while plastics provide a lightweight and cost-effective option[4].
Ensure the mount is specifically designed for 18mm diameter sensors. The mount should provide a snug and secure fit without excessive force.
While a tension style hose clamp can be used in some situations, it is generally recommended to use a dedicated sensor mount for optimal stability and sensor protection. If using a hose clamp, ensure it provides a secure hold without damaging the sensor.
Vibration-damping mounts minimize the effects of vibration on sensor performance, ensuring accurate and reliable readings in demanding environments.
Regularly inspect the mounts for signs of wear, corrosion, or damage. Keep them clean and free from dirt, dust, and debris. Periodically tighten the clamp screws to ensure a secure hold.
