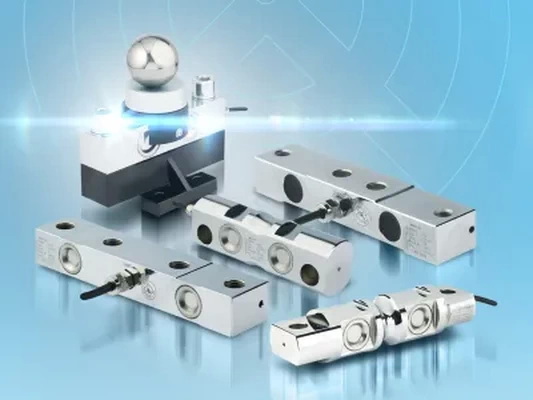

Tension load cells are essential devices in modern engineering, providing accurate measurements of tensile forces across various applications. Among the different types of load cells, low-cost tension load cells have gained popularity due to their affordability and versatility. This article explores the reasons behind their popularity, their applications, advantages and disadvantages, and how they compare to premium models.
Tension load cells are specialized sensors that measure tensile forces by converting mechanical strain into an electrical signal. They are commonly used in various industries, including manufacturing, aerospace, construction, and research. The basic operation involves the use of strain gauges arranged in a Wheatstone bridge configuration. When a tensile force is applied, the load cell deforms slightly, changing the resistance of the strain gauges and producing an electrical signal proportional to the force applied.

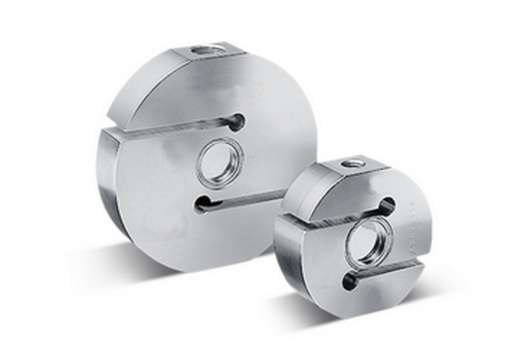

- S-Type Load Cells: These versatile devices can measure both tension and compression forces. Their shape resembles the letter "S," making them suitable for suspended applications.
- Tension Links: Designed specifically for measuring tensile loads in overhead crane systems.
- Canister Load Cells: Robust cylindrical devices used for both tension and compression measurements.

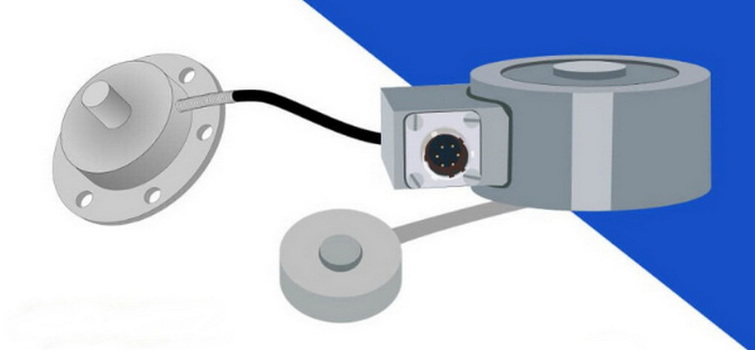

- Pancake Load Cells: Low-profile devices ideal for applications with limited space that require high accuracy.
Low-cost tension load cells offer several benefits that contribute to their growing popularity:
1. Affordability: As their name suggests, low-cost tension load cells are significantly cheaper than premium models. This makes them accessible for small businesses and educational institutions that may have limited budgets.
2. Sufficient Accuracy: While they may not match the precision of high-end models, many low-cost tension load cells provide moderate accuracy (±0.5% to ±1%), making them suitable for non-critical applications.
3. Versatility: These load cells can be employed in a wide range of applications, from basic industrial weighing tasks to educational experiments.
4. Ease of Integration: Low-cost tension load cells are often designed to be easily integrated into existing systems without requiring extensive modifications.
5. Durability: Many low-cost models are constructed from materials like aluminum or lower-grade stainless steel, providing adequate durability for general-purpose applications.
Low-cost tension load cells find use in numerous applications across various industries:
- Industrial Weighing: Ideal for basic weighing tasks in manufacturing and logistics.
- Material Testing: Used in laboratories for testing the tensile strength of materials such as metals and plastics.
- Educational Purposes: Commonly utilized in academic settings for experiments related to force measurement and material properties.
- Cable Tension Monitoring: Employed in construction and telecommunications to monitor cable tensions during installation and maintenance.
- Quality Control: Used in manufacturing processes to ensure products meet specified tension force requirements.
While low-cost tension load cells offer several advantages, it is essential to understand how they compare with premium models:
| Feature | Low-Cost Tension Load Cells | Premium Tension Load Cells |
|---|---|---|
| Accuracy | Moderate (±0.5% to ±1%) | High (±0.1% or better) |
| Temperature Stability | Limited | Excellent |
| Load Capacity | Lower limits (e.g., up to 500 kg) | Higher limits (e.g., up to 100 tons) |
| Environmental Protection | Basic (IP65) | Advanced (IP67/IP68) |
| Response Time | Slower | Faster |
| Calibration Frequency | Less frequent | More frequent |
Despite their advantages, low-cost tension load cells also have some drawbacks:
1. Limited Accuracy: They may not provide the precision required for critical applications such as aerospace testing or structural integrity assessments.
2. Durability Concerns: The materials used in low-cost models may not withstand harsh environmental conditions as effectively as premium models.
3. Shorter Lifespan: Due to lower construction quality, these load cells may require more frequent replacements or repairs over time.
4. Basic Features: Low-cost models often lack advanced features found in premium models, such as better temperature compensation or enhanced signal stability.
The increasing demand for low-cost tension load cells can be attributed to several factors:
In today's competitive market, companies are constantly looking for ways to reduce costs without sacrificing quality. Low-cost tension load cells provide a cost-effective solution for businesses that need reliable measurements but cannot afford high-end equipment.
Advancements in manufacturing techniques have made it possible to produce low-cost tension load cells that still maintain a reasonable level of accuracy and reliability. Improved production processes have led to better materials being used at lower costs, making these devices more accessible than ever before.
Industries such as construction, logistics, and education are expanding rapidly, leading to increased demand for affordable measurement solutions. Low-cost tension load cells cater specifically to these growing sectors by providing an economical option that meets their needs without breaking the bank.
As more educational institutions incorporate engineering principles into their curricula, there is a growing awareness of the importance of accurate force measurements. Low-cost tension load cells serve as excellent teaching tools that allow students to experiment with real-world applications without significant financial investment.
As technology continues to evolve, several trends are expected to shape the future of low-cost tension load cells:
With the rise of Industry 4.0 and the Internet of Things (IoT), there is a growing emphasis on connectivity between devices. Future low-cost tension load cells may incorporate wireless communication capabilities, allowing for real-time data monitoring and analysis from remote locations.
Research into new materials could lead to even more durable yet affordable options for constructing low-cost tension load cells. Innovations such as composite materials may provide enhanced strength-to-weight ratios while keeping production costs down.
As automation becomes more prevalent across industries, there will be a greater need for reliable measurement devices that can integrate seamlessly into automated systems. Low-cost tension load cells will likely evolve alongside automation technologies to meet these demands effectively.
Low-cost tension load cells have become popular in modern engineering due to their affordability, versatility, and sufficient accuracy for non-critical applications. They serve a wide range of industries and functions, making them accessible solutions for many users. However, it is crucial to assess the specific requirements of each application before choosing between low-cost and premium models. While low-cost options may be suitable for basic tasks or educational purposes, critical applications demanding high precision should consider investing in premium alternatives.
A tension load cell is a type of force sensor designed to measure pulling forces by converting mechanical strain into an electrical signal. It is widely used across various industries for accurate force measurement.
Low-cost tension load cells generally offer moderate accuracy (±0.5% to ±1%) and durability but may lack the advanced features and reliability found in premium models designed for critical applications where precision is paramount.
Tension load cells are commonly used in industrial weighing systems, material testing labs, cable tension monitoring in construction, and various other applications requiring precise measurement of tensile forces.
To ensure accuracy, select a load cell appropriate for your application's requirements regarding capacity, environmental conditions, calibration frequency, and installation practices that minimize external influences on measurements.
While low-cost tension load cells can be used in industrial settings, they are best suited for non-critical applications where extreme precision is not necessary due to their moderate accuracy and durability limitations.
