In the realm of precision measurement, OEM (Original Equipment Manufacturer) ring tension load cells stand out as a pivotal technology. These devices are engineered to deliver high accuracy and reliability, making them indispensable in various industrial applications. This article explores the unique features of OEM ring tension load cells, their working principles, applications, and advantages that make them ideal for precision measurement.
Load cells are transducers that convert a force into an electrical signal. They are widely used in weighing systems and force measurement applications. The working principle of a load cell is based on the deformation of a material when a load is applied. This deformation is measured using strain gauges, which are sensitive to changes in resistance caused by the applied force.
Load cells come in various designs, including:
- Tension Load Cells: Measure pulling forces.
- Compression Load Cells: Measure pushing forces.
- Bending Beam Load Cells: Commonly used in platform scales.
- Ring Load Cells: Specifically designed for high precision applications.
Among these, OEM ring tension load cells are particularly notable for their unique design and functionality.

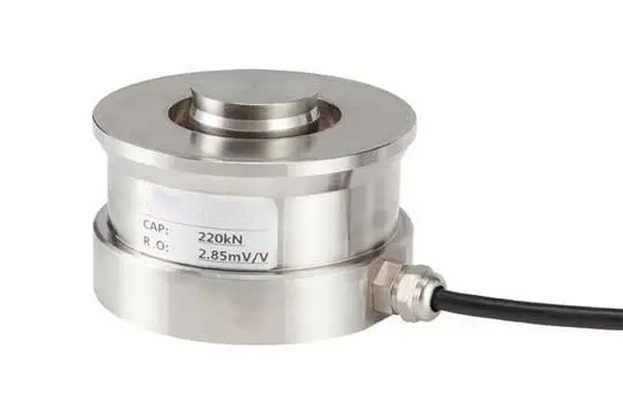

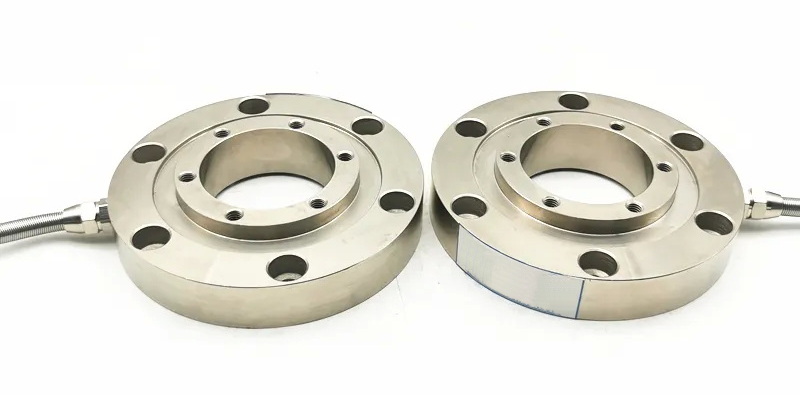

OEM ring tension load cells are specialized sensors designed to measure tensile forces with high precision. Their ring-shaped design allows for easy integration into existing systems, making them ideal for OEM applications. These load cells are often used in situations where space is limited or where traditional load cell designs may not fit.
- High Accuracy: Typically offer accuracy levels up to 0.02% of the rated capacity.
- Compact Design: The ring shape allows for low-profile installations.
- Durability: Made from robust materials like stainless steel, providing resistance to environmental factors.
- Wide Range of Capacities: Available in various capacities from 1 ton to 470 tons.
The operation of an OEM ring tension load cell is based on the principle of strain gauges arranged in a Wheatstone bridge configuration. When a tensile force is applied, the ring deforms slightly. This deformation changes the electrical resistance of the strain gauges, producing a measurable voltage output that corresponds to the applied force.
1. Force Application
- A weight or tensile force is applied to the load cell.
2. Deformation
- The ring-shaped element deforms under the applied force.
3. Strain Gauge Response
- Strain gauges detect this deformation and change their resistance.
4. Signal Conversion
- The change in resistance is converted into an electrical signal proportional to the force applied.
OEM ring tension load cells are versatile and can be found across various industries:
- Manufacturing: Used for quality control and precise measurements during production processes.
- Construction: Employed in monitoring loads on cranes and lifting equipment.
- Aerospace: Critical in testing components under tensile loads to ensure safety and reliability.
- Automotive: Used in testing vehicle components and assemblies for strength and durability.
- Oil and Gas Industry: Essential for monitoring forces during drilling operations and ensuring safety protocols are followed.
1. Precision Measurement: Their design allows for accurate measurements even under varying conditions.
2. Space Efficiency: The compact form factor makes them suitable for applications with limited space.
3. Robustness: Built to withstand harsh environments, ensuring longevity and reliability.
4. Ease of Integration: Designed for easy installation into existing systems without extensive modifications.
5. Low Maintenance Requirements: Their durability reduces the need for frequent maintenance or replacement.
6. Customization Options: Many manufacturers offer tailored solutions to meet specific application needs, enhancing performance further.
7. Compliance with Standards: OEM ring tension load cells often meet industry regulations, ensuring safety and reliability across applications.
8. Cost Effectiveness Over Time: While initial costs may be higher, the long-term benefits such as reduced downtime and maintenance costs often outweigh these expenses.
The evolution of technology has led to significant improvements in the design and functionality of OEM ring tension load cells:
- Digital Integration: Modern load cells can now interface with digital systems for real-time data collection and analysis, enhancing operational efficiency.
- Wireless Capabilities: Some models offer wireless communication options, reducing installation complexity and improving flexibility in data monitoring.
- Enhanced Sensitivity: Advances in materials science have led to improved sensitivity levels, allowing for even finer measurements under varying loads.
- Smart Sensors: Integration with IoT (Internet of Things) technology enables predictive maintenance by monitoring performance metrics continuously and alerting users before potential failures occur.
1. Construction Monitoring
- In a recent project involving bridge construction, OEM ring tension load cells were utilized to monitor the loads on cables during installation. The precision measurements ensured that safety standards were met throughout the construction process, preventing potential structural failures due to overloading.
2. Automotive Testing
- An automotive manufacturer integrated these load cells into their testing rigs to evaluate component durability under stress conditions. The data collected allowed engineers to refine designs before mass production, significantly reducing warranty claims related to component failure.
3. Oil Rig Operations
- In offshore drilling operations, OEM ring tension load cells were deployed to monitor the weight of drilling equipment dynamically. This real-time data helped operators make informed decisions about equipment capabilities, enhancing safety measures on-site.
OEM ring tension load cells are an essential component in achieving precision measurement across various industries. Their unique design, coupled with high accuracy and robustness, makes them ideal for applications requiring reliable force measurement. As industries continue to evolve towards automation and precision engineering, the demand for such advanced measurement solutions will only increase. By investing in these sophisticated devices, companies can ensure operational efficiency while maintaining high standards of safety and quality control.
An OEM ring tension load cell is a specialized sensor designed to measure tensile forces with high accuracy and compact design suitable for integration into existing systems.
It works by measuring the deformation caused by an applied tensile force using strain gauges arranged in a Wheatstone bridge configuration, converting this deformation into an electrical signal proportional to the force.
They are commonly used in manufacturing, construction, aerospace, automotive industries, oil and gas sectors, and any application requiring precise force measurement.
Benefits include high precision measurements, space efficiency due to compact design, robustness against harsh environments, ease of integration into existing systems, low maintenance requirements, customization options, compliance with industry standards, and long-term cost-effectiveness.
Yes, many manufacturers offer customization options to meet specific application requirements regarding capacity, size, environmental conditions, and integration needs.
