Tension compression load cells with gland heads are essential instruments in various industrial applications, providing accurate measurement of forces and weights by converting mechanical force into an electrical signal. This article will explore the benefits of choosing a tension compression load cell with a gland head made in China, detailing their construction, applications, advantages, and maintenance practices.
Tension compression load cells are designed to measure both tensile (pulling) and compressive (pushing) forces. They are widely used in applications such as:
- Weighing systems
- Structural testing
- Material testing
- Industrial machinery
These load cells typically feature a gland head that allows for easy integration into existing systems while providing robust performance. Their ability to measure both types of forces makes them versatile for various applications, making them a preferred choice in many industries.

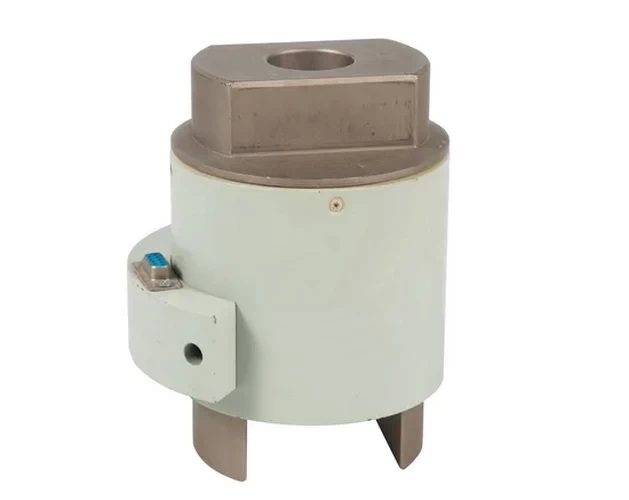

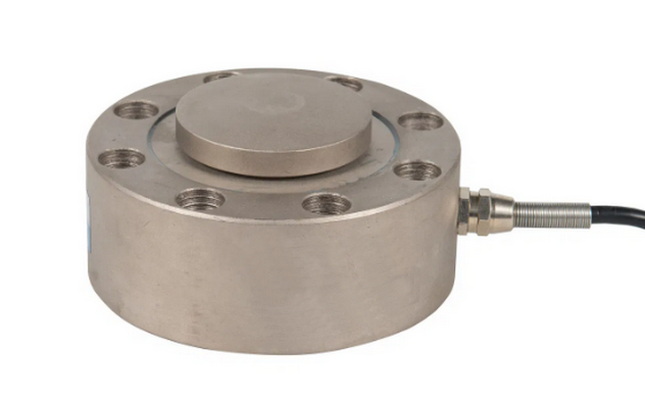

The construction of a tension compression load cell with a gland head involves several key components:
1. Material: Most load cells are made from high-quality stainless steel or aluminum alloy, which provides durability and resistance to corrosion.
2. Strain Gauges: These devices use strain gauges to convert force into an electrical signal. The strain gauges are carefully calibrated to ensure high accuracy.
3. Gland Head: The gland head design allows for straightforward installation and integration into existing setups, ensuring that the load cell can be easily maintained and replaced if necessary.
4. Sealing: Many models come with high ingress protection ratings (IP67 or IP68), ensuring they can withstand harsh environmental conditions.
5. Load Cell Housing: The housing protects internal components from physical damage and environmental factors, enhancing the longevity of the device.
6. Electrical Connections: Proper electrical connections are crucial for accurate signal transmission; hence, quality connectors are utilized to minimize noise interference.
Choosing a tension compression load cell with a gland head made in China offers several advantages:
- Cost-Effectiveness: Chinese manufacturers often provide competitive pricing without compromising on quality, making these load cells an economical choice for businesses.
- Quality Assurance: Many manufacturers adhere to international quality standards, ensuring that their products meet rigorous testing and performance benchmarks.
- Customization Options: Chinese manufacturers often provide customization options tailored to specific industrial requirements, allowing businesses to get exactly what they need for their applications.
- Robust Supply Chain: With a vast network of suppliers and manufacturers, sourcing load cells from China ensures a steady supply of products and components.
- Innovative Technology: Many Chinese manufacturers invest heavily in research and development, leading to innovative designs that enhance performance and reliability.
Tension compression load cells with gland heads are used across various industries due to their versatility:
- Manufacturing: Used in production lines for quality control and monitoring loads on machinery. They help ensure that machines operate within safe limits, preventing breakdowns.
- Construction: Essential for structural testing and monitoring loads on beams and other structural components. Load cells can assess the integrity of structures under various loads during construction.
- Transportation: Utilized in weighing systems for trucks and freight to ensure compliance with weight regulations. This helps avoid penalties associated with overweight vehicles.
- Research and Development: Employed in laboratories for material testing and experimental setups. Researchers rely on precise measurements to validate hypotheses or develop new materials.
- Aerospace: Used in testing aircraft components under various loading conditions to ensure safety and performance standards are met.
- Automotive Industry: Involved in crash testing scenarios where precise measurements of forces are critical for safety evaluations.
Proper installation and calibration are crucial for ensuring the accuracy of tension compression load cells. Here's a brief overview:
1. Alignment: Ensure the load cell is aligned with the anticipated load path to avoid side loads that can affect accuracy.
2. Mounting Surface Preparation: The surface should be flat, rigid, and capable of supporting the load cell without deformation.
3. Securing the Load Cell: Use appropriate bolts or fasteners to secure the load cell in place according to the manufacturer's torque specifications.
4. Wiring: Connect the load cell to signal conditioning equipment or display units following the manufacturer's instructions.
5. Calibration: After installation, calibrate the load cell by applying known weights and adjusting the output accordingly. Calibration should include zero balance adjustment as well as span calibration using certified weights.
6. Testing After Installation: Conduct a functional test after calibration to confirm that the readings align with expected values under known loads.
To ensure long-term reliability and accuracy of tension compression load cells, consider these maintenance practices:
- Regularly check connections for wear or damage.
- Schedule periodic recalibrations based on usage frequency.
- Monitor environmental conditions that may affect performance, such as temperature fluctuations or humidity levels.
- Clean the load cell regularly to remove dust or debris that might interfere with its operation.
- Inspect seals and gaskets periodically to ensure they remain intact and effective against moisture ingress.
The evolution of technology has significantly impacted the design and functionality of tension compression load cells:
- Digital Load Cells: These devices provide enhanced accuracy through digital signal processing, reducing noise interference common in analog systems.
- Wireless Technology: Wireless tension compression load cells eliminate cabling issues, allowing for easier installation in hard-to-reach areas while providing real-time data transmission.
- Smart Sensors: Integration with IoT (Internet of Things) technology allows these sensors to communicate data over networks, enabling remote monitoring and predictive maintenance capabilities.
While tension compression load cells offer numerous benefits, users may encounter challenges such as:
- Environmental Factors: Extreme temperatures or corrosive environments can affect performance; selecting appropriate models with adequate protection is crucial.
- Calibration Complexity: Users may struggle with proper calibration without sufficient training or resources; investing in training can alleviate this issue.
- Integration Issues: Compatibility with existing systems may pose challenges; thorough planning during system design is essential for smooth integration.
In conclusion, choosing a tension compression load cell with a gland head made in China is an excellent decision for businesses looking for reliable, accurate, and cost-effective measurement solutions. With their robust construction, versatility across various applications, ease of installation, and advancements in technology, these load cells provide significant advantages over other types of sensors. By understanding their features and adhering to best practices for installation and maintenance, users can maximize their performance and ensure accurate measurements over time.
A tension compression load cell is a device that measures both tensile (pulling) and compressive (pushing) forces by converting mechanical force into an electrical signal.
Calibration should be performed regularly based on usage frequency; however, it is recommended at least once every six months or after significant changes in environmental conditions or after heavy usage.
Yes, tension compression load cells are designed specifically to measure both types of forces effectively.
Erratic readings may indicate loose connections or misalignment; check all connections and ensure proper alignment during installation.
Yes, consider factors like temperature fluctuations, humidity levels, and exposure to corrosive materials that could affect the performance of the load cell.
