In various industries, accurate measurement of tension is crucial for maintaining product quality and ensuring safety. The Lebow 2000lbs Load Cell stands out as a reliable solution for tension control applications. This article will delve into the features, benefits, and applications of the Lebow 2000lbs load cell, highlighting why it is an excellent choice for tension measurement.
A load cell is a transducer that converts a mechanical force or load into an electrical signal. This conversion is essential in various applications, including weighing systems, material testing, and industrial automation. Load cells are vital in ensuring precision in processes where weight or force measurement is critical.
- Compression Load Cells: Measure forces applied to them in a compressive manner.
- Tension Load Cells: Designed to measure pulling forces, ideal for applications requiring tension measurement.
- Shear Beam Load Cells: Used for measuring loads in industrial scales and other applications.
The Lebow 2000lbs Load Cell primarily functions as a tension load cell, designed to provide accurate measurements of pulling forces.
The Lebow 2000lbs load cell offers several features that make it suitable for tension control:
- Capacity: It can handle loads up to 2000 lbs, making it versatile for various applications.

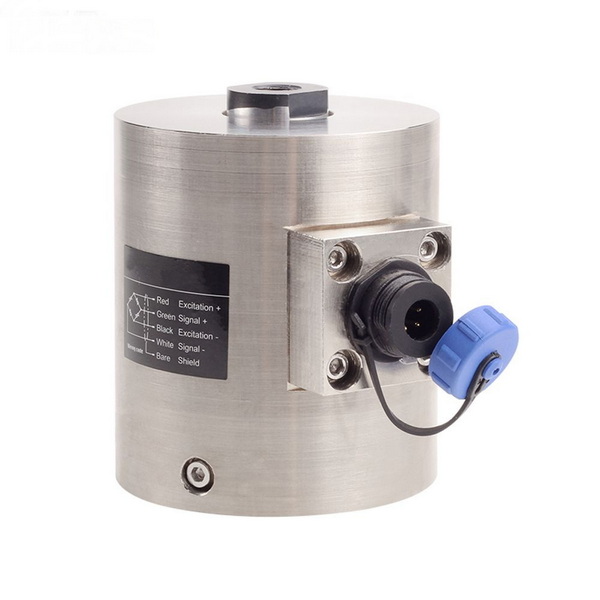

- Accuracy: With a high degree of accuracy (±0.1% full scale), it ensures reliable measurements.
- Durability: Constructed from high-quality materials, the load cell is built to withstand harsh environments.
- Low Deflection: The design minimizes deflection under load, ensuring that measurements remain consistent even with varying loads.
- Temperature Compensation: The load cell maintains accuracy across a wide temperature range, making it suitable for diverse environments.
Choosing the Lebow 2000lbs load cell for tension control comes with numerous advantages:
- High Precision: This load cell provides precise measurements essential for quality control in manufacturing processes.
- Versatility: It can be used in various applications, including web tension monitoring in paper mills, textile production, and packaging processes.
- Ease of Integration: The compact design allows for easy installation in existing systems without significant modifications.
- Cost-Effectiveness: While offering high performance, the Lebow load cell remains competitively priced compared to other options on the market.
The versatility of the Lebow 2000lbs load cell allows it to be used across multiple industries:
- Manufacturing: In production lines where precise force measurement is necessary to maintain product quality. For instance, in assembly lines where components are fitted together under specific tension levels to ensure durability and functionality.
- Textile Industry: Used to monitor tension in yarns and fabrics during production processes. Maintaining consistent tension helps prevent defects such as uneven fabric texture or breaks in the yarn.

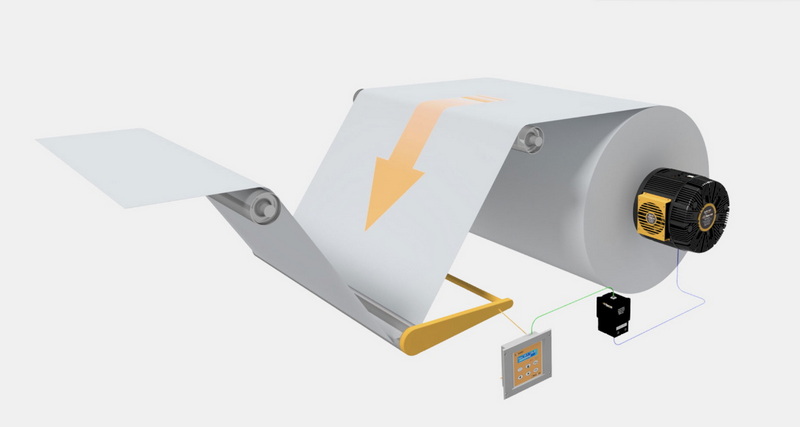

- Paper Industry: Essential for controlling web tension in paper machines to prevent defects and ensure consistent quality. Proper web tension control can significantly reduce waste during production by minimizing errors caused by misalignment or breaks.
- Automotive Testing: Employed in testing equipment to measure forces on components during stress tests. Accurate measurements are crucial in ensuring that automotive parts can withstand operational stresses without failure.
The operation of the Lebow 2000lbs load cell relies on the principles of strain gauges. When a force is applied:
1. The internal structure of the load cell deforms slightly.
2. Strain gauges bonded to this structure change their electrical resistance.
3. This change generates a voltage signal proportional to the applied force.
4. The signal is then processed and converted into a readable format for monitoring or control systems.
This process ensures that even minute changes in tension are detected and reported accurately, providing real-time data that can be crucial for operational adjustments.
Installing the Lebow 2000lbs load cell involves:
1. Mounting the load cell securely within your system.
2. Connecting it to a suitable display or data acquisition system.
3. Calibrating the system using known weights or forces to ensure accuracy.
Proper calibration is crucial as it guarantees that the readings reflect true values under operational conditions. Calibration should be performed regularly to maintain accuracy over time, especially if the load cell experiences significant changes in temperature or loading conditions.
To ensure that your Lebow 2000lbs load cell operates efficiently over time, consider these maintenance tips:
- Regular Inspection: Periodically check for any signs of wear or damage, particularly at connection points where strain may be concentrated.
- Environmental Protection: If used in harsh environments (e.g., exposure to moisture or chemicals), consider protective enclosures or coatings that can shield the load cell from damage.
- Calibration Checks: Schedule routine calibration checks to ensure ongoing accuracy. This is particularly important if you notice discrepancies in readings over time.
Modern advancements have integrated additional features into load cells like the Lebow 2000lbs model:
- Digital Output Options: Some models offer digital outputs which allow for easier integration with modern data acquisition systems and provide enhanced data processing capabilities.
- Wireless Capabilities: Wireless technology enables remote monitoring and data collection without physical connections, improving flexibility and reducing installation complexity.
- Smart Sensors: Incorporating smart technology allows for real-time diagnostics and alerts when performance deviates from expected parameters, enhancing operational efficiency.
1. Textile Manufacturing Plant
A textile manufacturing facility implemented the Lebow 2000lbs load cell to monitor yarn tension during weaving processes. By ensuring consistent tension levels, they reduced fabric defects by 30%, leading to significant cost savings and improved product quality.
2. Automotive Component Testing
An automotive company utilized this load cell during stress testing of suspension components. The precise measurements allowed engineers to identify potential failure points early in the design phase, resulting in safer vehicles and reduced warranty claims post-production.
3. Paper Production Facility
A paper mill adopted the Lebow 2000lbs load cell for web tension monitoring across their production line. The implementation led to a reduction in paper waste by 25% due to improved alignment and reduced breaks during production runs.
The Lebow 2000lbs Load Cell is an exceptional choice for tension control due to its accuracy, durability, and versatility across various applications. Whether used in manufacturing, textiles, or automotive testing, this load cell provides reliable performance that enhances process efficiency and product quality. As industries continue to demand precision in their operations, choosing the right tools like the Lebow 2000lbs load cell becomes essential for success.
A load cell is a device that converts mechanical force or weight into an electrical signal for measurement purposes.
A tension load cell measures pulling forces by utilizing strain gauges that change their resistance when deformed under load, generating an electrical signal proportional to the force applied.
It is commonly used in manufacturing processes, textile production, paper mills, and automotive testing where precise force measurement is required.
Installation involves securely mounting the load cell and connecting it to a display system; calibration requires using known weights to ensure accurate readings.
Benefits include high accuracy, durability under harsh conditions, ease of integration into existing systems, and cost-effectiveness compared to similar products on the market.
