Why Is My OEM Automatic Winder Tension Sensor Not Working Properly?

Views: 222     Author: Leah     Publish Time: 2025-04-03      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Content Menu

Introduction to OEM Automatic Winder Tension Sensors

>> Types of Tension Sensors

Common Faults and Solutions

>> 1. Inaccurate Tension Readings

>> 2. Unstable Tension Control

>> 3. Excessive Starting Tension

Troubleshooting Steps

Preventive Maintenance

Advanced Technologies in Tension Sensing

Industry Applications

Conclusion

FAQ

>> 1. What is the purpose of an OEM automatic winder tension sensor?

>> 2. How often should I calibrate my tension sensor?

>> 3. What types of tension sensors are available?

>> 4. How do I troubleshoot issues with my OEM automatic winder tension sensor?

>> 5. Why is maintaining consistent tension important in winding operations?

Citations:

In the realm of automated manufacturing, particularly in industries dealing with textiles, wires, cables, and other web-like materials, the OEM automatic winder tension sensor plays a pivotal role. This sensor is responsible for monitoring and controlling the tension of the material being wound, preventing issues like uneven winding, stretching, breaks, and ultimately, product defects. However, when this critical component fails to function properly, it can lead to significant production disruptions and quality control issues. This article delves into the common problems associated with OEM automatic winder tension sensors, their causes, and potential solutions.

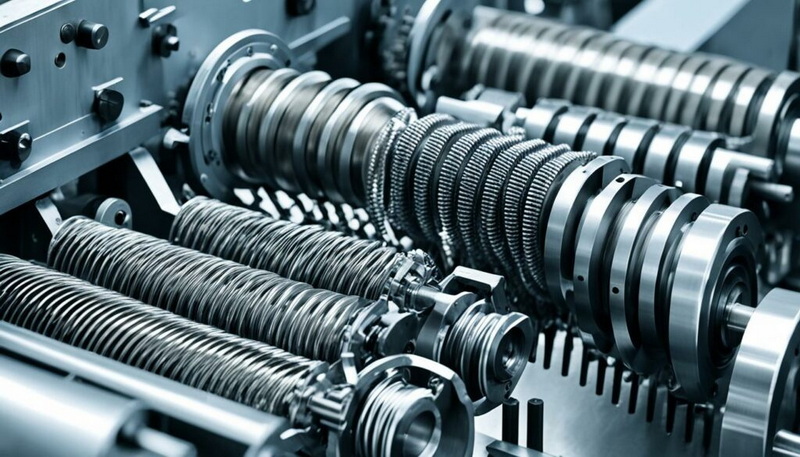

OEM Automatic Winder Sensor

Introduction to OEM Automatic Winder Tension Sensors

OEM automatic winder tension sensors are designed to provide precise feedback to the winding machine's control system, allowing it to adjust the winding parameters to maintain consistent tension. This is crucial for ensuring product quality, process efficiency, material waste reduction, and machine longevity. Proper tension control prevents issues like uneven winding, stretching, breaks, and product defects.

Types of Tension Sensors

Several types of tension sensors are available, each with its own strengths and applications:

- Load Cells: Known for their accuracy and reliability, load cells are widely used in industrial applications. They convert the force applied to them into an electrical signal, which is then processed by the control system.

- Piezo-electric Sensors: These offer fast response times and are suitable for applications requiring quick adjustments. They are often used in high-speed winding operations.

- Capacitive Sensors: Monitor tension variations produced by electrical charges in the yarn. These sensors are non-contact and can be used in environments where physical contact might damage the material.

- Optical Sensors: Use an infrared beam to control the presence of yarn. They are commonly used in applications where the material's presence needs to be detected without physical contact.

Common Faults and Solutions

1. Inaccurate Tension Readings

Fault Phenomenon: The tension sensor provides inaccurate readings, leading to inconsistent tension control.

Causes:

- Malfunctioning Sensors: The sensor itself may be faulty, requiring replacement.

- Incorrect Calibration: The sensor may not be calibrated correctly, leading to inaccurate readings.

Solutions:

- Replace the Sensor: If the sensor is damaged, replace it with a new one. Ensure the replacement is compatible with the existing system.

- Calibrate the Sensor: Ensure the sensor is calibrated using weights close to the full tension value to improve accuracy. Regular calibration is essential to maintain precision.

2. Unstable Tension Control

Fault Phenomenon: The tension control system fails to maintain stable tension, leading to overcurrent protection and fault alarms.

Causes:

- Faulty Tension Sensors: One or more tension sensors may be malfunctioning, providing incorrect feedback.

- Incorrect Driver Settings: The driver settings may not be optimized for the specific application.

Solutions:

- Check and Replace Sensors: Inspect all tension sensors and replace any faulty ones. Ensure that all sensors are properly connected and calibrated.

- Adjust Driver Settings: Optimize the driver settings, including gain, bias, and PID values, to match the application requirements. This may involve trial and error to find the optimal settings.

3. Excessive Starting Tension

Fault Phenomenon: The winding tension exceeds the full tension value during startup, wasting materials and potentially causing sensor deviations.

Causes:

- Internal Reset Issues: The internal stall storage reset point of the tension controller may be damaged.

- Incorrect Input Signals: The input signals to the driver may not be properly adjusted.

Solutions:

- Repair or Replace the Tension Controller: Fix or replace the damaged internal components. This may require professional assistance.

- Adjust Input Signals: Optimize the gain, bias, and PID values of the tension feedback signal. This can help stabilize the tension during startup.

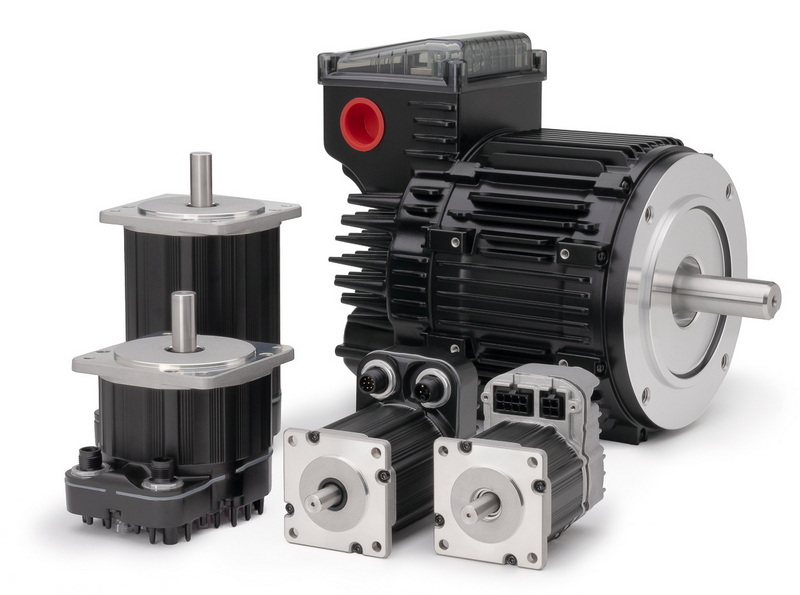

Automatic Winder Sensor Repair

Troubleshooting Steps

To troubleshoot issues with your OEM automatic winder tension sensor, follow these steps:

1. Check Power and Connections: Ensure all power sources and connections are secure. Loose connections can lead to erratic sensor readings.

2. Inspect Sensors: Verify that all sensors are functioning correctly and are properly calibrated. Check for any physical damage or wear.

3. Adjust Driver Settings: Optimize driver settings for the specific application. This may involve consulting the manufacturer's documentation for recommended settings.

4. Consult Documentation: Refer to the manufacturer's documentation for specific troubleshooting guides. These guides often provide detailed instructions for common issues.

Preventive Maintenance

Regular maintenance is crucial to prevent issues with OEM automatic winder tension sensors. Here are some preventive measures:

- Regular Calibration: Calibrate sensors regularly to ensure accuracy. This should be done at least once a month, depending on usage.

- Cleanliness: Keep the sensor and surrounding area clean. Dust and debris can interfere with sensor performance.

- Inspection: Regularly inspect sensors for signs of wear or damage. Early detection can prevent costly repairs.

Advanced Technologies in Tension Sensing

Recent advancements in technology have introduced more sophisticated tension sensing systems. These include:

- Smart Sensors: Equipped with advanced algorithms, these sensors can automatically adjust settings based on real-time data.

- IoT Integration: Allows for remote monitoring and control of tension sensors, enabling real-time adjustments and predictive maintenance.

Industry Applications

OEM automatic winder tension sensors are used across various industries, including:

- Textile Manufacturing: For yarn and fabric production.

- Cable and Wire Production: To ensure consistent tension during winding.

- Paper and Packaging: For maintaining even tension in paper rolls.

Each industry has unique requirements, and the choice of tension sensor depends on the specific application.

Conclusion

The OEM automatic winder tension sensor is a critical component in maintaining the efficiency and quality of winding operations. Understanding common faults and implementing effective solutions can significantly reduce downtime and improve product quality. Regular maintenance and calibration of these sensors are essential for optimal performance.

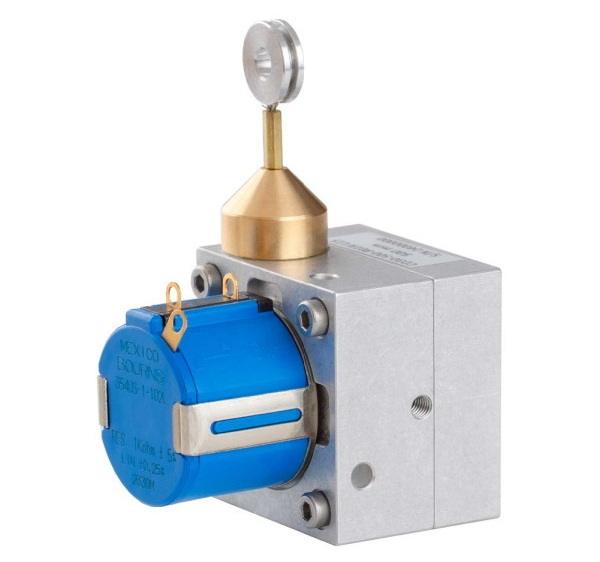

Automatic Winder Tension Control

FAQ

1. What is the purpose of an OEM automatic winder tension sensor?

An OEM automatic winder tension sensor is used to measure and control the tension of materials being wound onto a spool or reel, ensuring consistent tension and preventing defects.

2. How often should I calibrate my tension sensor?

Calibration should be performed regularly, ideally using weights close to the full tension value to ensure accuracy. The frequency depends on usage but should be at least once a month.

3. What types of tension sensors are available?

Common types include load cells, piezo-electric sensors, capacitive sensors, and optical sensors, each with unique characteristics and applications.

4. How do I troubleshoot issues with my OEM automatic winder tension sensor?

Start by checking power and connections, inspecting sensors, adjusting driver settings, and consulting manufacturer documentation.

5. Why is maintaining consistent tension important in winding operations?

Maintaining consistent tension is crucial for preventing uneven winding, stretching, breaks, and product defects, ensuring high-quality products and efficient production processes.
