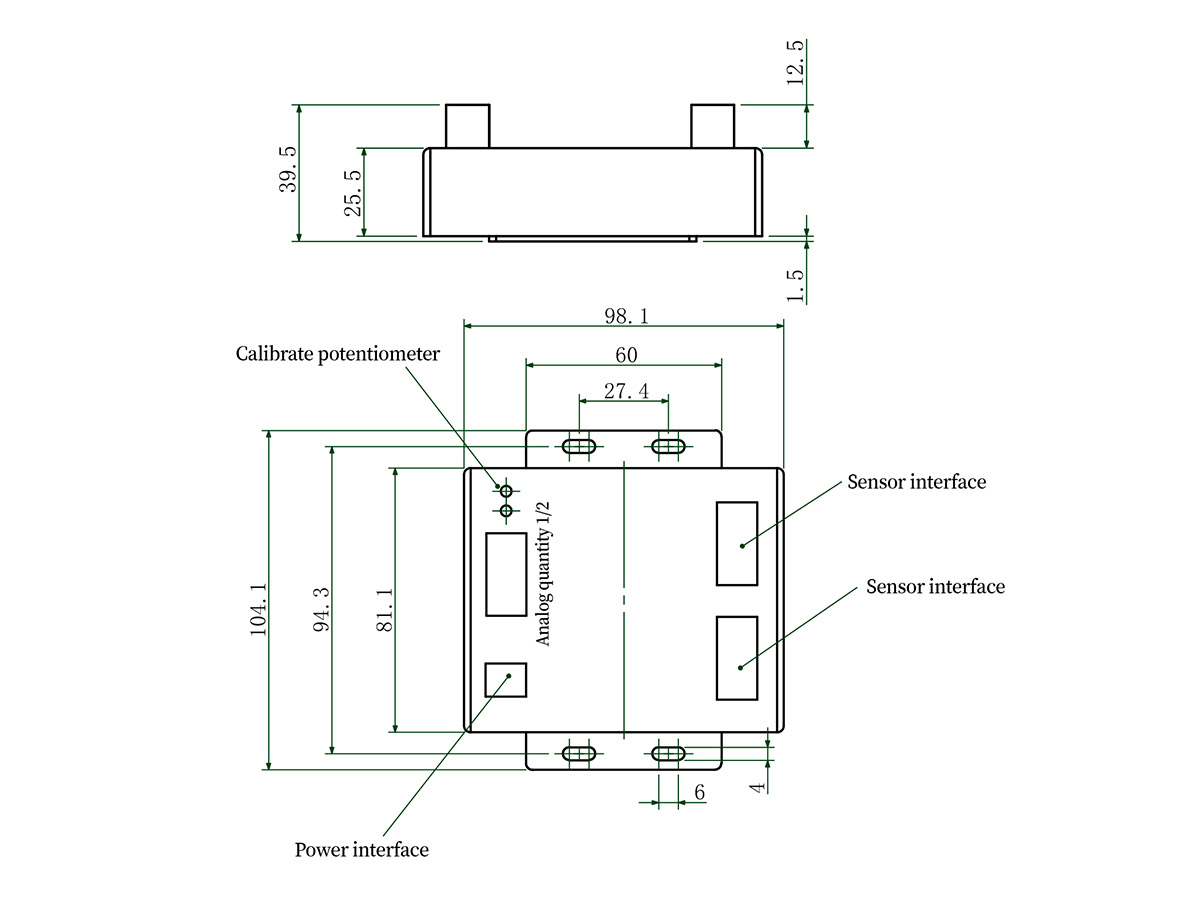

| Dimensions（Unit：mm） |
| Function Feature | |
▶ Wide input range, 0.4~6mV/can be connected with most of strain bridge sensors ▶ 2 independent channels, strong load capacity, each channel can be connected with 4pcs 350Ω sensors ▶ Input power reverse connection protection and output short circuit protection | ▶ Adopt original imported electronic components, high response frequency, long-term stability and good overall accuracy of ±0.05%FS ▶ Power supply 18~30VDC(24VDC recommended) ▶ Suitable for pressure, tension, torque, tension and other strain bridge sensors |
| Specifications |
Specifications | Technique |
| Input Range | 0.4~6mV/V |
| Comprehensive Accuracy | ≤0.05%F.S. |
| Sensor Excitation Voltage | 5VDC±2%, 100mA |
| Power Supply | DC: 18V~30V |
| Input Load | 2independent channels |
| Rated Output | 0~±5/10V or 0/4-20mA |
Operating Temp Range | -30~85℃ |
Sampling Frequency | ≥5KHZ |
| Surrounding Environment | Operating temperature:-10~55℃; Storage temperature -25~65℃ Operating humidity: 35~85%RH; Storage Humidity:35~85%RH |
| Delivery Configurations |
