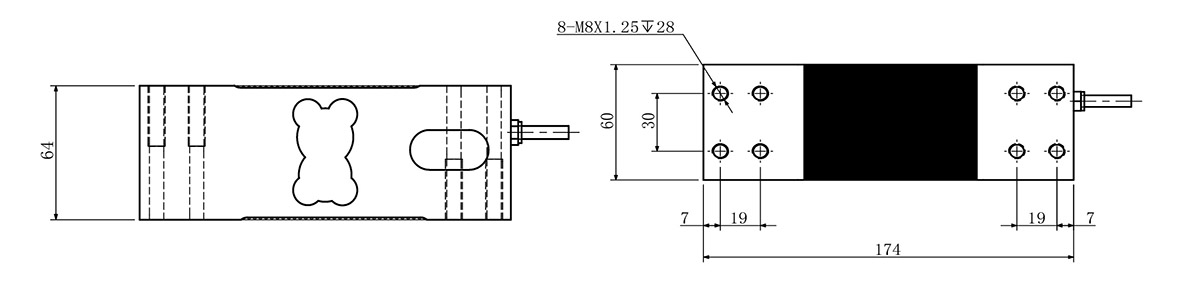

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |

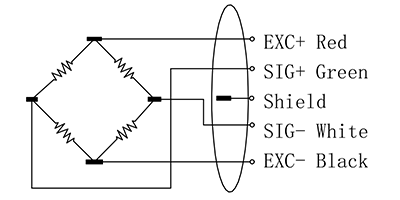

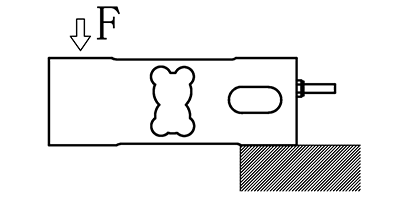

| Load Direction | Wiring |
 |
 |
| Specifications |
Specifications |
Technique |
| Capacity | 60~1200kg |
| Accuracy | C3 |
Sensitivity |
2.0±5%mV/V |
Zero balance |
±0.02%mV/V |
| Creep | 0.017%F.S. |
Non-linearity |
0.017%F.S. |
Hysteresis |
0.017%F.S. |
Repeatability |
0.017%F.S. |
Input impedance |
410±15Ω |
Output impedance |
350±5Ω |
Temp. effect on output |
0.02%F.S./10℃ |
Temp. effect on zero |
0.03%F.S./10℃ |
Insulation resistance |
≥5000MΩ/50V(DC) |
Recommended excitation |
5~12V |
Maximum excitation |
15V |
Compensated temp. range |
-10~40℃ |
Operating temp. range |
-20~60℃ |
Safe overload |
150%F.S. |
Ultimate overload |
200%F.S. |
Cable size |
Φ5x2m |
| Material | Aluminium Alloy |

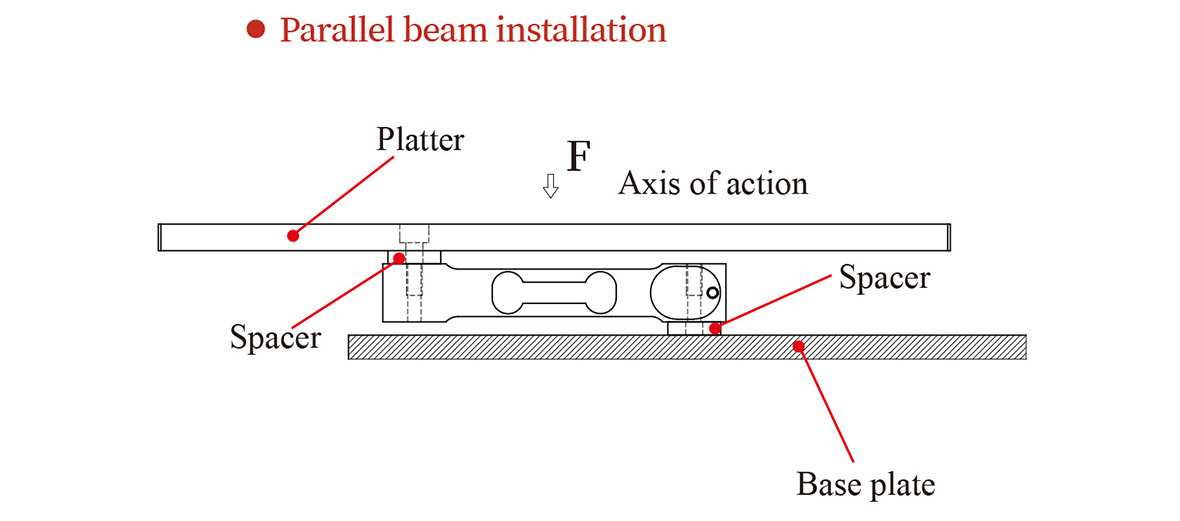

| Installation |
| Delivery Configurations |
