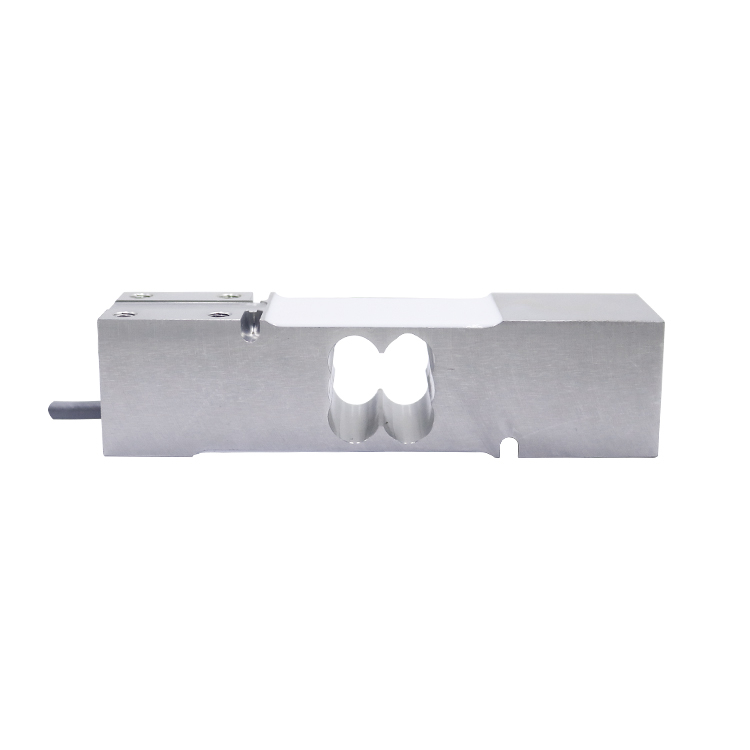

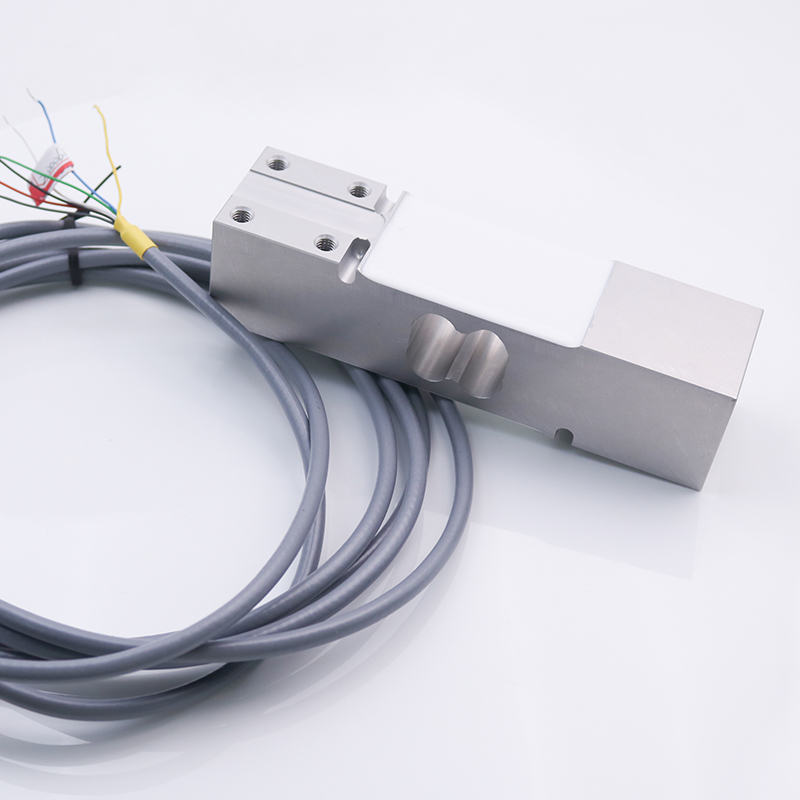

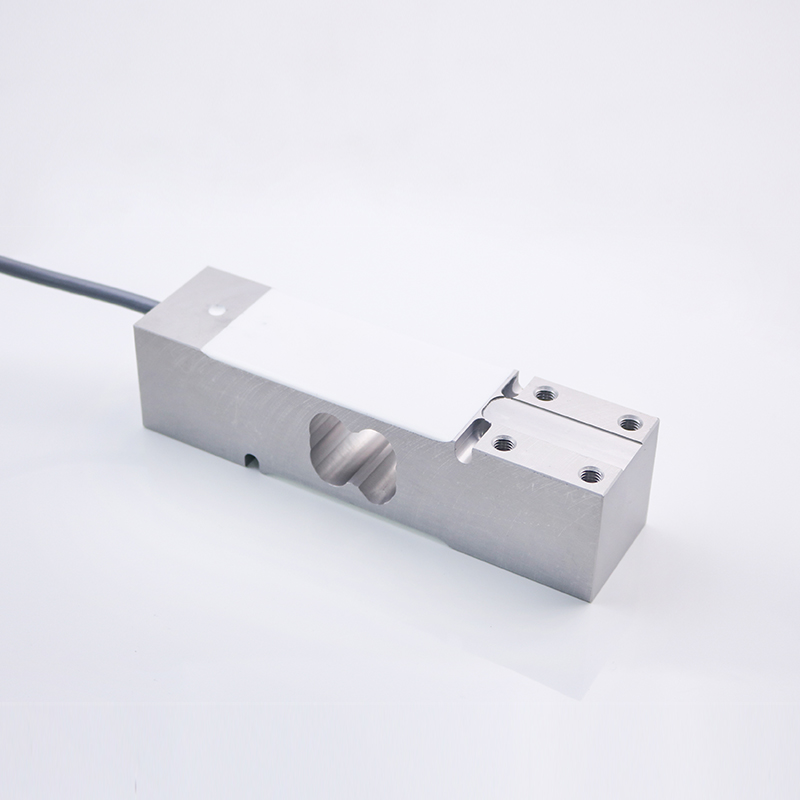

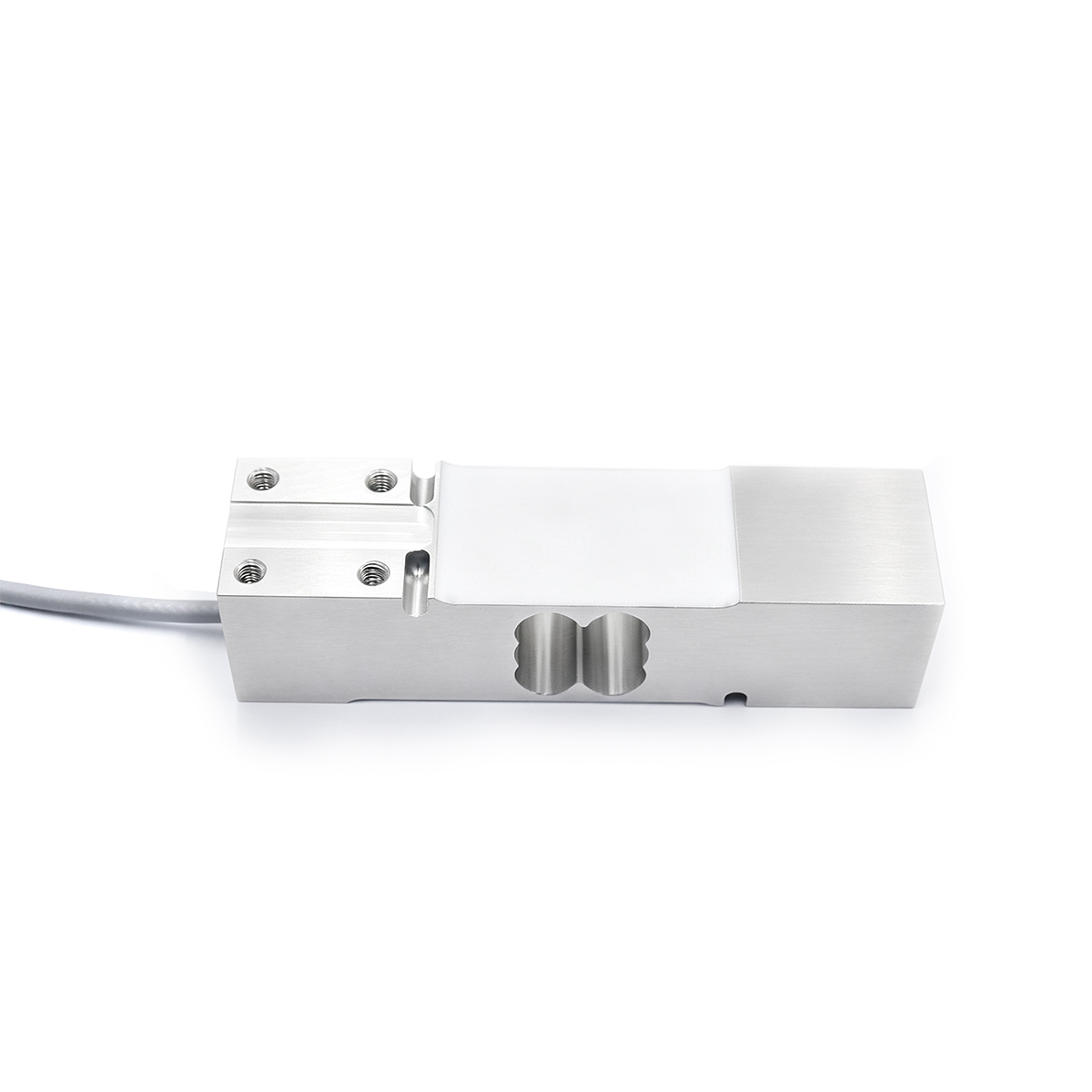

FA578
Availability: | |
---|---|
Dimensions(Unit:mm) |
We provide 3D model files of our products. Support to facilitate your design of workpiece. |
Load Direction | Wiring |
Specifications |
Specifications | Technique |
Capacity | 8,15,30,50,100,150,200,250,300kg |
Sensitivity | 2.0±10%mV/V |
Zero balance | ±2%mV/V |
Creep | 0.017%F.S. |
Non-linearity | 0.017%F.S. |
Hysteresis | 0.017%F.S. |
Repeatability | 0.015%F.S. |
Input impedance | 300~500Ω |
Output impedance | 330~430Ω |
Temp. effect on output | 0.025%F.S./10℃ |
Temp. effect on zero | 0.025%F.S./10℃ |
Insulation resistance | ≥5000MΩ/50V(DC) |
Recommended excitation | 5~12V |
Maximum excitation | 15V |
Compensated temp. range | -10~40℃ |
Operating temp. range | -20~50℃ |
Safe overload | 150%F.S. |
Ultimate overload | 200%F.S. |
Cable size | 3m |
Material | Aluminium Alloy |
Maximum size of the scale | 300mmX300mm |
Installation |
Delivery Configurations |
