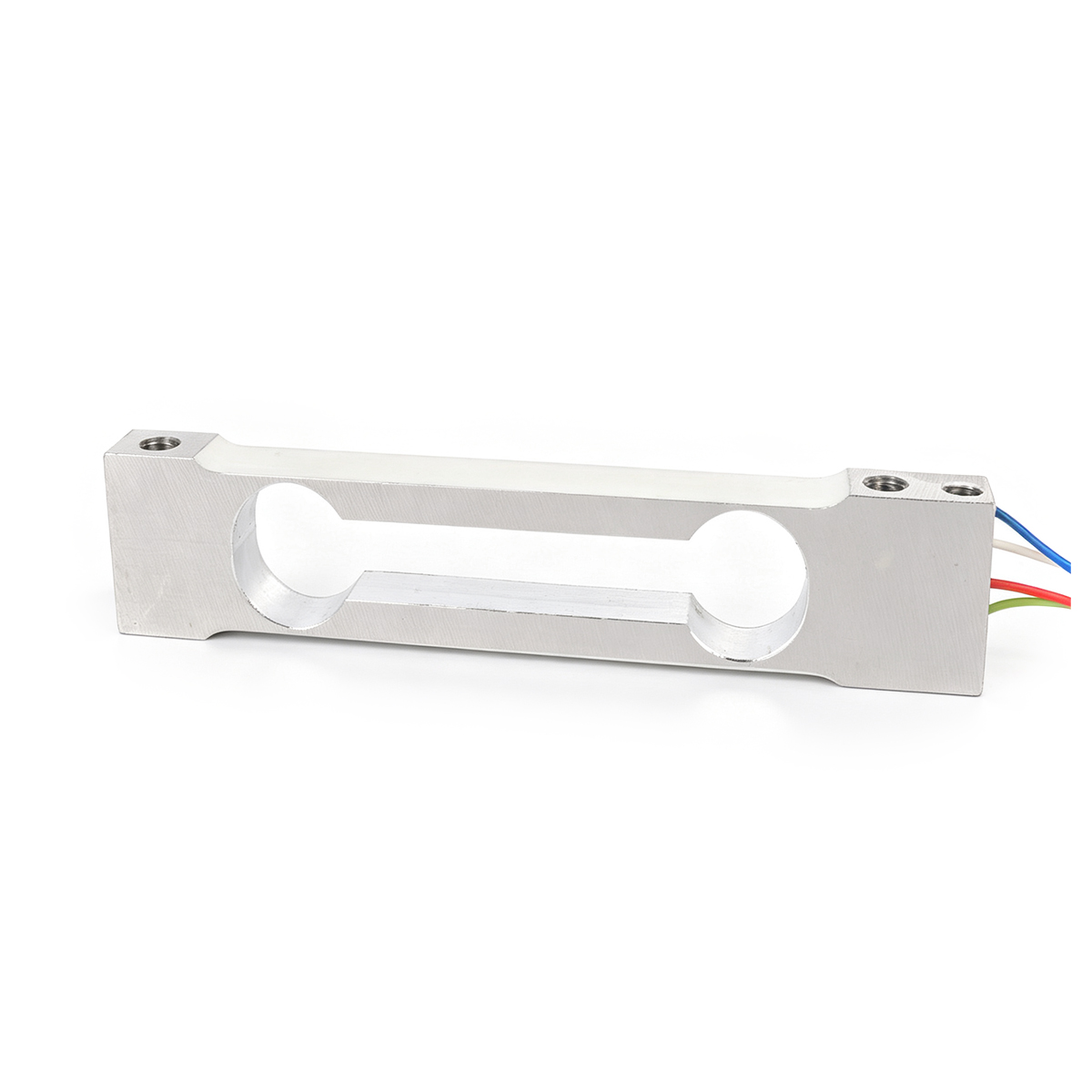

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |
| Load Direction | Wiring |
 |  |
| Specifications |
Specifications | Technique |
| Capacity | 100,200g |
Sensitivity | 0.9±0.1%mV/V |
Zero balance | ±0.05%mV/V |
| Creep | 0.0166%F.S. |
Non-linearity | 0.015%F.S. |
Hysteresis | 0.015%F.S. |
Repeatability | 0.015%F.S. |
Input impedance | 405±20Ω |
Output impedance | 350±10Ω |
Temp. effect on output | 0.02%F.S./10℃ |
Temp. effect on zero | 0.03%F.S./10℃ |
Insulation resistance | ≥5000MΩ/50V(DC) |
Recommended excitation | 5~12V |
Maximum excitation | 15V |
Compensated temp. range | -10~40℃ |
Operating temp. range | -10~50℃ |
Safe overload | 150%F.S. |
Ultimate overload | 200%F.S. |
Cable size | 4-Φ1x100mm |
| Material | Aluminium Alloy |
| Maximum size of the scale | 50mmX50mm |
| Installation |
| Delivery Configurations |
