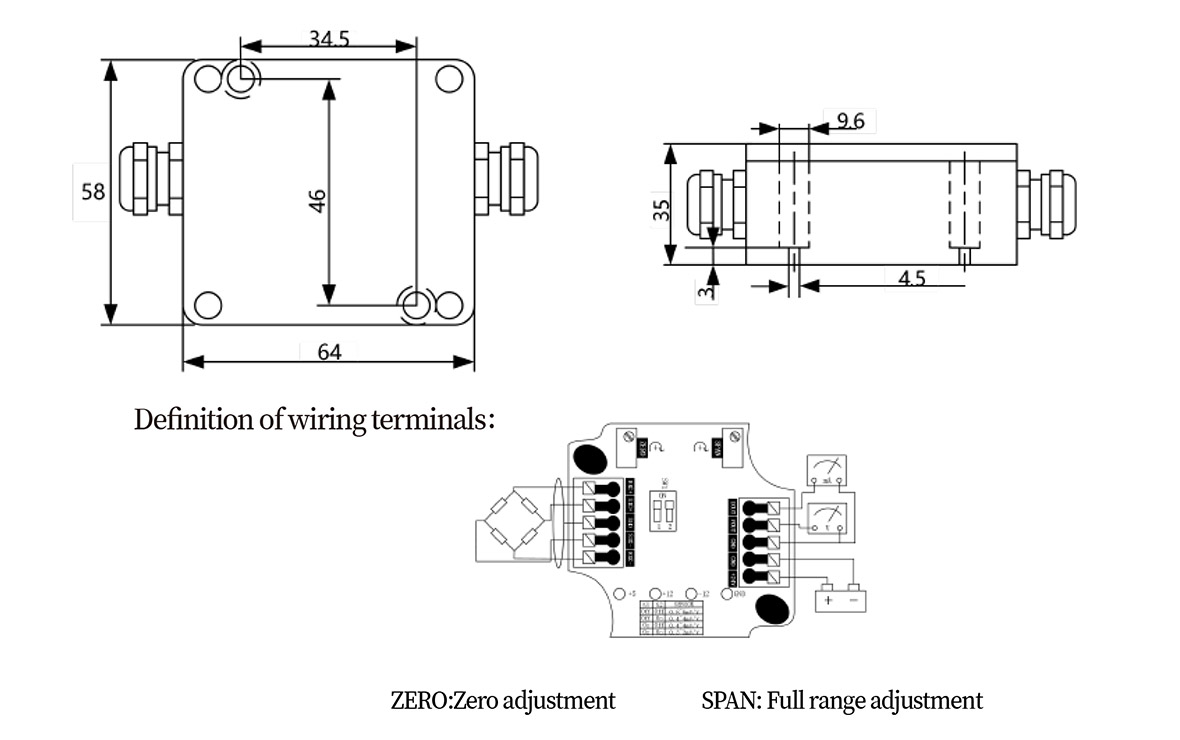

| Dimensions（Unit：mm） |
| Function Feature |

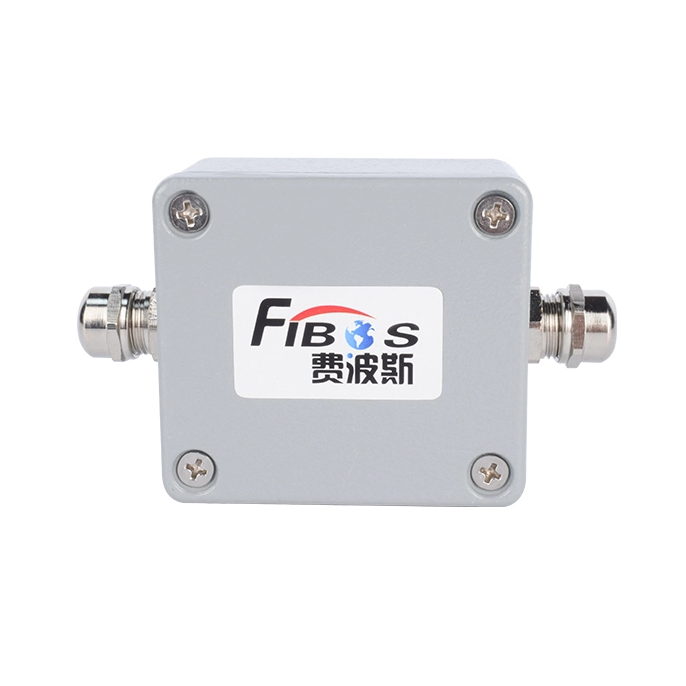

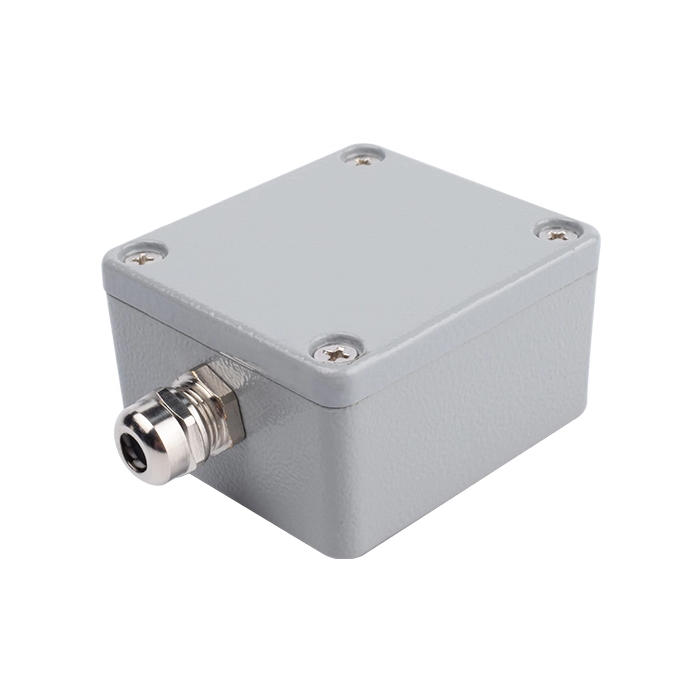

▶ The amplifier is hermetically sealed in a cast aluminum enclosure, which is waterproof and dustproof to a certain extent. It can be connected with various resistance full-bridge strain sensors for weighing, pulling pressure, tension and other measurement applications. The sensor output signal for precision amplification, internal voltage regulator, constant current supply bridge, voltage and current conversion, impedance adaptation, linear compensation temperature compensation. The mechanical quantity is converted into standard current and voltage signal output, which can be switched to 0~±10V, 0~20mA, 4~20mA.
| Specifications |
Specifications |
Technique |
Input Range |
0.4~6mV/V |
Accuracy |
＜0.1%FS |
Sensor Excitation Voltage |
5VDC±2%, 100mA(or 12VDC Optional) |
| Power Supply | DC: 7-30V |
Operation Temp. Range |
-30~60℃ |
Sampling Frequency |
100HZ/8000HZ(Optional) |
Rated Output |
0~5V, 0~10V, 0~±10V, 0~20mA, 0~20mA(All these signals can be switched freely, no need to return to the factory) |
Surrounding Environment |
Operating temperature: -10~55℃; Storage temperature -25~65℃ Operating humidity: 35~85%RH; Storage humidity: 35~85%RH |
| Delivery Configurations |
