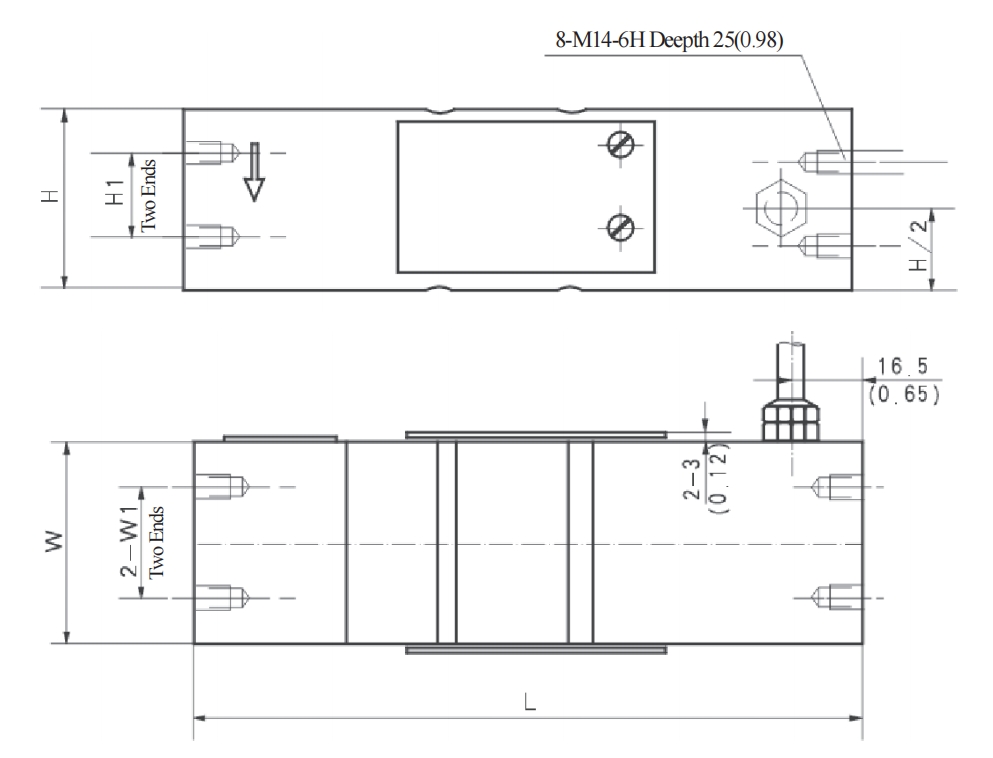

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |
| Load Direction | Recommended selection model |
 |
|

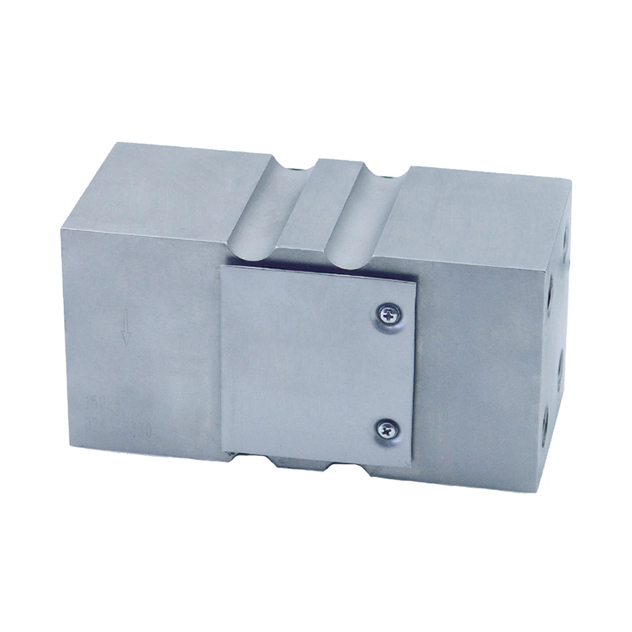

▶ Stainless/ alloy steel IP67 single point load cell ▶ Suitable for platform, belt and other electronic scales ▶ Maximum platform size: 50kg-1t: 600 x 800, 2t: 1000x1000 mm |
| Specifications |
Specifications | Technique |
Maximun Capacity (Emax) | 50,100,150,200,250,300,400,500,600,750kg；1.0,1.5,2.0t |
Accuracy Class | C3 |
Maximum number of load cell intervals (nLC) | 3000 |
| Ratio of minimum LC verification interval Y=Emax / Vmin | 10000 |
Combined error | ≤0.020%F.S. |
Creep | ≤ ±0.016%FS/30min |
Temperature effect on sensitivity | ≤ ±0.011%FS/10℃ |
Temperature effect on zero | ≤ ±0.015%FS/10℃ |
Output sensitivity (=FS) | 2.0±0.2mV/V |
| Input resistance | 384±4Ω |
| Output resistance | 351±2.0Ω |
| Insulation resistance | ≥ 5000MΩ(50VDC) |
Zero balance | ≤ ±1.5%FS |
Compensated temperature | -10 ～ +40℃ |
Operating temperature | -35 ～ +70℃ |
Excitation recommended voltage | 5 ～ 12VDC |
Excitation maximum | 18VDC |
Safe overload | 150%F.S. |
Ultimate overload | 300%F.S. |
Corner correction | 0.02%load value/100mm |
ATEX classification (optional) | II1G Ex ia II1C T4/II1D Ex iaD20 T73℃/ II3G Ex nL II C T4 |

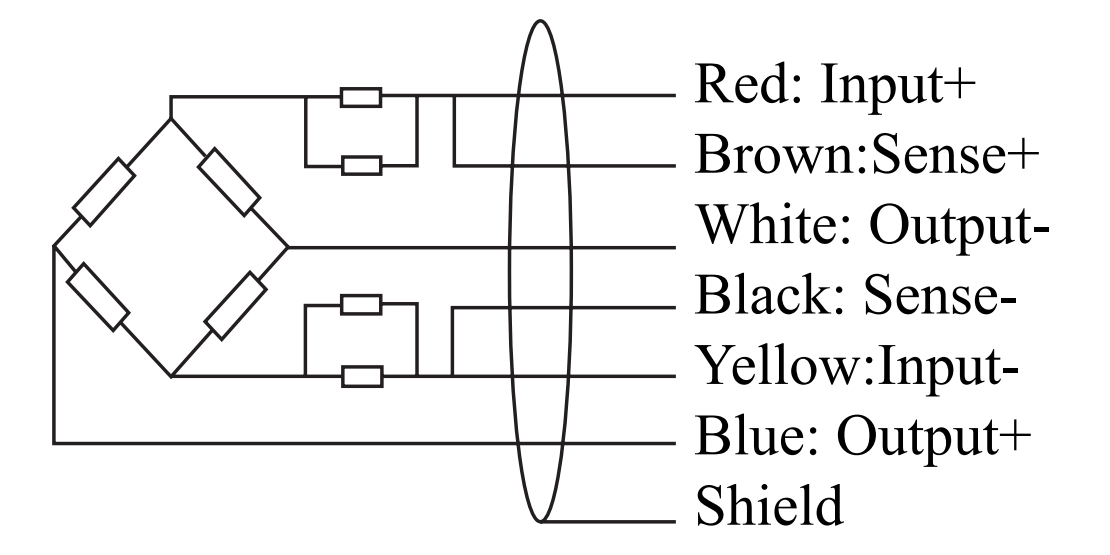

| Wiring | Red: Input+, Brown：Sense+，Blue: Output+, Shield: Transparent, Black: Sense-, Yellow：Input-，White: OutputAdopt shielded, 4 conductor cable: φ6.2mm；Standard cable length: 3m |
| Installation |

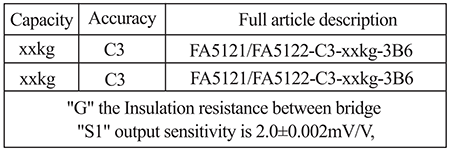

| Delivery Configurations |
