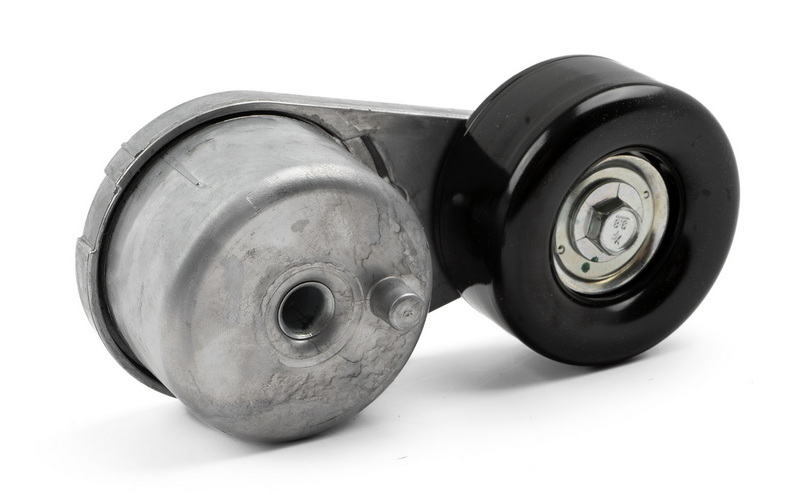

The belt tension sensor is a crucial component in the operation of your Nissan Xterra. It plays a significant role in maintaining the proper tension of the serpentine belt, which powers various engine accessories. If the belt tension sensor malfunctions, it can have serious implications for your vehicle's engine performance and longevity. This article will explore how a faulty belt tension sensor can affect your Xterra's engine, the symptoms to look out for, and what steps you can take to address potential issues.
What is a Belt Tension Sensor?
The belt tension sensor monitors the tension of the serpentine belt. This belt is responsible for driving multiple components such as the alternator, power steering pump, water pump, and air conditioning compressor. The sensor ensures that the belt maintains optimal tension, preventing slippage or excessive wear.
How Does it Work?
The sensor typically uses either spring tension or hydraulic pressure to gauge the tightness of the belt. When the tension deviates from the manufacturer's specifications, it sends signals to the vehicle's engine control unit (ECU), which may trigger warning lights or notifications on your dashboard.
To fully understand the impact of a faulty belt tension sensor, it's important to delve deeper into the serpentine belt system. The serpentine belt, unlike older V-belts, is a single, continuous belt that snakes around multiple pulleys to power various engine accessories. This design is more efficient and compact but also more sensitive to proper tension.
Components Powered by the Serpentine Belt
- Alternator: The alternator is responsible for generating electricity to power your Xterra's electrical system and charge the battery.
- Power Steering Pump: This pump provides hydraulic assistance to make steering easier.
- Water Pump: The water pump circulates coolant through the engine to prevent overheating.
- Air Conditioning Compressor: The A/C compressor is essential for cooling the cabin of your vehicle.
The Role of the Tensioner
The tensioner is a spring-loaded or hydraulic device that applies constant pressure to the serpentine belt, maintaining the correct tension. Without a functioning tensioner, the belt can slip, causing the accessories to function improperly or fail altogether.
Why Proper Belt Tension Matters
- Optimal Performance: Proper tension ensures that each accessory receives the correct amount of power to operate efficiently.
- Reduced Wear: Correct tension minimizes wear and tear on the belt and pulleys, extending their lifespan.
- Prevention of Slippage: Slippage can lead to decreased performance and potential damage to engine components.
A malfunctioning belt tension sensor can lead to various symptoms that may indicate underlying problems with your Xterra's engine. Here are some common signs to watch for:
- Check Engine Light: One of the first indicators of a problem with the belt tension sensor is the illumination of the check engine light. This could be due to incorrect readings affecting other systems in your vehicle.
- Unusual Noises: If you hear grinding, squeaking, or slapping noises coming from the engine compartment, it may indicate that the serpentine belt is not properly tensioned. This can lead to further damage if not addressed promptly.
- Poor Engine Performance: A faulty sensor can cause the belt to slip or become loose, resulting in reduced power output from various engine components. You may notice decreased acceleration or overall sluggishness while driving.
- Belt Wear: Inspecting your serpentine belt for signs of wear and tear is essential. A worn-out belt may indicate that the tensioner is not functioning correctly, leading to premature failure.
- Battery Issues: If the alternator isn't receiving adequate power due to a slipping belt, it can lead to a drained battery and starting problems.
- Overheating: A loose belt can affect the water pump's ability to circulate coolant effectively, leading to engine overheating.
- Loss of Power Steering: Difficulty steering can occur if the power steering pump isn't functioning correctly due to belt slippage.
- Air Conditioning Problems: Reduced cooling performance can indicate that the A/C compressor isn't receiving sufficient power.
Ignoring issues related to a faulty belt tension sensor can lead to severe consequences for your Xterra's engine:
- Engine Overheating: If the water pump is not driven properly due to insufficient belt tension, it can lead to overheating and potential engine damage.
- Accessory Failure: Components like the alternator and power steering pump rely on proper belt tension. Failure in these systems can result in a loss of electrical power and steering assistance.
- Increased Repair Costs: Addressing issues early on can save you money in repairs. Ignoring a faulty sensor can lead to more extensive damage that requires costly repairs or replacements.
- Complete Engine Failure: In extreme cases, a snapped serpentine belt can damage other engine components, leading to complete engine failure.
- Safety Concerns: Loss of power steering or sudden battery failure can create dangerous driving conditions.
If you suspect that your Xterra's belt tension sensor is faulty, it's essential to perform a thorough diagnosis:
1. Visual Inspection: Start by visually inspecting the serpentine belt for signs of wear or damage. Check for fraying, cracks, or glazing on the surface.
2. Listen for Noises: Pay attention to any unusual sounds while driving. If you hear grinding or squeaking noises, this could indicate an issue with the tensioner or belt.
3. Scan for Codes: Use an OBD-II scanner to check for any trouble codes related to the engine performance or accessory systems. Codes related to timing or crankshaft position may indicate issues stemming from a faulty tensioner. Common codes associated with a faulty belt tension sensor might include:
- P0340: Camshaft Position Sensor Circuit Malfunction
- P0344: Camshaft Position Sensor Circuit Intermittent
- P0335: Crankshaft Position Sensor Circuit Malfunction
- P0339: Crankshaft Position Sensor Circuit Intermittent
- P0171: System Too Lean (Bank 1) - could be related to alternator issues caused by belt slippage
- P0174: System Too Lean (Bank 2) - could be related to alternator issues caused by belt slippage
4. Test Belt Tension: Using a specialized tool like a sonic belt tension meter can help measure the actual tension in the serpentine belt and determine if it falls within acceptable parameters. Consult your Xterra's service manual for the correct tension specifications.
5. Check the Tensioner Pulley: Inspect the tensioner pulley for any signs of wobble, play, or damage. A worn-out pulley can cause the belt to vibrate and make noise.
6. Monitor Voltage Output: Use a multimeter to check the voltage output of the alternator while the engine is running. Low voltage can indicate that the alternator isn't receiving enough power due to belt slippage.
If diagnostics confirm that your Xterra's belt tension sensor is malfunctioning, you have several options:
- Replace the Sensor: In many cases, replacing just the faulty sensor may resolve issues without needing to replace other components. This is typically a straightforward process involving removing the old sensor and installing a new one, ensuring it is properly connected to the vehicle's electrical system.
- Inspect Related Components: When replacing the sensor, it's advisable also to inspect related components such as pulleys and bearings for wear and tear. Worn pulleys or bearings can contribute to belt slippage and premature sensor failure.
- Replace the Tensioner Assembly: In some cases, it may be necessary to replace the entire tensioner assembly, including the pulley and tensioner arm. This is often recommended if the tensioner is visibly damaged or if the spring mechanism is weak.
- Replace the Serpentine Belt: If the serpentine belt is worn, cracked, or glazed, it should be replaced along with the tensioner. A worn belt can cause the new tensioner to wear out prematurely.
- Professional Assistance: If you're unsure about diagnosing or repairing issues with your vehicle's belt system, seeking help from a professional mechanic is recommended. A qualified mechanic can accurately diagnose the problem and perform the necessary repairs to ensure your Xterra is running safely and efficiently.
To prevent belt tension sensor issues and ensure the longevity of your Xterra's serpentine belt system, consider the following preventive maintenance measures:
- Regular Inspections: Visually inspect the serpentine belt, tensioner, and pulleys every few months for signs of wear, damage, or misalignment.
- Proper Belt Tension: Ensure that the serpentine belt is properly tensioned according to the manufacturer's specifications. Use a sonic belt tension meter to verify the tension if necessary.
- Cleanliness: Keep the belt and pulleys clean and free of debris. Dirt and grime can accelerate wear and reduce the belt's grip.
- Scheduled Replacement: Replace the serpentine belt and tensioner according to the recommended maintenance schedule in your Xterra's owner's manual.
- Professional Servicing: Have your Xterra's serpentine belt system inspected and serviced by a qualified mechanic during regular maintenance appointments.
A faulty belt tension sensor can significantly impact your Nissan Xterra's engine performance and longevity. By understanding its function and recognizing symptoms of failure, you can take proactive measures to maintain your vehicle's health. Regular inspections and timely repairs will ensure that your Xterra continues running smoothly for years to come. Addressing even minor symptoms promptly can prevent more severe and expensive damage, maintaining both the performance and safety of your vehicle.
Common symptoms include check engine light activation, unusual noises from under the hood (squealing, grinding, or slapping), poor engine performance (sluggish acceleration), visible wear on the serpentine belt (cracks, fraying), battery issues (difficulty starting), overheating, loss of power steering, and air conditioning problems (reduced cooling).
It's advisable to inspect your serpentine belt every 30,000 miles or during regular maintenance checks. However, a quick visual inspection every time you check your oil can also help catch potential problems early.
While it may be possible to drive short distances with a faulty sensor, it's not recommended as it can lead to further damage and costly repairs. Driving with a faulty sensor can cause accessory failures, overheating, and even complete engine failure. It's best to address the issue as soon as possible.
You will need an OBD-II scanner for code reading and possibly a sonic belt tension meter for accurate measurement of tension levels. You may also need a multimeter to check the voltage output of the alternator.
Replacement costs vary but generally range from $100 to $300 depending on labor rates and parts availability. The cost can be higher if you need to replace the entire tensioner assembly or the serpentine belt as well. Getting a quote from a reputable mechanic is always a good idea.
