Static wire tension sensors have emerged as indispensable tools for preventing catastrophic cable failures across industries. By continuously monitoring tensile forces in cables, wires, and ropes, these devices enable proactive maintenance, reduce operational risks, and extend infrastructure lifespans. This comprehensive guide explores their technical foundations, practical applications, and evolving innovations, providing actionable insights for optimizing cable management systems.

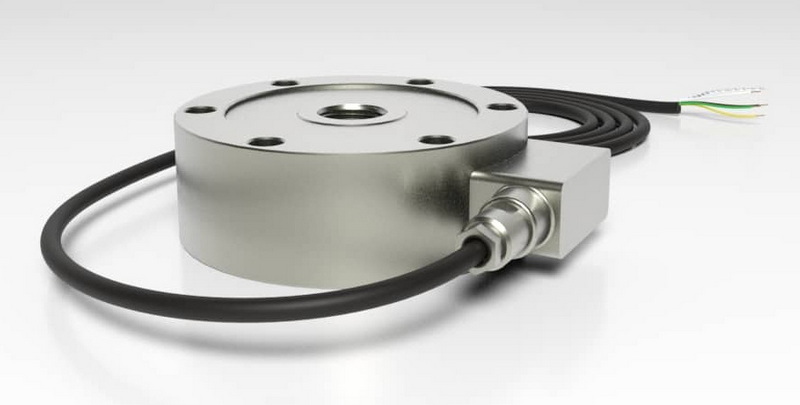

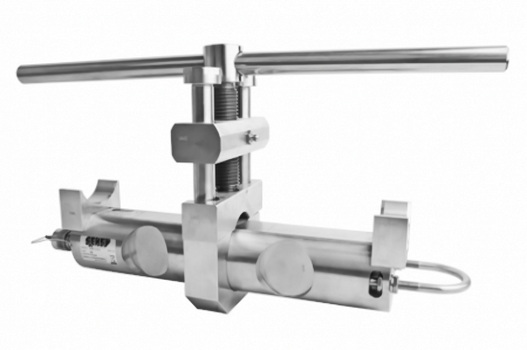

Static wire tension sensors operate on the principle of strain gauge measurement, where mechanical deformation caused by tension is converted into quantifiable electrical signals. When a cable exerts force on the sensor's load-bearing element (typically stainless steel or aluminum alloy), microscopic deformations occur. Strain gauges bonded to this element detect these changes, generating resistance variations proportional to the applied force.
Modern sensors incorporate temperature compensation algorithms to counteract thermal expansion effects, ensuring accuracy in fluctuating environments. High-end models also employ digital signal processing (DSP) to filter out electromagnetic interference, a critical feature in industrial settings with heavy machinery.

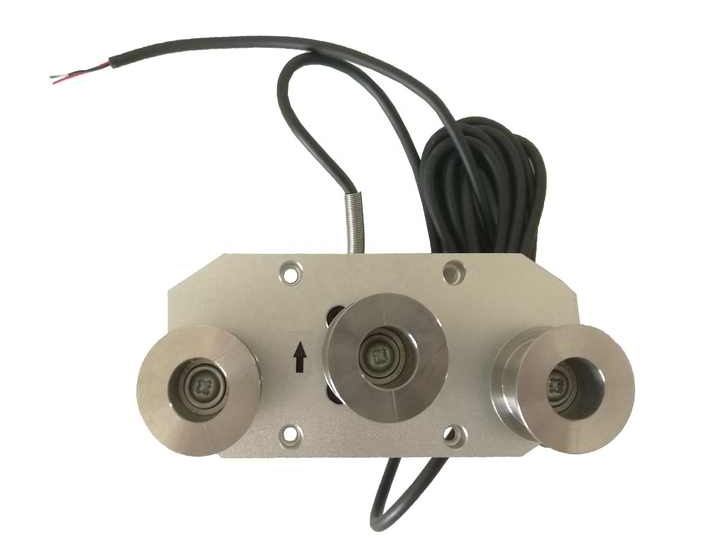

Key Components Breakdown
- Strain Gauges: Arranged in a Wheatstone bridge configuration for enhanced sensitivity.
- Load Cell: Engineered to withstand cyclic loading without hysteresis.
- Signal Transmitter: Converts raw analog data into standardized outputs (e.g., 4–20 mA, Modbus RTU).
Choosing the right sensor requires analyzing these critical parameters:
- Industrial Grade: ±1% full-scale (FS) error for general monitoring.
- Precision Grade: ±0.25% FS for aerospace or medical applications.
- Light-Duty: 0.5–500 kg (robotic arms, textile machinery).
- Heavy-Duty: Up to 500 metric tons (bridge cables, crane systems).
- IP67: Dustproof and waterproof for outdoor installations.
- ATEX Certification: Explosion-proof design for hazardous areas.
Case Study: The Flintec TSH3000 Static Tension Load Cell achieved a 92% reduction in cable failures at a German offshore wind farm by providing ±0.3% accuracy in saltwater environments.
1. Alignment: Use laser alignment tools to ensure the sensor's axis parallels the cable's force vector. Misalignment exceeding 2° can cause 5–7% measurement errors.
2. Mounting Hardware: Employ grade 8.8 bolts torqued to manufacturer specifications (typically 25–30 Nm for M12 fittings).
3. Vibration Isolation: Install rubber dampeners in high-frequency vibration environments (>50 Hz).
- Shielded Cabling: Reduces noise in signal lines running near variable-frequency drives (VFDs).
- Grounding: Implement single-point grounding to avoid ground loops.
1. Deadweight Testing: Apply known weights (NIST-traceable) across 0%, 50%, and 100% of the sensor's range.
2. Temperature Cycling: Validate performance at -20°C, 25°C, and 60°C for temperature-compensated models.
- Quarterly Inspections: Check for physical damage, loose connections, or corrosion.
- Annual Recalibration: Mandatory for ISO 9001-compliant facilities.
- Overhead Power Lines: Detect ice load accumulation exceeding 20 kg/m, triggering de-icing systems.
- Subsea Cable Laying: Maintain optimal tension during installation to avoid kinking (critical bend radius ≥ 1.2 m).
- Elevator Systems: Ensure 3:1 safety factor compliance for suspension ropes (EN 81-20 standard).
- Railway Catenary Wires: Prevent sagging caused by thermal expansion in high-speed rail networks.
- Wire Drawing Machines: Maintain 150–200 N tension for uniform diameter control (±0.01 mm tolerance).
- 3D Printing: Regulate filament feed tension to eliminate layer separation defects.
LoRaWAN-enabled sensors transmit data over 15 km ranges, ideal for remote infrastructure like transmission towers.
Live tension data feeds into BIM models to simulate cable aging and predict replacement timelines.
Piezoelectric energy harvesting generates operational power from cable vibrations, eliminating battery replacements.
A 2024 study by the International Cable Safety Consortium revealed:
- 63% Reduction in unplanned downtime for early adopters.
- $18.50 Saved per $1 invested in tension monitoring systems.
- 15-Year Lifecycle for properly maintained sensors versus 3–5 years for unmonitored cables.
Static wire tension sensors represent a transformative solution for cable failure prevention, combining precision measurement with rugged durability. By implementing these sensors alongside proper installation and maintenance protocols, organizations achieve unprecedented control over cable integrity across applications. As wireless connectivity and advanced materials evolve, next-generation sensors will further revolutionize predictive maintenance strategies, solidifying their role as essential components in modern industrial ecosystems.
While optimized for static/quasi-static loads, some models (e.g., HBK S9M) handle dynamic measurements up to 100 Hz sampling rates.
Premium sensors integrate temperature compensation chips, limiting drift to <0.02% FS/°C between -40°C and 85°C.
Common industrial standards include Modbus RTU, CANopen, and EtherCAT, alongside analog 0–10V/4–20 mA outputs.
Yes, specialized models with polymer-coated load cells monitor Dyneema® and aramid fibers without abrasion damage.
Most manufacturers deliver tailored solutions (e.g., 750 kN capacity) within 6–8 weeks.
