Ensuring the safety systems in your vehicle are functioning correctly is paramount, and the seat belt tension sensor is a critical component of that system. If you own a 2016 Nissan Frontier and suspect issues with the seat belt tension sensor, you might be wondering if it's a repair you can tackle yourself. This comprehensive guide will walk you through the process, providing step-by-step instructions, helpful tips, and cautionary advice.
The seat belt tension sensor is an integral part of your vehicle's Supplemental Restraint System (SRS), which includes airbags and seat belts. The sensor monitors the tension and force applied to the seat belt during a collision. This data helps the system determine the severity of the impact and deploy the airbags and pretensioners accordingly. A malfunctioning sensor can lead to the SRS not functioning correctly, compromising your safety in an accident. In the 2016 Nissan Frontier, the sensor communicates with the central control unit to make split-second decisions regarding airbag deployment, making it crucial for passenger safety. The reliability of this sensor ensures that in a crash, the seat belt pretensioners engage correctly, reducing slack and holding the occupant firmly in place, which is vital for minimizing injuries.
Before diving into the repair process, it's essential to identify whether the sensor is indeed the problem. Diagnosing the issue correctly can save time and money. Common symptoms of a failing seat belt tension sensor include:
- Airbag Warning Light: The most common sign is the illumination of the airbag warning light on your dashboard. This light indicates a problem within the SRS system, and it could be related to the seat belt tension sensor.
- Diagnostic Trouble Codes (DTCs): Using an OBD-II scanner, you may find specific DTCs related to the seat belt tension sensor. Common codes include B0051, B0052, or similar codes that specify issues with the seat belt pretensioner circuit.
- Inconsistent Seat Belt Function: The seat belt might not retract smoothly or lock properly. This could be a sign of a mechanical issue, but it can also be related to the sensor if the system is not functioning correctly.
- Pretensioner Issues: The seat belt pretensioner may not activate during a collision. This is a critical safety feature, and if it's not working, it could significantly increase the risk of injury in an accident.
To undertake this repair, gather the following tools and materials:
- Socket Wrench Set: For removing and tightening bolts. A range of sizes will be helpful, including metric sizes common in the 2016 Nissan Frontier.
- Screwdriver Set: Both Phillips head and flathead screwdrivers will be necessary. A magnetic screwdriver can be beneficial to prevent screws from dropping into hard-to-reach places.
- OBD-II Scanner: To read and clear diagnostic trouble codes. A scanner that supports SRS system diagnostics is essential.
- Multimeter: For testing electrical continuity and voltage. A digital multimeter is recommended for accurate readings.
- Replacement Sensor: Ensure you have the correct replacement sensor for your 2016 Nissan Frontier. Check the part number against your vehicle's VIN to ensure compatibility.
- Wiring Connectors: In case you need to replace any damaged connectors. Heat-shrink connectors are a durable option.
- Electrical Tape: For insulating and securing wires. High-quality electrical tape is crucial for preventing shorts.
- Pry Tool: To remove any retractor covers. Plastic pry tools are less likely to damage interior components.
- Torque Wrench: For tightening bolts to the manufacturer's specified torque.
- Gloves and Safety Glasses: To protect your hands and eyes during the repair.
Before starting any electrical repairs, disconnect the car battery to prevent accidental deployment of the airbags. Locate the battery in your 2016 Nissan Frontier (typically under the hood) and use a wrench to disconnect the negative terminal. Secure the cable away from the battery to ensure it doesn't accidentally reconnect. Wait at least 15 minutes after disconnecting the battery before proceeding with any work on the SRS system to allow any residual electricity to dissipate.
The location of the seat belt tension sensor can vary, but it is typically found within the seat belt mechanism or near the base of the seat. In many cases, you'll need to remove the seat to gain full access.
1. Remove the Seat: Use a socket wrench to remove the bolts securing the seat to the floor. These bolts are usually covered by plastic caps that can be pried off with a small screwdriver. Carefully lift the seat out of the vehicle, being mindful of any wiring harnesses connected to the seat.
2. Remove the Seat Belt Retractor Covers: Use a screwdriver or pry tool to remove the covers, exposing the seat belt mechanism. These covers are often held in place by clips, so use gentle but firm pressure to avoid breaking them.
Once you have access to the sensor, thoroughly inspect the wiring and connectors. Look for:
- Corrosion: Green or white deposits on the connectors indicate corrosion. This can be caused by moisture and can disrupt the electrical connection.
- Damage: Check for any frayed, cut, or broken wires. Pay close attention to areas where the wires are bent or flexed, as these are more prone to damage.
- Loose Connections: Ensure all connectors are securely plugged in. A loose connection can cause intermittent problems and may trigger the airbag warning light.
If you find any issues, clean the connectors with electrical contact cleaner or replace any damaged wiring or connectors. Use heat-shrink connectors for a durable and weather-resistant repair.

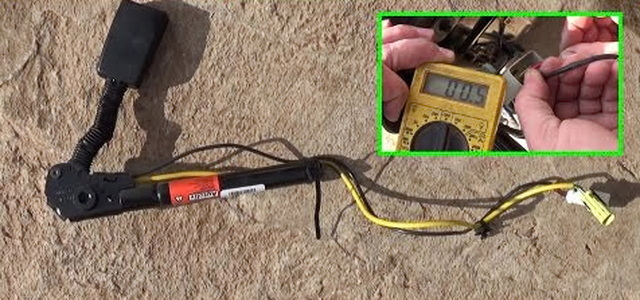

Use a multimeter to test the seat belt tension sensor. Refer to the service manual for your 2016 Nissan Frontier to find the correct resistance or voltage values. This manual provides detailed specifications and testing procedures specific to your vehicle.
1. Resistance Test: Disconnect the sensor and set the multimeter to measure resistance (Ohms). Place the multimeter probes on the sensor terminals and compare the reading to the specified value. The resistance should fall within a specific range.
2. Voltage Test: With the sensor connected, set the multimeter to measure voltage (DC). Check the voltage at the sensor connector to ensure it matches the specified value. The voltage reading can indicate whether the sensor is receiving power correctly.
If the sensor readings are out of range, it likely needs to be replaced. Make sure to test the sensor under different conditions, such as applying slight tension to the seat belt, to see if the readings change as expected.
1. Disconnect the Sensor: Carefully disconnect the sensor from its wiring harness. Note the orientation of the connector to ensure you reconnect it correctly.
2. Remove the Old Sensor: Depending on the design, you may need to unscrew or unclip the sensor from its mounting. Some sensors are held in place by a bracket that needs to be removed.
3. Install the New Sensor: Install the new sensor in the reverse order, ensuring it is securely mounted and properly connected to the wiring harness. Make sure the sensor is properly aligned and that all connections are tight.
1. Reassemble the Seat Belt Mechanism: Reattach any covers or components you removed to access the sensor. Ensure all clips and fasteners are securely in place.
2. Reinstall the Seat: Carefully place the seat back into the vehicle and secure it with the bolts you removed earlier. Use a torque wrench to tighten the bolts to the manufacturer's specified torque to ensure the seat is securely fastened.
Reconnect the negative terminal to the car battery. Ensure it is securely tightened. Double-check that all connections are secure before proceeding.
Use an OBD-II scanner to check for any diagnostic trouble codes (DTCs) related to the seat belt system. Clear any existing codes and follow the scanner's prompts to recalibrate the system. Some scanners may require you to perform a "learn" procedure to reset the SRS system.
Test the seat belt to ensure it is working correctly. Make sure it retracts smoothly, locks properly, and the pretensioner activates if equipped. Also, check that the airbag warning light on the dashboard is off. If the airbag warning light remains on, recheck all connections and repeat the diagnostic procedure.
Modern vehicles come with seat belt sensors that require recalibration after adjustments. Refer to your owner's manual for instructions on how to reset the sensor. This often involves a series of plug-ins and disconnections. Some advanced OBD-II scanners can also perform this recalibration, but the exact procedure can vary depending on the specific model of your 2016 Nissan Frontier. If you are unable to recalibrate the system yourself, it's best to seek professional assistance.
- Consult the Service Manual: Always refer to the service manual for your 2016 Nissan Frontier. This manual contains detailed diagrams, specifications, and procedures that are specific to your vehicle.
- Take Photos: Take photos before and during the repair process. This can be helpful if you need to refer back to the original configuration.
- Keep Parts Organized: Keep all parts organized to avoid confusion during reassembly. Use labeled containers or trays to keep track of screws, bolts, and connectors.
- Work in a Well-Lit Area: Ensure you have adequate lighting to see what you are doing. A well-lit workspace can prevent mistakes and make the repair process easier.
- Double-Check Your Work: Before reconnecting the battery, double-check all connections and ensure everything is properly installed.
While many aspects of seat belt tension sensor repair can be done DIY, there are situations where professional assistance is recommended:
- Uncertainty: If you are unsure about any step of the process. Working on safety systems requires precision, and mistakes can be dangerous.
- Complex Issues: If the problem persists after replacing the sensor. This could indicate a more complex issue within the SRS system.
- SRS Malfunctions: If you encounter other SRS-related issues. This may require specialized diagnostic equipment and expertise.
A certified mechanic can properly diagnose and recalibrate the system to ensure full functionality and safety. They have the training, experience, and equipment to handle complex SRS repairs.
- Regular Inspections: Regularly inspect the seat belts for any wear and tear. Check for fraying, cuts, or other damage.
- Immediate Replacement: Replace any damaged or frayed belts immediately. Damaged seat belts may not provide adequate protection in a collision.
- Cleaning: Clean the seat belts with mild soap and water to maintain flexibility and cleanliness. This can prevent the belts from becoming stiff and uncomfortable.
- Avoid Harsh Chemicals: Avoid using harsh chemicals that may damage the fabric or webbing. These chemicals can weaken the seat belt material and compromise its integrity.
- Check Retraction Mechanism: Periodically check the seat belt retraction mechanism to ensure it is functioning smoothly. A properly functioning retractor ensures that the seat belt is always in the correct position.
Repairing a 2016 Nissan Frontier seat belt tension sensor yourself is possible, provided you have the necessary tools, knowledge, and a methodical approach. By following this guide, you can address common issues and ensure your vehicle's safety systems are functioning optimally. Remember to always prioritize safety and adhere to the instructions carefully. If you encounter any difficulties or are unsure about any step of the process, it is always best to consult a professional mechanic. A properly functioning seat belt system is crucial for your safety and the safety of your passengers.
The seat belt tension sensor monitors the tension and force applied to the seat belt during a collision. This data helps the vehicle's Supplemental Restraint System (SRS) determine the severity of the impact and deploy the airbags and pretensioners accordingly.
Common symptoms include the airbag warning light illuminating on your dashboard, diagnostic trouble codes (DTCs) related to the seat belt tension sensor appearing on an OBD-II scanner, inconsistent seat belt function, and pretensioner issues.
Yes, you can replace the seat belt tension sensor yourself if you have the necessary tools, a replacement sensor, and a good understanding of automotive repair. Follow the steps outlined in this guide for a successful repair. However, if you are not comfortable working on safety systems, it's best to seek professional assistance.
You will need a socket wrench set, screwdriver set, OBD-II scanner, multimeter, replacement sensor, wiring connectors (if needed), electrical tape, pry tool, torque wrench, gloves, and safety glasses.
Seek professional assistance if you are unsure about any step of the process, if the problem persists after replacing the sensor, or if you encounter other SRS-related issues. A certified mechanic can properly diagnose and recalibrate the system to ensure full functionality and safety. They have the training, experience, and equipment to handle complex SRS repairs.
