S-type tension and compression load cells, often referred to as S-beam load cells, are versatile instruments used for measuring both tensile and compressive forces. Their unique design allows them to be employed in a wide range of applications, from industrial weighing systems to material testing. This article explores the capabilities of S-type load cells, particularly their ability to handle high capacities, and discusses their advantages, applications, installation, and calibration processes.

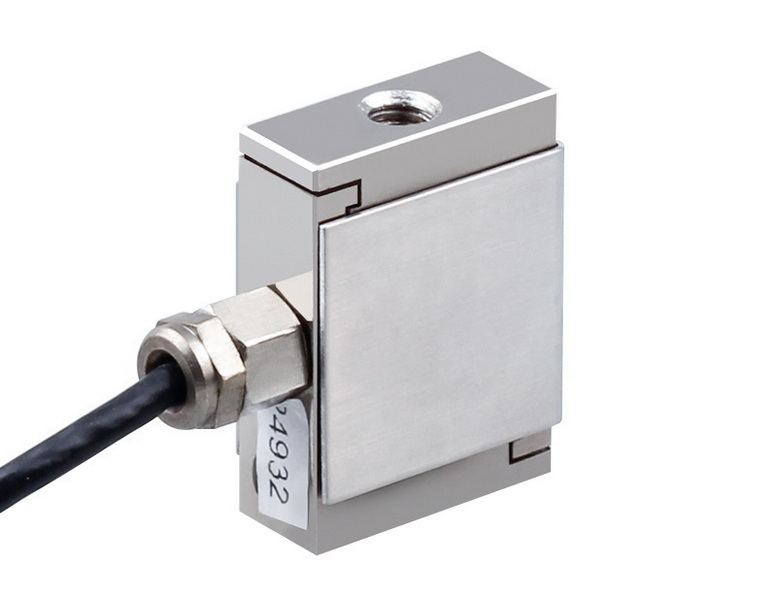

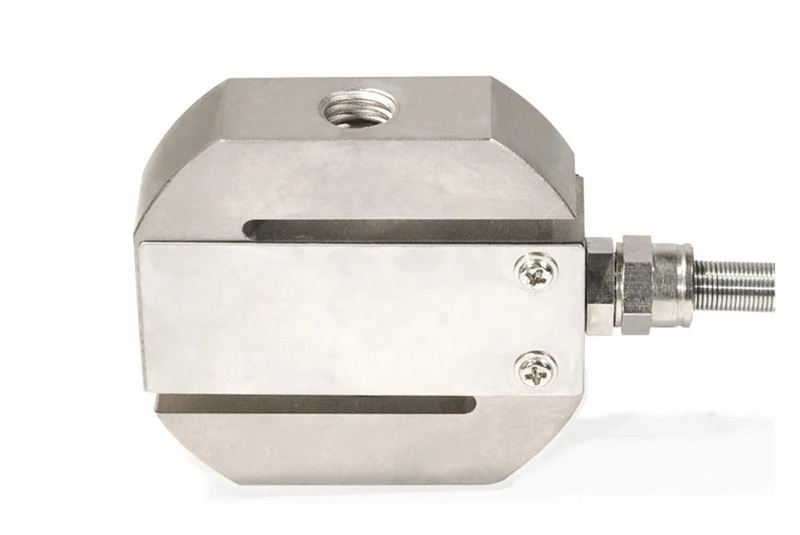

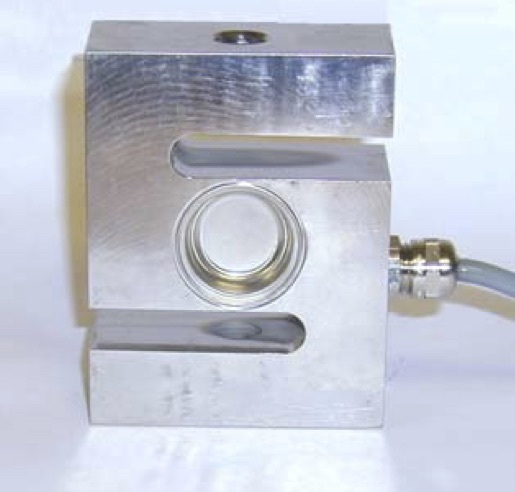

S-type load cells are characterized by their distinctive "S" shape, which facilitates the measurement of forces applied in both tension and compression. They consist of a metal structure equipped with strain gauges that convert mechanical deformation into an electrical signal. This conversion process is crucial for accurate force measurement.
- Dual Functionality: Capable of measuring both tension and compression forces.
- High Accuracy: Typically offers accuracy levels of ±0.025% non-linearity.
- Robust Design: Made from durable materials such as alloy steel or stainless steel, ensuring longevity even in harsh environments.
- Compact Size: Their small footprint makes them suitable for installations with limited space.
S-type load cells are available in various capacities, typically ranging from 50 kg to over 20 tons. The STA-4 series, for example, can handle loads from 50 kg up to 5000 kg. Some specialized models can accommodate even higher capacities, making them suitable for heavy-duty applications.
The versatility of S-type load cells allows them to be used in numerous industries and applications:
- Industrial Weighing Systems: Commonly used in hopper weighing, tank weighing, and batch weighing systems.
- Material Testing: Essential for testing the tensile and compressive strength of materials in laboratories.
- Automotive Industry: Employed in component testing and crash testing to ensure safety standards are met.
- Medical Devices: Used in patient lifting systems and other medical equipment requiring precise weight measurements.
- Agriculture: Facilitates monitoring grain silos and weighing livestock for optimal feeding processes.
S-type load cells offer several advantages that contribute to their popularity:
- Cost-Effectiveness: Generally economical compared to other types of load cells while providing high accuracy.
- Ease of Installation: Designed with threaded holes at the top and bottom for straightforward mounting.
- Durability: Constructed to withstand harsh industrial conditions, including moisture and corrosive environments.
- High Load Capacity: Many models can handle significant weights without compromising accuracy.
Proper installation is crucial for the accurate functioning of S-type load cells. Here are some guidelines:
1. Secure Mounting: Ensure the load cell is mounted securely to prevent movement during operation.
2. Alignment: Align the load cell correctly to avoid misreadings caused by off-center loading.
3. Use Appropriate Hardware: Utilize eye-bolts or rod-end bearings when installing the load cell in tension applications.
Calibration ensures that the load cell provides accurate readings. The calibration process typically involves:
1. Applying Known Weights: Use calibrated weights to apply known forces on the load cell.
2. Adjusting Output Signal: Adjust the output signal from the load cell to match the applied weight accurately.
3. Verification: Repeat the process with different weights to verify consistency across the measurement range.
While S-type load cells can handle high capacities, there are some challenges:
- Accuracy in Compression: When used for compression measurements, accuracy may not be as reliable as in tension applications due to potential off-axis forces.
- Installation Considerations: Ensuring that loads are applied directly along the central axis is crucial to maintain accuracy.
Several factors can influence the performance of S-type tension and compression load cells:
- Temperature Variations: Load cells can experience drift in readings due to temperature changes. It is essential to consider thermal compensation during installation.
- Environmental Conditions: Exposure to moisture or corrosive substances can affect the integrity of the load cell. Selecting appropriate materials (like stainless steel) can mitigate these risks.
- Electrical Noise Interference: Electromagnetic interference from nearby equipment can distort readings. Using shielded cables and proper grounding techniques can help reduce this issue.
To better understand the advantages of S-type load cells, it's useful to compare them with other common types of load cells:
| Feature | S-Type Load Cells | Compression Load Cells | Tension Load Cells |
|---|---|---|---|
| Measurement Type | Tension & Compression | Compression Only | Tension Only |
| Accuracy | High | Moderate | High |
| Load Capacity Range | Broad | Limited | Broad |
| Installation Complexity | Moderate | Low | Moderate |
| Cost | Moderate | Low | Moderate |
This table demonstrates that while S-type load cells may have a slightly higher installation complexity compared to compression-only types, they offer greater versatility by measuring both tension and compression forces effectively.
The field of load cell technology is continually evolving. Some trends that may influence the future development of S-type tension and compression load cells include:
- Integration with IoT: As industries adopt smart technologies, integrating load cells with IoT devices will allow for real-time monitoring and data analysis.
- Enhanced Materials: Research into new materials could lead to even more durable and sensitive load cells capable of operating under extreme conditions.
- Wireless Technology: The shift towards wireless communication will eliminate cabling challenges and enhance flexibility during installation.
In conclusion, S-type tension and compression load cells are capable of handling high capacities effectively while providing accurate measurements across various applications. Their versatility, durability, and cost-effectiveness make them a preferred choice in many industries. However, proper installation and calibration are essential to maximize their performance and ensure reliable results. As technology advances, we can expect further improvements in their functionality and integration into modern systems.
An S type tension load cell is a device designed to measure both tensile (pulling) and compressive (pushing) forces using strain gauge technology.
They are widely used in industrial weighing systems, material testing labs, automotive testing, medical devices, agriculture, and construction applications.
Advantages include versatility in applications, high accuracy, ease of installation, durability under harsh conditions, and cost-effectiveness.
Installation involves securely mounting the load cell with proper alignment to ensure accurate readings while using appropriate hardware such as eye-bolts or rod-end bearings.
Calibration requires applying known weights to adjust the output signal so that it accurately reflects the applied weight while verifying consistency across different loads.
