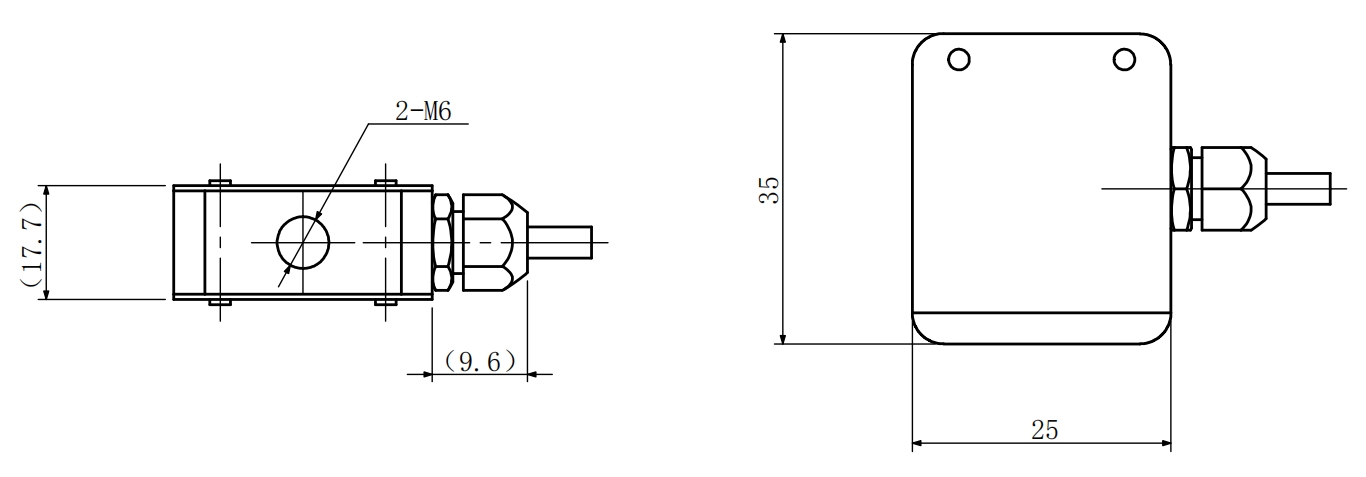

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |

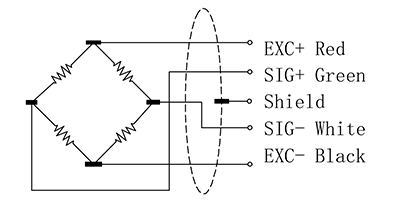

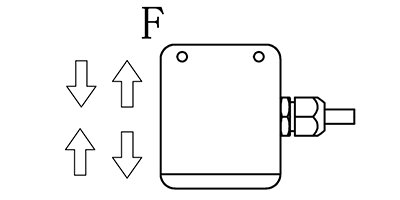

| Load Direction | Wiring |
 |  |
| Specifications |
Specifications | Technique |
Capacity | 10,20,50,100,150,200,500N |
Sensitivity | 2.0±20%mV/V |
Zero balance | ±0.01%mV/V |
| Creep | ≤0.05%F.S. |
Non-linearity | ≤0.1%F.S. |
Hysteresis | ≤0.05%F.S. |
Repeatability | ≤0.05%F.S. |
Input impedance | 350±10Ω |
Output impedance | 350±5Ω |
Temp. effect on output | 0.1%F.S./10℃ |
Temp. effect on zero | 0.1%F.S./10℃ |
Insulation resistance | ≥5000MΩ/100V(DC) |
Recommended excitation | 5~10V |
Maximum excitation | 15V |
Compensated temp. range | -10~60℃ |
Operating temp. range | -20~80℃ |
Safe overload | 150%F.S. |
Ultimate overload | 300%F.S. |
Cable size | Φ3x3000mm |
| Material | Stainless Steel |

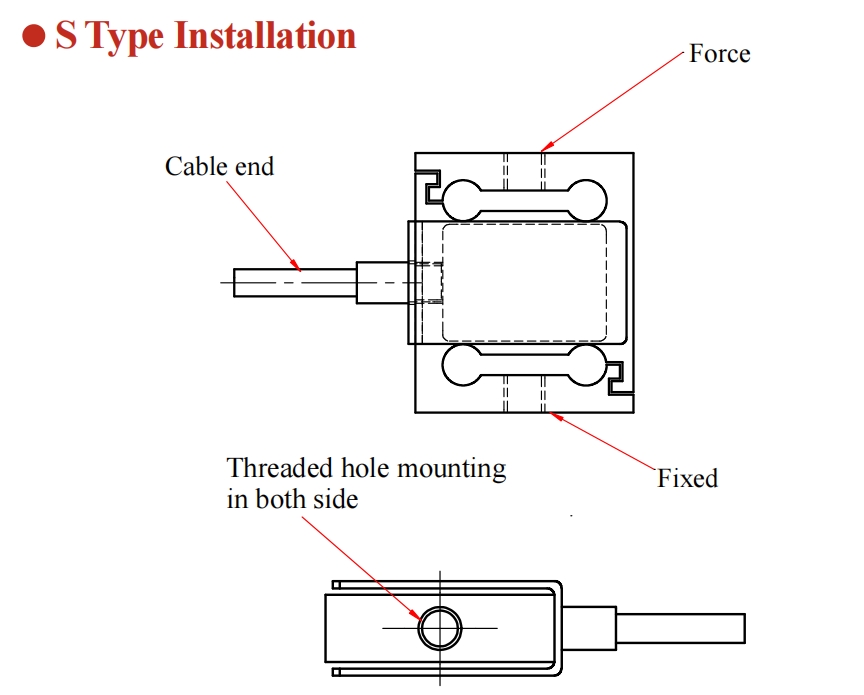

| Installation |
| Delivery Configurations |
