The integration of advanced safety systems in vehicles has significantly reduced the risk of severe injuries during collisions. Among these systems, seat belts remain a primary and essential component. Modern seat belt systems are equipped with various features, including pre-tensioners and load limiters, designed to optimize occupant protection. A critical element in these advanced systems is the seat belt tension sensor, which plays a vital role in enhancing the effectiveness of seat belts and related safety mechanisms[2][4]. This article explores how seat belt tension sensors work, their benefits, and their potential to prevent injuries during a collision.

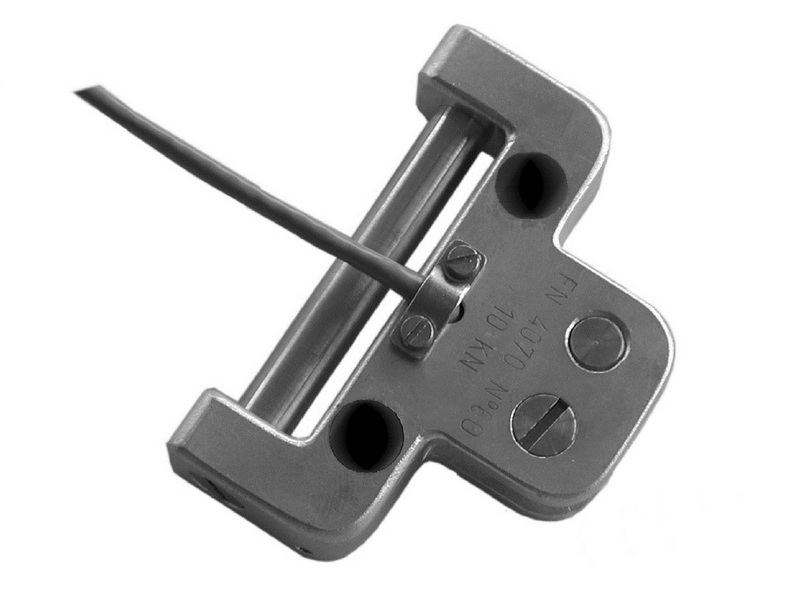

A seat belt tension sensor is a device that measures the amount of force or tension applied to a seat belt[2][4]. This sensor provides crucial data to the vehicle's safety system, enabling it to make informed decisions about deploying airbags and activating other protective measures.
Basic Principles
The fundamental principle behind a seat belt tension sensor involves detecting the degree of tightness or slack in the seat belt[2]. By monitoring the tension, the system can determine whether the seat belt is properly fitted and if the occupant is in a safe position.

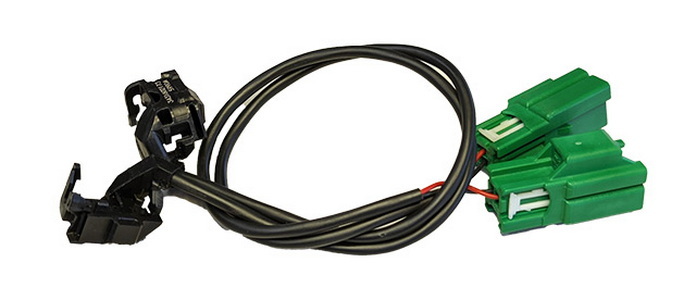

Components and Technology
Seat belt tension sensors typically consist of several key components:
- Housing: The outer structure that encases the sensor components[7].
- Anchor Plate: A plate that secures the sensor to the seat belt mechanism[4].
- Sensing Element: The core component that measures the tension, often using magnetic, strain gauge, or Hall effect technologies[2][4][7].
- Electronic Circuitry: Circuits that process and transmit the tension data to the vehicle's safety system[4][7].
Types of Sensors
- Magnetic Sensors: These sensors use magnets and magnetic field sensors to detect changes in tension. As the seat belt tightens, the movement of the magnetic field is sensed, generating an electrical signal[2][4].
- Strain Gauge Sensors: Strain gauges measure the deformation of a material under stress. In this application, they detect the strain on the seat belt webbing or buckle, providing a direct measurement of tension[4].
- Hall Effect Sensors: These sensors utilize the Hall effect to measure the magnetic field produced by the tension in the seat belt. A current-carrying conductor in a magnetic field experiences a force, and the resulting voltage (Hall voltage) is proportional to the tension[2][7].
The operation of a seat belt tension sensor involves several stages, from initial detection to system response[1][2][4].
Initial Detection
When the seat belt is buckled, the sensor begins monitoring the tension. The sensor detects whether the seat belt is latched or unlatched and measures the tension[2]. This initial reading is critical for establishing a baseline and ensuring the system is ready to respond in the event of a collision.
Data Processing
The data from the seat belt tension sensor is transmitted to the vehicle's central safety control unit[4][7]. This unit processes the information and integrates it with data from other sensors, such as those monitoring vehicle speed, braking, and collision detection systems.
Integration with Safety Systems
The tension data is used to optimize the deployment of airbags and activate seat belt pre-tensioners[1][4][9]. For instance, if the sensor detects that the seat belt is too loose, the pre-tensioner can tighten the belt to secure the occupant in a more optimal position.
Real-time Response
In a collision scenario, the seat belt tension sensor provides real-time data that enables the safety system to adapt to the specific conditions of the crash[1][3]. This includes adjusting the force of airbag deployment and modulating the seat belt tension to minimize injury risk.
Enhanced Occupant Safety
One of the primary benefits of seat belt tension sensors is the enhancement of occupant safety[1][3][4]. By providing accurate and timely data, these sensors help optimize the performance of seat belts and airbags.
Optimal Airbag Deployment
Seat belt tension sensors ensure that airbags are deployed at the appropriate force and timing[4]. This is particularly important in situations where a child seat is installed, as the system can recognize the lower weight and adjust the airbag deployment accordingly to prevent injury[4][7].
Pre-Tensioning and Slack Reduction
The sensors work in conjunction with seat belt pre-tensioners to reduce slack in the seat belt[1][6][9]. By tightening the seat belt before a collision, the occupant is held more securely in place, reducing the risk of excessive movement and injury[1].
Improved Restraint System Functionality
By ensuring that the seat belt fits snugly against the occupant, seat belt tension sensors improve the overall functionality of the restraint system[1]. This includes minimizing the risk of submarining (where the occupant slides under the seat belt) and reducing the severity of injuries from impact with the vehicle's interior[1].
Seat belt tension sensors play a crucial role in mitigating injuries during a crash by optimizing the seating position and enhancing the functionality of the restraint system[1][3].
Active Adjustment of Seating Position
ZF's new networked seat belt system uses vehicle sensors to actively shift occupants into a more optimal seating position before a potential collision[1]. If a dangerous situation is detected, the seat belt system can move the occupant to enhance protection.
Interaction with Emergency Braking Assist
The system interacts with the emergency braking assist to enhance accurate belt activation[1]. This ensures that the seat belt is properly adjusted during critical driving situations.
Haptic Warning
The system provides a haptic warning to give the driver additional time to react before a possible crash[1]. This early warning can help the driver take corrective action, potentially avoiding the collision altogether.
Pyrotechnic Tightening
In an unavoidable accident, pyrotechnic tightening is initiated, enhancing the functionality of the airbag and seatbelt restraint system[1]. This ensures that the occupant is held securely in place during the crash.
A study on Automatic Emergency Braking (AEB) and active seat belts demonstrated the effectiveness of active seat belts in mitigating injuries[3]. The study found that active seat belts effectively reduce injuries caused by out-of-position (OOP) statuses during AEB interventions.
Key Findings
- A 75% collision overlap rate significantly increases driver injury risk[3].
- Active seat belts mitigate injuries caused by OOP statuses during AEB interventions[3].
- The lowest Weighted Injury Criterion (WIC) was observed at a pre-tensioning time of 200 ms for active seat belts[3].
- Optimal results in reducing occupant injuries are achieved when active pre-tensioning seat belts are complemented by appropriately timed airbag deployment[3].
Integration with Vehicle Safety Systems
Seat belt tension sensors are integrated into a variety of vehicle safety systems, including:
- Airbag Control Systems: To optimize airbag deployment based on occupant size and position[4][7].
- Pre-Tensioning Systems: To tighten the seat belt in anticipation of a collision[1][6][9].
- Electronic Park Brake Systems: As an input to determine whether the park brake should be engaged[2].
- Unbuckled Warning Systems: To alert the driver if a seat belt is not properly fastened[2].
Examples in Modern Vehicles
Many modern vehicles are equipped with advanced seat belt systems that incorporate tension sensors. These systems are designed to provide a higher level of protection in a variety of collision scenarios[1][9].
Future Trends
The future of seat belt tension sensor technology is likely to involve even more sophisticated integration with vehicle safety systems[1][3]. This includes:
- Predictive Safety Systems: Using advanced algorithms to predict potential collisions and proactively adjust seat belt tension.
- Personalized Safety Settings: Tailoring safety settings to individual occupants based on their size, weight, and seating position.
- Enhanced Data Analytics: Collecting and analyzing data from seat belt tension sensors to improve the design and effectiveness of future safety systems.
Seat belt tension sensors are a critical component of modern vehicle safety systems[2][4]. By accurately measuring and responding to tension in the seat belt, these sensors enhance occupant safety, optimize airbag deployment, and improve the overall functionality of restraint systems[1][3][4]. As technology advances, seat belt tension sensors will continue to play an increasingly important role in preventing injuries and saving lives during collisions[3][7].
A seat belt tension sensor is a device that measures the amount of force or tension applied to a seat belt. It provides data to the vehicle's safety system, enabling it to optimize airbag deployment and activate other protective measures[2][4].
The sensor monitors the tension in the seat belt and transmits this data to the vehicle's safety control unit. In a collision scenario, the data is used to adjust airbag deployment and activate seat belt pre-tensioners to minimize injury risk[1][2][7].
The benefits include enhanced occupant safety, optimal airbag deployment, pre-tensioning and slack reduction, and improved restraint system functionality[1][3][4].
Yes, by optimizing the seating position and enhancing the functionality of the restraint system, seat belt tension sensors play a crucial role in mitigating injuries during a crash[1][3].
While not all vehicles may have them, many modern vehicles are equipped with advanced seat belt systems that incorporate tension sensors to provide a higher level of protection in various collision scenarios[1][9].
