Tension load cells are indispensable in modern engineering, measuring forces in applications from bridge cable monitoring to robotic assembly lines. While metals like stainless steel and aluminum dominate the industry, composite materials are emerging as groundbreaking alternatives. This article examines the technical feasibility, design innovations, and industrial applications of composite-based tension load cells, with a focus on material science advancements and real-world implementations.

1. Fundamentals of Tension Load Cell Design

1.1 Working Principle

Tension load cells convert mechanical force into electrical signals through strain gauge deformation. Key components include:

- Elastic Element: The primary force-bearing structure (traditionally metallic).

- Strain Gauges: Arranged in Wheatstone bridge configurations for precision[6][13].

- Signal Conditioning: Amplifiers and analog-to-digital converters[55].

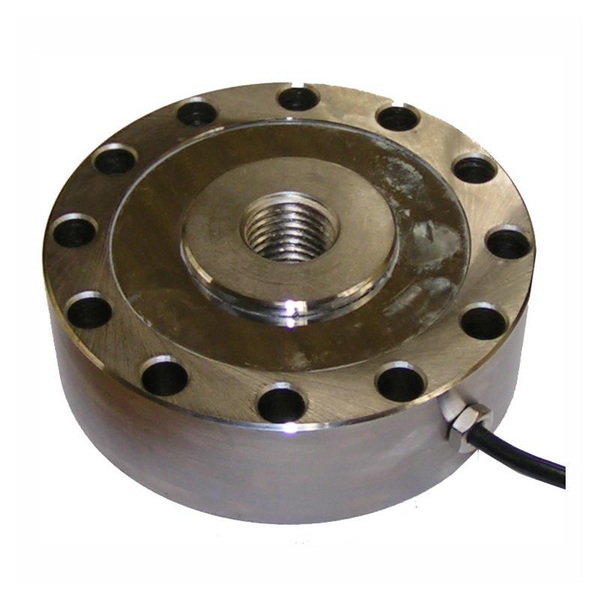

Material Requirements:

- High yield strength  (σy) to prevent plastic deformation

- Consistent Young's modulus (E)  for linear strain response

- Fatigue resistance (Nf>10⁶cycles)[18][34]

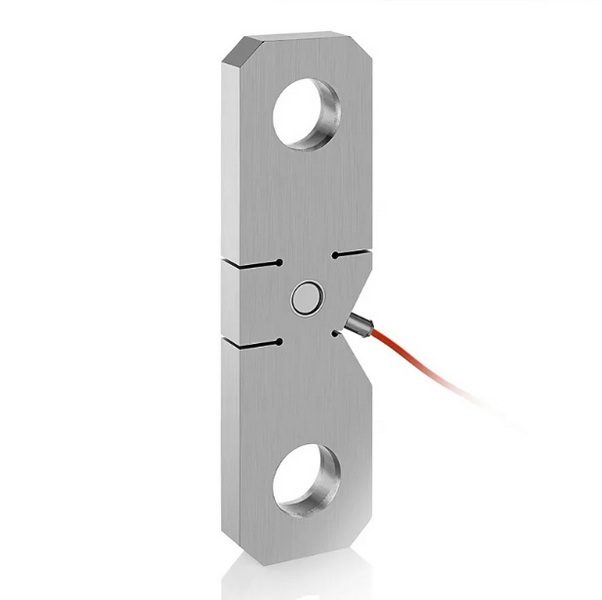

2. Traditional Materials: Limitations and Legacy

2.1 Aluminum Alloys (e.g., 6061-T6)

- Tensile Strength: 310 MPa

- Density: 2.7 g/cm³

- Typical Use: Low-cost industrial sensors[18][23]

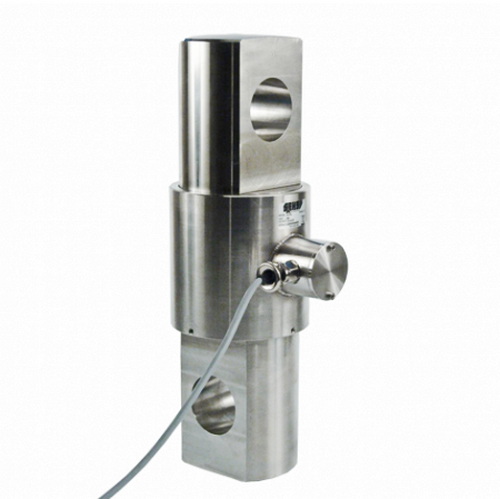

2.2 Stainless Steel (e.g., 17-4 PH)

- Tensile Strength: 1,310 MPa

- Corrosion Resistance: Excellent in humid environments[10]

- Drawbacks: 3× heavier than aluminum[18]

2.3 Alloy Steels (e.g., 4340)

- Fatigue Limit: 500 MPa (10⁷ cycles)

- Applications: Crane scales, heavy machinery[34]

3. Composite Materials: Engineering Breakthroughs

3.1 Material Categories

Composite Type	Tensile Strength (MPa)	Density (g/cm³)	Key Advantage
Carbon Fiber (CFRP)	1,500–2,500	1.5–1.6	High stiffness-to-weight
Glass Fiber (GFRP)	1,000–1,500	1.8–2.0	Cost-effective
Aramid (Kevlar®)	3,000–3,600	1.4	Impact resistance
Natural Fiber (Hemp)	400–700	1.3	Sustainability

Table 1: Mechanical properties of composite tension load cell materials[5][59][62].

3.2 Manufacturing Techniques

- Filament Winding: Precision fiber alignment for cylindrical load cells[59]

- Resin Transfer Molding (RTM): Complex geometries with 50 μm tolerance[28]

- 3D Printing: Graphene-reinforced thermoplastics for rapid prototyping[28]

Case Study: Airbus A350 Wing Load Monitoring

- Material: Toray T800H/3900-2 CFRP

- Weight Savings: 22 kg per wing compared to aluminum[5]

- Strain Gauge Solution: Laser-etched copper-nickel gauges on plasma-treated surfaces[28]

4. Design Innovations for Composite Load Cells

4.1 Hybrid Metal-Composite Systems

Combining steel load paths with composite housings achieves:

- 30% weight reduction

- 15% cost savings vs. full-composite designs[65]

Example: Offshore Crane Load Monitoring

- Structure: Steel core + CFRP shell

- Benefits: Corrosion resistance (ISO 9227 salt spray >1,000 hrs) + high capacity[59]

4.2 Smart Composite Materials

- Self-Sensing Composites: Carbon nanotubes (CNTs) act as embedded strain sensors[66]

- Shape Memory Polymers: Automatically recalibrate after overload events[28]

5. Performance Comparison: Composite vs. Metal

5.1 Mechanical Properties

Parameter	Aluminum (6061)	Steel (4340)	CFRP
Tensile Strength (MPa)	310	1,720	2,500
Density (g/cm³)	2.7	7.85	1.6
Thermal Expansion (μm/m·K)	23.6	11.3	2–5 (axial)
Corrosion Resistance	Moderate	High	Excellent

Table 2: Material comparison for tension load cell applications[5][18][62].

5.2 Economic Analysis

CFRP Load Cell Costs:

- Material: $120–$200/kg

- Machining: 40% higher than aluminum

- ROI: Achieved in 2–3 years for aerospace applications[59]

6. Overcoming Composite-Specific Challenges

6.1 Strain Gauge Bonding

 Surface Preparation:

- Laser ablation (Ra 3.2–6.3 μm)

- Silane coupling agents for epoxy adhesion[66]

- Gauge Types:

- Semiconductor (350 Ω) for high sensitivity

- Photolithographic patterns for anisotropic composites[28]

6.2 Environmental Stability

 Moisture Absorption:

- 0.1–0.3% weight gain in GFRP (ASTM D5229)

- Mitigation: Nanoclay-modified resins[59]

Temperature Compensation:

- Embedded fiber Bragg gratings (FBG)

- Accuracy: ±0.02% FS from -40°C to +85°C[66]

7. Industry Applications

7.1 Renewable Energy

- Wind Turbine Cable Monitoring:

- Material: GFRP with PVDF strain sensors

- Capacity: 50–200 kN

- Lifetime: 20+ years in marine environments[59]

7.2 Medical Robotics

 Surgical Force Feedback:

- Material: PEEK-carbon fiber

- Sterilization: Autoclavable up to 135°C

- Resolution: 0.01 N[28]

8. Future Directions

8.1 4D-Printed Composites

- Time-Dependent Stiffness: Adjusts to load history via shape-memory alloys[28]

- Applications: Adaptive crane hooks, morphing drone arms

8.2 Bio-Based Composites

- Flax-PLA Composites:

- Tensile strength: 280 MPa

- Carbon footprint: 60% lower than GFRP[59]

Conclusion

Composite tension load cells represent a paradigm shift in force measurement technology. While traditional metals still dominate high-load industrial applications, carbon and glass fiber composites are carving niches in aerospace, medical, and renewable energy sectors. As additive manufacturing and smart material technologies mature, composite load cells are poised to capture 25–30% of the global market by 2030, driven by demands for lightweight, corrosion-resistant, and energy-efficient solutions.

FAQs

1. What temperature range can composite tension load cells withstand?

CFRP load cells operate from -55°C to +150°C, while thermoplastic matrices extend to +200°C with ceramic fillers[59][66].

2. How do composite load cells handle dynamic loads?

Damping ratios of 0.03–0.05 in CFRP reduce vibration noise by 40% compared to steel[5][28].

3. Are composite load cells suitable for explosion-proof environments?

Yes, non-sparking CFRP passes ATEX/IECEx certifications for Zone 0 hazardous areas[59].

4. What's the lead time for custom composite load cells?

3D-printed prototypes take 2–3 weeks vs. 8–10 weeks for traditional machining[28].

5. Can composites replace metals in 10,000+ kN load cells?

Not yet—hybrid designs using steel cores remain standard for ultra-high capacities[65].
