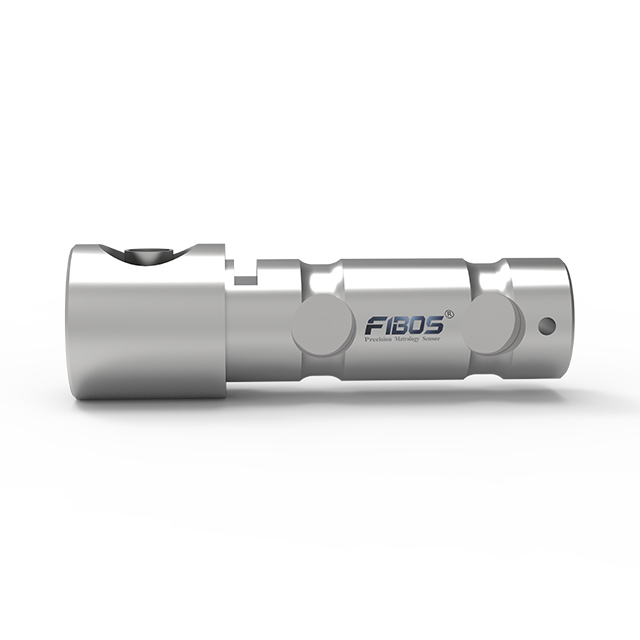

Clevis Pin Load Cell dynamometric axle

The FA9184 shaft pin sensor is specifically designed for cranes, ports and industrial automation. It has a measurement range of 5 tons, overload capacity of 150%, and a protection level of IP65. It uses stainless steel elastomer, offers bidirectional measurement, with an accuracy of ≤ ±0.1%, and outputs 1.0 ± 10% mV. The operating temperature range is -20 to 80 degrees Celsius. The integrated structure is resistant to torsion and bending, has strong environmental adaptability, and ensures long-term stability and reliability.

• High precision, excellent stability, compact structure and integrated design

• High torsional and bending resistance

• High sealing performance and environmental adaptability

• Diverse output signals

• Primarily suitable for: lifting machinery, ports and terminals, industrial automation, aerospace and marine applications, electronic crane scales, etc.

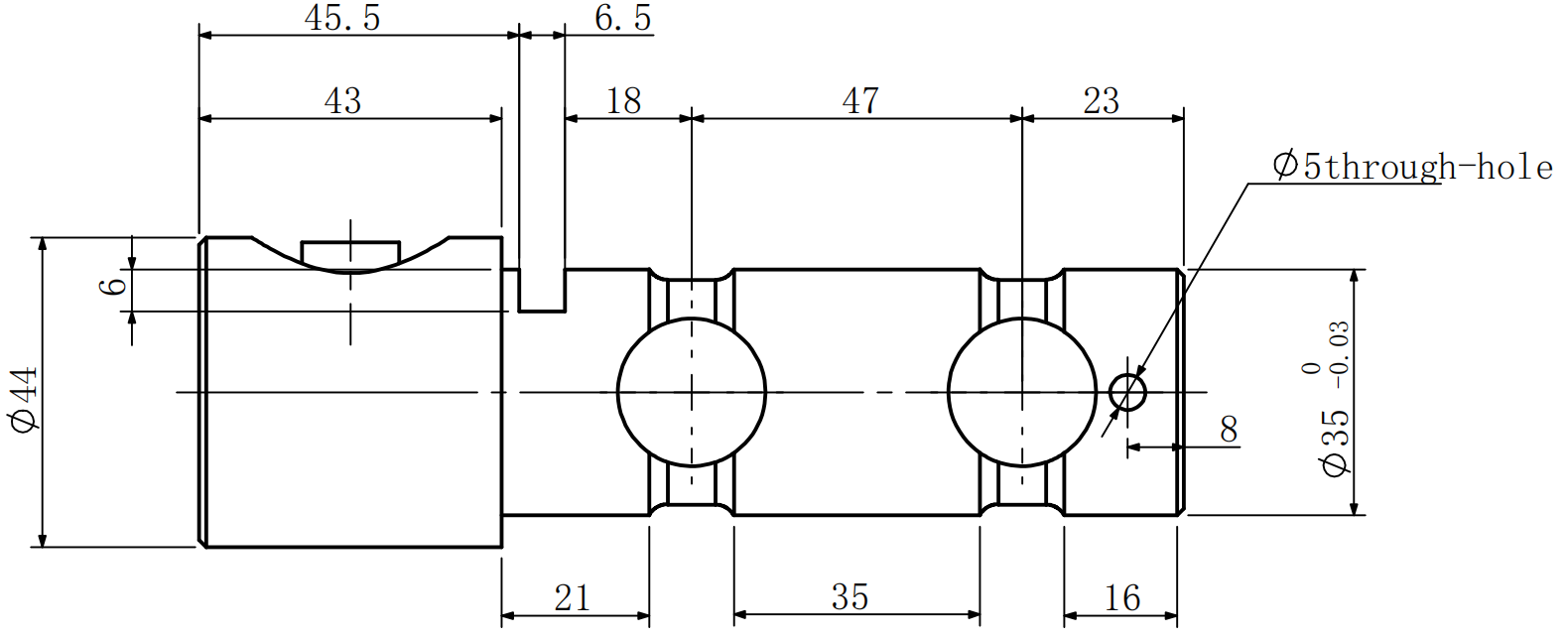

Sensor Physical Parameters
Nominal Capacity	5t
Deflection at Full Scale	-
Fundamental resonance frequency (f_G)	-
Safe Overload	150%F.S.
Operating Temperature	-20~80℃
Ingress Protection (IP)	IP65
Cable	φ5x2m
Spring Element Material	Stainless steel
Loading Direction	Two-way
Sensor Accuracy Parameters
Combined Error	≤0.5%F.S.
Non-linearity	≤0.5%F.S.
Hysteresis	≤0.5%F.S.
Repeatability	≤0.5%F.S.
Creep(30min)	≤0.1%F.S.
Temperature Effect on Output	0.1%F.S./10℃
Electrical Parameters
Rated Output	1.0±10%mV/V
Excitation Voltage	5~10V DC
Insulation Resistance	≥5000MΩ/100V(DC)

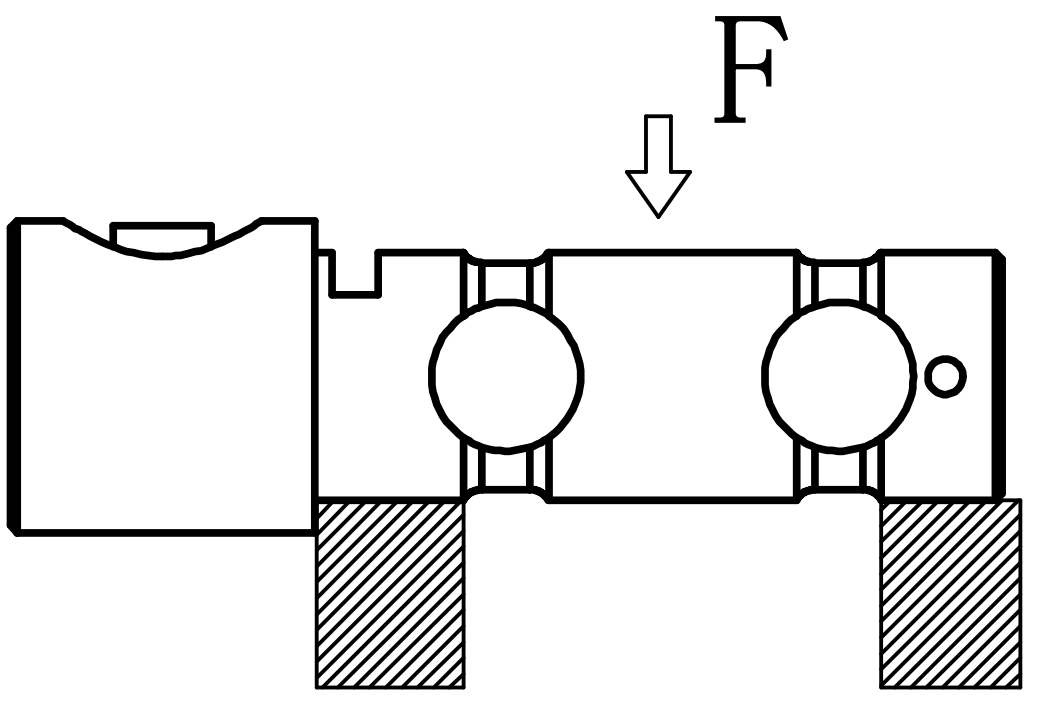

Sensor Styling Suggestions

Force sensor manufacturing process

Sensor Non-standard customisation process

Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe.

Customer case studies for the Torque series

Frequently Asked Questions about Force Sensors

Q1：What is a shaft pin sensor and where is FA9184 used?

A: A shaft pin sensor replaces traditional pins in mechanical structures to directly measure force. The FA9184 is widely used in cranes, port machinery, industrial automation, marine, and aerospace applications.

Q2：Does FA9184 support unidirectional or bidirectional measurement?

A:The FA9184 supports bidirectional force measurement, allowing detection of both tension and compression.

Q3：What is the protection rating and environmental capability?

A: The FA9184 has an IP65 rating and operates reliably in temperatures from -20°C to +80°C, suitable for harsh environments.

Q4：What should be considered during installation?

A:

• Ensure proper alignment with mounting holes

• Avoid side loads and impact forces

• Install according to load direction

• Secure properly to prevent loosening
