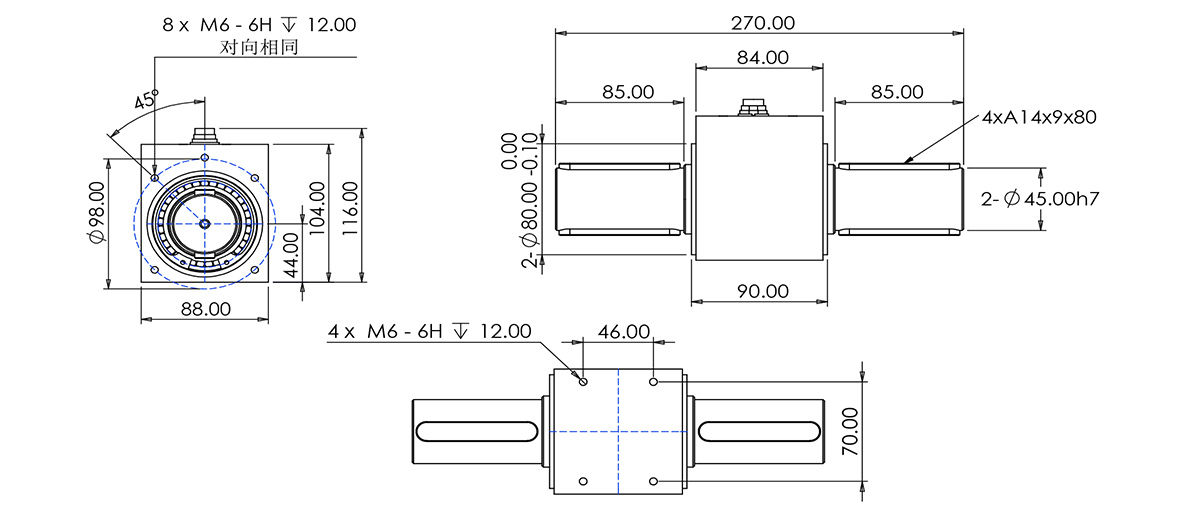

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |

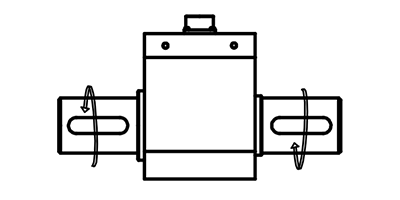

| Load Direction | Wiring |
 |
 |
| Specifications |
Specification |
Technique |
Rated Torque |
500/1000/1300/1500/N.m |
Speed Range |
≤4000rpm |
Torque Signal |

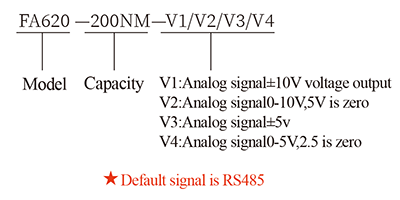

RS485/±10V/±5V/0-10V/0-5V/5-15KHz |
Speed Signal |
RS485/60pulse |
Accuracy |
±0.2%F.S |
Overload Capacity |
150% |
Frequency Response |
1ms |
Operating Temperature |
-20~80℃ |
Temp. effect on zero |
0.15%F.S./10℃ |
Temp. effect on sensitivity |
0.15%F.S./10℃ |
Power Supply |
24VDC±15% |
Material |
Shell: Aluminium; Axis: 17-4PH |
Cable size |
Φ6x3000mm |
Red: 24V+; Black: 24V-; Green: RS485(B); Orange:RS485(A); Brown: Torque frequency output; White: Speed output; Blue: Analog voltage+ Yellow: Signal common |
|
| Installation |
| Delivery Configurations |
