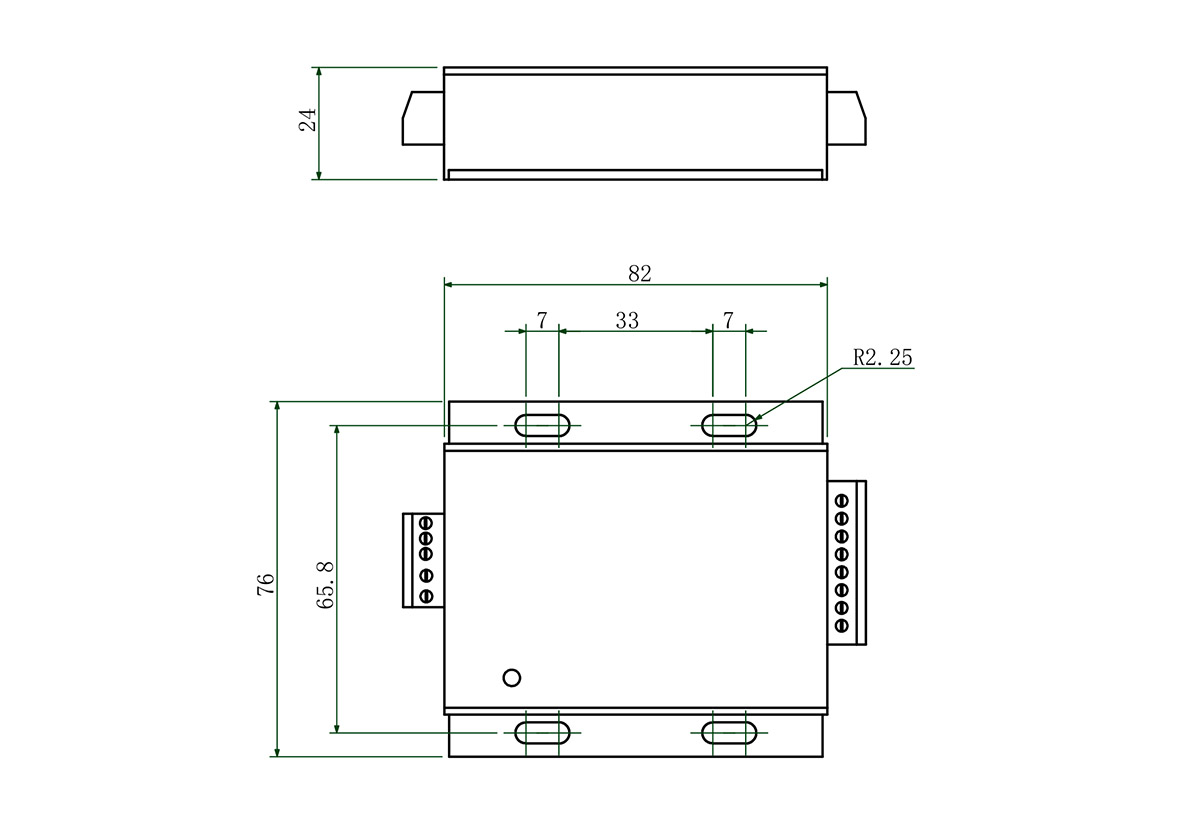

| Dimensions（Unit：mm） |
| Function Feature | |
▶ Wide input range, 0.4~6mmVV, can be connected with most of the strain bridge transducers ▶ Strong load capacity can be connected with 4pcs 350Ω sensors ▶ Adopting original imported electronic components, high response frequency, good long-term stability | ▶ Input power reverse connection protection and output short circuit protection ▶ Power supply 16~30VDC (24VDC recommended) 12~24VDC ▶ Suitable for pressure, tension, torque, tension and other strain bridge sensors. |
| Specifications |
Specifications | Technique |
| Input Range | 0.4~6mV/V |
| Comprehensive Accuracy | ≤0.1%F.S. |
| Sensor Excitation Voltage | 5VDC±2%, 100mA |
| Power Supply | DC: 15V~30V |
| Input Load | 350ΩSensor4pcs |
| Rated Output | 0~±10V/4-20mA |
Operating Temp Range | -30~60℃ |
Sampling Frequency | ≥100HZ |
| Surrounding Environment | Operating temperature:-10~55℃; Storage temperature -25~65℃ Operating humidity: 35~85%RH; Storage Humidity:35~85%RH |
| Delivery Configurations |
