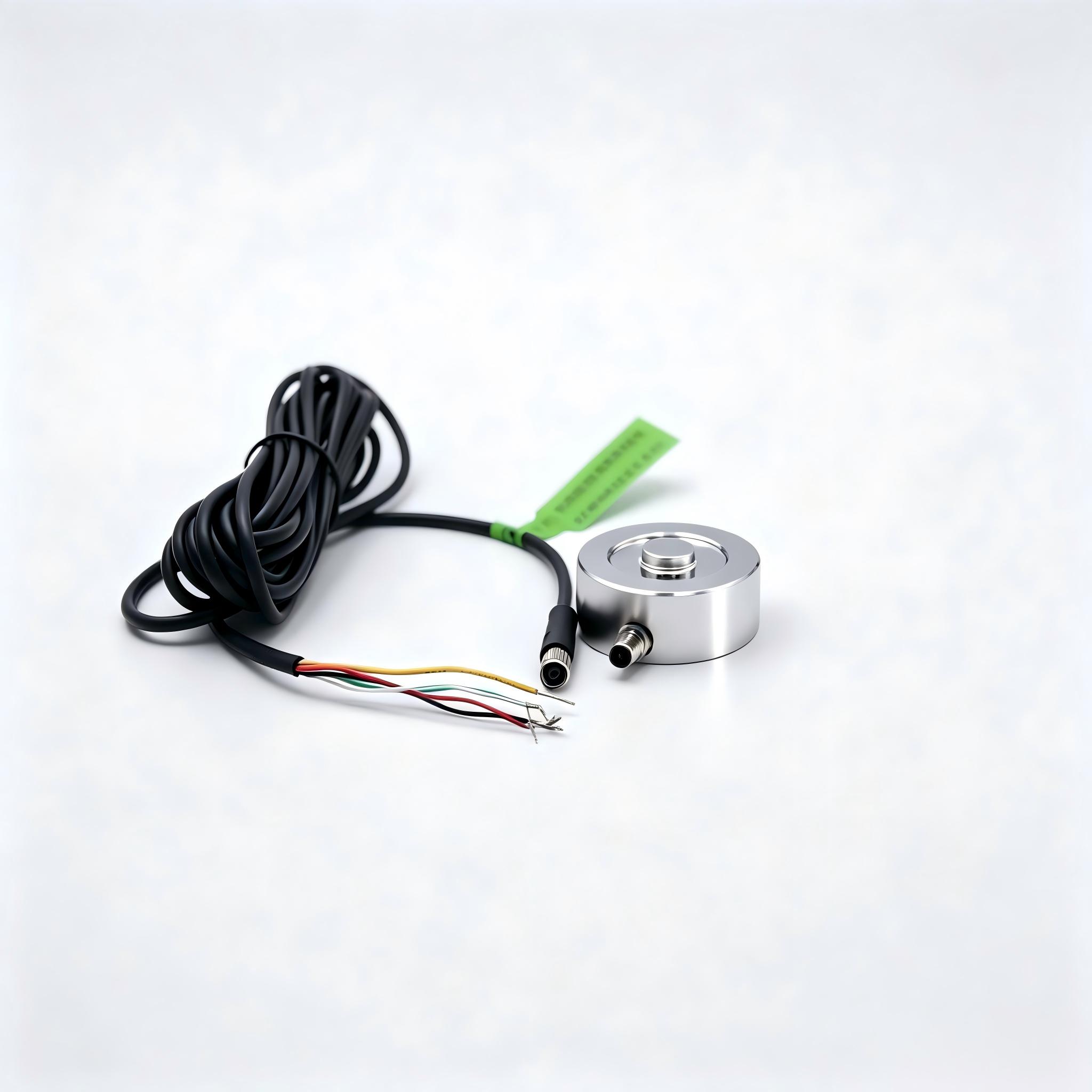

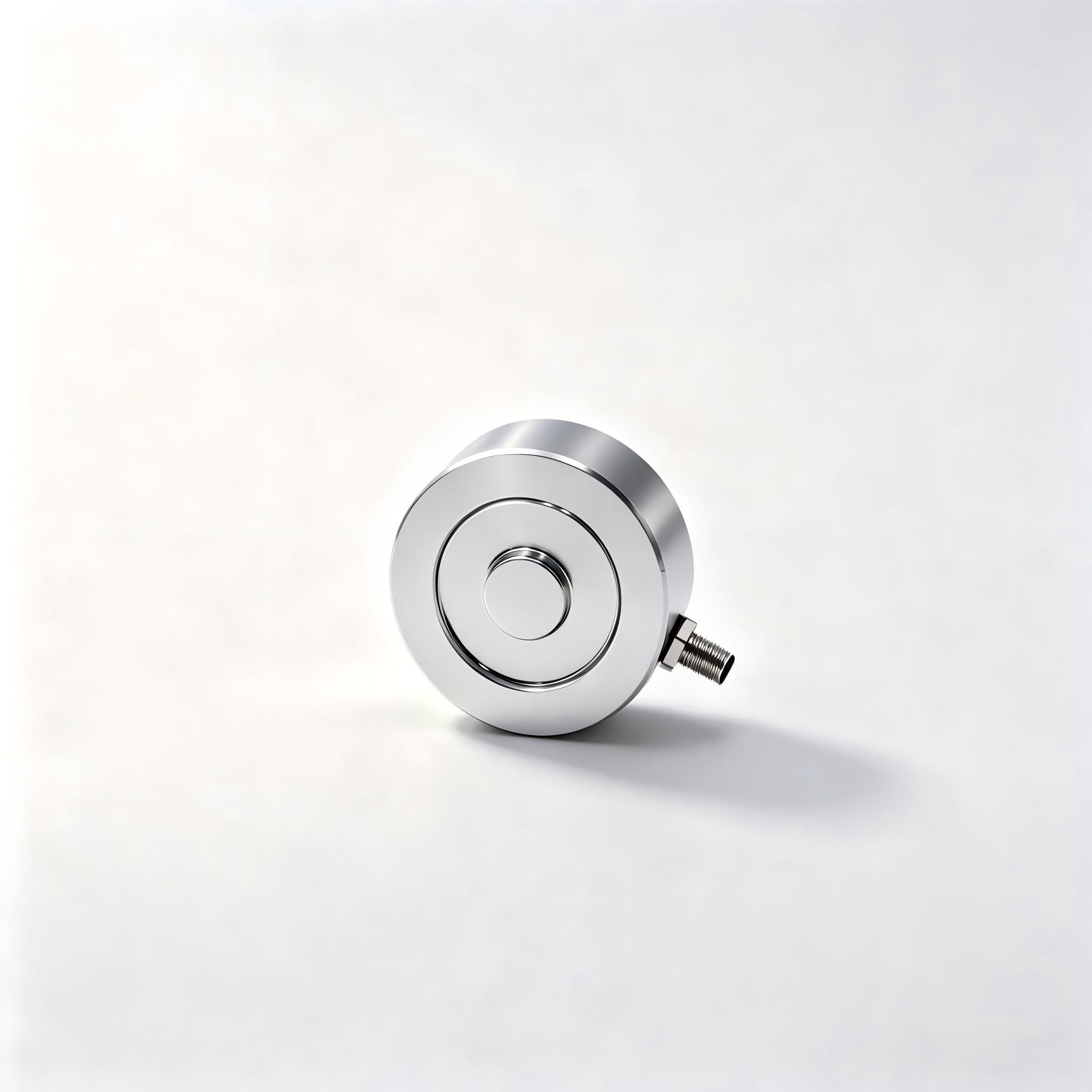

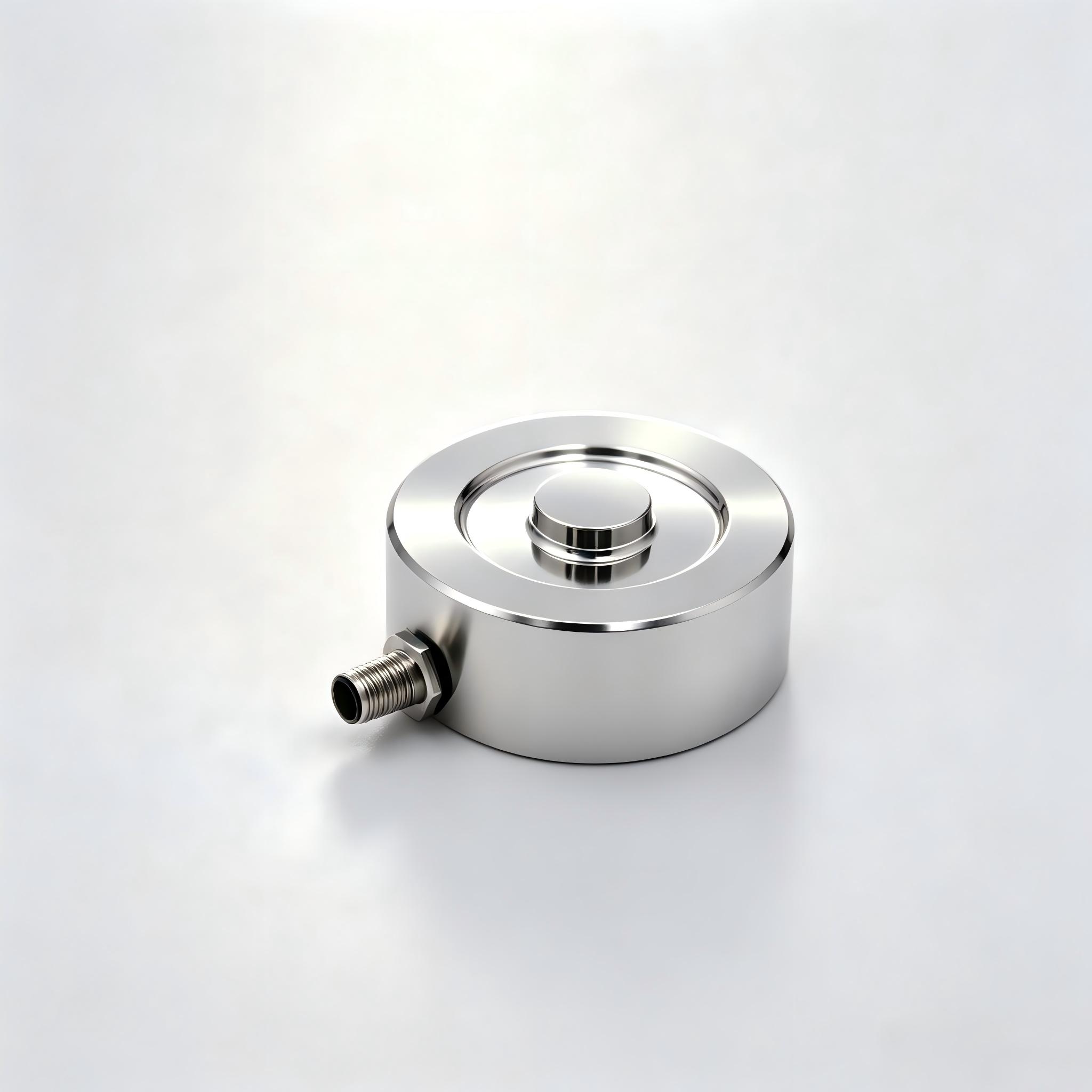

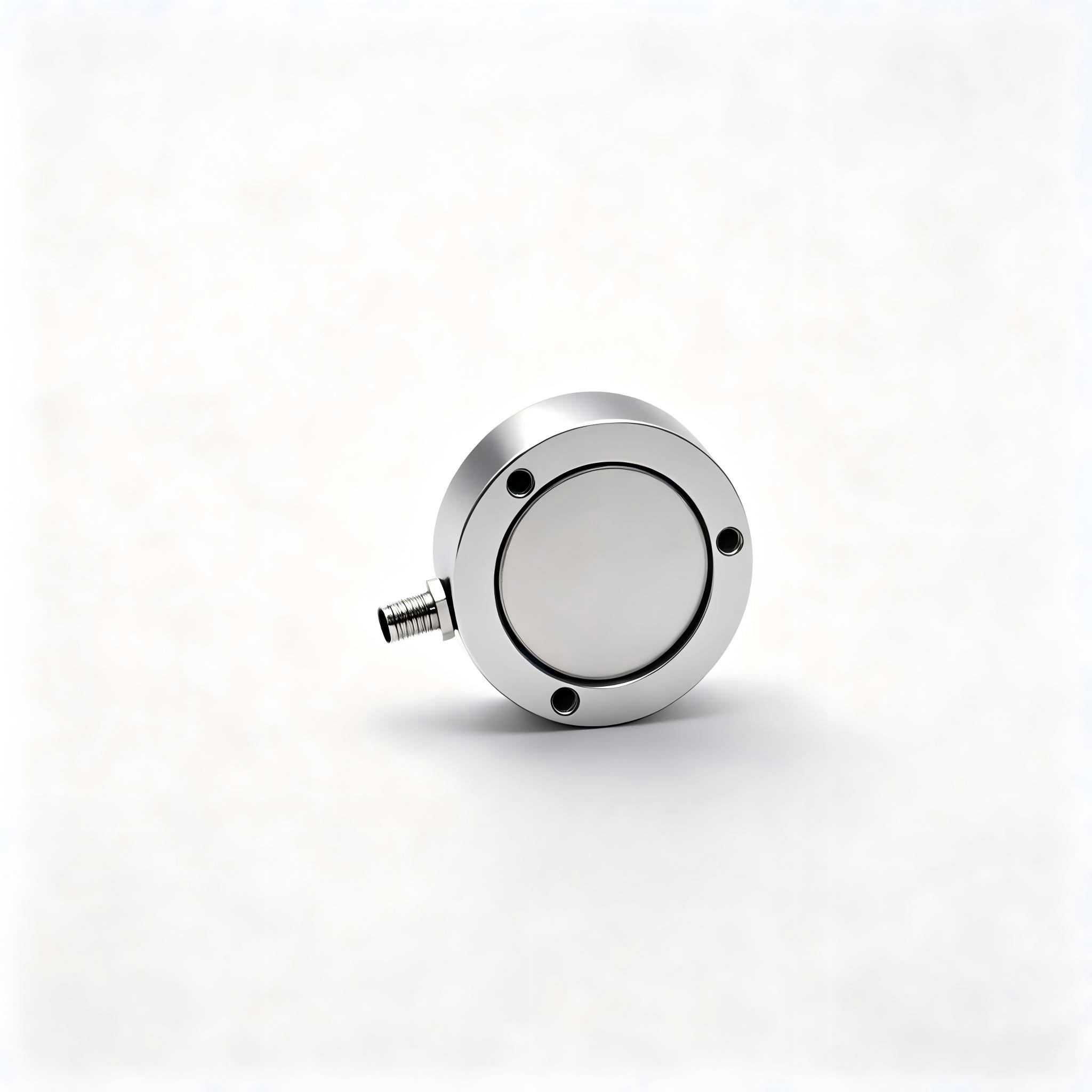

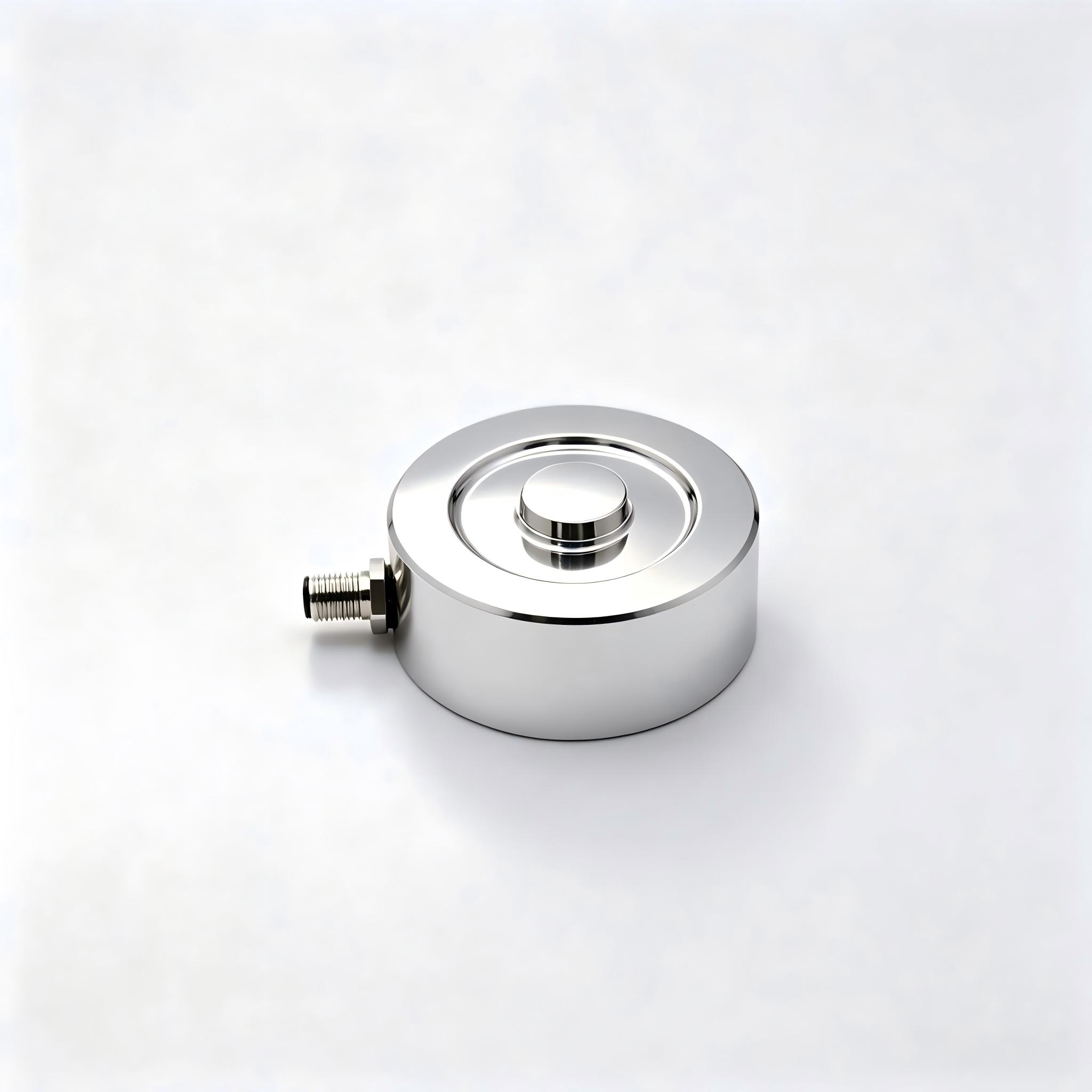

High Capacity Load Button Product Description |
This High Capacity Load Button load cell combines 17-4PH stainless steel construction with metal foil strain gauge technology, offering 5,000 lb and 10,000 lb nominal capacities. It delivers fast response, IP67 protection, and water-resistant, outdoor-rated performance. With 120% safe overload capacity, an operating temperature range of -20°C to 70°C, and a quick-disconnect cable for easy installation and maintenance, this high capacity load button suits industrial weighing, automation equipment, force monitoring, and engineering testing in compression applications.

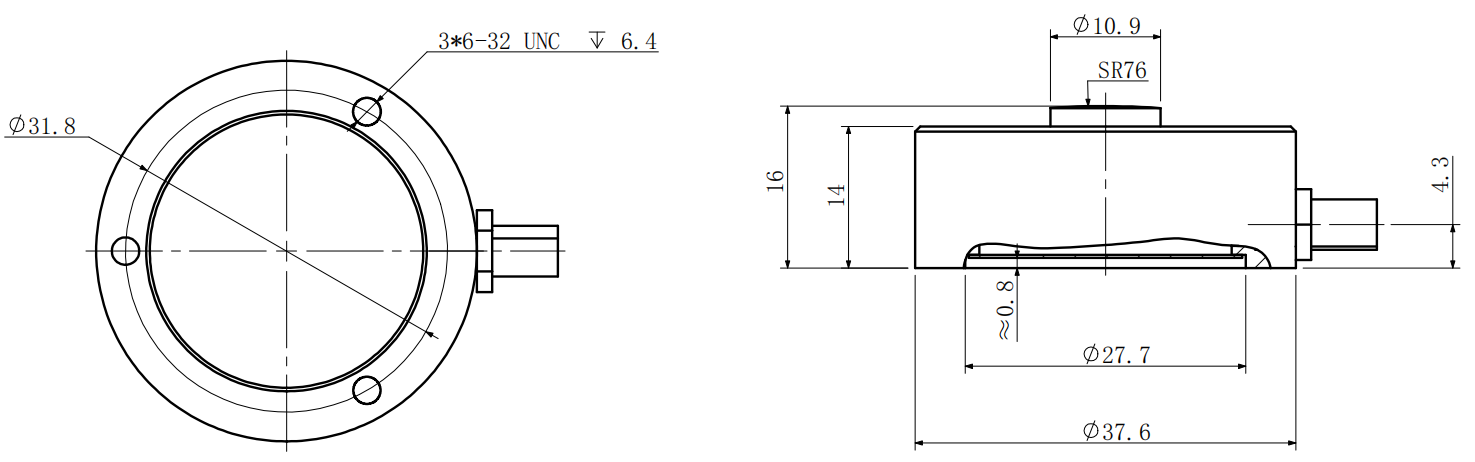

High Capacity Load Button Dimensions（Unit:mm） |
![High Capacity Load Button LLB450]()
High Capacity Load Button Load Direction | High Capacity Load Button Wiring |
![High Capacity Load Button]() | ![FA9532]( "FA9532") |
High Capacity Load Button Specifications |
Sensor Physical Parameters |
Nominal Capacity | 5000/10000 1b |
Fundamental resonance frequency (f_G) | >1000Hz |
Safe Overload | 120%F.S. |
Operating Temperature | -20~70℃ |
Ingress Protection (IP) | IP67 |
Cable | circular connector φ3x3m |
Spring Element Material | 17-4PH |
weight | 0.09kg |
Loading Direction | Compression |
Sensor Accuracy Parameters |
Combined Error | ≤±0.25（5Klb)/0.5(1Wlb) |
Non-linearity | ≤±0.25（5Klb)/0.5(1Wlb) |
Hysteresis | ≤±0.25（5Klb)/0.5(1Wlb) |
Repeatability | ≤±0.1%F.S. |
Creep(30min) | ≤±0.1%F.S. （30min） |
Temperature Effect on Output | ≤0.1%F.S./10℃ |
Electrical Parameters |
Rated Output | 2.0±20%mV/V |
| Zero-point Output | ±0.03mV/V |
Excitation Voltage | 1~15V DC |
| Insulation Resistance | ≥5000MΩ/100V(DC) |

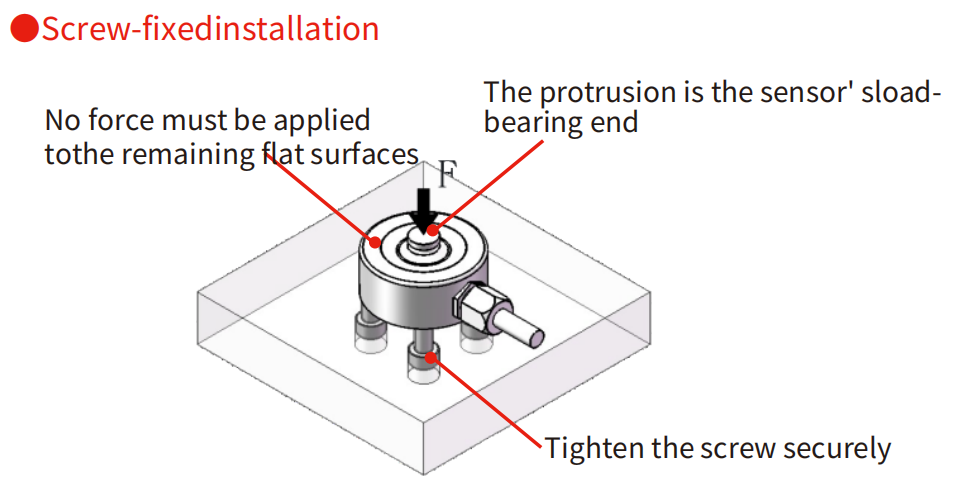

High Capacity Load Button Installation |
![High Capacity Load Button LLB450 installation]() |
| For pressure sensors with spherical probes, it is recommended to use finished high-strength steel for supporting tooling, especially for sensors with larger ranges. |
High Capacity Load Button Styling Suggestions |
Force sensor manufacturing process |
![Incoming Material Inspection]()
01 Incoming Material Inspection
![Laser Marking]()
02 Laser Marking
![Cleaning and Placement]()
03 Cleaning and Placement
![Pressure curing]()
04 Pressure curing
![Bridge Assembly Welding]()
05 Bridge Assembly Welding
![Test Compensation]()
06 Test Compensation
![Adhesive application and curing]()
07 Adhesive application and curing
![Laser welding]()
08 Laser welding
![Finished Product Re-testing]()
09 Finished Product Re-testing
![Cleaning and packaging]()
10 Cleaning and packaging
Force sensor Non-standard customisation process |
![Non-Standard Customization Process]()
|
| Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe. |
Force Sensor Case Studies |
![Sensors for insertion and extraction testing]()
Sensors for insertion and extraction testing
![Sensors for camera dispensing machines]()
Sensors for camera dispensing machines
![Sensors for press-fitting equipment]()
Sensors for press-fitting equipment
![Sensors for press-fitting equipment]()
Sensors for press-fitting equipment
![Industrial Applications of Micro-Force Sensors]()
Industrial Applications of Micro-Force Sensors
![Industrial Applications of Micro-Force Sensors]()
Industrial Applications of Micro-Force Sensors
![Industrial Applications of Micro-Force Sensors]()
Industrial Applications of Micro-Force Sensors
![Industrial Applications of Micro-Force Sensors]()
Industrial Applications of Micro-Force Sensors
Frequently Asked Questions about Force Sensors |
Q1：Where can this product be used?
A: It is suitable for compression measurement in industrial weighing, automation equipment, force monitoring, and engineering testing.
Q2： What capacities are available?
A: This high capacity load button is available in 5,000 lb and 10,000 lb nominal capacities.
Q3：Is this sensor suitable for outdoor use?
A: The load button has an IP67 protection rating and is water-resistant and outdoor-rated.
Q4：What type of connection does the product use?
A: It uses a four-wire connection, supports 1–15 V DC excitation, and includes a quick-disconnect cable.
Q5：Can the sensor be connected directly to equipment?
A: The sensor provides an analog millivolt output; confirm that your equipment supports the corresponding signal interface before connecting.
Q6：What precautions apply when using this high capacity load button?
A: Do not exceed the rated capacity or safe overload range, avoid impact loads, off-center loading, and improper installation, and keep operation within -20°C to 70°C.
