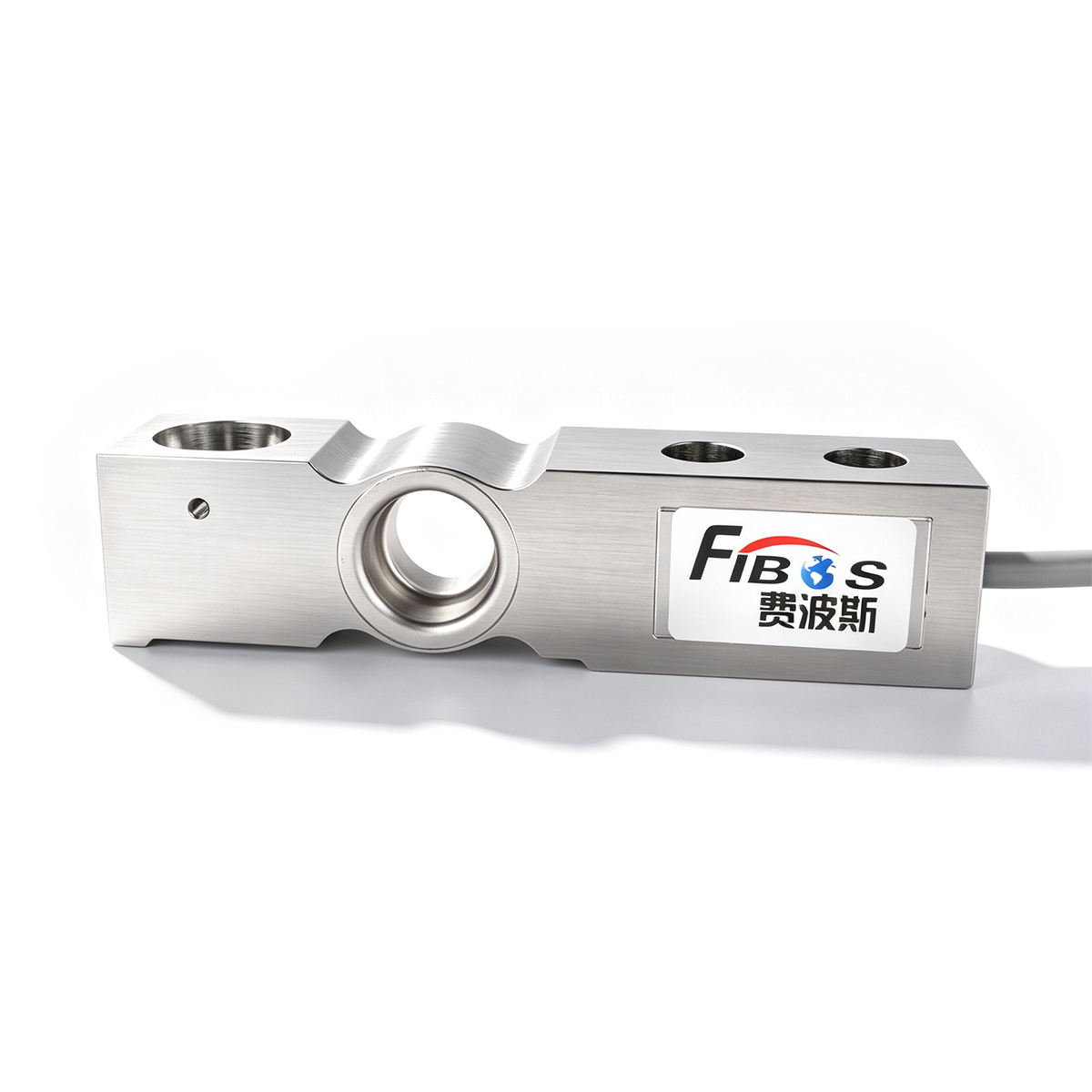

FA509A
FIBOS
0.22~4.4t
0.0166%F.S.
L:133.4mm;H:30.2mm;W:30.7mm
＜0.1mm
＞1000Hz
| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |
| Load Direction | Installation |
|
|
| Specifications |
| Specifications | Technique | |
| Capacity | 0.22~4.4t | |
| Sensitivity | - | |
| Zero Balance | - | |
| Creep | 0.0166%F.S. | |
| Non-linearity | 0.0166%F.S. | |
| Hysteresis | 0.0166%F.S. | |
| Repeatability | 0.0166%F.S. | |
| Input Impedance | - | |
| Output Impddance | - | |
| Temp.efliect on sensitivity | - | |
| Tamp.efliect on zero | - | |
| Insulation Resistance | ≥5000MΩ/100V(DC) | |
| Recommended Excitation | 5V | |
| Max. Excitation | 15V | |
| Compensated Temp. Range | - | |
| Operating Temp. Range | -20~80℃ | |
| Safe Overload | 150%F.S. | |
| Ultimate Overload | - | |
| Cable Size | Φ5.4x3000mm/6000mm | |
| Material | - | |
| Maximum size of the scale | - |
| Installation |
| Delivery Configurations |
