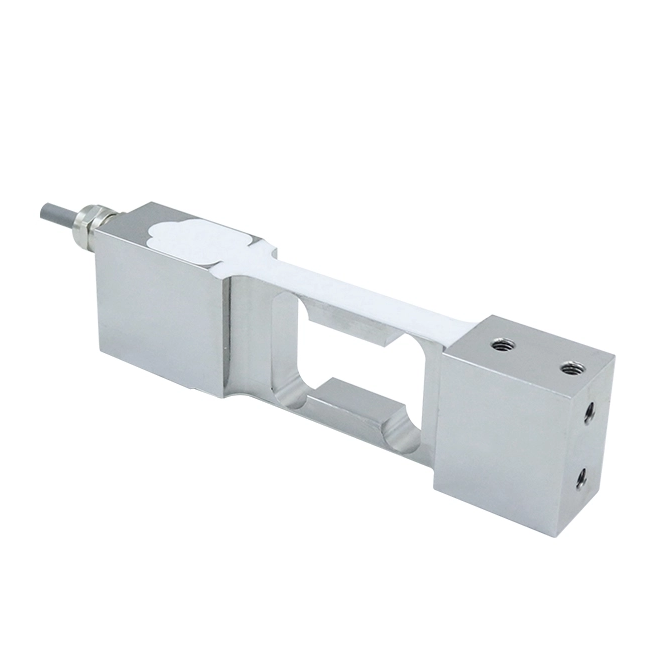

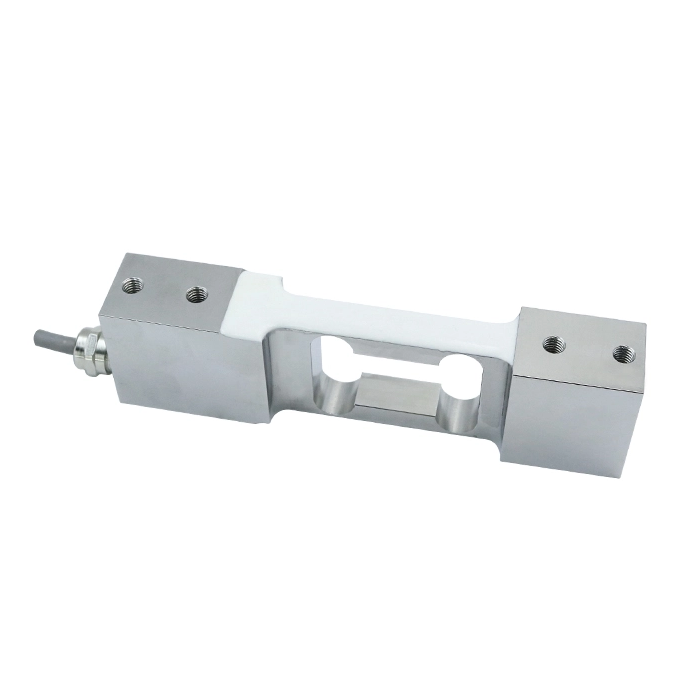

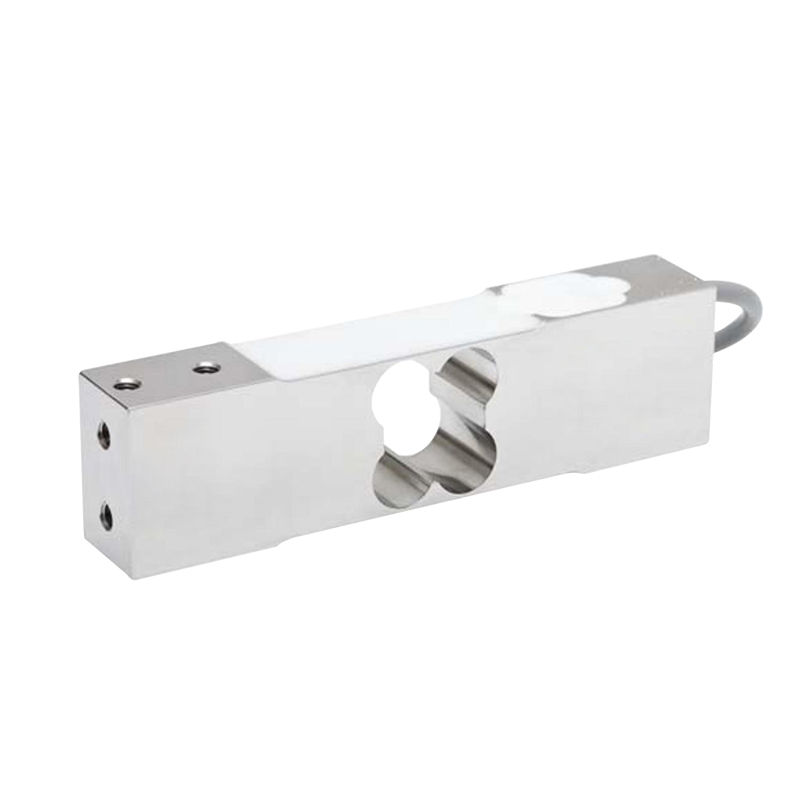

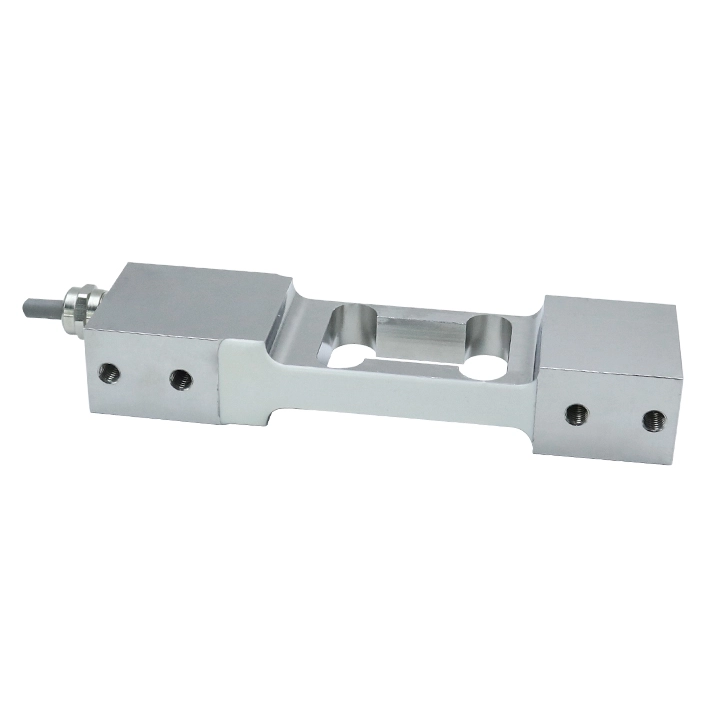

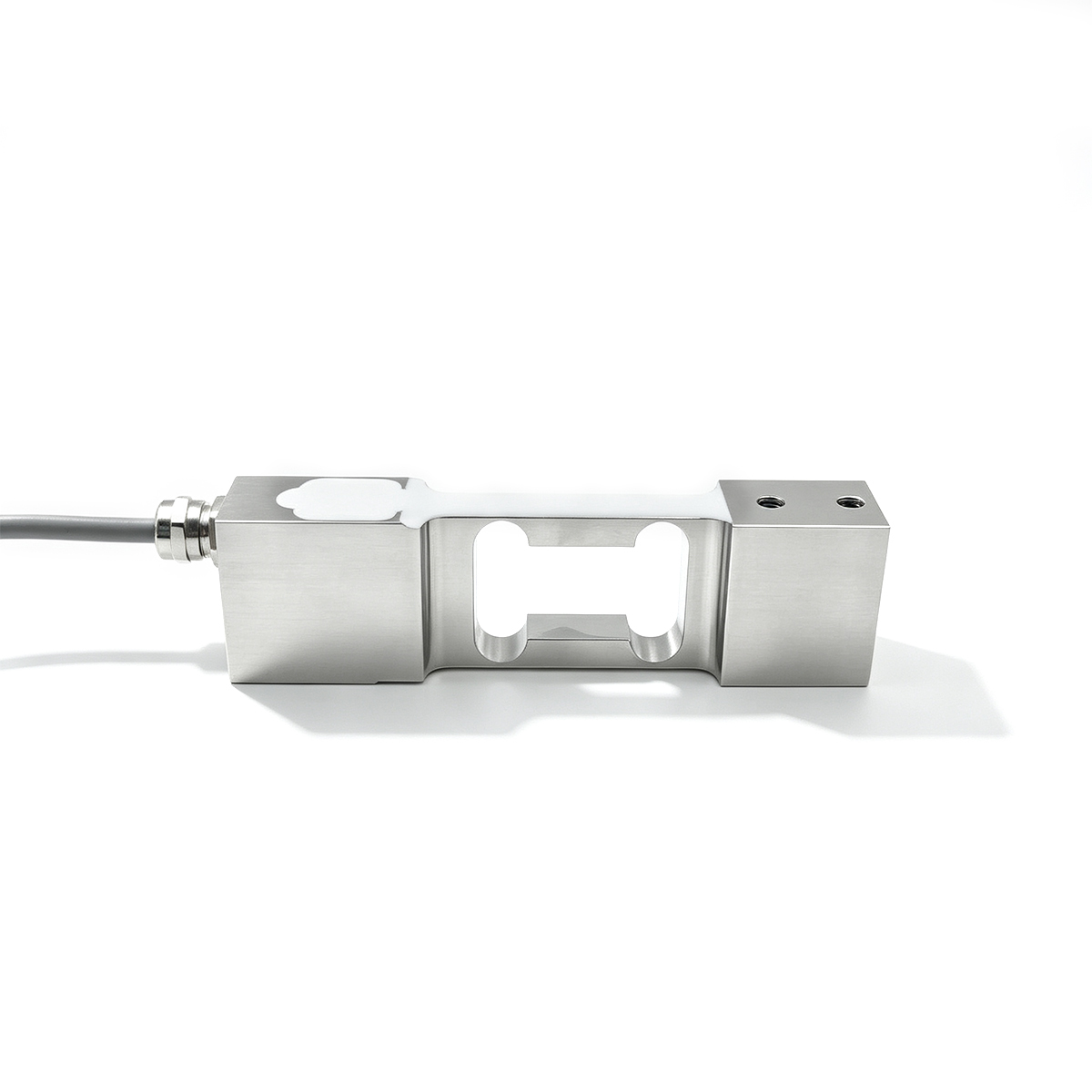

High Precision Industrial Load Cell

Suitable for electronic scale, counting scale, electronic balance and industrial weighing system

Model:
FA546
Brand:
FIBOS
Capacity:
3,6,7.5,15,20,30,50,75,100,150,200kg
Accuracy:
0.017%F.S.
Dimensions:
See the detailed dimensions table
Maximum size of the scale:
500x400mm
Deflection at Full Scale:
0.41
Natural Frequency:
＞70Hz
Material:
Stainless steel/Aluminium alloy


Availability:



Inquire

Product Description

Dimensions（Unit：mm）

High Precision Industrial Load Cell

We provide 3D model files of our products.

Support to facilitate your design of workpiece.

Load Direction	Installation

Specifications

Specifications	Technique
Capacity	3,6,7.5,15,20,30,50,75,100,150,200kg
Sensitivity	2.0±10%mV/V
Zero Balance	±1%mV/V
Creep	0.017%F.S.
Non-linearity	0.017%F.S.
Hysteresis	0.017%F.S.
Repeatability	0.016%F.S.
Input Impedance	380±20Ω
Output Impddance	350±5Ω
Temp.efliect on sensitivity	0.05%F.S./10℃
Tamp.efliect on zero	0.05%F.S./10℃
Insulation Resistance	≥500MΩ/100V(DC)
Recommended Excitation	5~12V
Max. Excitation	15V
Compensated Temp. Range	-10~40℃
Operating Temp. Range	-20~50℃
Safe Overload	150%F.S.
Ultimate Overload	200%F.S.
Cable Size	3m
Material	Stainless Steel/Aluminium Alloy

Installation

Delivery Configurations
