How Accurate Are High Capacity Tension Link Load Cells?

Content Menu

● Understanding Tension Link Load Cells

● Factors Affecting Accuracy

● Specifications of High Capacity Tension Link Load Cells

● Applications of High Capacity Tension Link Load Cells

● Calibration and Maintenance

● Comparison with Other Load Cell Types

● Conclusion

● FAQ

>> 1. What is a high capacity tension link load cell?

>> 2. How accurate are high capacity tension link load cells?

>> 3. What factors affect the accuracy of a tension link load cell?

>> 4. How often should a tension link load cell be calibrated?

>> 5. Can high capacity tension link load cells be used outdoors?

● Citations:

High capacity tension link load cells are essential instruments in various industries, particularly for applications involving heavy lifting and precise weight measurement. Understanding their accuracy is vital for ensuring safety and reliability in operations. This article will explore the factors influencing the accuracy of high capacity tension link load cells, their applications, and provide insights into their performance metrics.

Understanding Tension Link Load Cells

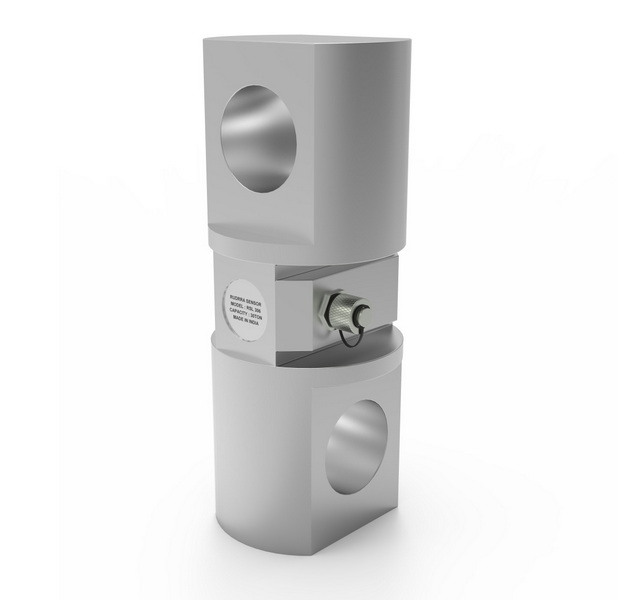

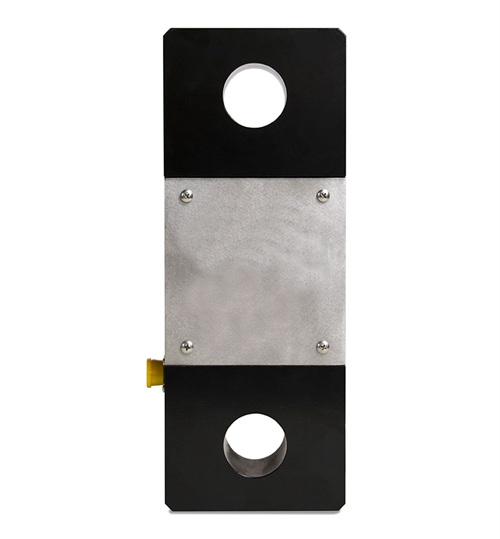

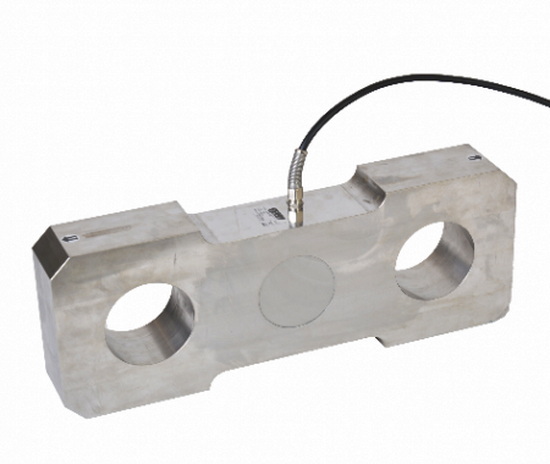

Tension link load cells are specialized devices designed to measure tensile forces. They convert mechanical stress into an electrical signal, which can then be measured and displayed. These load cells are commonly used in:

- Crane scales

- Pull testing

- Equipment rigging

- Material handling

Their design typically includes openings at both ends for easy connection to shackles or wire ropes, making them versatile for various applications.

Factors Affecting Accuracy

The accuracy of high capacity tension link load cells is influenced by several factors:

- Linearity: The degree to which the output signal corresponds to the applied load across the entire range. High linearity ensures that measurements remain consistent regardless of the load applied.

- Hysteresis: This refers to the difference in output readings when a load is applied and then removed. A low hysteresis value indicates that the load cell returns to its original state without significant deviation.

- Repeatability: This measures how consistently a load cell can reproduce the same output under identical loading conditions. High repeatability is crucial for applications requiring precise measurements.

- Environmental Conditions: Factors such as temperature fluctuations, humidity, and electromagnetic interference can impact the performance of tension link load cells. Many models are designed with environmental protections to mitigate these effects.

Specifications of High Capacity Tension Link Load Cells

High capacity tension link load cells are available in a range of specifications, typically from 25,000 pounds up to 1 million pounds or more. Key specifications include:

- Accuracy: Generally expressed as a percentage of full-scale output (FSO), with many high-quality models achieving an accuracy of ±0.1% FSO or better.

- Safe Overload: Most tension link load cells can handle overloads of 150% to 200% of their rated capacity without permanent damage.

- Environmental Rating: Many models are rated IP67 or higher, meaning they are dust-tight and can withstand immersion in water.

Applications of High Capacity Tension Link Load Cells

These load cells find applications in various fields due to their robustness and accuracy:

- Construction: Used for monitoring loads on cranes during lifting operations.

- Marine Operations: Employed in mooring testing and subsea salvage operations.

- Manufacturing: Utilized in material handling systems to ensure safe lifting practices.

Calibration and Maintenance

To maintain accuracy, regular calibration is necessary. Calibration ensures that the load cell's output remains within specified limits over time. Factors influencing calibration include:

- Temperature Effects: Temperature changes can affect readings; thus, temperature compensation is often integrated into high-capacity models.

- Mechanical Stress: Over time, repeated loading can cause mechanical fatigue; therefore, periodic checks are essential.

Comparison with Other Load Cell Types

Conclusion

High capacity tension link load cells are critical instruments that provide accurate measurements essential for safe lifting and handling operations across various industries. Their accuracy is influenced by multiple factors including linearity, hysteresis, repeatability, and environmental conditions. Regular calibration and maintenance are vital to ensure they continue to perform reliably over time. Understanding these aspects helps users select the right tension link load cell for their specific needs, ensuring safety and efficiency in their operations.

FAQ

1. What is a high capacity tension link load cell?

A high capacity tension link load cell is a device designed to measure tensile forces in heavy lifting applications, converting mechanical stress into an electrical signal for measurement.

2. How accurate are high capacity tension link load cells?

Most high capacity tension link load cells offer an accuracy of ±0.1% FSO or better, depending on the specific model and its calibration.

3. What factors affect the accuracy of a tension link load cell?

Accuracy can be affected by linearity, hysteresis, repeatability, environmental conditions (such as temperature and humidity), and mechanical stress over time.

4. How often should a tension link load cell be calibrated?

Calibration frequency depends on usage but is generally recommended at least once a year or whenever there are significant changes in operating conditions or after heavy use.

5. Can high capacity tension link load cells be used outdoors?

Yes, many high capacity tension link load cells are designed with environmental protections (like IP67 rating) making them suitable for outdoor use even in harsh conditions.
