Roll tension load cells are critical components in various industries, especially in applications involving web tension control, such as printing, packaging, and material handling. These devices measure the tension in materials as they pass over rollers, ensuring that operations run smoothly and efficiently. This article delves into the accuracy of roll tension load cells, how they function, factors affecting their performance, and their applications across different sectors.

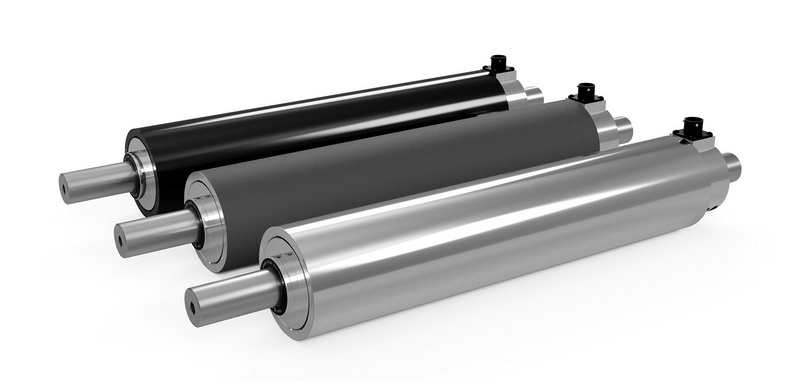

Roll tension load cells are specialized sensors designed to measure the force exerted by a material as it passes over a roller. They are essential for maintaining consistent tension in processes where material integrity is crucial. The basic principle behind these load cells involves converting mechanical force (tension) into an electrical signal that can be measured and analyzed.
At the heart of a roll tension load cell is a sensing beam equipped with strain gauges. When tension is applied to the material passing over the roller, the beam deforms slightly. This deformation causes changes in the electrical resistance of the strain gauges attached to it. The resulting electrical signal is proportional to the amount of tension being applied.
The process can be summarized as follows:
1. Tension Application: As the material pulls on the roller, it exerts a force.
2. Beam Deformation: This force causes the sensing beam to bend.
3. Signal Generation: Strain gauges detect this bending and convert it into an electrical signal.
4. Output Measurement: The signal is processed and displayed as a measurable value of tension.
Roll tension load cells come in various types, each suited for different applications:
- Single Point Load Cells: These are often used in smaller systems where space is limited. They provide accurate measurements for lighter loads.

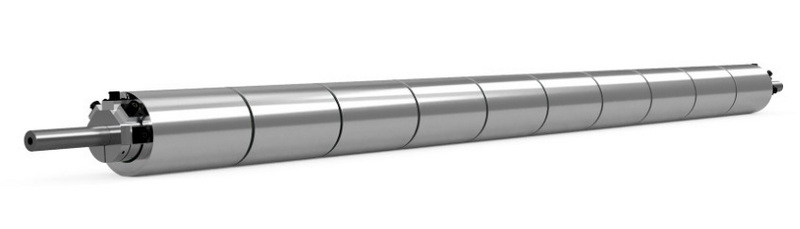

- Multi-Point Load Cells: Suitable for larger systems, these load cells can measure multiple points of tension across wider rollers.
- Inline Load Cells: Designed to be installed directly in the material path, these load cells offer real-time measurement without needing additional equipment.
The accuracy of roll tension load cells is influenced by several factors:
- Calibration: Proper calibration is essential for accurate measurements. Load cells must be calibrated to account for any offsets and gain adjustments related to their installation.
- Environmental Conditions: Temperature fluctuations and humidity can affect the performance of load cells. Many modern load cells come with built-in temperature compensation to mitigate these effects.
- Mechanical Setup: The alignment and mounting of the load cell play a significant role in its accuracy. Misalignment or improper installation can lead to erroneous readings.
- Load Characteristics: The nature of the load—whether static or dynamic—can impact measurement accuracy. Load cells designed for dynamic loads may have different specifications compared to those meant for static loads.
1. Installation Quality: Incorrect installation can introduce measurement errors due to mechanical stresses not accounted for during calibration.
2. Temperature Variations: Changes in temperature can cause materials to expand or contract, leading to inaccuracies if not properly compensated.
3. Signal Noise: Electrical noise from surrounding equipment can interfere with the signals generated by load cells, affecting their accuracy.
4. Load Range: Operating near the maximum capacity of a load cell can reduce its accuracy due to non-linearities in the measurement response.
5. Maintenance Practices: Regular maintenance ensures that load cells remain calibrated and free from mechanical wear that could affect performance.
Roll tension load cells offer numerous advantages that make them indispensable in industrial applications:
- Precision Measurement: They provide accurate readings essential for maintaining quality control in production processes.
- Real-Time Monitoring: Continuous monitoring allows for immediate adjustments to be made, enhancing operational efficiency.
- Durability: Designed to withstand harsh industrial environments, roll tension load cells are robust and reliable.
- User-Friendly Interfaces: Many roll tension load cell systems come with intuitive software interfaces that allow operators to easily monitor and adjust settings according to real-time data.
- Versatility: These devices can be used across various applications beyond traditional uses, including robotics and automation systems where precise tension control is necessary.
Roll tension load cells find applications across various industries:
- Printing Industry: To maintain consistent tension on paper rolls during printing processes, ensuring high-quality output without defects.
- Packaging: In packaging lines, these load cells help control the tension of films and materials, preventing tears or misalignments during production.

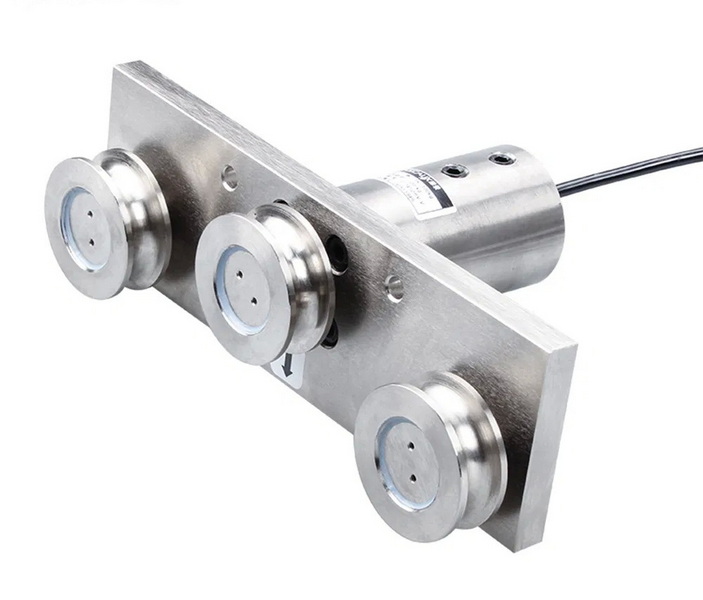

- Textile Manufacturing: They are used to monitor yarn tension during weaving processes, which is crucial for producing high-quality fabrics.
- Material Handling: In conveyor systems, roll tension load cells help manage the tension on cables and belts, ensuring efficient operation.
- Food Processing: In food packaging lines, maintaining proper film tension is critical for ensuring product freshness and preventing contamination.
Despite their advantages, there are challenges associated with using roll tension load cells:
- Calibration Complexity: Regular calibration is necessary but can be time-consuming and requires skilled personnel.
- Cost Considerations: High-quality roll tension load cells can be expensive, which may deter some businesses from investing in them.
- Integration Issues: Integrating new load cell systems into existing machinery may require modifications or additional equipment.
- Sensitivity to Overloads: Some roll tension load cells may be sensitive to overload conditions, which could lead to permanent damage if not properly managed.
To maximize the accuracy and longevity of roll tension load cells, consider implementing these best practices:
1. Regular Calibration: Schedule routine calibration checks based on usage frequency and environmental conditions.
2. Proper Installation Techniques: Follow manufacturer guidelines meticulously during installation to ensure correct alignment and mounting.
3. Environmental Controls: Where possible, maintain stable environmental conditions around the equipment to minimize temperature fluctuations and humidity variations.
4. Use Shielded Cables: To reduce signal noise from external sources, use shielded cables when connecting load cells to monitoring equipment.
5. Training Personnel: Ensure that operators are trained on how to use and maintain roll tension load cells effectively.
As technology advances, several trends are emerging in the field of roll tension measurement:
- Smart Load Cells: Integration with IoT technology allows for remote monitoring and data analysis, enabling predictive maintenance strategies that improve operational efficiency.
- Enhanced Materials: Development of new materials for strain gauges that offer improved sensitivity and durability under varying environmental conditions is underway.
- Data Analytics Integration: Advanced analytics tools will enable better interpretation of data collected from roll tension measurements, leading to more informed decision-making processes within production environments.
Roll tension load cells are indispensable tools in industries where material tension control is vital. Their accuracy largely depends on proper installation, calibration, environmental conditions, and maintenance practices. While they offer numerous benefits such as precision measurement and real-time monitoring, challenges like calibration complexity and cost must also be considered when implementing these systems. With ongoing advancements in technology and materials science, roll tension load cells will continue to evolve, providing even greater accuracy and reliability in measuring tension across various applications.
A roll tension load cell is a sensor used to measure the force exerted by materials as they pass over rollers in various industrial applications.
To ensure accuracy, regularly calibrate your load cell, maintain proper installation alignment, and account for environmental factors such as temperature and humidity.
Industries such as printing, packaging, textiles, food processing, and material handling frequently utilize roll tension load cells for effective tension management.
Yes, temperature variations and humidity levels can impact measurement accuracy; many modern load cells include temperature compensation features to mitigate these effects.
Calibration frequency depends on usage; however, it is generally recommended to calibrate at least once a year or whenever significant changes occur in your operating conditions or setup.
