Tension measurement is a critical aspect in various industries, including manufacturing, construction, and research. Load cells are widely used for this purpose due to their precision and reliability. This article explores the accuracy of tension measurement with load cells, focusing on low profile load cells, their applications, advantages, and limitations.

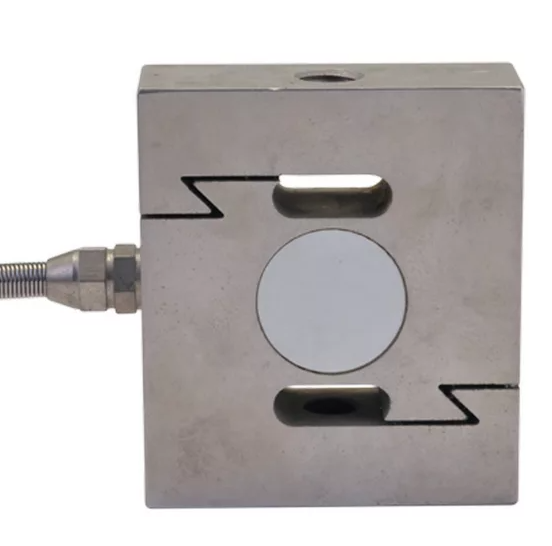

Load cells are transducers that convert a force into an electrical signal. They are essential in measuring weight or tension in various applications. The most common types of load cells include:

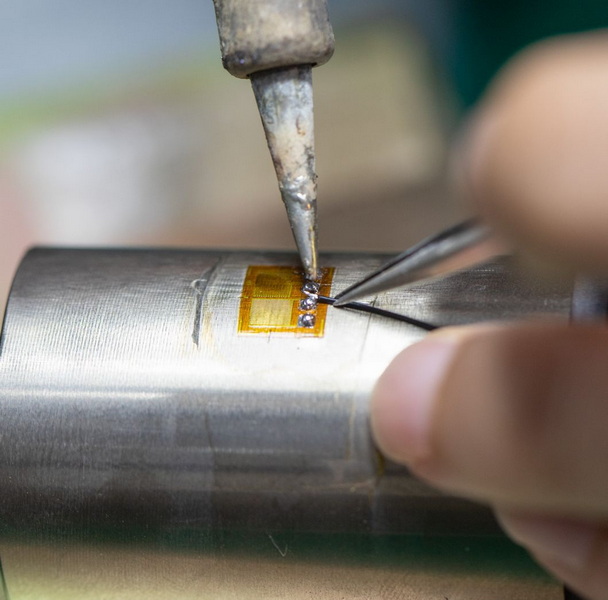

- Strain Gauge Load Cells: These use strain gauges to measure deformation and convert it into an electrical signal.
- Hydraulic Load Cells: These operate based on the pressure of fluid within a cylinder.
- Pneumatic Load Cells: These use air pressure to measure force.
Among these, low profile load cells are particularly popular due to their compact size and versatility.
Low profile load cells are designed to be slim and compact, making them suitable for applications where space is limited. They can be used in various environments, including:
- Industrial scales
- Material testing machines
- Tension measurement systems
Their design allows for easy integration into existing systems without requiring significant modifications.
The accuracy of tension measurement with load cells can be influenced by several factors:
Calibration is essential for ensuring accurate measurements. A properly calibrated load cell will provide reliable readings. Calibration involves comparing the load cell's output to a known standard and adjusting it accordingly.
Environmental factors such as temperature, humidity, and vibration can affect the accuracy of load cell measurements. For instance:
- Temperature Changes: Load cells may experience drift in their readings if the temperature fluctuates significantly.
- Vibration: Excessive vibrations can lead to erroneous readings.
The specifications of the load cell itself play a crucial role in determining accuracy. Key specifications include:
- Rated Capacity: The maximum load the cell can measure without damage.
- Non-linearity: The deviation from a straight line when plotting the output against the input.
- Hysteresis: The difference in readings when loading and unloading.
Proper installation is vital for accurate tension measurement. Misalignment or improper mounting can lead to inaccurate readings.
The quality of the signal processing equipment used with the load cell also impacts accuracy. High-quality analog-to-digital converters (ADCs) and signal conditioning circuits can enhance measurement precision.
Low profile load cells are utilized in various applications due to their accuracy and compact design:
- Tension Measurement in Cables: Used in construction and rigging to ensure safety by monitoring cable tension.
- Weighing Systems: Integrated into scales for precise weight measurements in industrial settings.

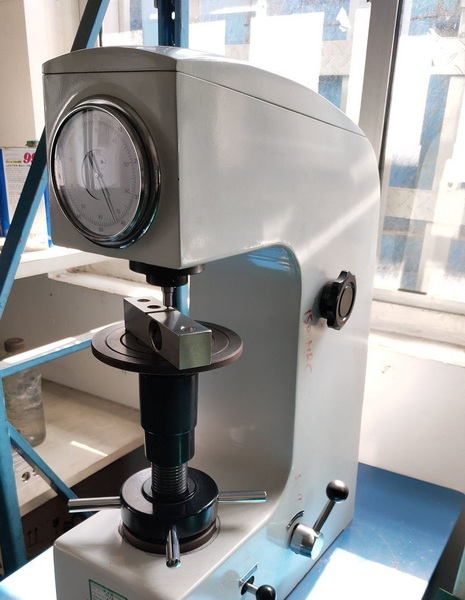

- Material Testing: Employed in laboratories to test the tensile strength of materials.
Using low profile load cells offers several advantages:
- Space Efficiency: Their compact design allows for installation in tight spaces.
- High Accuracy: They provide precise measurements, essential for critical applications.
- Versatility: Suitable for various applications across different industries.
Despite their advantages, low profile load cells also have some limitations:
- Cost: They can be more expensive than traditional load cells.
- Sensitivity to Environmental Factors: As mentioned earlier, they may require additional protection against temperature fluctuations and vibrations.
In conclusion, tension measurement with low profile load cells can be highly accurate if proper calibration, installation, and environmental considerations are taken into account. Their compact size and versatility make them ideal for various applications across multiple industries. However, users must be aware of their limitations and ensure that they implement best practices for optimal performance.
Low profile load cells typically offer an accuracy range of ±0.1% to ±0.5% of full scale, depending on the specific model and calibration.
It is recommended to calibrate your load cell at least once a year or whenever there are significant changes in environmental conditions or after any physical impact.
Yes, but they may require additional protective measures against environmental factors such as moisture and extreme temperatures.
Low profile load cells can test various materials, including metals, plastics, and composites, depending on their rated capacity.
Yes, it's crucial to follow manufacturer guidelines regarding alignment and mounting to ensure accurate measurements.
