Web tension sensors play a crucial role in modern manufacturing and processing, particularly in industries dealing with web-like materials such as paper, textiles, plastics, and metals. Material breakage during production can lead to significant waste, downtime, and increased costs. Implementing web tension sensors helps maintain consistent tension, preventing these issues and ensuring high-quality output.
Web tension refers to the force applied to a web material as it moves through a production process[7][9]. Proper tension control is essential for preventing defects, maintaining alignment, and ensuring consistent product quality[7]. Inadequate or inconsistent tension can lead to various problems, including:
- Material Overstretching: Excessive tension can cause the material to stretch beyond its elastic limit, leading to permanent deformation or breakage[9].
- Tearing: High tension concentrations at specific points can initiate tears, especially in weaker materials[9].
- Wrinkling: Insufficient tension can cause the material to sag and wrinkle, affecting the final product's appearance and functionality[9].
- Misalignment: Uneven tension distribution across the web width can cause it to wander or misalign, leading to defects in printing, coating, or laminating processes[7].
- Web Breakage: In extreme cases, uncontrolled tension can exceed the material's tensile strength, resulting in a complete web break[7].
Maintaining the correct level of tension on web materials is critical to ensure quality and minimize material breakage, wandering, and other process issues that can lead to unplanned downtime[4]. Variations in materials, material color, translucence and reflectivity, and environmental conditions can challenge a sensor's ability to detect and measure these targets[4].

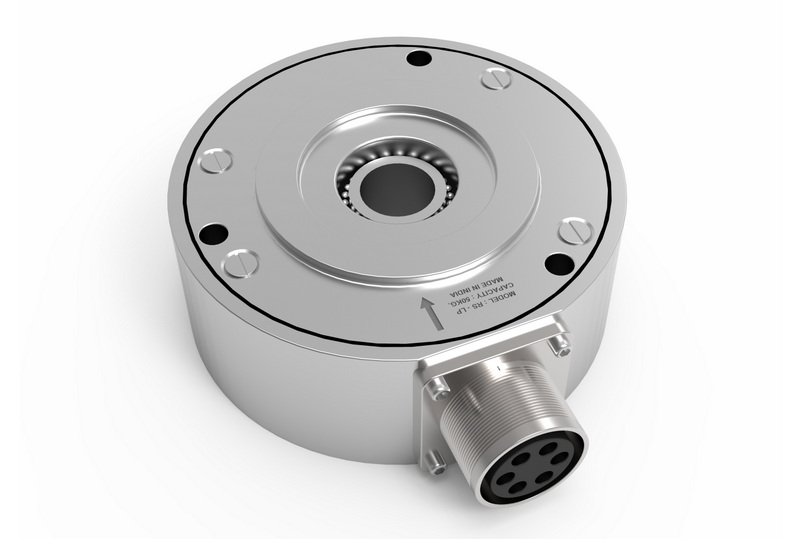

A web tension sensor is a device used to measure the tension of a web material in real-time[8][9]. These sensors provide feedback to a control system, which then adjusts the process parameters to maintain the desired tension level[9]. Web tension sensors are also known as load cells[5][8].

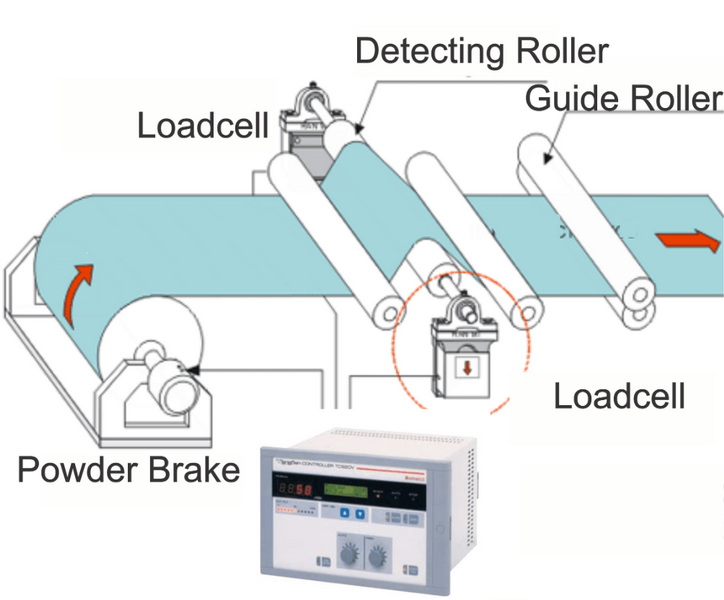

A typical web tension control system consists of several key components[9]:
- Tension Sensors: These sensors measure the force exerted by the web material.
- Controller Unit: This unit receives signals from the tension sensors, calculates the necessary adjustments, and sends commands to the actuators.
- Actuators: These devices adjust the speed, torque, or braking force of the web handling equipment to control the tension.
- User Interface: This interface allows operators to monitor the tension levels and adjust the control parameters.
Web tension controllers can be categorized into two main types[9]:
- Open-Loop Systems: These systems operate based on preset parameters without feedback from tension sensors. They are suitable for applications where the material properties and process conditions are relatively consistent.
- Closed-Loop Systems: These systems use feedback from tension sensors to continuously adjust the tension. They are more accurate and can compensate for variations in material properties, speed, and other factors.

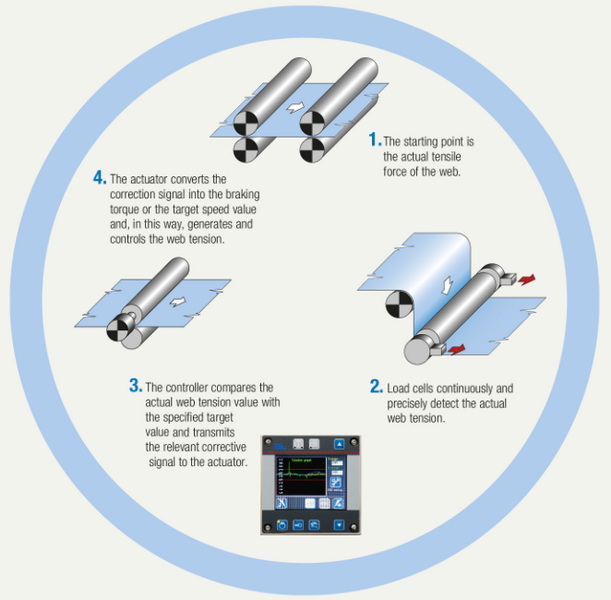

Web tension sensors typically use load cells to measure the force exerted by the web material[8][5]. The load cell is a transducer that converts mechanical force into an electrical signal[8]. When the web material applies tension to the roller, the load cell deforms, producing a corresponding change in its electrical output[8]. This signal is then amplified and processed by the controller unit to determine the actual tension level[5].
Implementing web tension sensors offers numerous benefits, including:
- Reduced Material Waste: Proper tension control prevents material overstretching, tearing, or wrinkling, reducing scrap rates and maximizing material utilization[7][9].
- Increased Productivity: Consistent tension control minimizes downtime caused by web breaks and other process interruptions, increasing overall productivity[7].
- Improved Product Quality: Maintaining the correct tension ensures consistent product dimensions, coating thickness, and other critical quality parameters[7].
- Enhanced Efficiency: Automated systems are more efficient and require fewer manual modifications[7]. This leads to increased productivity since operators can concentrate on other key components of the manufacturing process[7].
- Cost Savings: By reducing waste, downtime, and quality issues, web tension sensors can lead to significant cost savings[7].
- Ease of Operation: Modern web tension control systems are user-friendly and can be easily integrated into existing production lines[5].
- Defect Prevention: Maintaining adequate web tension is critical for defect prevention, precise control of printed materials, and web breakage prevention[7].
Web tension sensors are used in a wide range of industries, including:
- Printing: Ensuring consistent tension in printing presses prevents misregistration, smearing, and web breaks[7].
- Packaging: Maintaining proper tension in packaging machines prevents tearing, wrinkling, and sealing problems[9].
- Textiles: Controlling tension in textile manufacturing processes ensures uniform fabric dimensions and prevents damage to delicate materials[2].
- Paper Manufacturing: Regulating tension in paper mills prevents web breaks and ensures consistent paper thickness and quality[2].
- Converting: Precise tension control in converting processes, such as slitting, rewinding, and laminating, ensures accurate dimensions and prevents defects[7].
- Metals: Web tension sensors are crucial in metal processing for maintaining the integrity of foils and strips during rolling and coating[2].
Selecting the appropriate web tension sensor for a specific application requires careful consideration of several factors:
1. Material Properties: The sensor must be compatible with the web material's tensile strength, elasticity, and thickness[2].
2. Tension Range: The sensor's measuring range should match the expected tension levels in the process[5].
3. Accuracy: The sensor's accuracy should meet the required precision for the application[5].
4. Environmental Conditions: The sensor must be able to withstand the operating temperature, humidity, and other environmental factors[4].
5. Installation Requirements: The sensor's size, mounting configuration, and wiring requirements must be compatible with the existing equipment[5].
6. Control System Compatibility: The sensor's output signal must be compatible with the control system's input requirements[1].
Proper installation and calibration are essential for ensuring the accuracy and reliability of web tension sensors. The sensors should be mounted in a location that provides a representative measurement of the web tension[8]. Calibration should be performed regularly to compensate for drift and ensure accurate readings[2].
In addition to tension control, some systems include web break detection features[1]. These systems use sensors to detect sudden drops in tension, indicating a web break[1]. When a break is detected, the system can automatically stop the machine to prevent further damage and reduce waste[1].
Although the risk of a web break may never fully be eliminated, the risk can certainly be minimized by having a high quality complete tension control system in place[1]. Montalvo Web Break Detection enabled controllers are just one feature of the controller, and part of a complete tension control line of products[1].
Web tension sensors are indispensable tools for preventing material breakage and ensuring high-quality output in web processing industries. By providing real-time tension feedback and enabling precise control, these sensors minimize waste, reduce downtime, and improve overall efficiency. Choosing the right sensor and implementing proper installation and calibration procedures are critical for maximizing the benefits of web tension control. As technology advances, web tension sensors will continue to play a vital role in optimizing web processing operations across various industries.
Web tension refers to the force applied to a web material as it moves through a production process[7][9]. Maintaining proper web tension is crucial for preventing material defects like overstretching, tearing, wrinkling, and misalignment, which can lead to waste and downtime[9]. Consistent tension ensures high-quality output in processes such as printing, packaging, and textile manufacturing[7].
A web tension sensor, typically using load cells, measures the force exerted by the web material in real-time[8][5]. The load cell converts mechanical force into an electrical signal, which is then amplified and processed by a controller unit[8]. The controller adjusts process parameters to maintain the desired tension level based on the sensor's feedback[9].
The primary benefits include reduced material waste, increased productivity, improved product quality, enhanced efficiency, and cost savings[7][9]. Proper tension control minimizes downtime caused by web breaks and other interruptions[7]. Automated systems also require fewer manual adjustments, allowing operators to focus on other critical tasks[7].
Web tension sensors are used across various industries dealing with web-like materials[7]. Common applications include printing, packaging, textiles, paper manufacturing, converting, and metals processing[2][7][9]. They ensure consistent material handling and prevent defects in these diverse processes[7].
Selecting the right sensor involves considering material properties, tension range, accuracy, environmental conditions, installation requirements, and control system compatibility[2][4][5]. The sensor must be compatible with the web material's characteristics and able to withstand the operating environment[2][4]. Proper installation and regular calibration are essential for accurate and reliable measurements[8].
