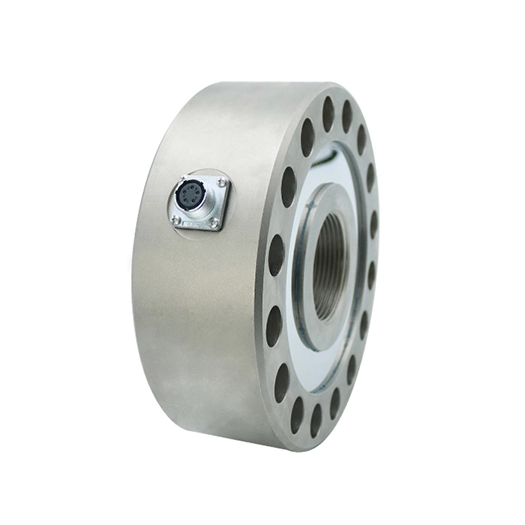

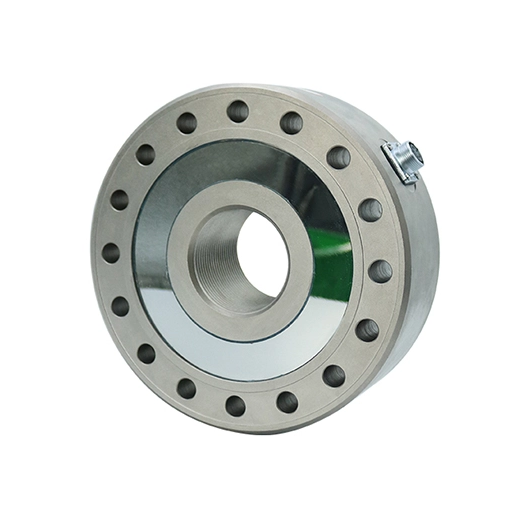

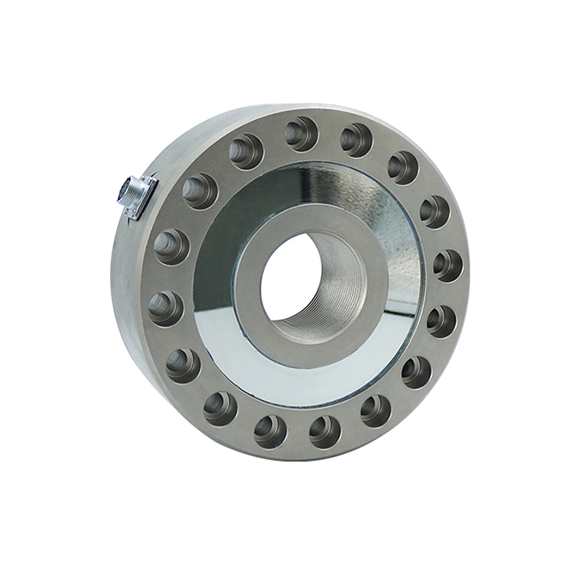

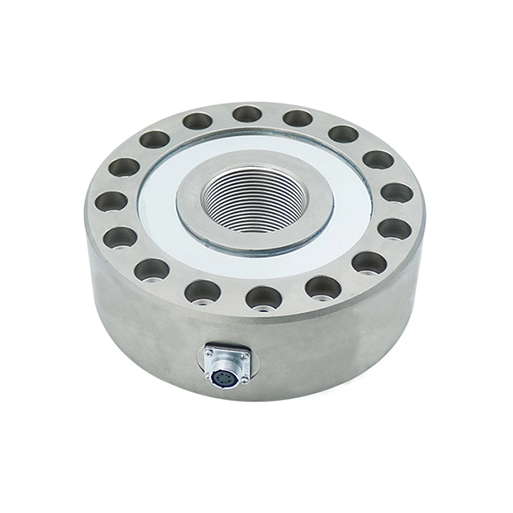

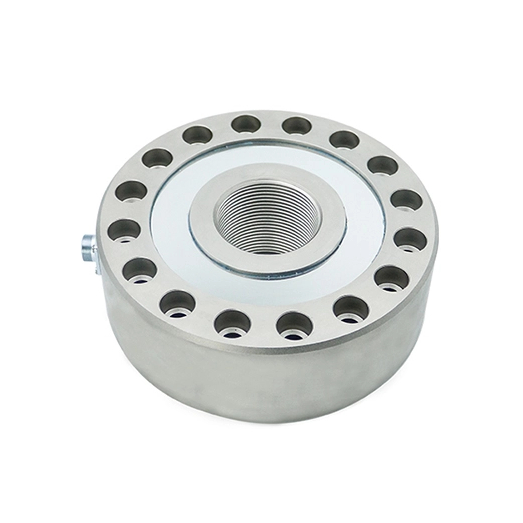

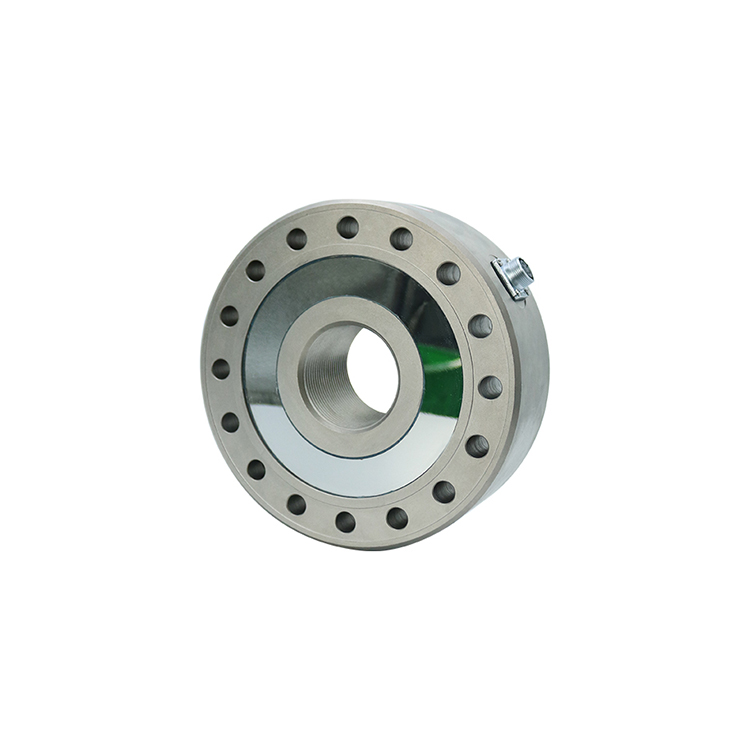

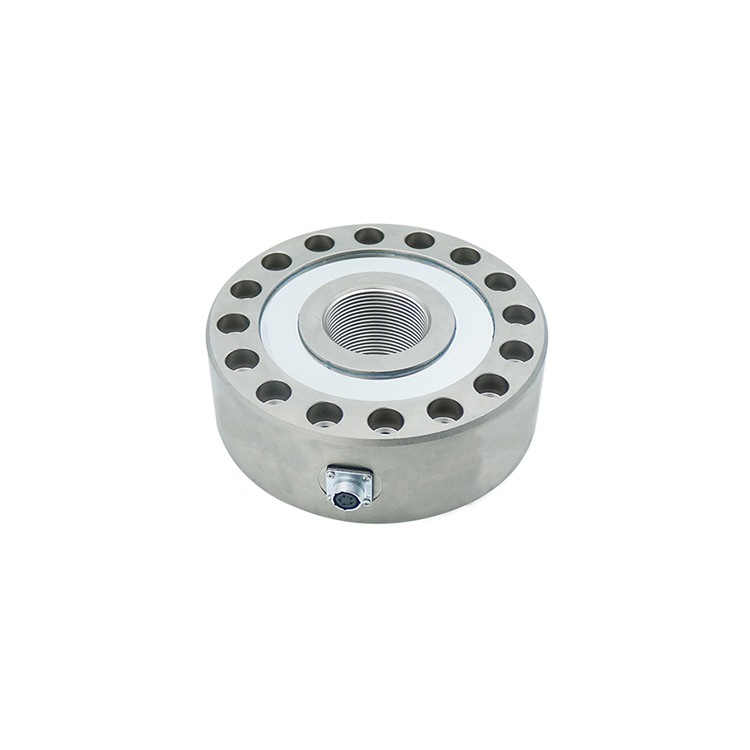

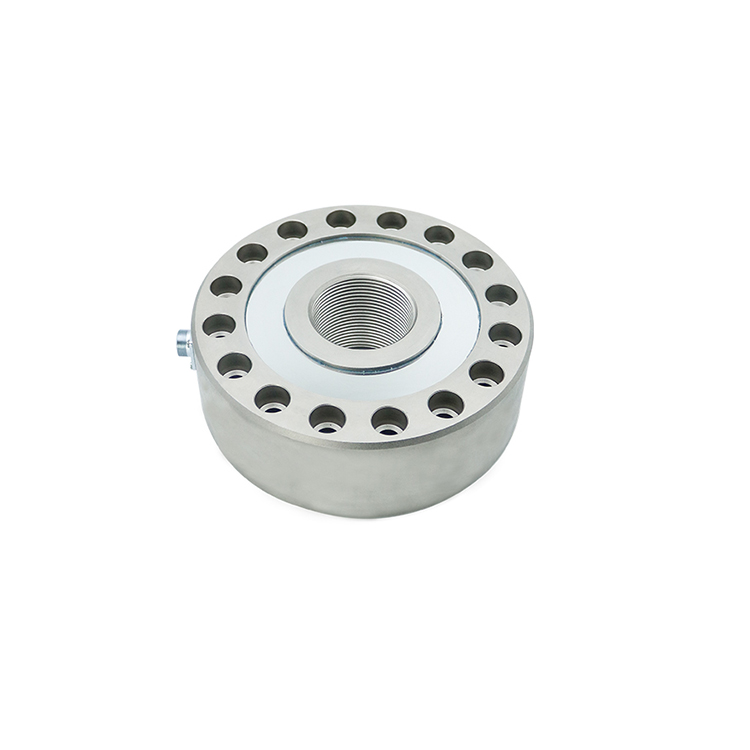

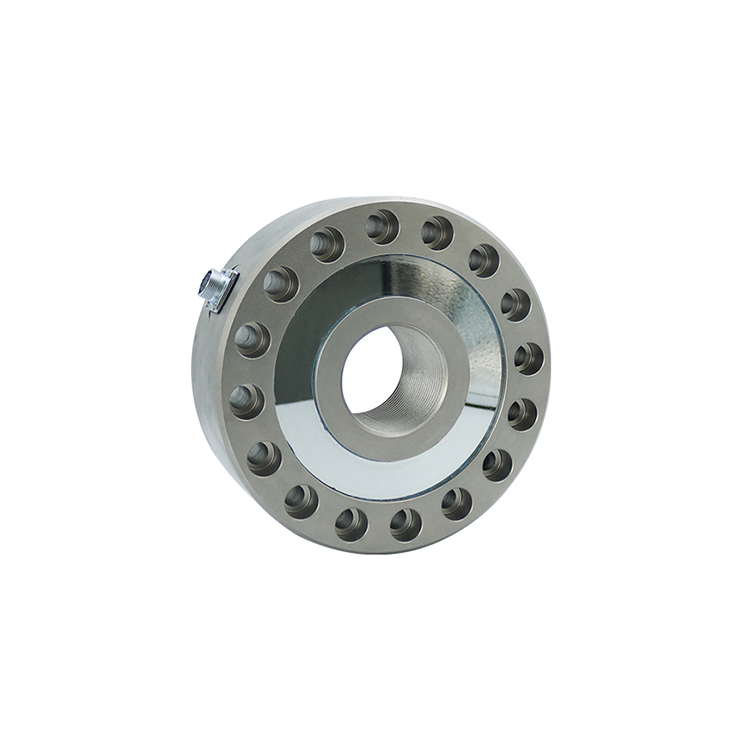

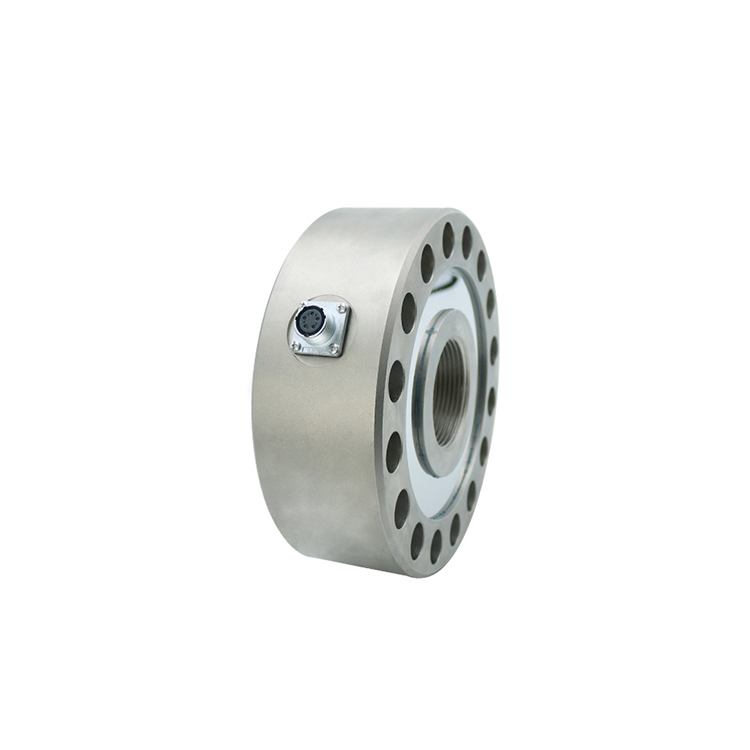

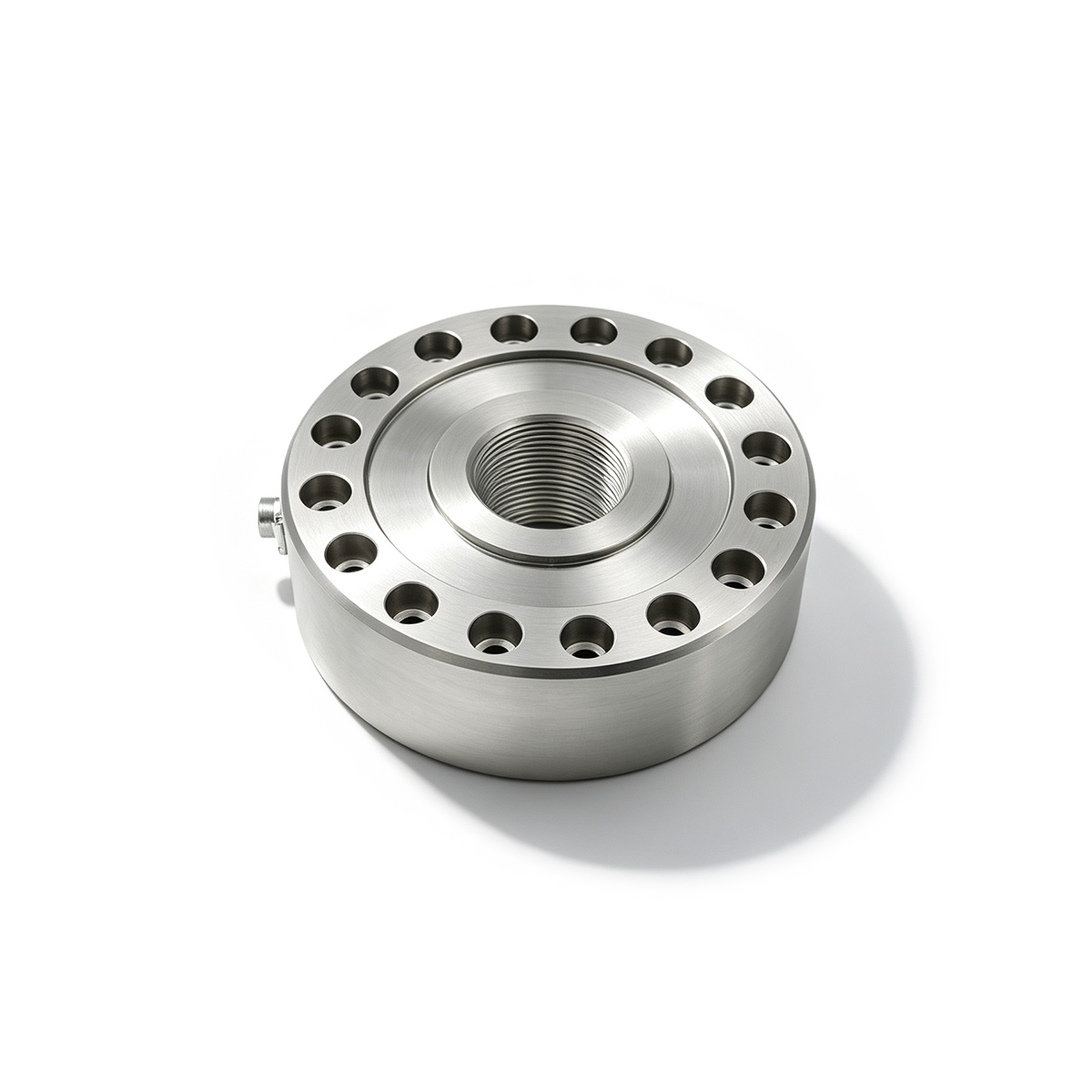

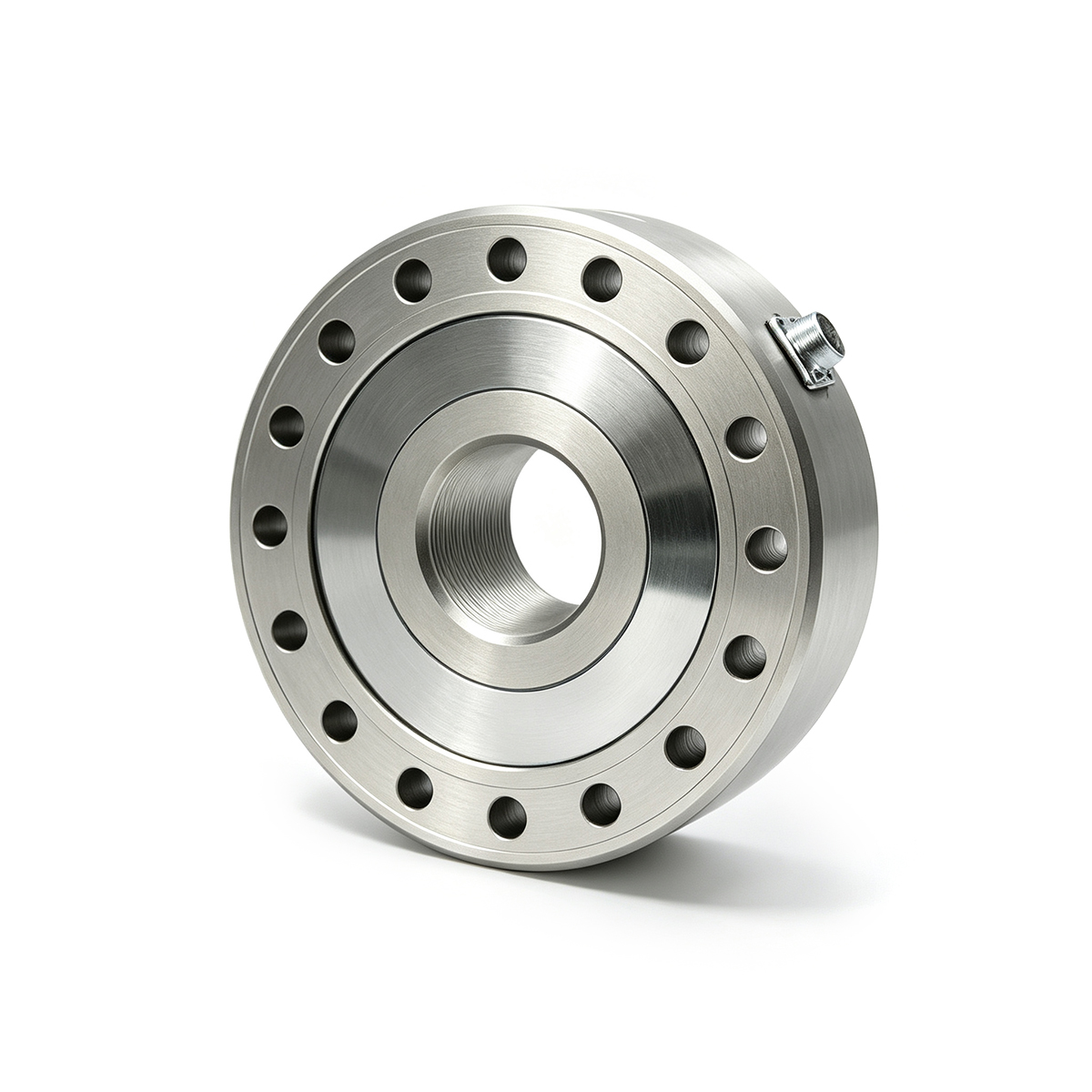

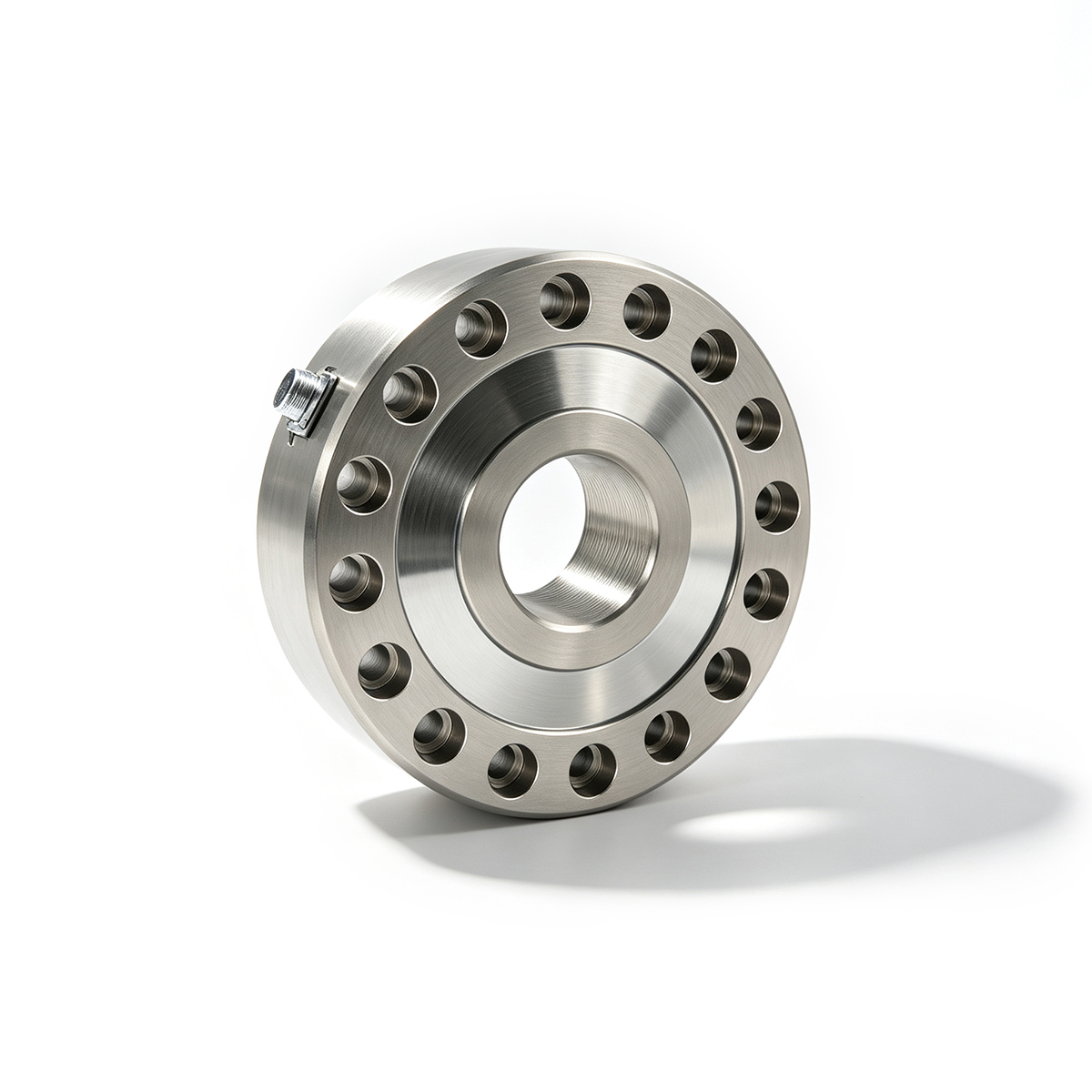

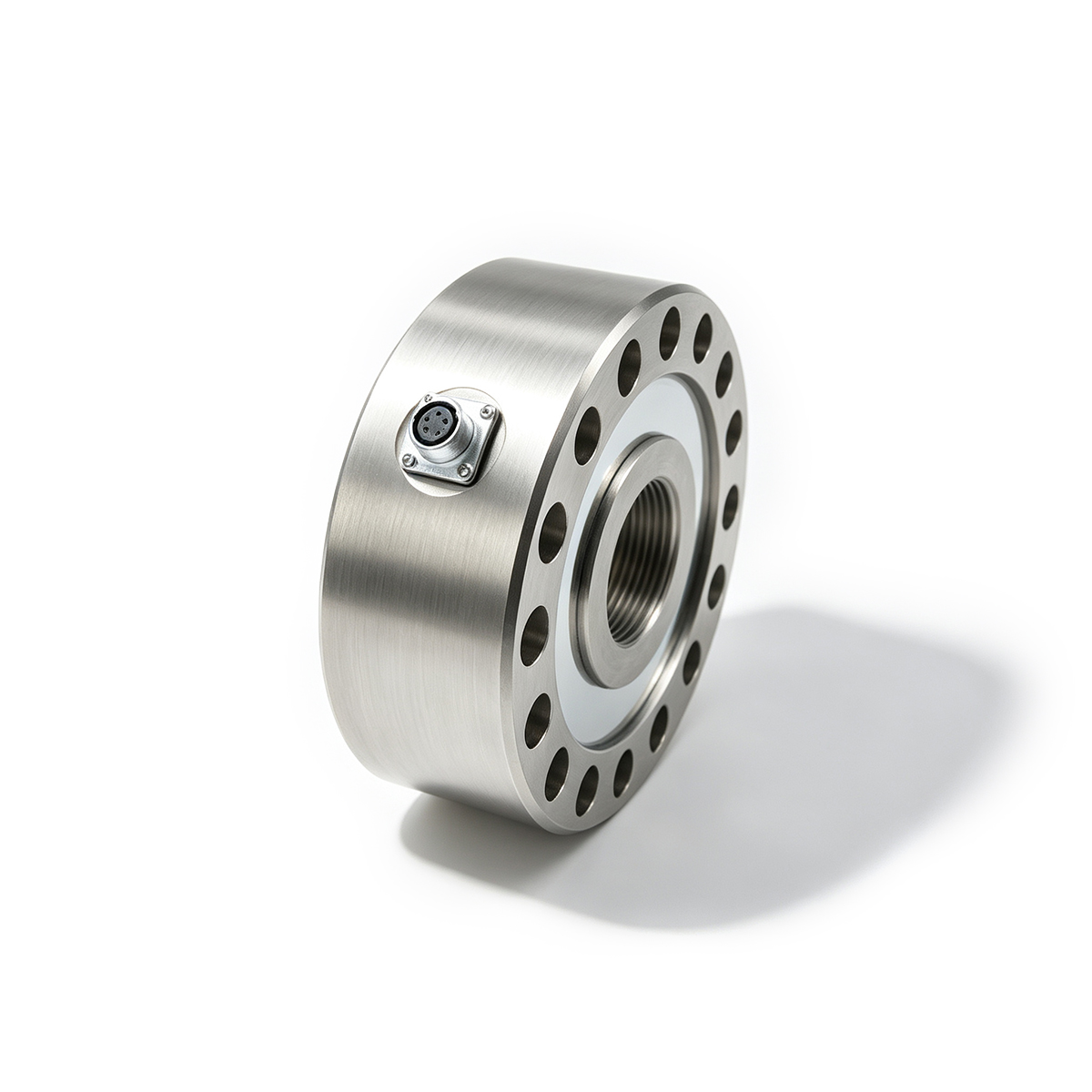

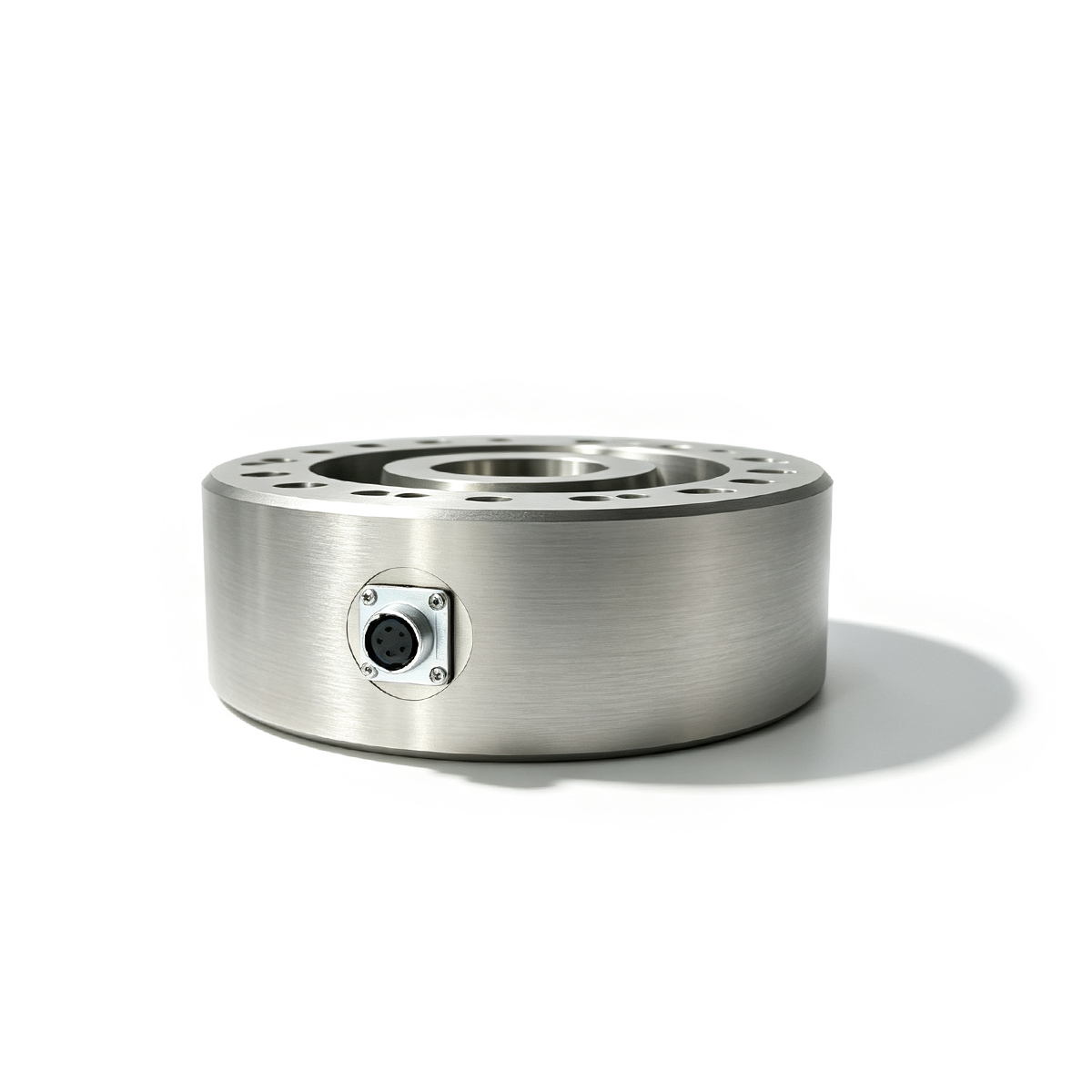

FA120C
FIBOS
50,70
≤0.1%F.S.
See the detailed dimensions table
＜0.09mm
＞5KHz
Alloy Steel

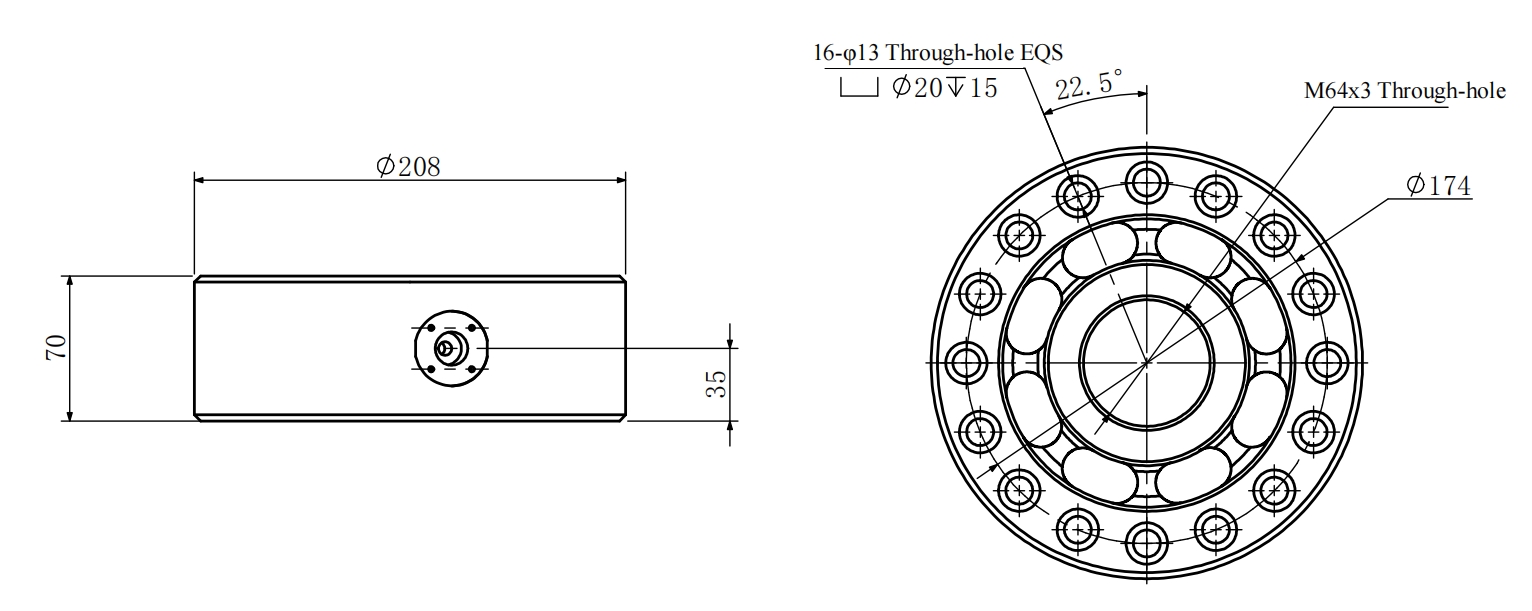

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |

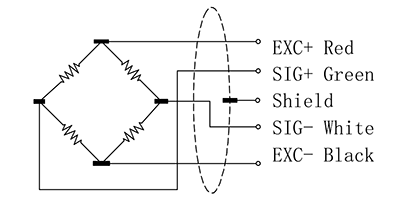

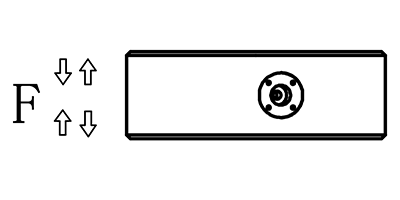

| Load Direction | Wiring |
 |  |
| Specifications |
Specifications | Technique |
Capacity | 50,70t |
Sensitivity | 2.0±1%mV/V |
Zero balance | ±1%mV/V |
Creep | ≤0.1%F.S. |
Non-linearity | ≤0.1%F.S. |
Hysteresis | ≤0.1%F.S. |
Repeatability | ≤0.05%F.S. |
Input impedance | 780±20Ω |
Output impedance | 700±10Ω |
Temp. effect on output | 0.05%F.S./10℃ |
Temp. effect on zero | 0.05%F.S./10℃ |
Insulation resistance | ≥5000MΩ/100V(DC) |
Recommended excitation | 5~15V |
Maximum excitation | 20V |
Compensated temp. range | -10~40℃ |
Operating temp. range | -10~70℃ |
Safe overload | 150%F.S. |
Ultimate overload | 200%F.S. |
Cable size | Φ6X5m |
Material | Alloy Steel |

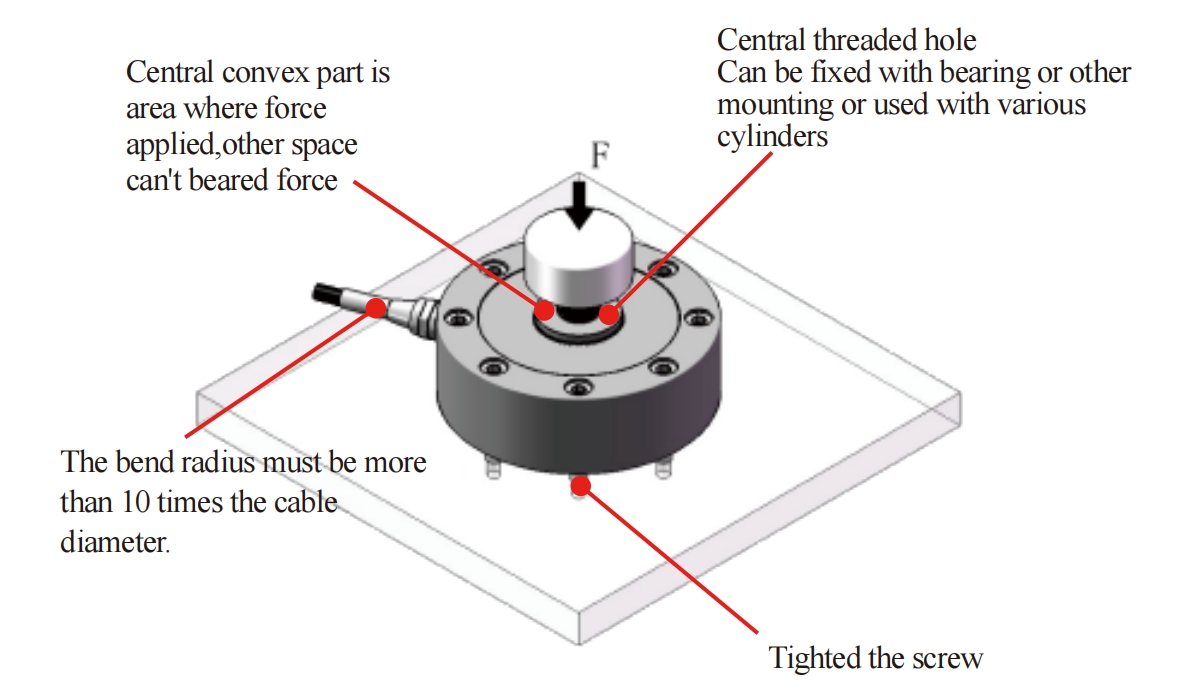

| Installation |
| Delivery Configurations |
Russia
to facilitate your design of workpiece.
