Tension load cells are crucial components in various applications, from industrial weighing systems to material testing. The sensitivity of a tension load cell is paramount, as it determines the device's ability to detect small changes in load. Improving this sensitivity can lead to enhanced measurement accuracy and reliability. This article will delve into strategies for optimizing the sensitivity of tension load cell designs, covering aspects such as material selection, calibration, installation practices, and signal conditioning.

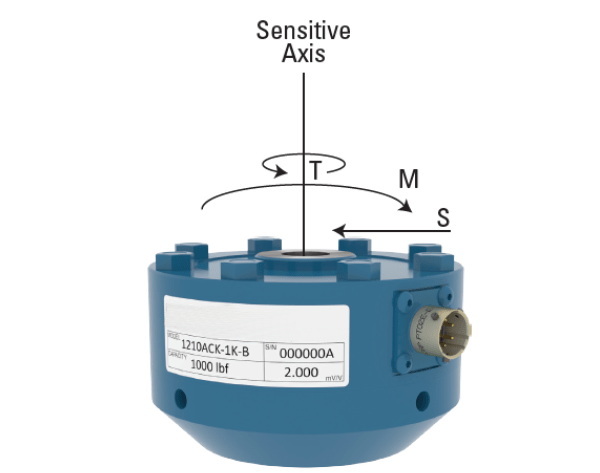

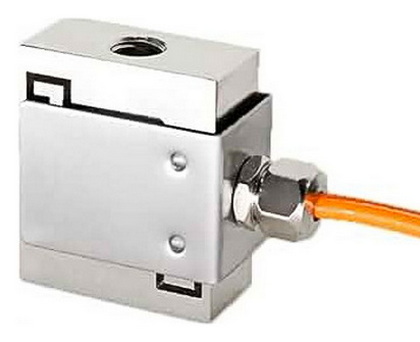

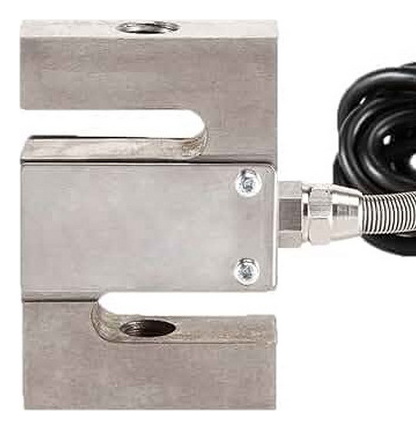

A tension load cell is a type of force transducer designed to measure tensile forces by converting mechanical deformation into an electrical signal. The output of a load cell is typically expressed in millivolts per volt (mV/V), indicating how much the output voltage changes per unit of load applied. For example, a load cell with a sensitivity of 2 mV/V means that for every volt supplied, the output will change by 2 mV when the full-rated load is applied.
1. Material Selection
- The choice of materials significantly impacts the sensitivity and durability of tension load cells. Common materials include stainless steel and aluminum, each offering unique benefits. Stainless steel is often preferred for its robustness in harsh environments, while aluminum may be used for lighter applications due to its lower weight.
2. Design and Geometry
- The physical design and geometry of a load cell can enhance its sensitivity. For instance, low-profile designs minimize loading errors and improve performance in confined spaces. The arrangement and placement of strain gauges within the load cell also play a critical role in determining its sensitivity.
3. Temperature Compensation
- Temperature variations can affect the electrical properties of load cells, leading to measurement inaccuracies. Incorporating temperature compensation mechanisms helps maintain consistent performance across varying environmental conditions.
4. Calibration
- Regular calibration is essential for maintaining accuracy and sensitivity over time. Calibration involves adjusting the output of the load cell to match known standards, compensating for any drift in measurements that may occur due to aging or environmental factors.
5. Signal Conditioning
- The electrical signal generated by a tension load cell can be weak and susceptible to noise. Implementing signal conditioning techniques such as amplification and filtering enhances the quality of this signal before processing, improving overall measurement accuracy.
To ensure your tension load cell maintains its sensitivity:
- Use certified weights for calibration.
- Gradually apply known weights while recording output readings.
- Compare these readings with known weights to identify discrepancies.
Choose materials that enhance both sensitivity and durability:
- Stainless steel for heavy-duty applications.
- Aluminum for lightweight needs.
When designing your tension load cell:
- Opt for low-profile designs where space is limited.
- Ensure proper placement of strain gauges to maximize sensitivity.
Incorporate mechanisms that account for temperature fluctuations:
- Use materials with low thermal expansion coefficients.
- Design circuits that adjust outputs based on temperature readings.
Enhance signal quality through:
- Amplification: Increase the strength of weak signals.
- Filtering: Remove noise from signals to ensure only relevant data is captured.
Proper installation is crucial for maintaining measurement accuracy and sensitivity:
- Ensure alignment: The load cell must be properly aligned with the force being measured.
- Secure mounting: Use appropriate hardware to firmly secure the load cell.
- Follow manufacturer guidelines: Adhere to specific installation instructions provided by the manufacturer.
While basic practices are essential, advanced techniques can further improve the sensitivity of tension load cells:
Utilizing Finite Element Analysis during the design phase allows engineers to simulate how different designs will respond under various loads. By analyzing stress distribution and deformation patterns, designers can optimize their designs for maximum sensitivity before physical prototypes are built.
The configuration of strain gauges on a tension load cell significantly affects its performance:
- Wheatstone Bridge Configuration: This setup maximizes output voltage changes in response to strain, enhancing sensitivity.
- Temperature Coefficients: Selecting strain gauges with low temperature coefficients ensures that temperature variations do not adversely affect measurements.
Incorporating high-precision components such as low-noise amplifiers and high-resolution analog-to-digital converters (ADCs) into your system can significantly enhance measurement fidelity and overall system performance.
Environmental factors can greatly influence the performance of tension load cells:
High humidity levels can lead to condensation inside electronic components, affecting performance:
- Use sealed enclosures or conformal coatings on electronic parts to protect against moisture.
- Consider using desiccants or humidity control systems in environments where moisture levels fluctuate significantly.
Vibrations from nearby machinery or processes can introduce noise into measurements:
- Install vibration isolation mounts or pads beneath the load cell setup.
- Positioning the load cell away from sources of vibration can also help maintain measurement integrity.
Understanding how improved sensitivity impacts real-world applications can provide valuable insights:
In industrial settings where precision weighing is critical—such as food processing or pharmaceuticals—enhanced sensitivity ensures compliance with regulations and quality control standards.
In laboratories conducting tensile strength tests on materials, increased sensitivity allows for more accurate assessments of material properties, leading to better product development and safety evaluations.
In aerospace applications where safety is paramount, high-sensitivity tension load cells are used in testing aircraft components under various stress conditions to ensure reliability during operation.
Improving the sensitivity of tension load cells involves a multifaceted approach that includes careful consideration of materials, design, calibration, environmental factors, and advanced techniques such as FEA and high-precision components. By implementing these strategies, you can enhance measurement accuracy and reliability in various applications, ensuring optimal performance over time.
The typical sensitivity range for tension load cells is usually between 1 mV/V to 3 mV/V, with 2 mV/V being common for many applications.
Temperature fluctuations can alter the electrical properties of a load cell, leading to inaccuracies in measurements unless temperature compensation mechanisms are implemented.
Regular calibration ensures that the output readings from a tension load cell remain accurate over time, compensating for any drift or changes due to environmental factors.
Signal conditioning enhances the quality of the electrical signal generated by a tension load cell, making it less susceptible to noise and improving overall measurement accuracy.
Yes, many tension load cells are designed to measure both tension and compression forces effectively.
