Web tension control is crucial in various manufacturing processes, particularly in industries dealing with flexible materials such as paper, film, and textiles. Maintaining consistent tension across a web is essential to avoid defects and ensure product quality. One of the most effective tools for managing web tension is the low profile load cell. This article explores how web tension load cells help prevent tension imbalances, enhancing productivity and product quality.
Web tension refers to the force exerted on a moving material as it passes through various sections of a production line. Proper tension control is vital for:
- Preventing material defects such as wrinkles, breaks, and uneven coatings.
- Ensuring accurate registration during printing processes.
- Maintaining consistent quality across all products.
Tension imbalances can lead to significant production issues, including:
- Wrinkling: Excessive tension can cause the material to stretch and wrinkle.
- Tearing: Insufficient tension may result in slack, leading to tearing during processing.
- Quality Variations: Inconsistent tension can affect the quality of printed images or coatings.

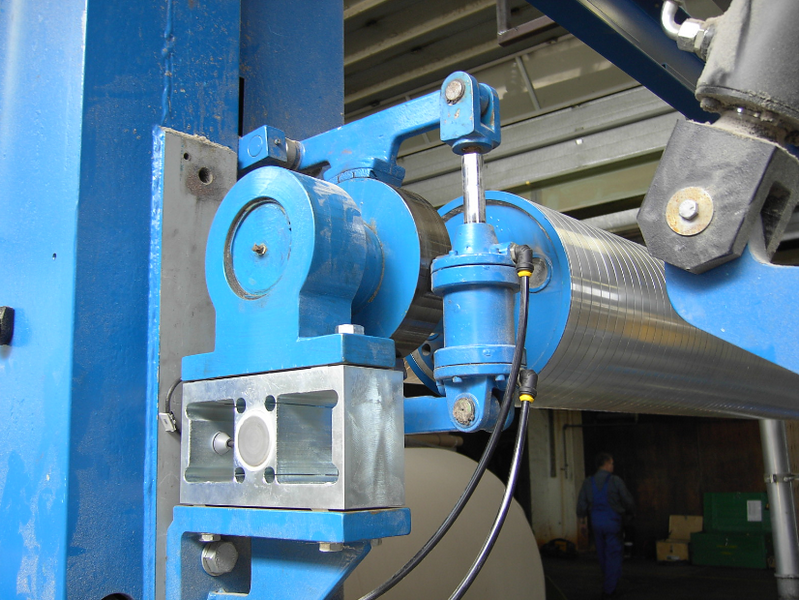

Load cells are sensors that convert mechanical force into an electrical signal. They are integral to web tension control systems, providing real-time feedback on the tension levels within the web. Here's how they function:
1. Measurement: Load cells measure the force exerted on them by the web as it passes over rollers or through processing equipment.
2. Feedback: The measured data is sent to a control system, which adjusts the operation of brakes or motors to maintain the desired tension level.
3. Control Loop: This creates a closed-loop system where continuous adjustments are made based on real-time data.
Different types of load cells can be employed depending on the specific application requirements. Common types include:
- Strain Gauge Load Cells: These are widely used due to their accuracy and reliability. They consist of a metal body with strain gauges attached that detect deformation under load.
- Dancer Roll Systems: While not load cells per se, these systems work alongside load cells by using a movable roll to absorb variations in web tension.

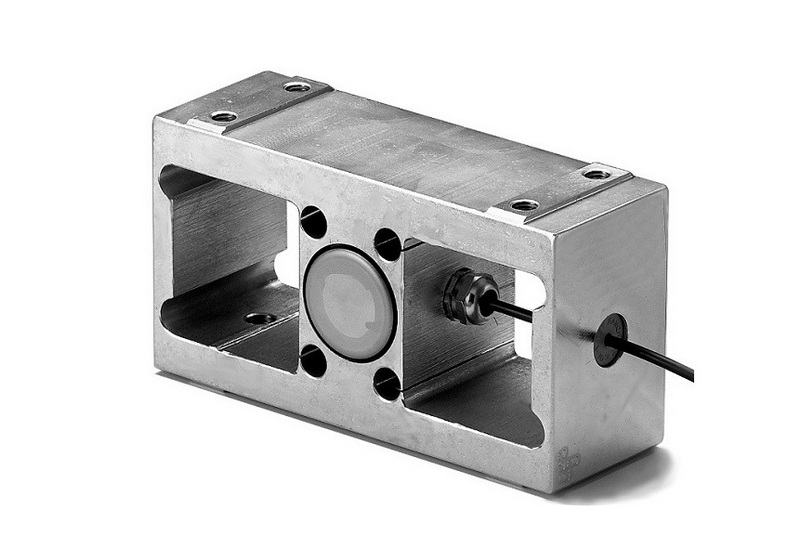

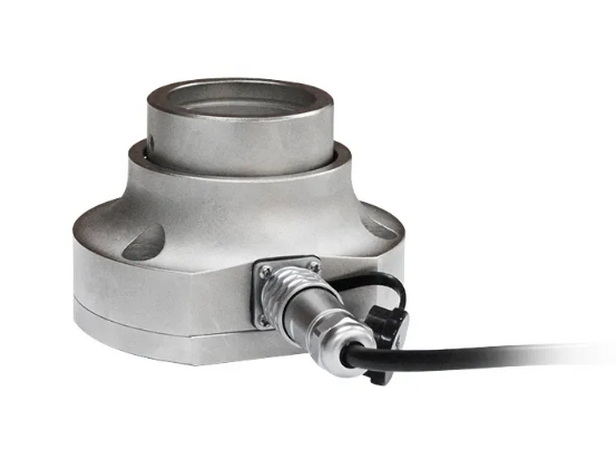

Low profile load cells offer several advantages that make them ideal for web tension applications:
- Compact Design: Their low height allows for easy integration into existing machinery without requiring significant modifications.
- High Precision: These load cells provide accurate measurements even at low tension levels, making them suitable for delicate materials.
- Durability: Many low profile load cells are designed to withstand harsh industrial environments, ensuring longevity and reliability.
Load cells play a pivotal role in preventing tension imbalances through various mechanisms:
Load cells continuously monitor the tension levels in real-time. This allows operators to detect any deviations from set parameters immediately. For instance, if a web becomes too loose or too tight, the system can quickly adjust the torque applied by brakes or motors to correct the imbalance.
With advanced control systems integrated with load cells, automated adjustments can be made without human intervention. This is particularly beneficial in high-speed production environments where manual adjustments would be impractical.
Many modern load cell systems come equipped with data logging capabilities. This allows manufacturers to analyze historical data on tension levels, leading to better understanding and optimization of processes over time.
By employing closed-loop control systems that utilize feedback from load cells, manufacturers can maintain optimal tension levels throughout various stages of production. This leads to improved product quality and reduced waste.
Web tension load cells are utilized across various industries, including:
- Printing: Ensuring consistent ink application and registration.
- Textiles: Maintaining proper fabric tension during weaving and finishing processes.
- Packaging: Controlling film tensions during packaging operations to avoid defects.
Web tension load cells are essential tools in modern manufacturing processes that involve flexible materials. By providing real-time feedback and enabling automated adjustments, these devices help prevent tension imbalances that can lead to significant production issues. Their compact design and high precision make low profile load cells particularly suitable for integration into existing systems.
As industries continue to demand higher quality and efficiency, investing in advanced web tension control systems will be crucial for maintaining competitive advantages.
A web tension load cell is a sensor used to measure the force exerted on a moving web material, converting this mechanical force into an electrical signal for monitoring and control purposes.
By continuously monitoring web tension levels and allowing for immediate adjustments, load cells help prevent defects such as wrinkles or tears in the material, ensuring consistent product quality.
Yes, low profile load cells are designed for easy integration into existing machinery without significant modifications due to their compact design.
Industries such as printing, textiles, packaging, and any other sectors that process flexible materials benefit from using web tension load cells for improved quality control.
Selecting the right load cell involves considering factors such as the maximum expected tension, environmental conditions, mounting requirements, and whether you need additional features like data logging capabilities.
