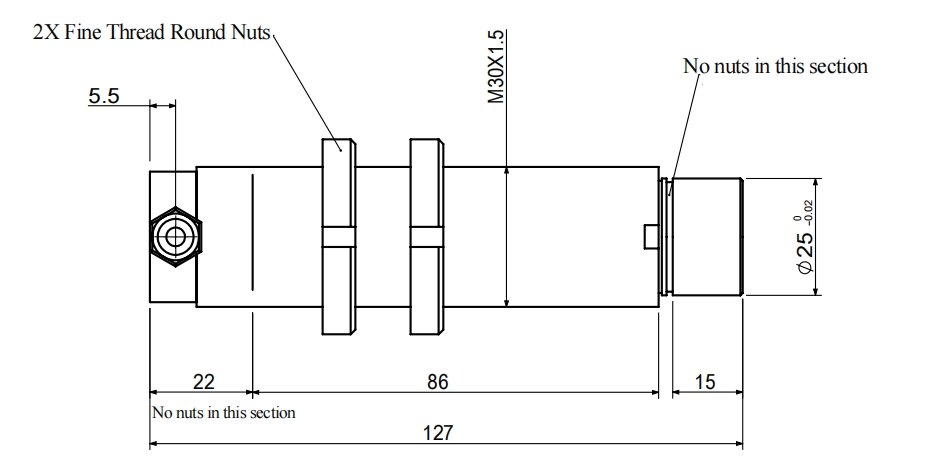

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |

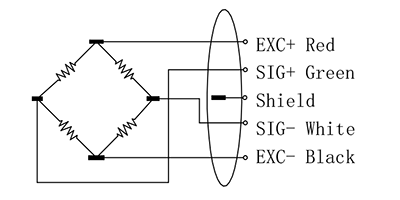

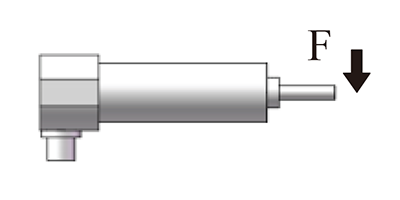

| Load Direction | Wiring |
 |  |
| Specifications |
Specification | Technique |
Capacity | 30,50kg |
Sensitivity | 1.0±10%mV/V |
Zero balance | ±0.02mV/V |
Creep(30min) | ≤0.1%F.S. |
Non-linearity | ≤0.1%F.S. |
Hysteresis | ≤0.1%F.S. |
Repeatability | ≤0.05%F.S. |
Input impedance | 350±5Ω |
Output impedance | 350±5Ω |
Temp. effect on output | 0.1%F.S./10℃ |
Temp. effect on zero | 0.1%F.S./10℃ |
Insulation resistance | ≥5000MΩ/100V(DC) |
Recommended excitation | 5~12V |
Maximum excitation | 15V |
Compensated temp. range | -10~40℃ |
Operating temp. range | -20~75℃ |
Safe overload | 150%F.S. |
Ultimate overload | 200%F.S. |
Cable size | Φ5x3000mm |
Material | Alloy Steel |
| Function Feature |
▶ Simple and convenient installation
▶ Anti-overload protection
▶ Small temperature effect, good linearity and repeatability errors
▶ Small size, small installation space required
| Delivery Configurations |
