Strain gauge compression and tension sensors are widely used in various industries for measuring forces, including those in high-load applications. These sensors rely on the principle of strain gauges, which convert mechanical deformation into electrical signals. In China, these sensors are manufactured with advanced technology to ensure high precision and reliability in handling high loads. This article will delve into how China's strain gauge compression and tension sensors are designed and utilized in high-load applications.

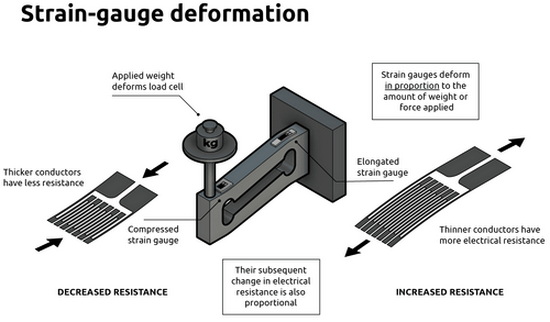

Strain gauge sensors are a type of load cell that uses strain gauges to measure deformation caused by applied forces. These gauges are typically made from a fine wire or metal foil arranged in a grid pattern. When a force is applied, the strain gauge deforms, causing a change in its electrical resistance. This resistance change is then converted into a voltage signal using a Wheatstone bridge circuit, which is proportional to the applied force[9].
graph LR;
A[Strain Gauge] -->|Deforms under force|> B[Resistance Change];
B -->|Converted via Wheatstone Bridge|> C[Output Voltage];
C -->|Proportional to Applied Force|> D[Force Measurement];
China's strain gauge compression and tension sensors are designed with robust materials and advanced manufacturing techniques to handle high loads effectively. These sensors often feature stainless steel or alloy steel construction, which provides durability and resistance to corrosion. They are also equipped with rubber seals for protection against environmental factors.
Key Features:
- Material: Alloy steel or stainless steel for durability.
- Protection: Rubber seals for environmental protection.
- Applications: Robotics, mechanical testing, batching scales, and machine change scales[1].
High-load applications require sensors that can accurately measure large forces without compromising precision or reliability. China's strain gauge sensors are designed to meet these demands through several key features:
1. High Precision Strain Gauges: These gauges are highly sensitive and can detect even slight deformations, ensuring accurate measurements under high loads[5].
2. Robust Construction: The use of stainless steel or alloy steel ensures that the sensors can withstand high forces without structural failure[2][3].
3. Advanced Mounting Systems: Simple and secure mounting systems help ensure that the forces are applied concentrically, reducing errors due to lateral forces[2][3].
Strain gauge compression and tension sensors are used in various high-load environments, including:
- Industrial Weighing Systems: These sensors are crucial in batching scales and machine change scales where precise weight measurement is essential[1].
- Laboratory Testing: They are used in materials testing and mechanical testing for measuring forces under controlled conditions[6].
- Robotics: In robotics, these sensors help in precise force feedback, enabling robots to perform delicate tasks[1].
Despite their robust design, strain gauge sensors face challenges in high-load applications, such as:
- Lateral Forces: These can cause inaccuracies if not properly managed. Solutions include using force distributing caps or adapters to ensure forces are applied along the central axis[2][3].
- Environmental Factors: Protection against moisture and extreme temperatures is crucial for maintaining sensor accuracy[1].
China's strain gauge compression and tension sensors are designed to handle high-load applications effectively by combining robust materials, advanced strain gauge technology, and precise mounting systems. These sensors play a critical role in various industries, ensuring accurate force measurement under demanding conditions.
Strain gauge sensors work by converting mechanical deformation into electrical signals. When a force is applied, the strain gauge deforms, causing a change in resistance, which is then converted into a voltage signal using a Wheatstone bridge circuit[9].
China's strain gauge sensors handle high loads through robust construction, high precision strain gauges, and advanced mounting systems that ensure forces are applied concentrically[2][3].
Common applications include industrial weighing systems, laboratory testing, and robotics, where precise force measurement is critical[1][6].
Lateral forces are managed by using force distributing caps or adapters to ensure that forces are applied along the central axis of the sensor[2][3].
Typically, materials like stainless steel or alloy steel are used for their durability and resistance to corrosion[1][2].
