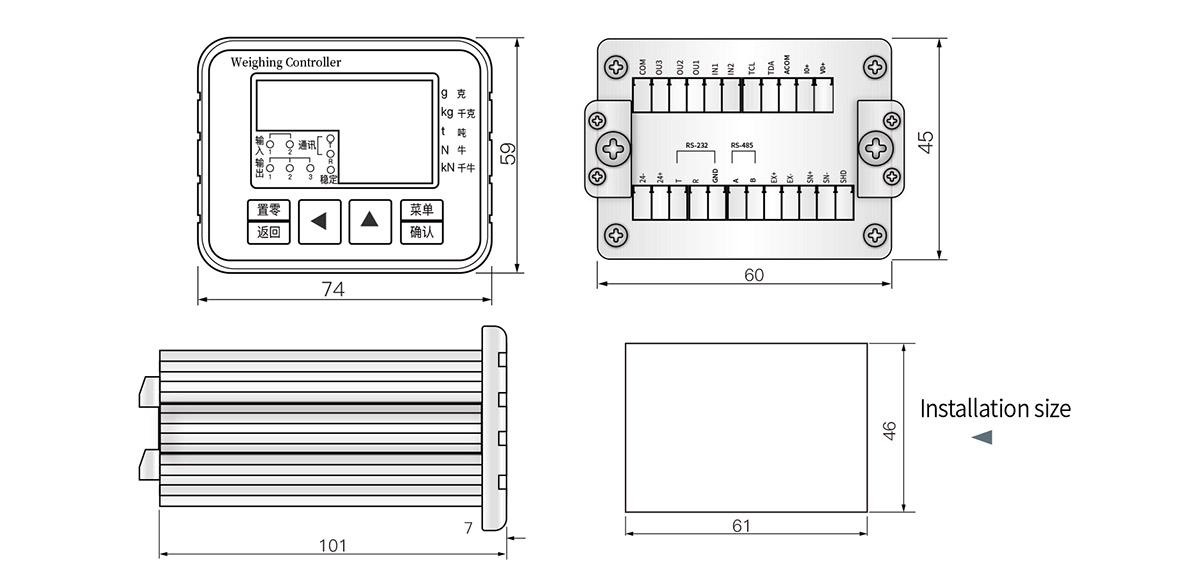

| Dimensions（Unit：mm） |
| Function Feature | |
▶ The product also has 4-20mA, ±10V analog output signals, which can be selected through the internal parameters of the instrument. ▶ The product also has RS485, RS232 digital communication, can be selected through the internal parameters of the instrument. ▶ Controller with upper limit, middle limit, lower limit boundaries judgment function | ▶ I / 0 has 2 in 3 out, can be customized input and output port function, low level effective ▶ The controller output can be driven by the upper computer, which can partially replace PLC ▶ The power supply of the controller adopts DC24V power supply, and the voltage relaxation of 5V is more safe and stable |
| Specifications |
Specifications | Technique |
| Display | Double-row LED display |
| Readability | 1/90000 |
| Output Linear | ＜0.002% |
| Comprehensive Accuracy | Better than 0.01% |
| A/D Conversion Speed | ≤1600t/s |
| Maximum Signal Input Range | -3.6~+3.6mV/V |
| Input Load | 8pcs 350Ω Sensors |
| Analog Output Specification | ±10V/0~10V/4~20mA(Optional parameters) |
| Com. Output Specification | RS232/RS485(Optional parameters) |
| Output Specification(I/O) | Relay/Transistor(Hardware Optional) |
| Temp. Effect on Output | ≤10ppm/℃ |
| Temp. Effect on Zero | ≤10μV/℃ |
| Excitation Voltage | 5VDC |
| Power Supply | DC24V±5V |
| Power Waste | ≤10W |
| Operation Temp. Range | -20~70℃ |
| Weight Approx. | 0.5kg |
| Material | Aluminum Alloy |
| Installation |
| Delivery Configurations |
